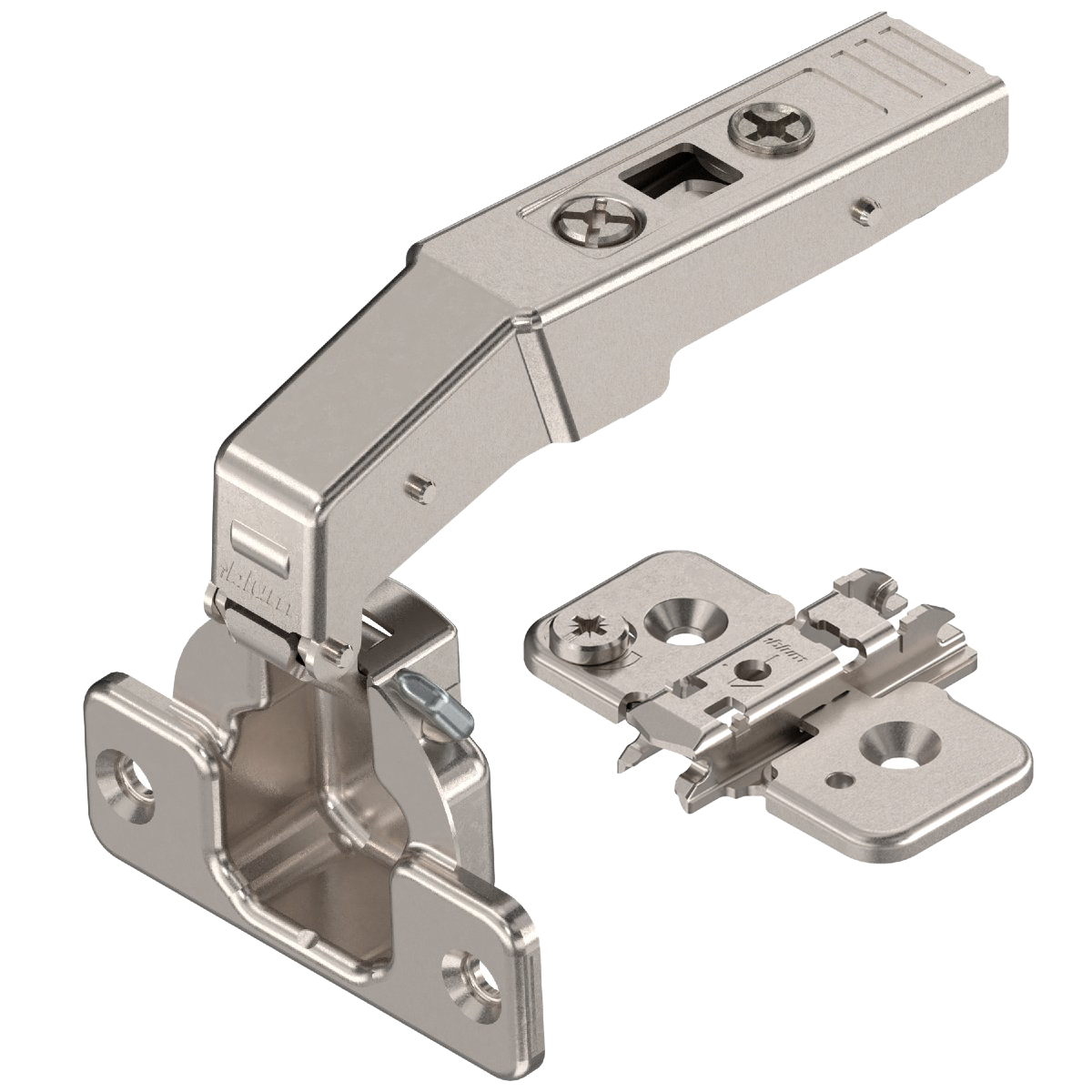

Blum Clip Top Blind Corner Inset 95 Degree Unsprung Cabinet Hinge 78T9550.TL With Mounting Plate

9881-001
Price from: £3.44inc VAT
Write a review
− +

The Blum clip top blind corner inset 95 degree cabinet hinge 78T9550.TL is a high-quality hinge designed for cabinet doors with a blind corner inset. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top blind corner hinge provides ease of adjustment and smooth operation.

  • Clip top profile door hinge 78T9550.TL
  • Opening angle: 95 degrees
  • Door thickness: 16-28mm
  • Cranking: inset application

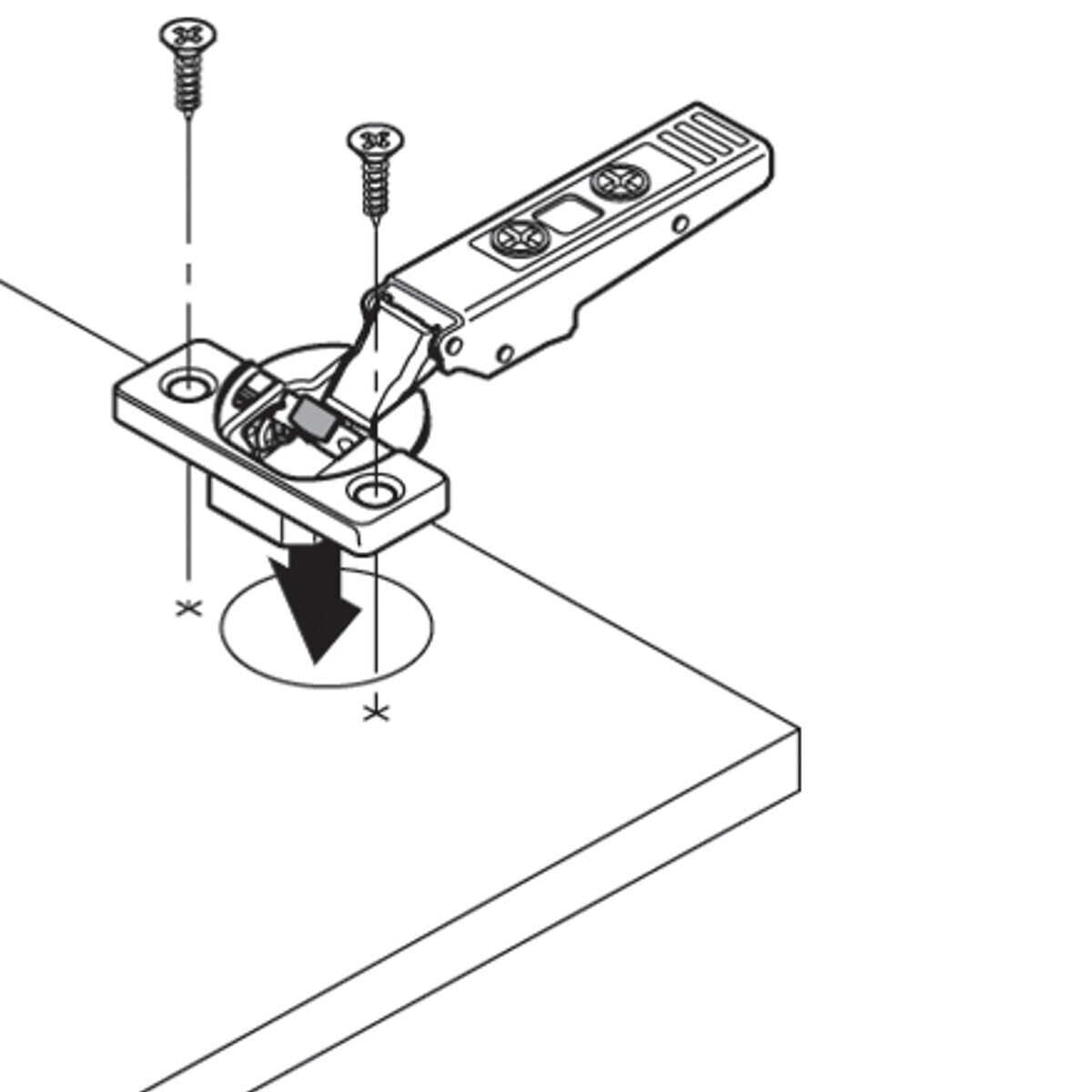

  • Boss assembly: inserta
  • Boss material: steel boss
  • Closing mechanism: unsprung (Tip-on)

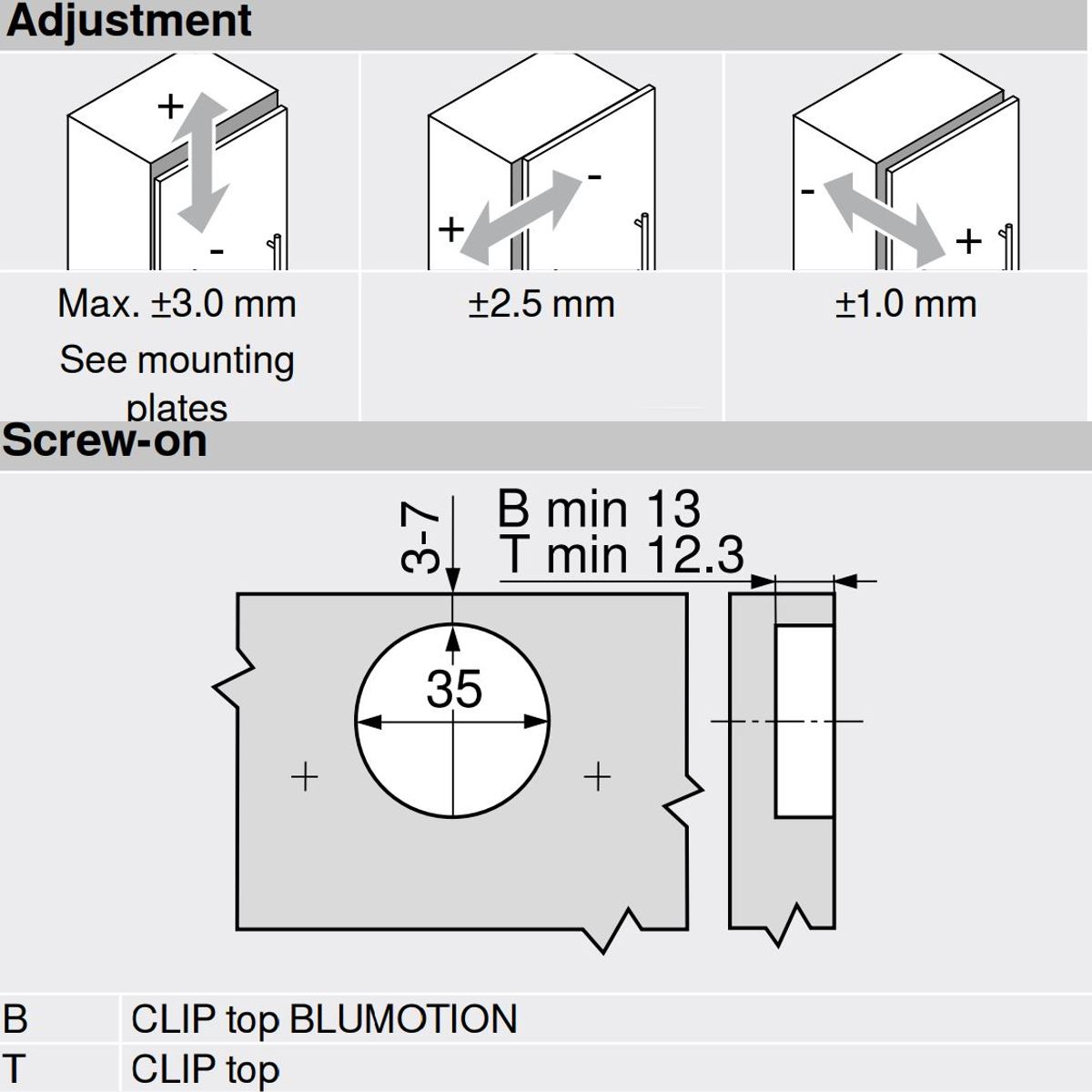

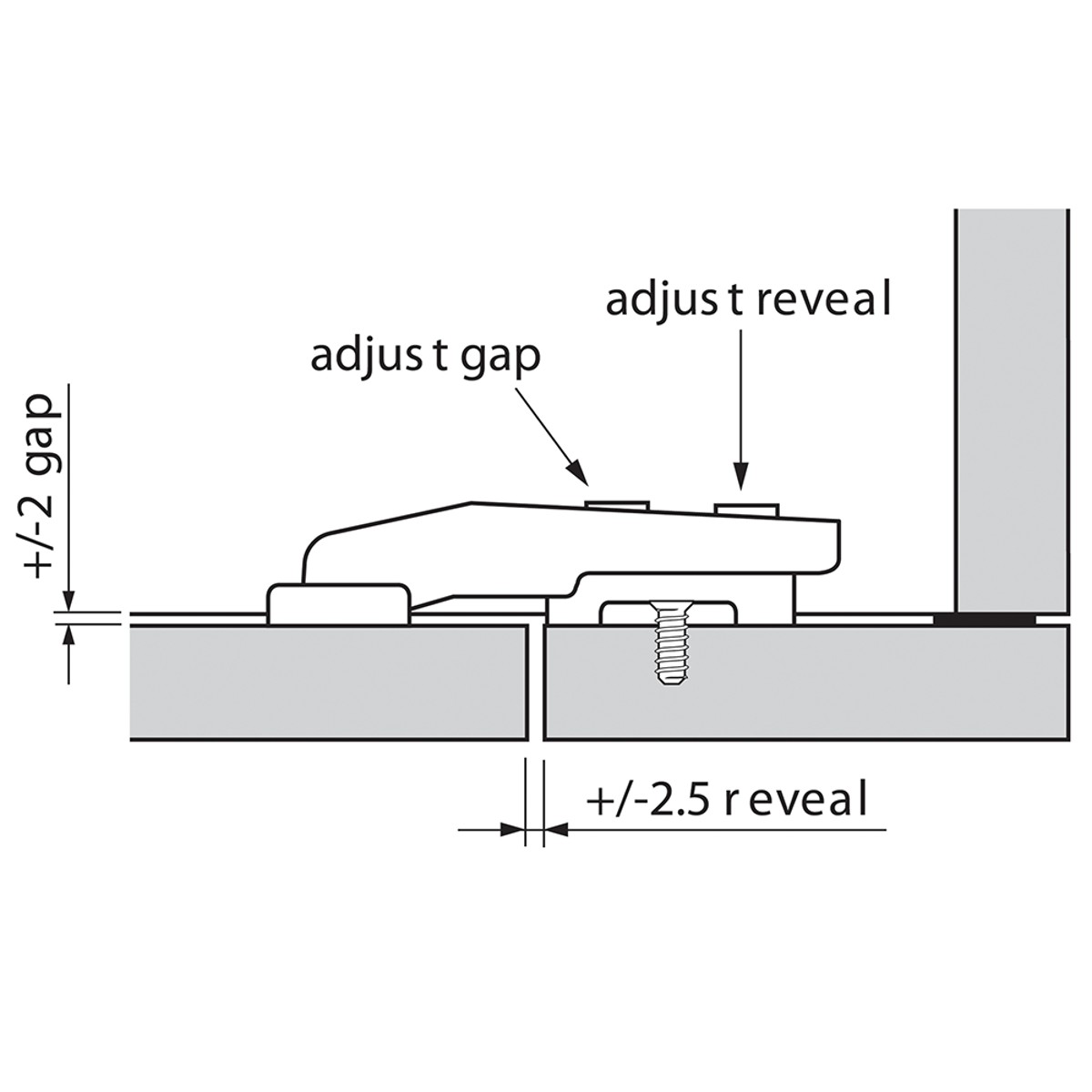

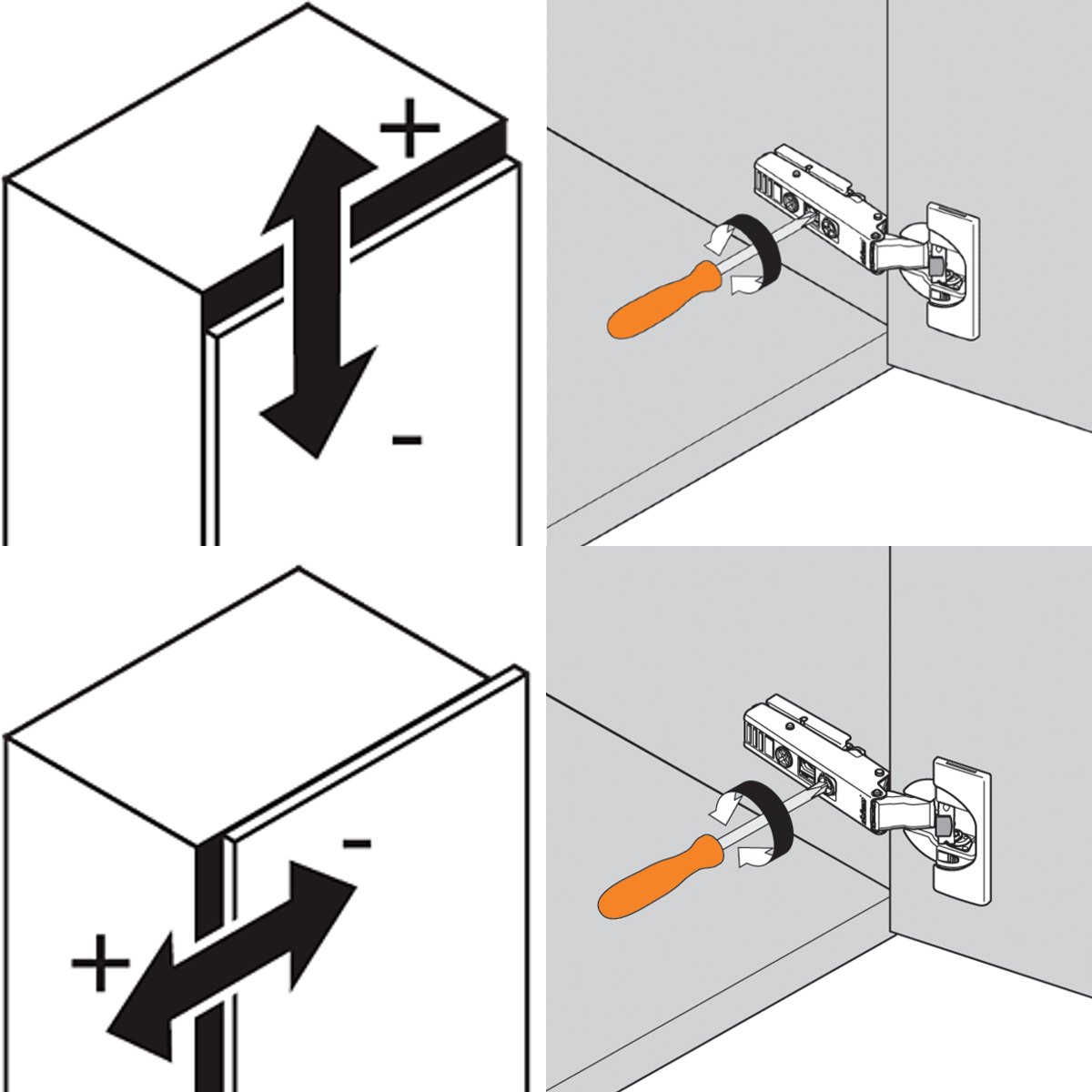

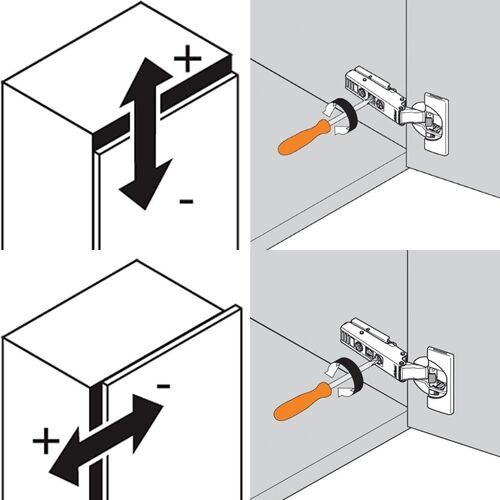

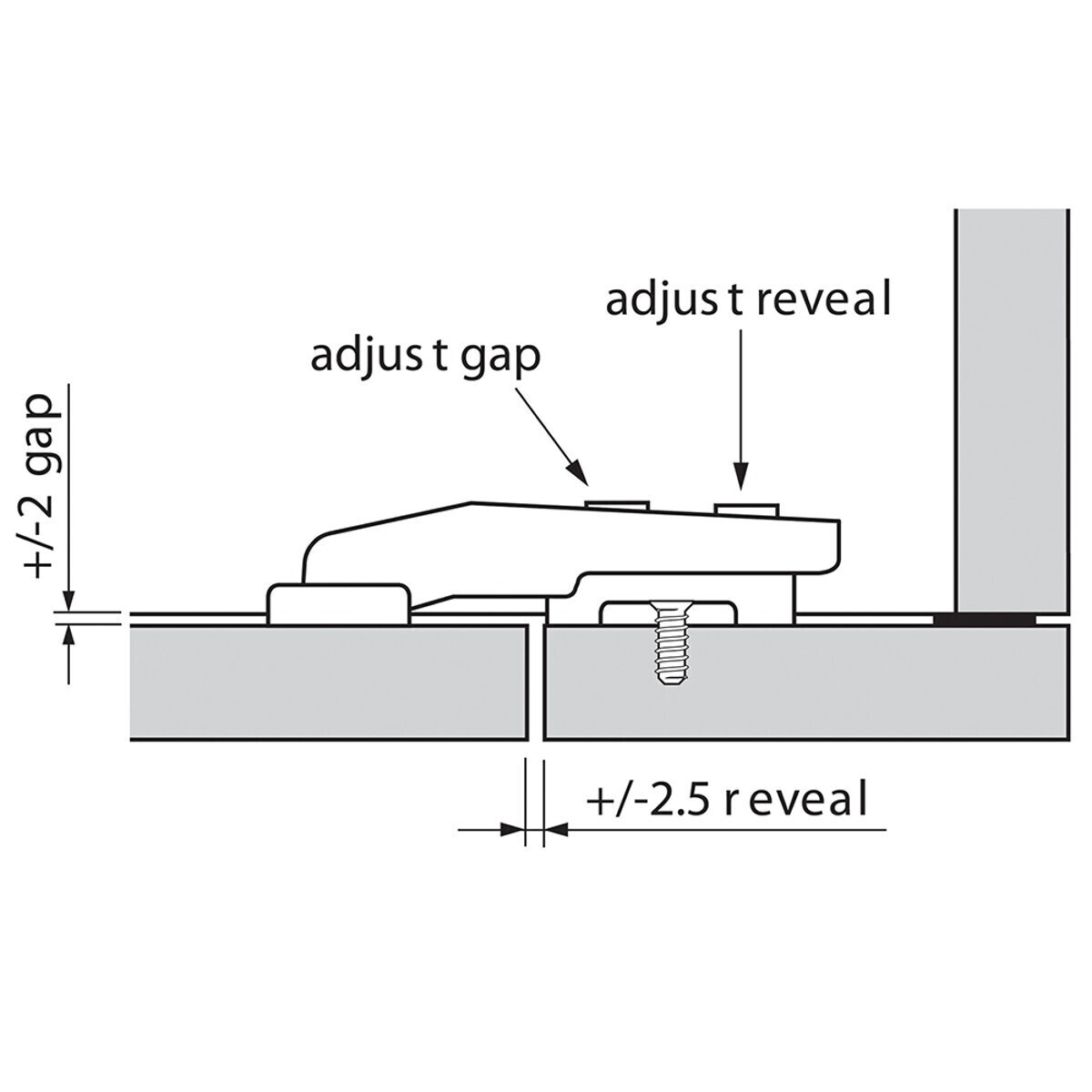

  • Side adjustment: +/- 2mm

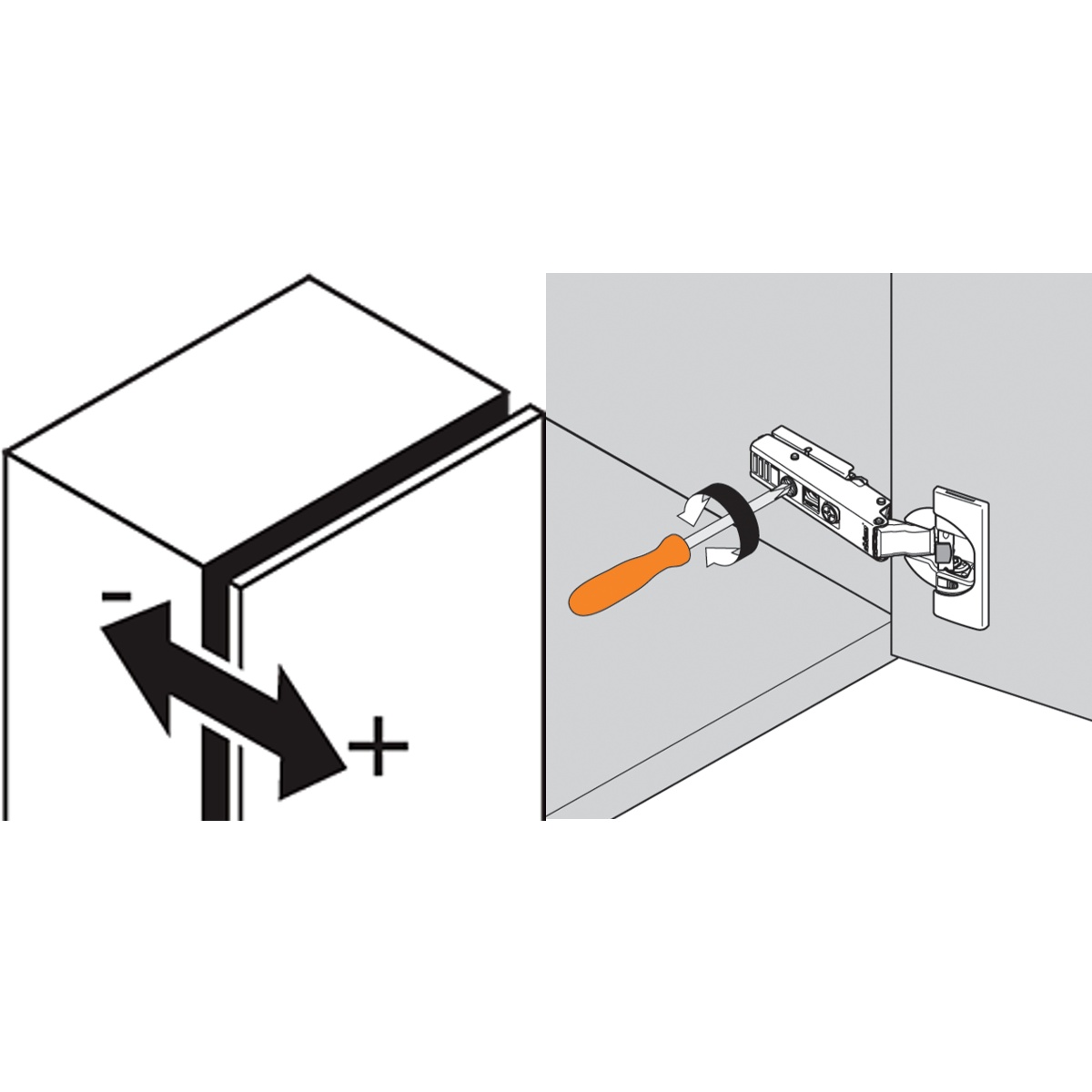

  • Depth adjustment: + 3/- 2mm, convenient with spiral screw

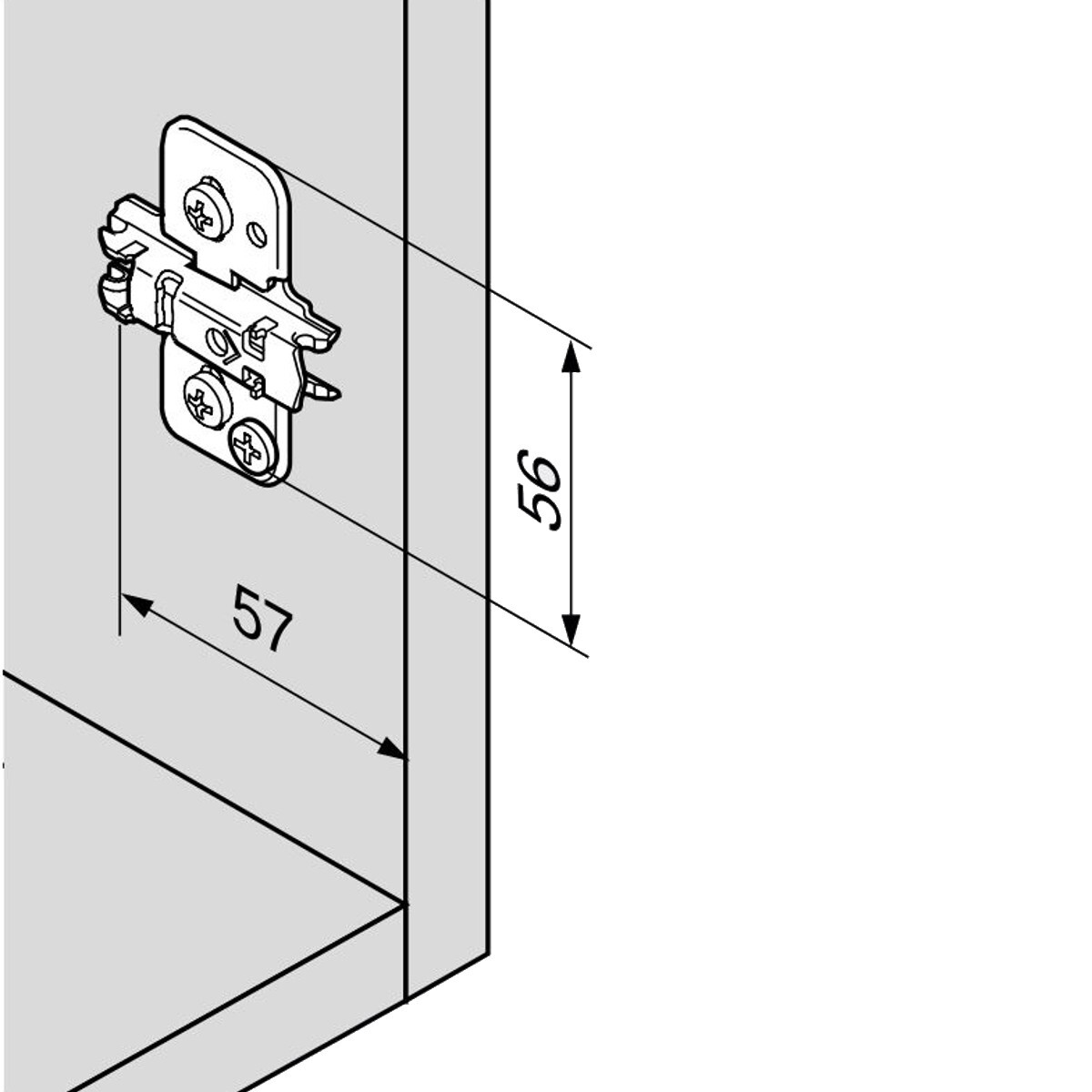

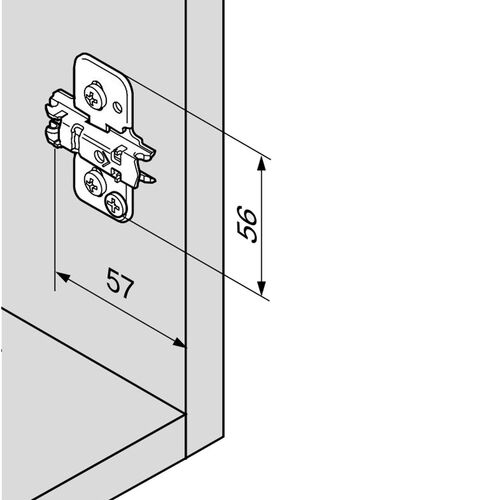

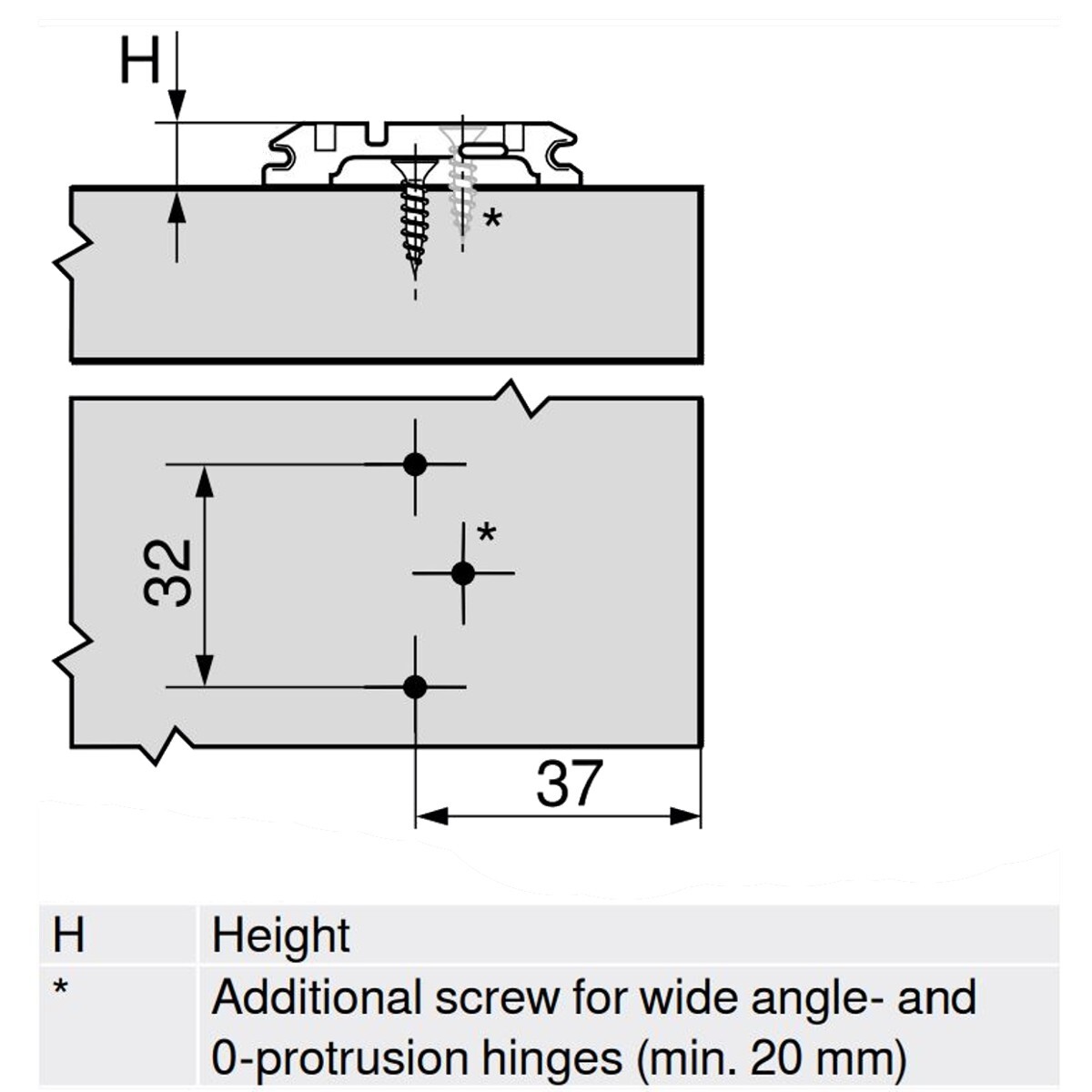

Mounting plates:

  • 174E6100 Expando:
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no
  • 174H7100E Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: yes
  • 174E6130 Expando
    • Screws: yes
    • Spacing: 3mm
    • Adjustment: no
  • 174H7130E Expando
    • Screws: yes
    • Spacing: 3mm
    • Adjustment: yes
  • 177H3100E Expando
    • Screws: yes
    • Spacing: 0mm
    • Adjustment: no

Download Product Details (pdf)

Download CAD File (dxf)

Mounting Plate:
173H7100
Cover Caps:
No
