Accuride 1316 Synchronised Control

Synchronisation 1316 is dedicated for Accuride 1319 pivot folding door kit. It increases the allowance for door weight and size capacity and helps with the smooth synchronised operation.

• The maximum recommended door width is 600mm
• 2-5 hinges to be used depending on the door width
• To be used with Accuride 1319 pivot folding door gear
• Increases weight capacity of 1319 system up to 25kg per door
• Increases maximum door height up to 2300mm (1200mm for horizontal fixings)

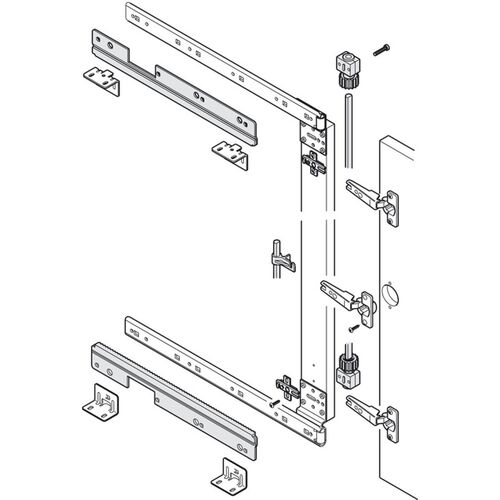

The set consists of:

• 2 x tracks
• 2 x rod guides
• 1 x set of screws
• 1 x 2400mm profile rod
• 2 x pinions with screw mounts

Hinges required per door height:

• 915-1193mm = 3 hinges
• 1194-1498mm = 4 hinges
• 1499-1803mm = 5 hinges
• 1803-2300mm = 6 hinges

Please note that:

• Folding kit Accuride 1319 hinges and mounting plates are not included
