X91 Hinge 100° Soft Close - Half Overlay

1463-001
from: £1.98inc VAT
+

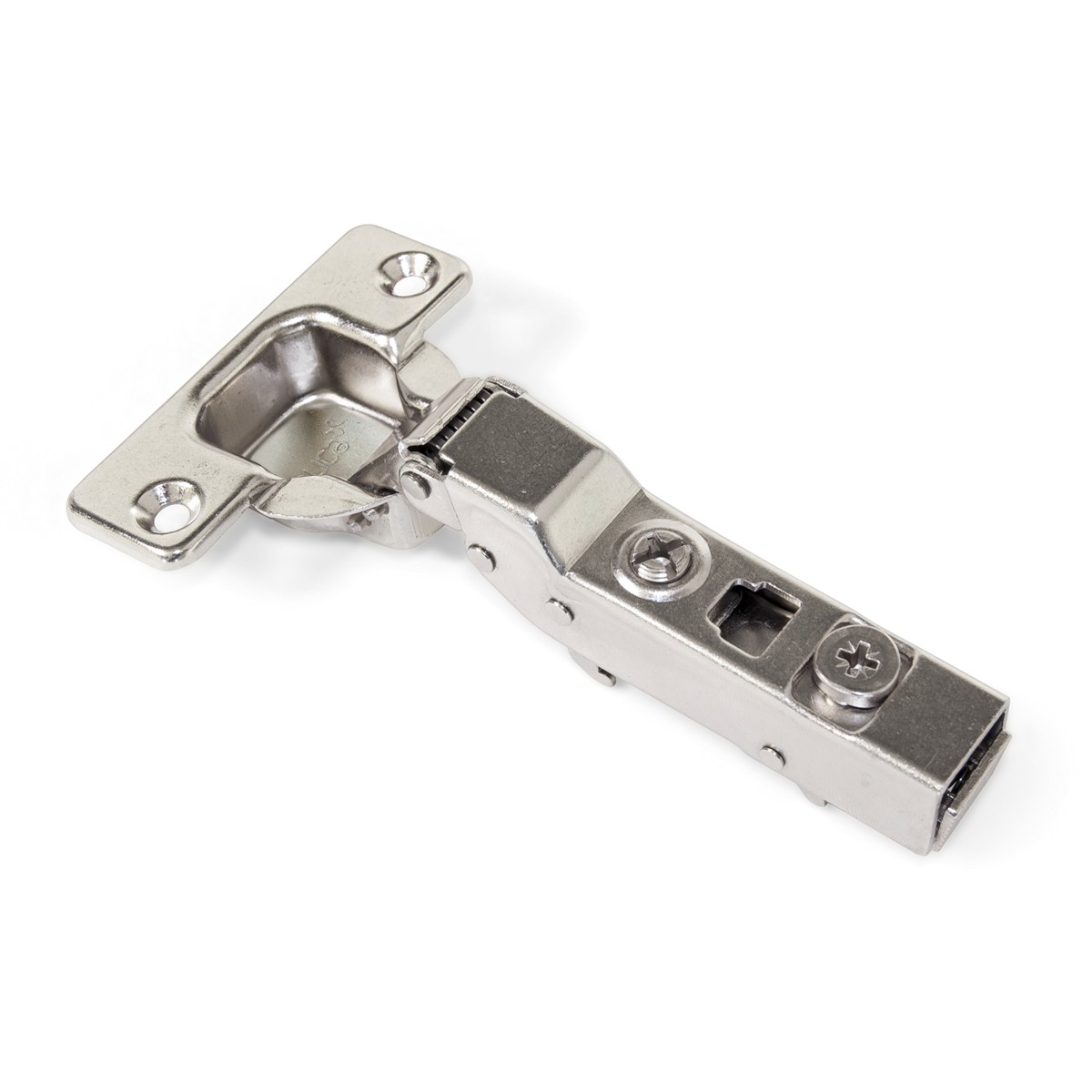

  • 100° half overlay clip-on cabinet hinge with integrated Soft-Close

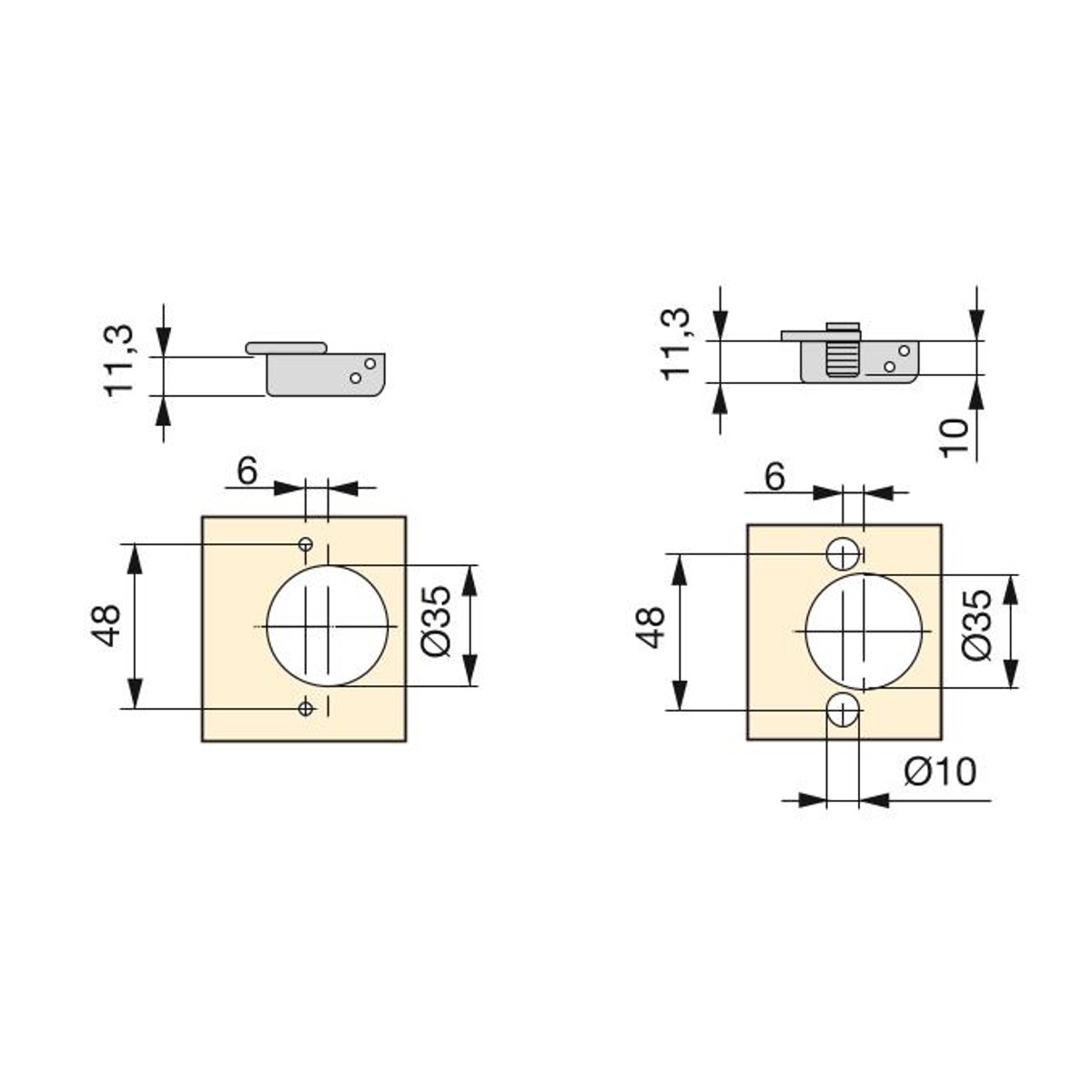

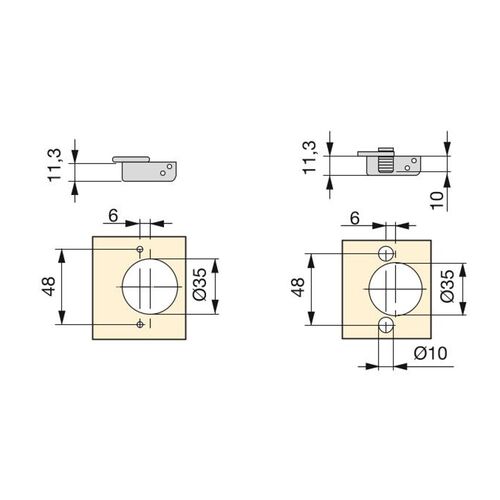

  • Available in two cup versions - screw-on and knock-in 35mm
  • Door thickness 14-24mm
  • Cup size 35mm

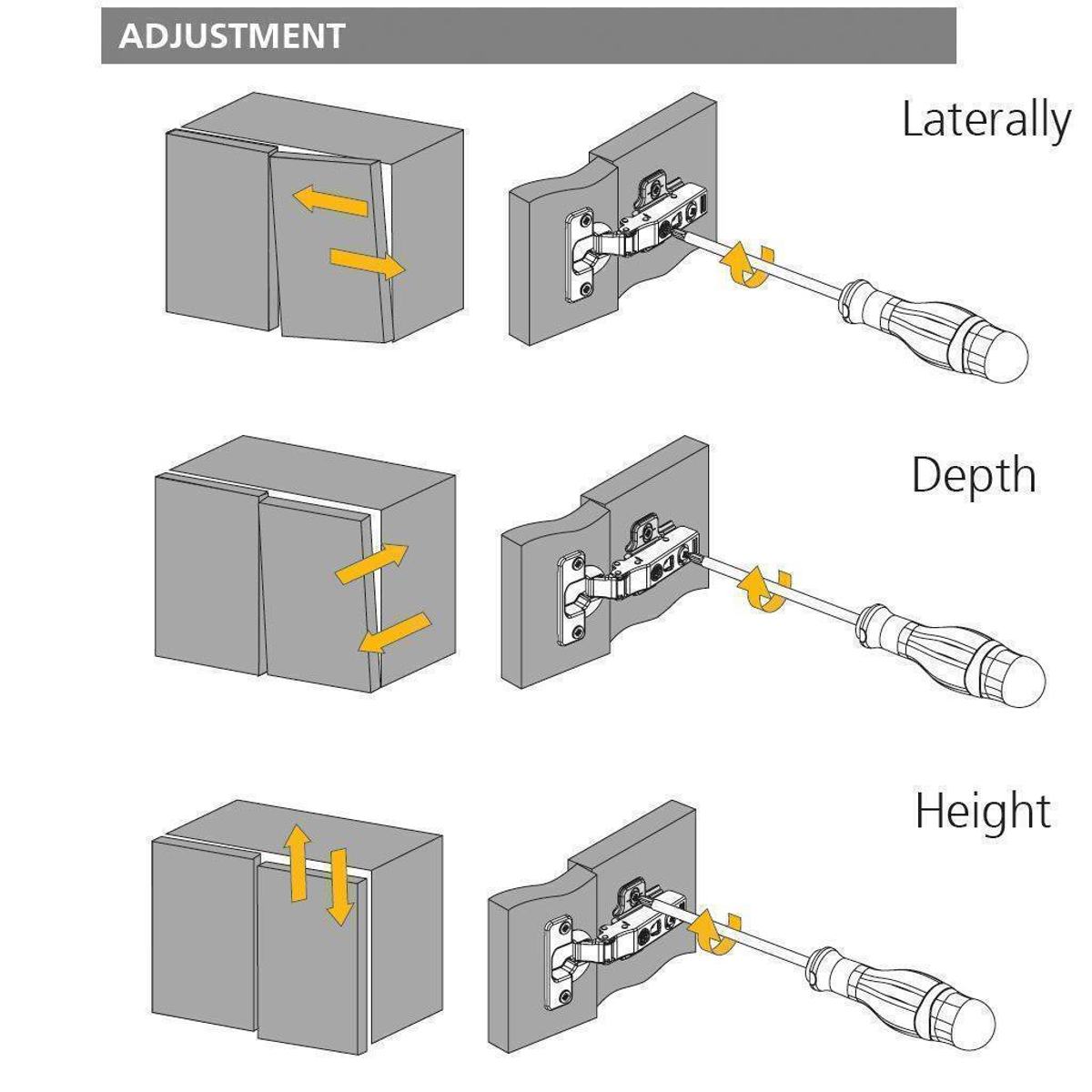

  • Adjustable in three dimensions

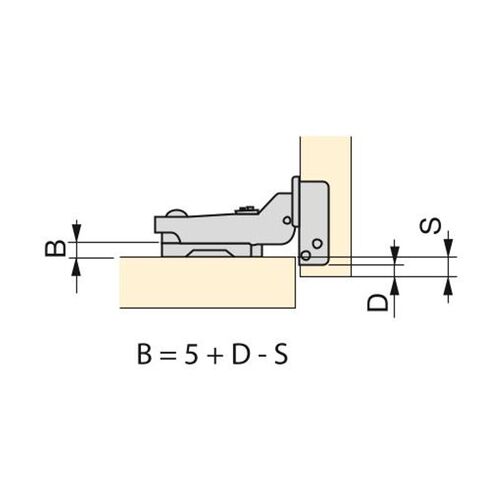

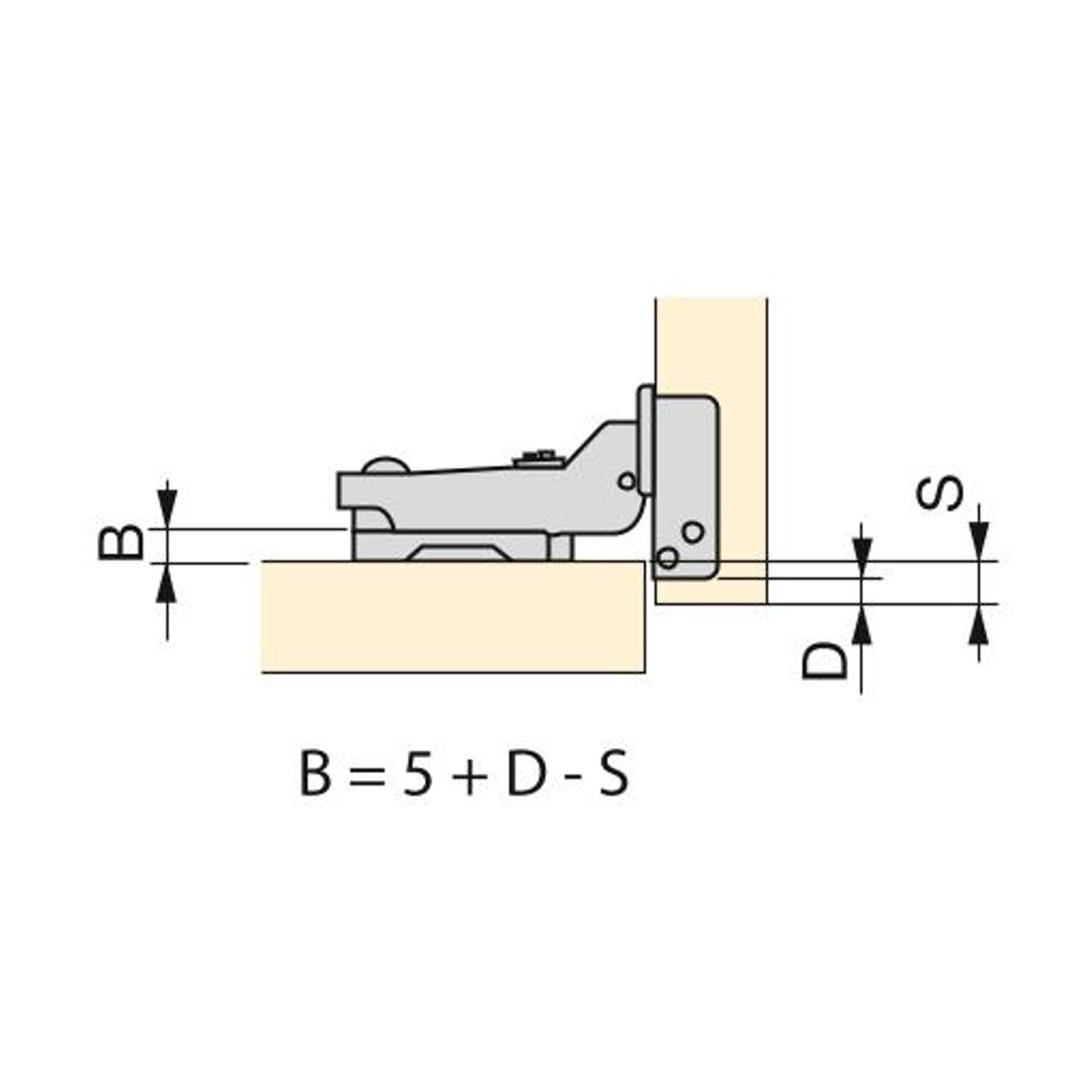

  • Distance to cup bore edge 3-7mm
  • Clip on hinge to plate assembly - easy door removal
  • Mounting plates, cover plates, screws and other accessories available in 'Extras' tab and 'Related Products' below
1518-001
Price: £0.14inc VAT (£0.14 INC VAT)

> Mounting Plates to fit X91 hinges
> Available in two versions: Standard an Adjustable
> Two sizes available - 0mm and 2mm

+

1519-001
Price: £0.29inc VAT (£0.29 INC VAT)

> Mounting Plates to fit X91 hinges
> Available in two versions: Standard an Adjustable
> Two sizes available - 0mm and 2mm
> Supplied with EURO screws

+

1082-001
from: £7.13inc VAT (£7.13 INC VAT)

HOSPA countersunk screws, nickel plated with 3.5mm thread, available in various lengths.

+

Minimum quantity for "Countersunk Screw Ø3.5mm - nickel plated (1000pcs)" is 1.

Technical Info 1 (X91_hinges_info_part1.pdf, 1,525 Kb) [Download]

Technical info 2 (X91_hinges_info-part2.pdf, 2,036 Kb) [Download]
