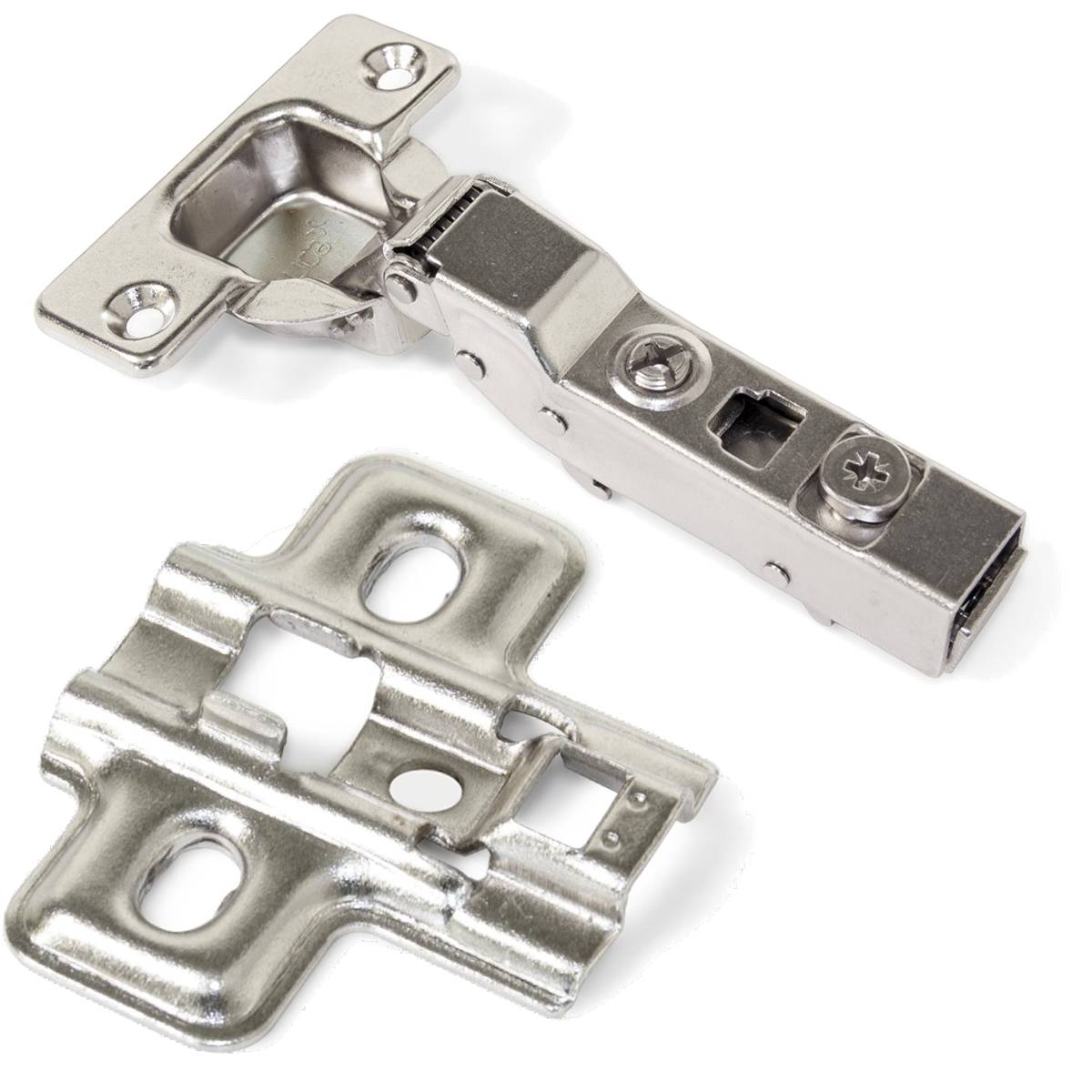

Get the best quality x91 105 half overlay hinge and mounting plate for your furniture at an affordable price. Upgrade your furniture with the x91 105 half overlay hinge for a smooth and soft-closing experience. The x91 half overlay hinge is a concealed hinge with a diameter of 35mm and 105º opening.

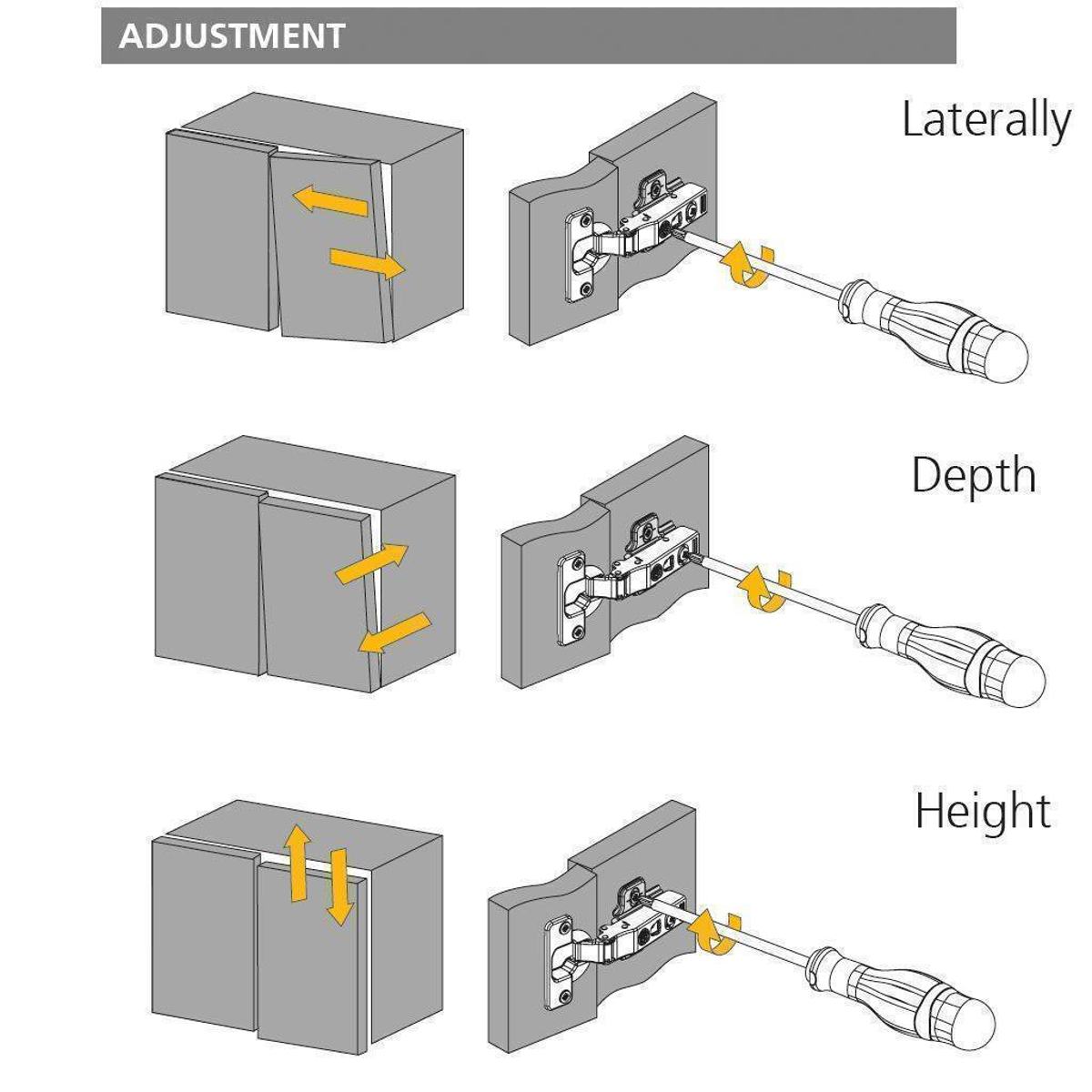

- 3 separate adjustments
- Door thickness: 16-24mm
- Depth adjustment by cam
- Spring in the closing direction
- Integrated soft closing mechanism

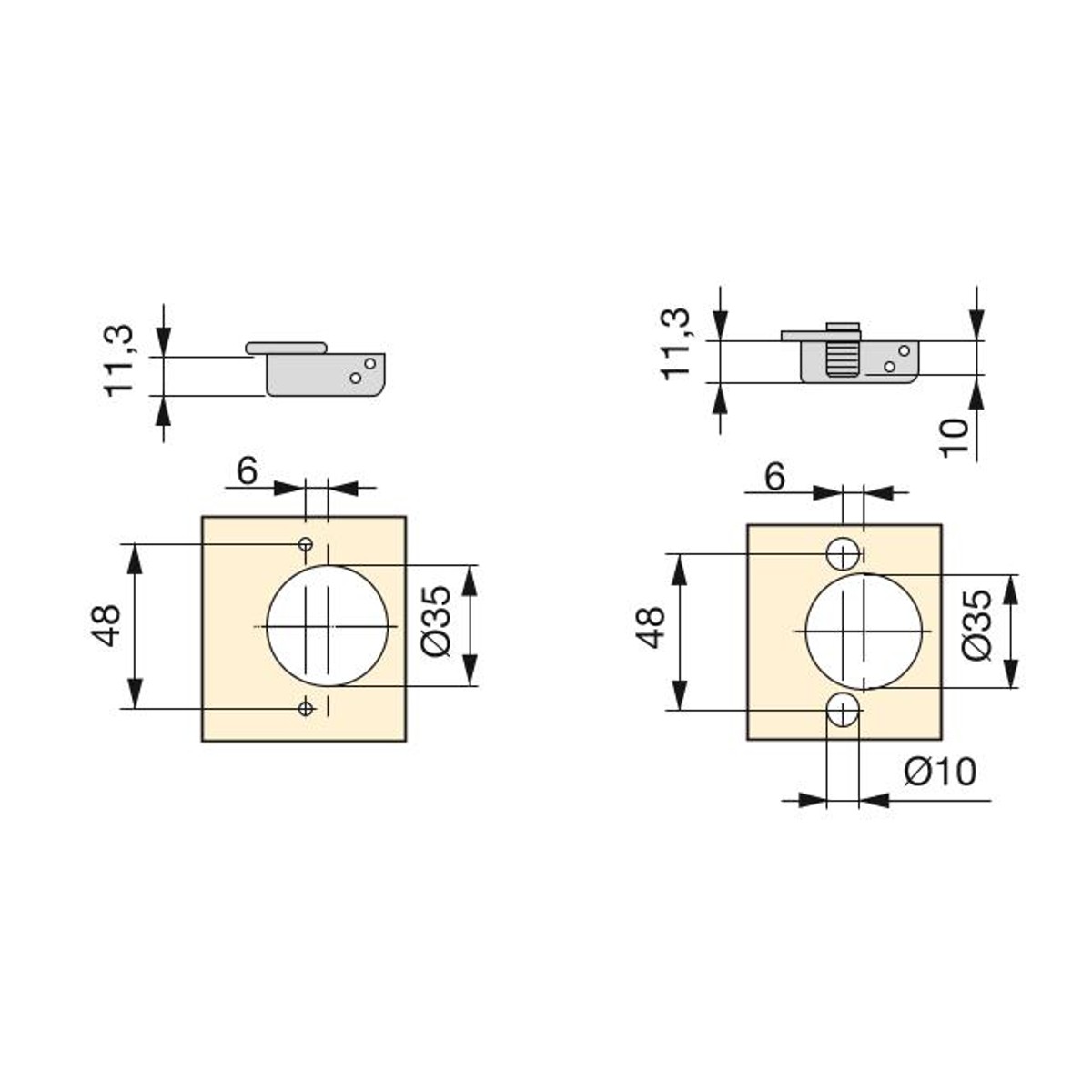

- 4 varieties of mounting plates to choose from
- Clip on for easy mounting to the mounting plate
- We recommend to use flat head screws: Ø4 x 16
Mounting Plate:
Standard
