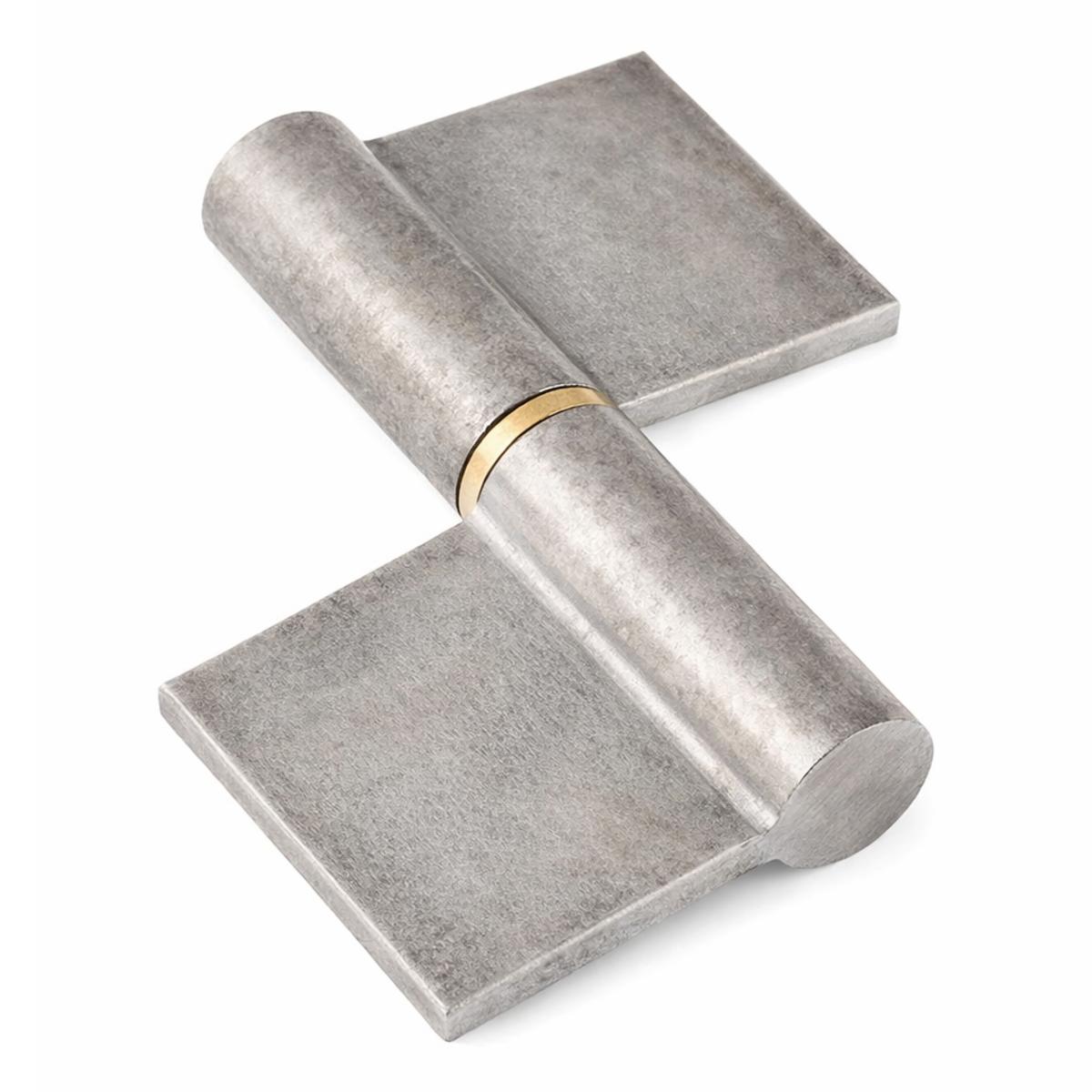

Heavy-duty symmetrical flag hinges featuring a central brass washer to allow the hinges to swivel both ways, depending on the fitting. For welding onto steel frames, these flag hinges allow for easy door removal and are available in different sizes.
- Left/right

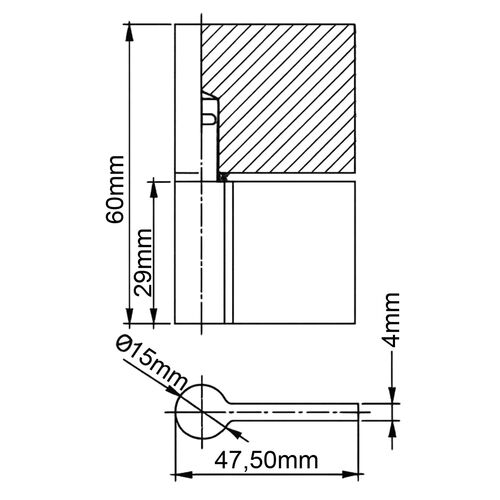

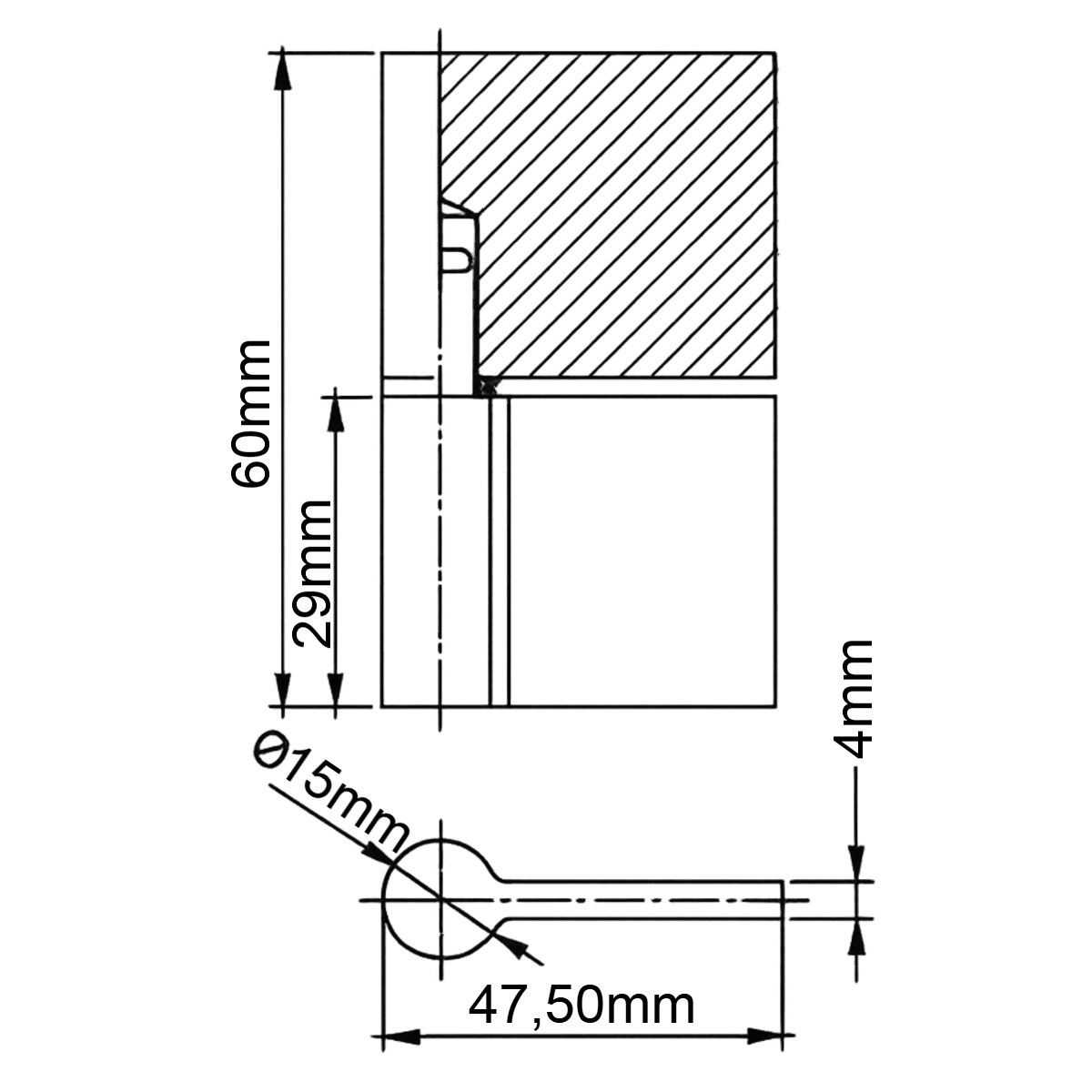

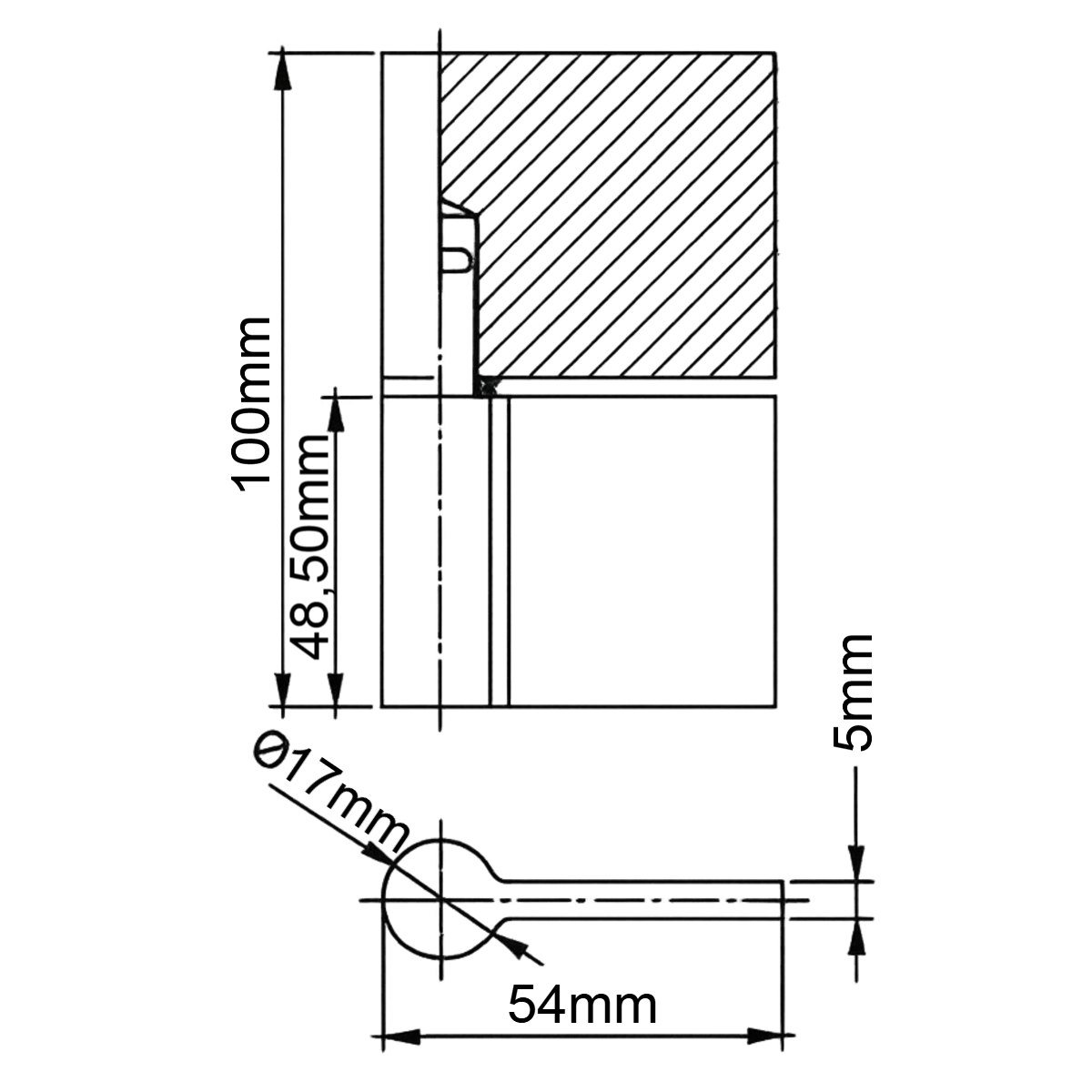

- Height: 60/100mm
- Diameter: 15/17mm
- Thickness of plate: 4/5mm
- Width of bracket: 32.5/37mm
- Weld-on flag hinge with brass washer
- Can be used internally and externally
- Suitable for gates, doors and other movable barriers
Please note that:
- Always weld the lower flag to the frame of the door as that pin supports the weight of the door/gate
Size:
15 x 60mm
