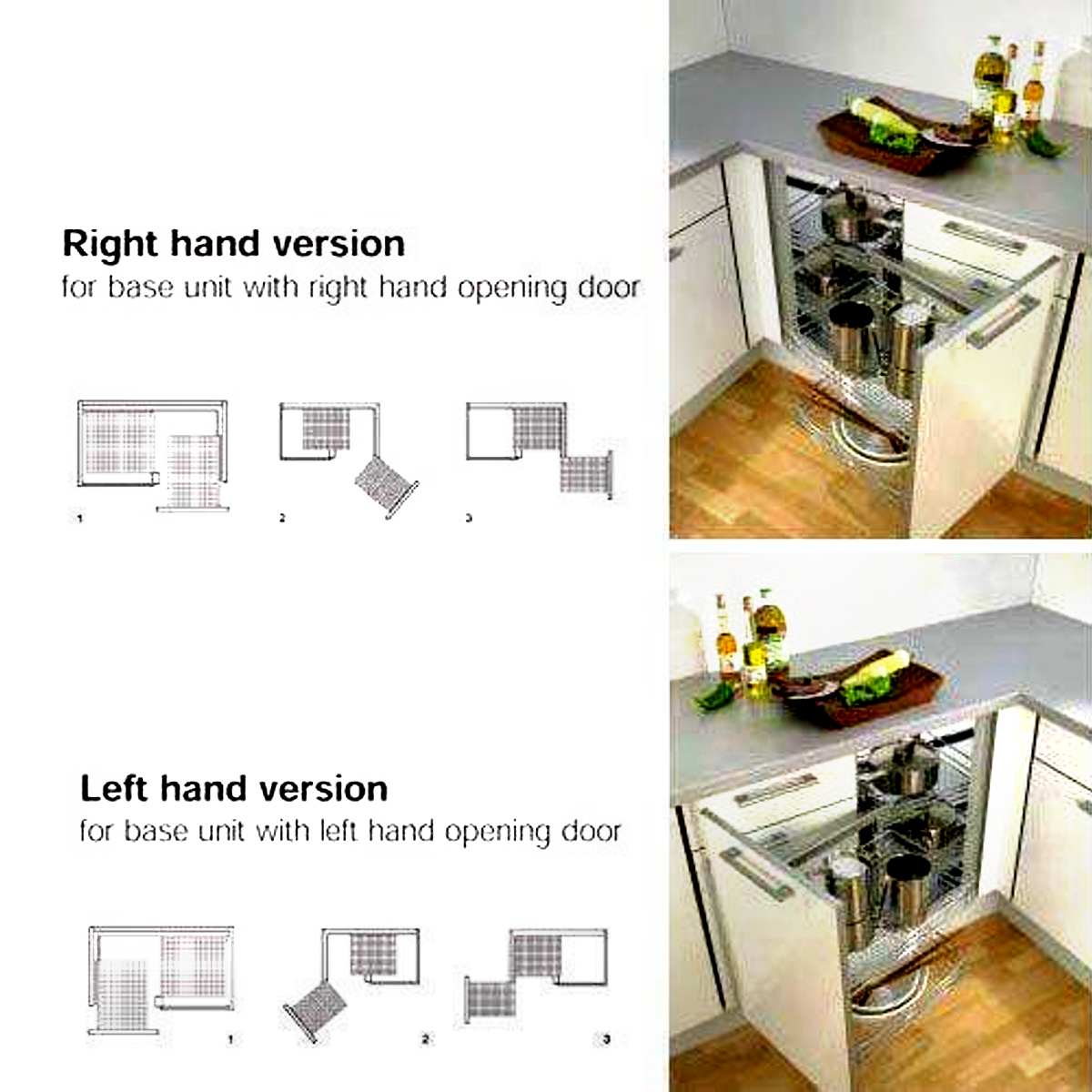

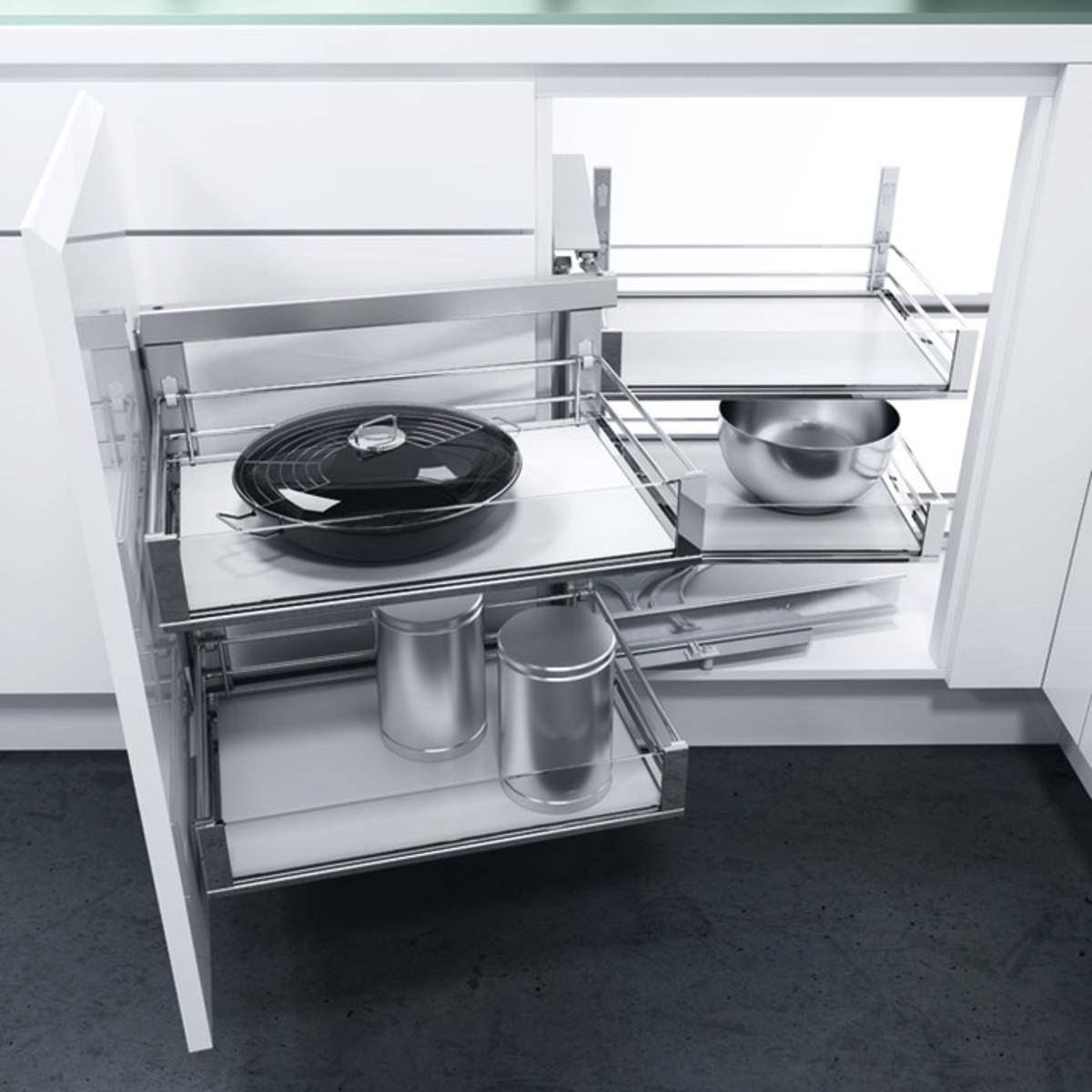

Left Or Right Hand Swing Out Wari Corner Kitchen Storage Unit Complete Set, Pull-Out Action With Soft Close. Made In Germany By Vauth Sagel.
- Artline glass solid base baskets
- For minimum cabinet width 800mm or 900-1000mm
- Manufactured in Germany
- Supplied with 10 years warranty
- Built-in soft close
- Basket capacity:
- 8kg (at front)
- 9.5kg (at back)
- Minimum internal cabinet height required: 530mm
- Minimum internal cabinet depth required: 485mm

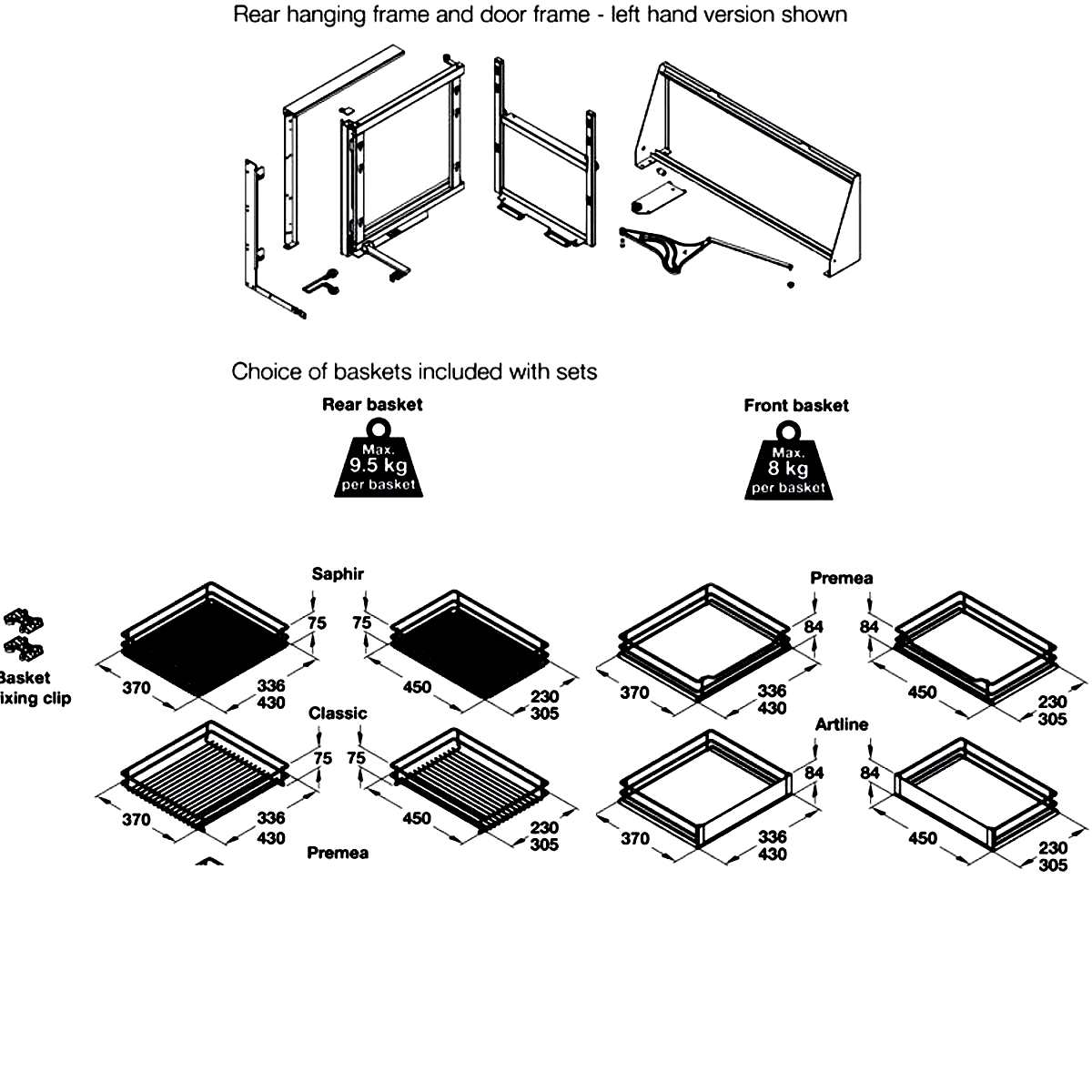

Set includes:
- 1x frame set
- 1x rear hanging frame and base mounting track; silver epoxy coated tubular steel
- 1x door frame with pivot: silver epoxy coated tubular steel
- 1x back frame: silver epoxy coated tubular steel
- 1x door frame follower: fiber glass improved plastic
- 1x 3 way adjustable door panel hanging plates
- 1x fixing screws and fitting instructions
- 2x artline glass solid base storage baskets (rear)
- 2x artline glass solid base storage baskets (door)
Cabinet Size:
800mm (400mm Door)
Version:
Left
Magic Corners
Closing Mechanism:
Soft Close

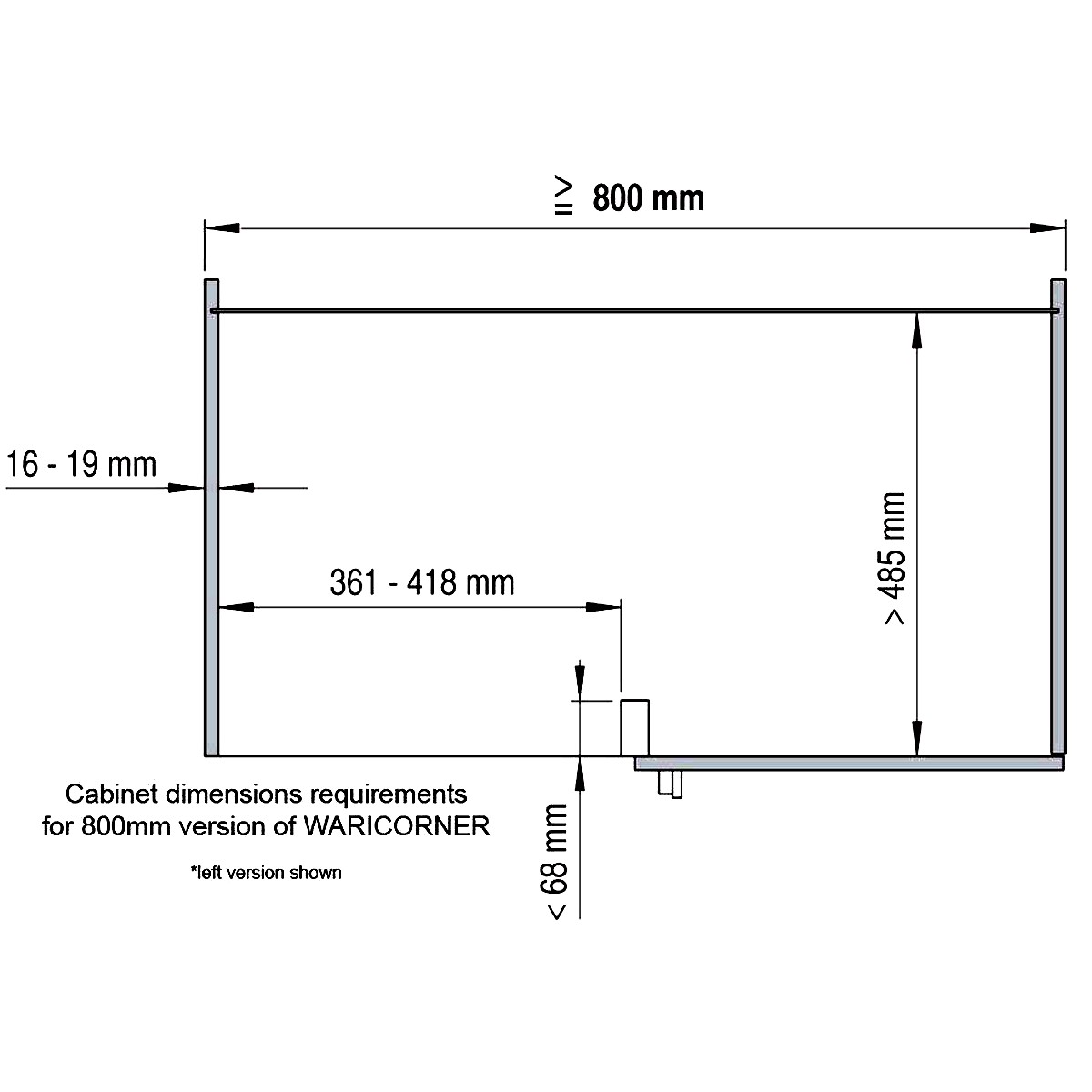

Minimum Internal Cabinet Depth
:
Measured at the narrowest point of the cabinet between centre post and back panel.
System have to operate without any obstructions.
If depth of the cabinet is insufficient there are amendments to the cabinet that might be done:
- moving back panel further back
- removing centre post (corner post) and mounting doors on 190 degree hinges
- mounting door to the basket if possible
485mm
Product short Name:
Vauth-Sagel
System Type:
Magic Corner
Type of baskets:
- Artline Glass Solid Base
