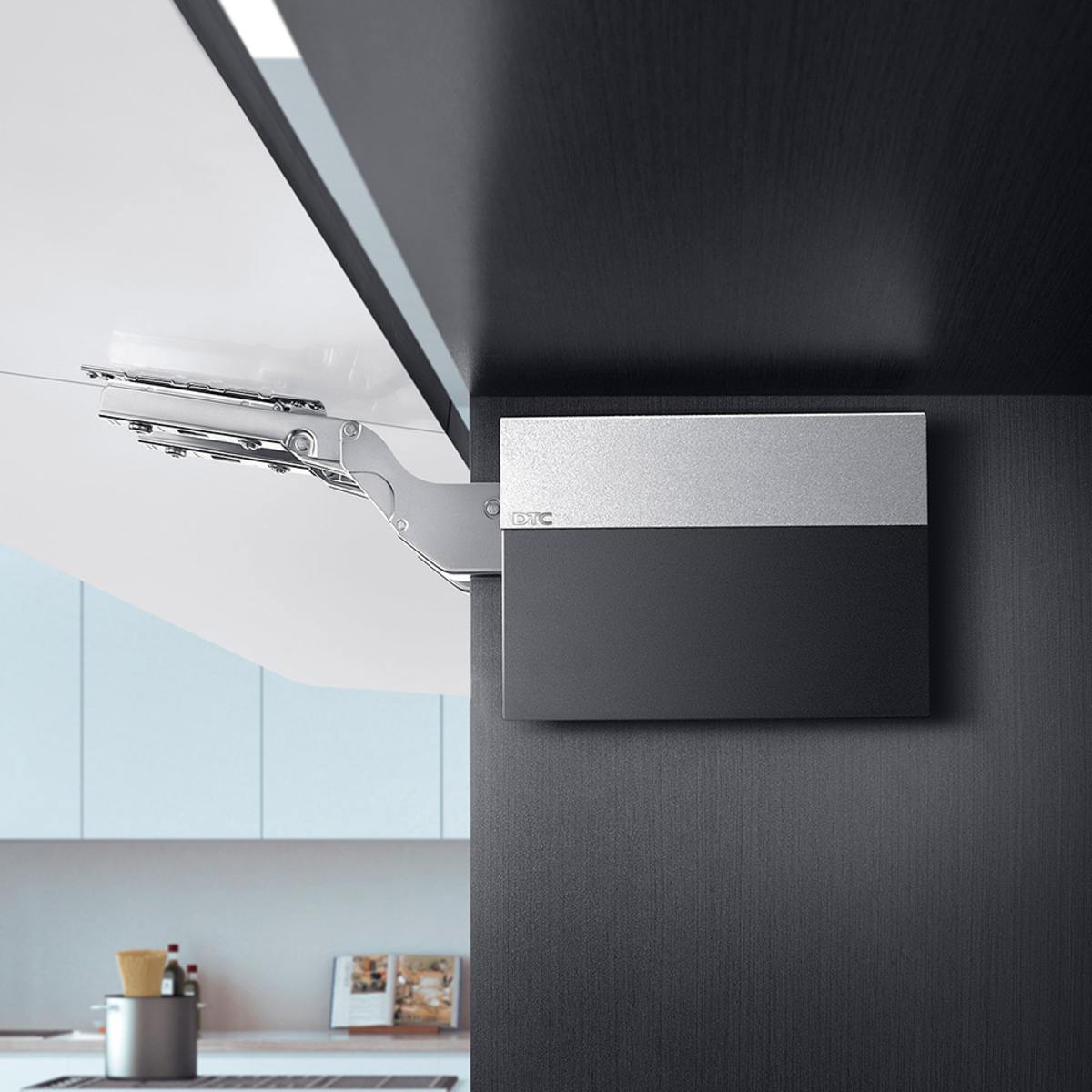

Top Stay SF Lift System

Transform your cabinet with the top stay SF lift system. This complete paired set provides excellent power, durability, and functionality for various cabinet designs. The lift mechanism comes with mounting plates to ensure smooth and reliable installation to the cabinet and cabinet front, making this system an ideal solution for modern and versatile cabinet applications.

• Range: Top Stay
• Made out of steel
• Opening angle: 100°
• Fixing type: screw-on
• Stays in desired postion
• Power factor: 3200-9000

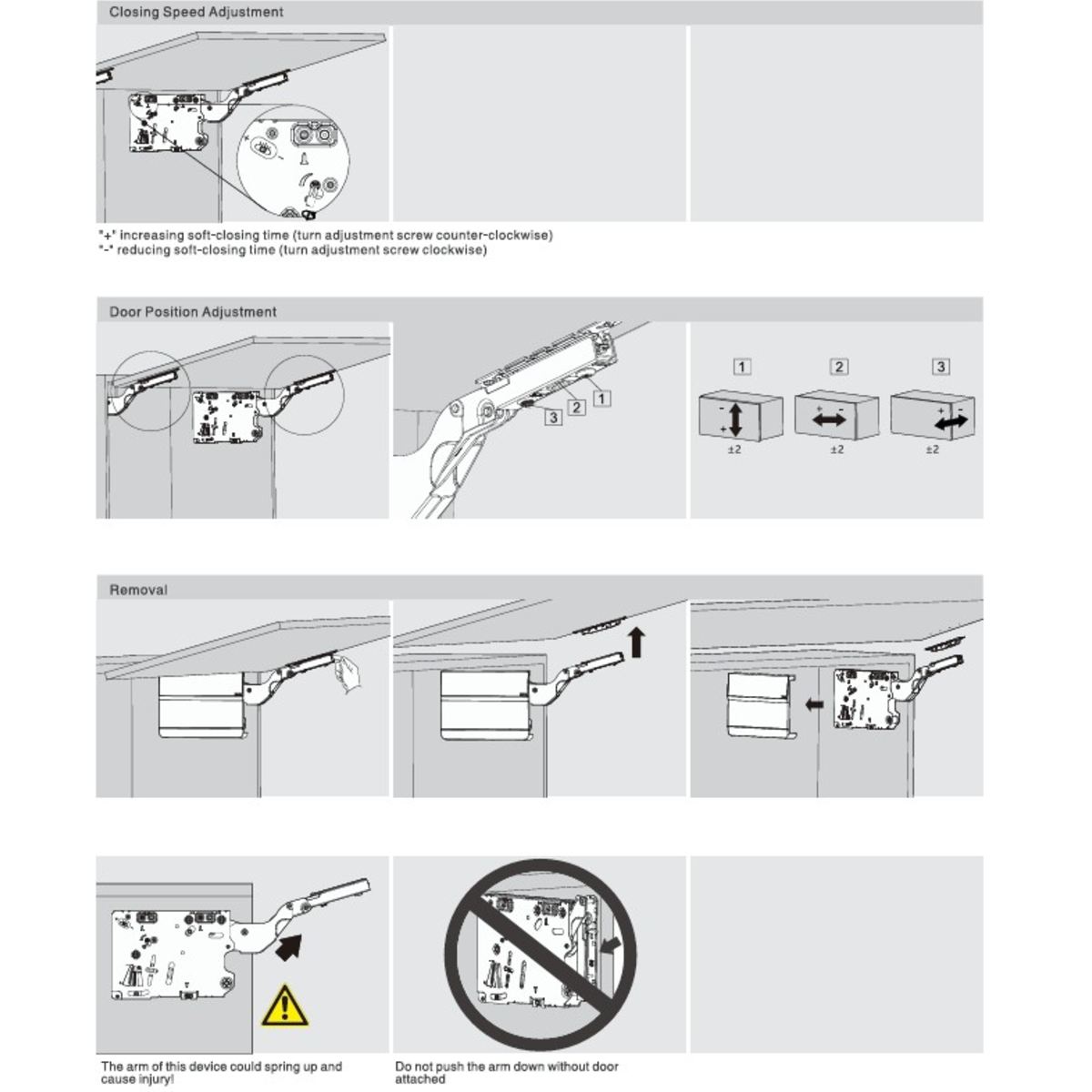

• Comes with 3D adjustment
• Adjustable soft closing system
• Sold as a pair including brackets
• Suitbale for door thickness: 16-28mm
• Suitable for cabinet heights: 400-700mm

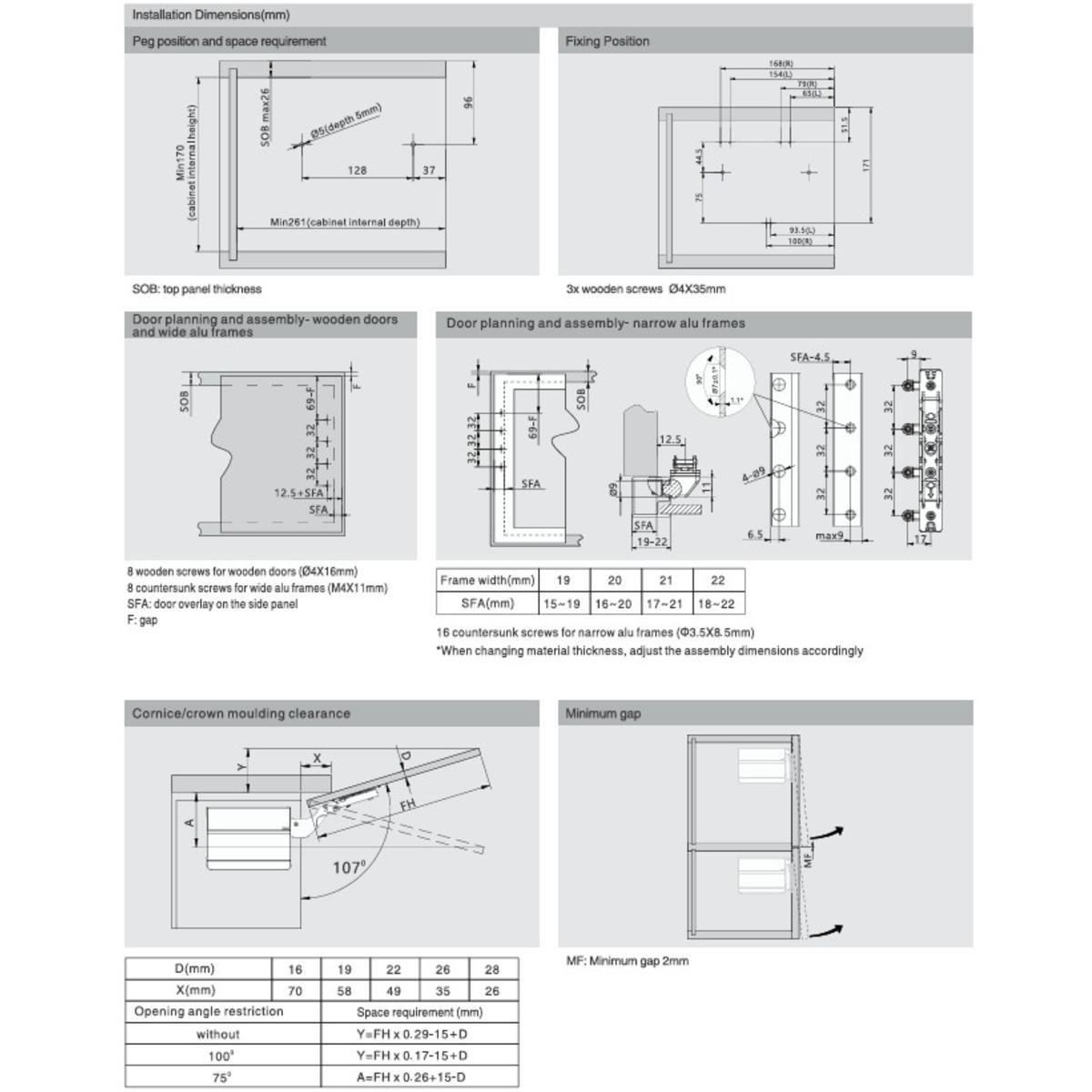

• Minimum internal cabinet depth: 261mm
• Minimum internal cabinet height: 170mm
• Maximum external cabinet width: 1800mm
• Contents of the set:
  • 1 x fixing screws
  • 2 x lift mechanism
  • 2 x front fixing brackets
  • 2 x cover caps in dark grey

To work out the power factor please use the formula below:

• Cabinet height (mm) x door weight (kg)

Please note that:

• There is a lifetime warranty on this product
