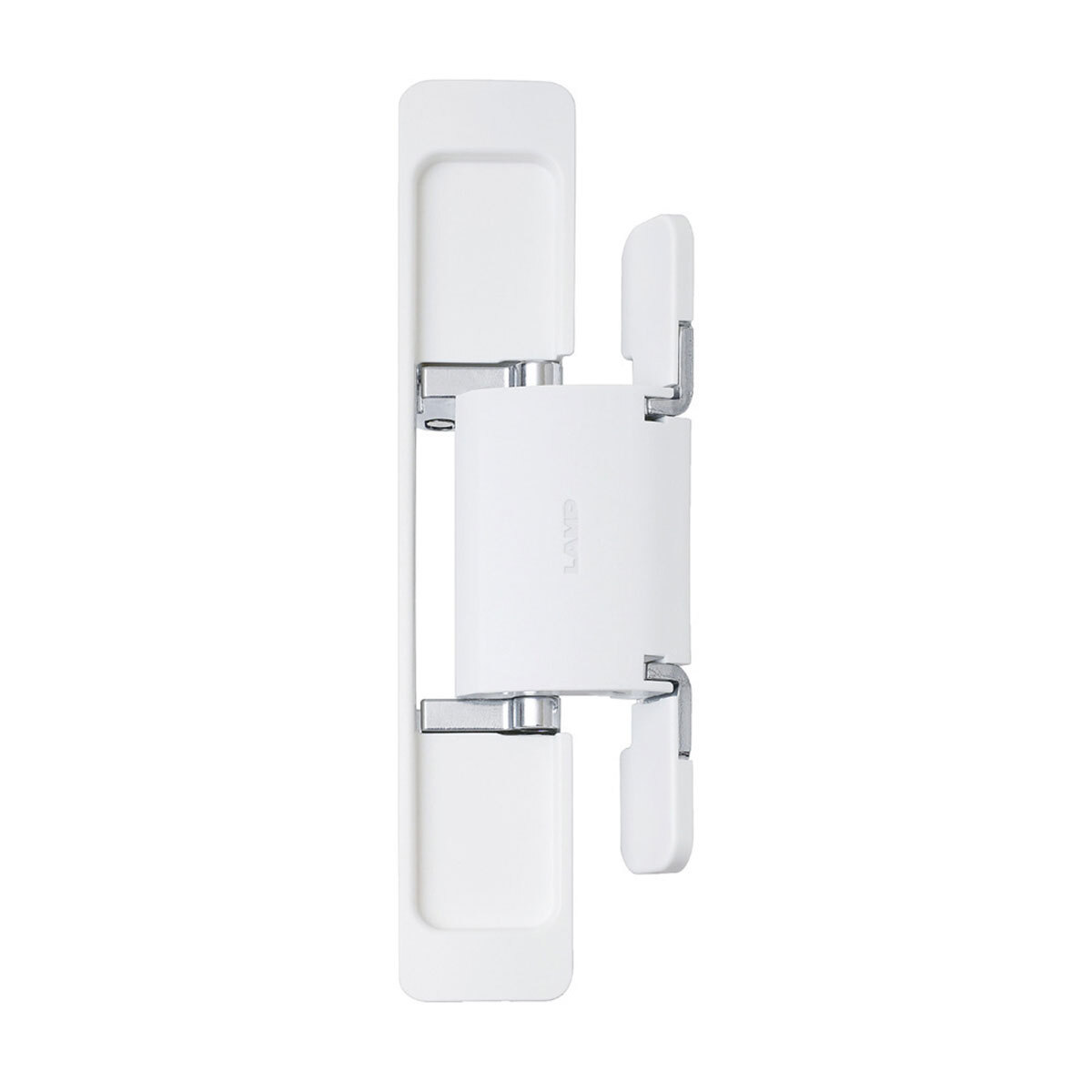

Discover the HES2S-150-A110 Surface-Mount Concealed Hinge from Sugatsune, designed for easy installation and a sleek, hidden look, perfect for high-end furniture and architectural projects. This award-winning hinge offers 3-way adjustment and exceptional durability, having passed a 300,000 open/close cycle test. Dedicated for room dividing or entrance doors making installation a breeze with 3 way vertical, horizontal and depth adjustment.
- Sold in singles
- Surface mounted
- Installation: inset
- Opening angle: 110°
- Hinge length: 160mm
- Hinge Bore length: 150mm

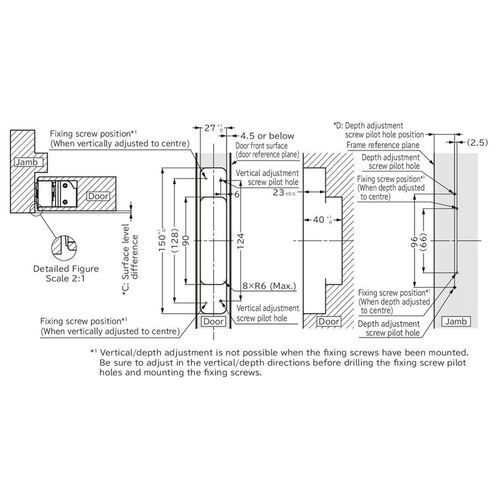

- Hinge Bore Depth: min.40mm
- Maximum door width: 900mm
- Maximum door height: 2700mm
- Minimum door thickness: 35mm
- Tested to 50,000 open and closed cycles

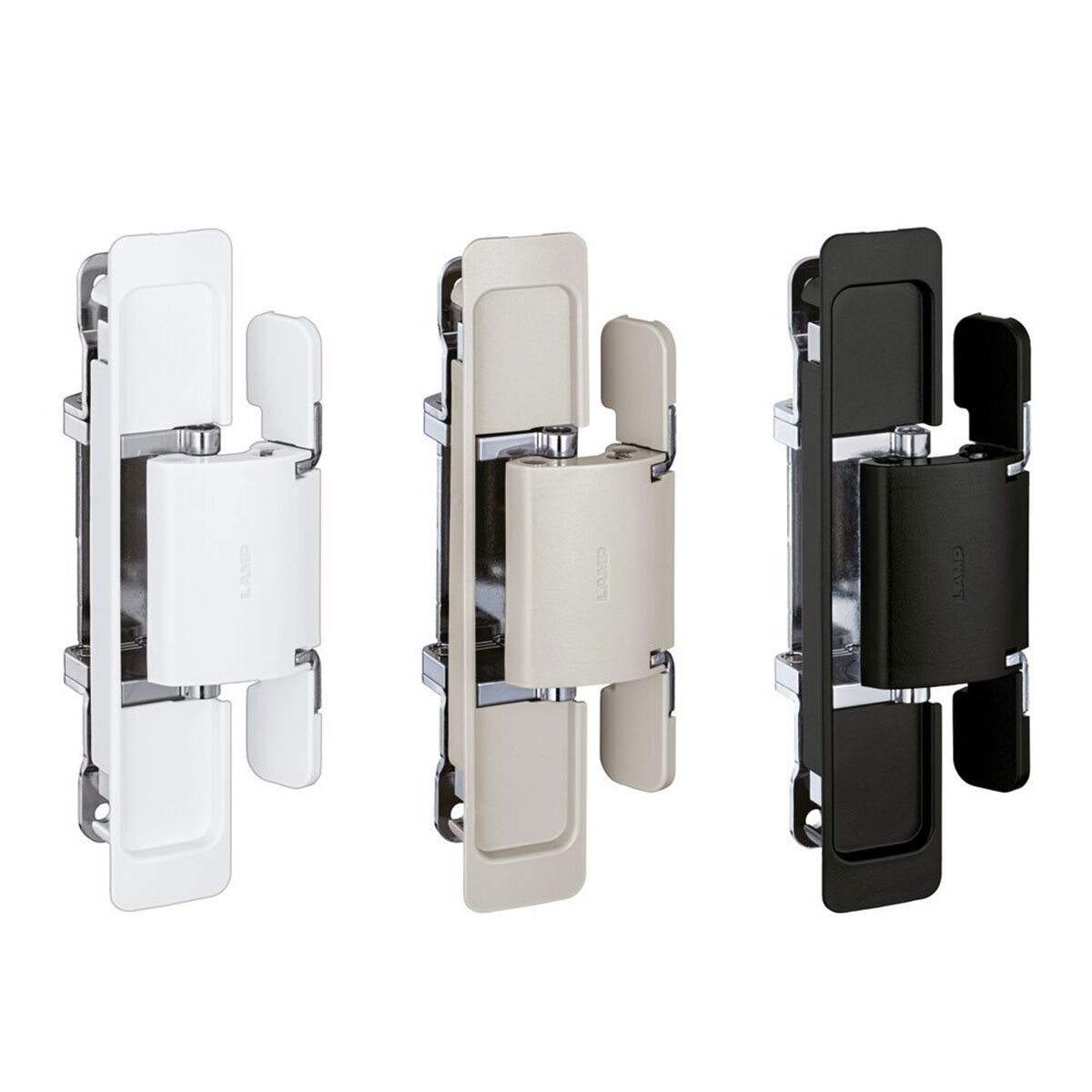

- Varieties of colours available: white, black, and warm grey
- Maximum load capacity:
- 2 hinges: 40kg
- 3 hinges: 50kg

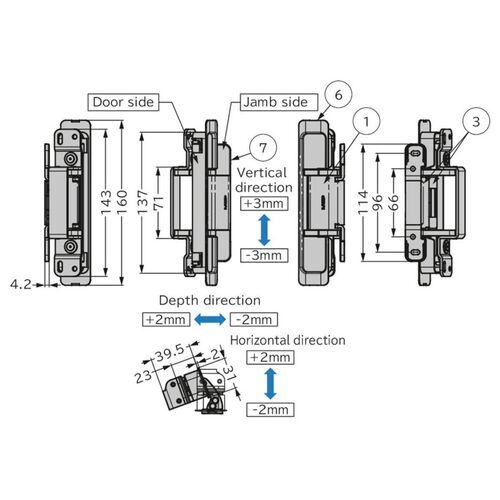

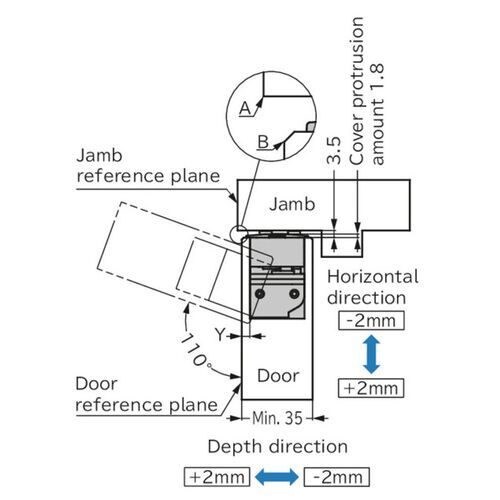

- 3-way adjustment:
- Depth
- Vertical
- Horizontal
