Slido Cabinet Flush Sliding Door Gear

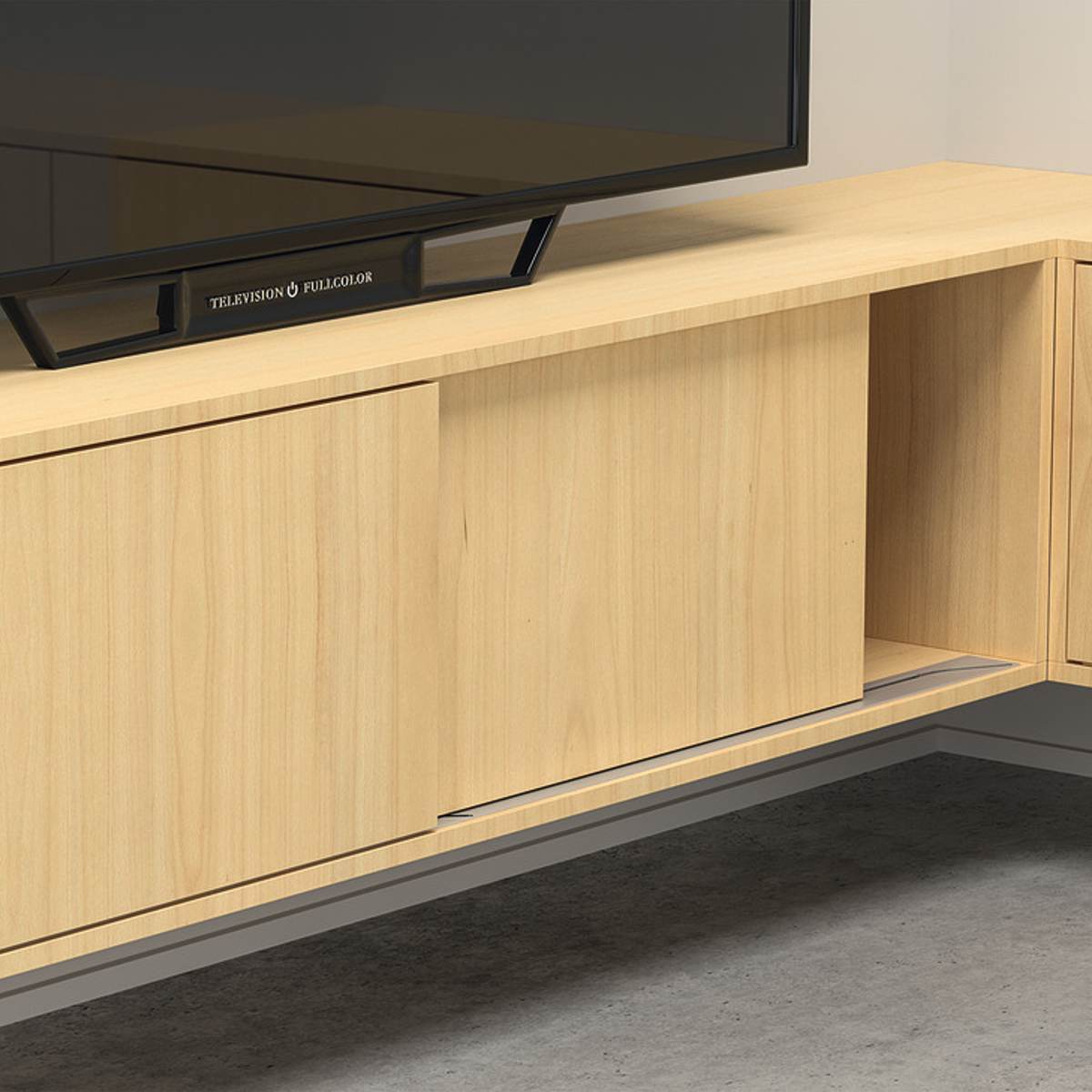

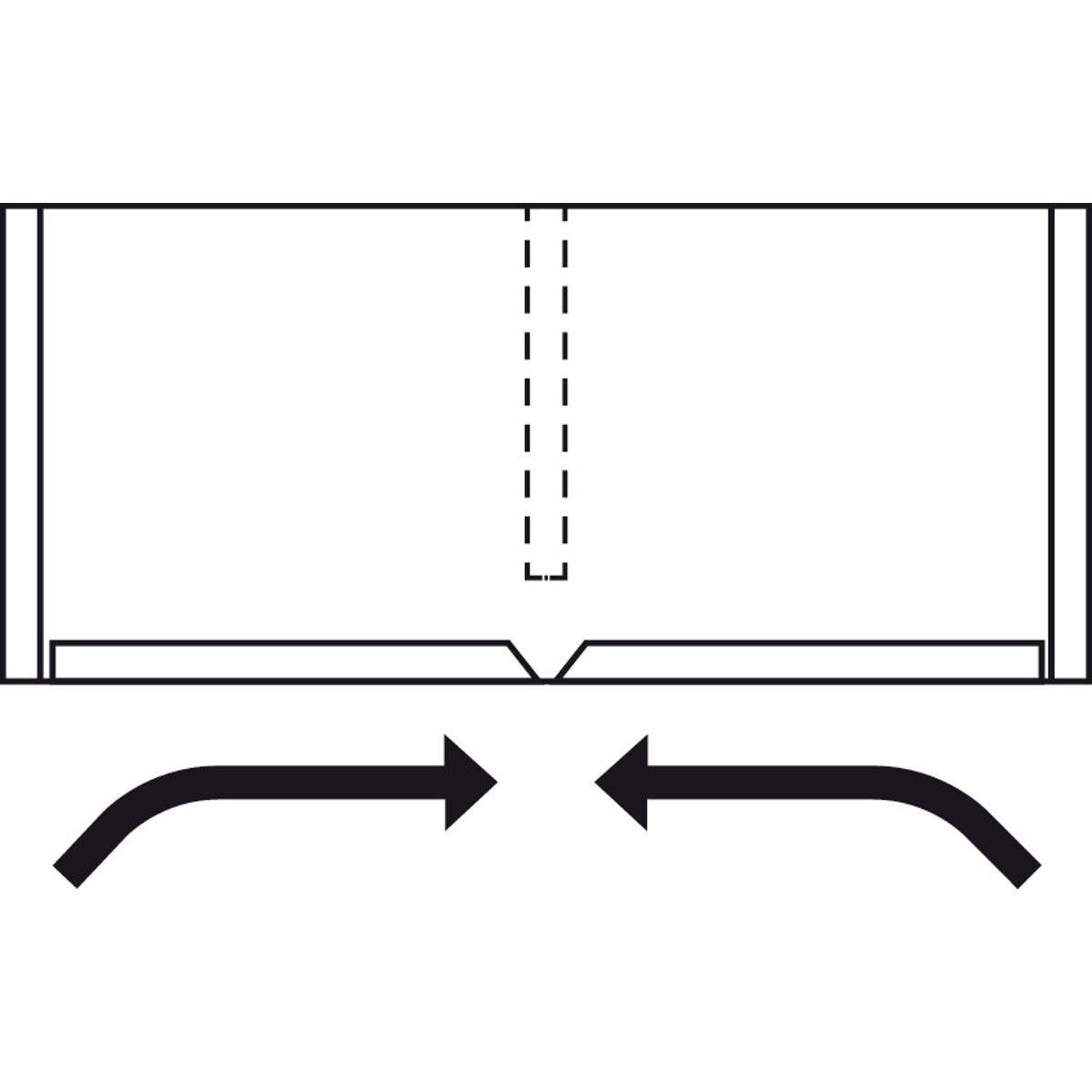

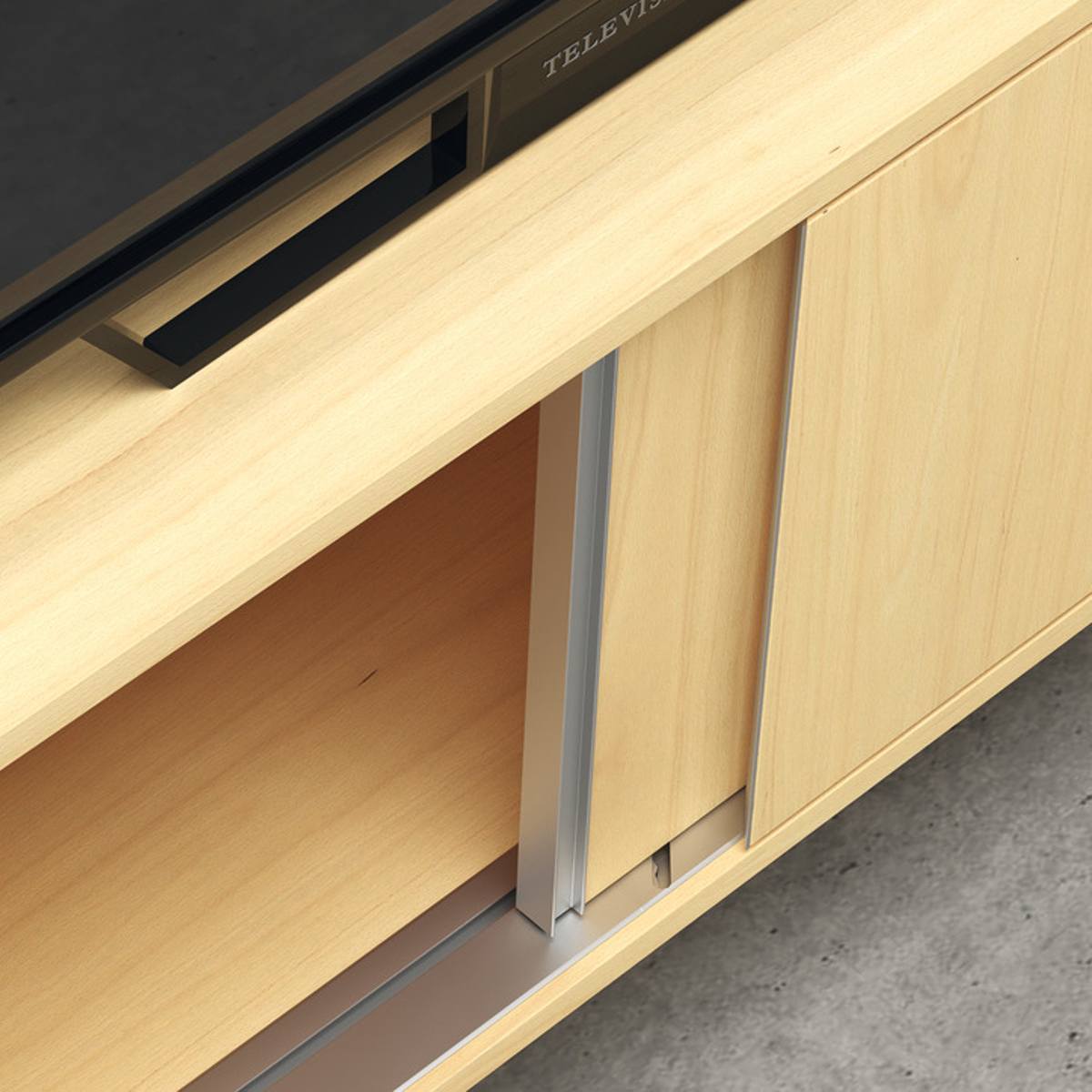

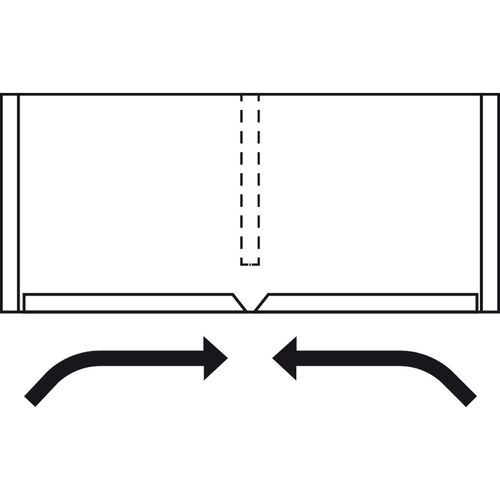

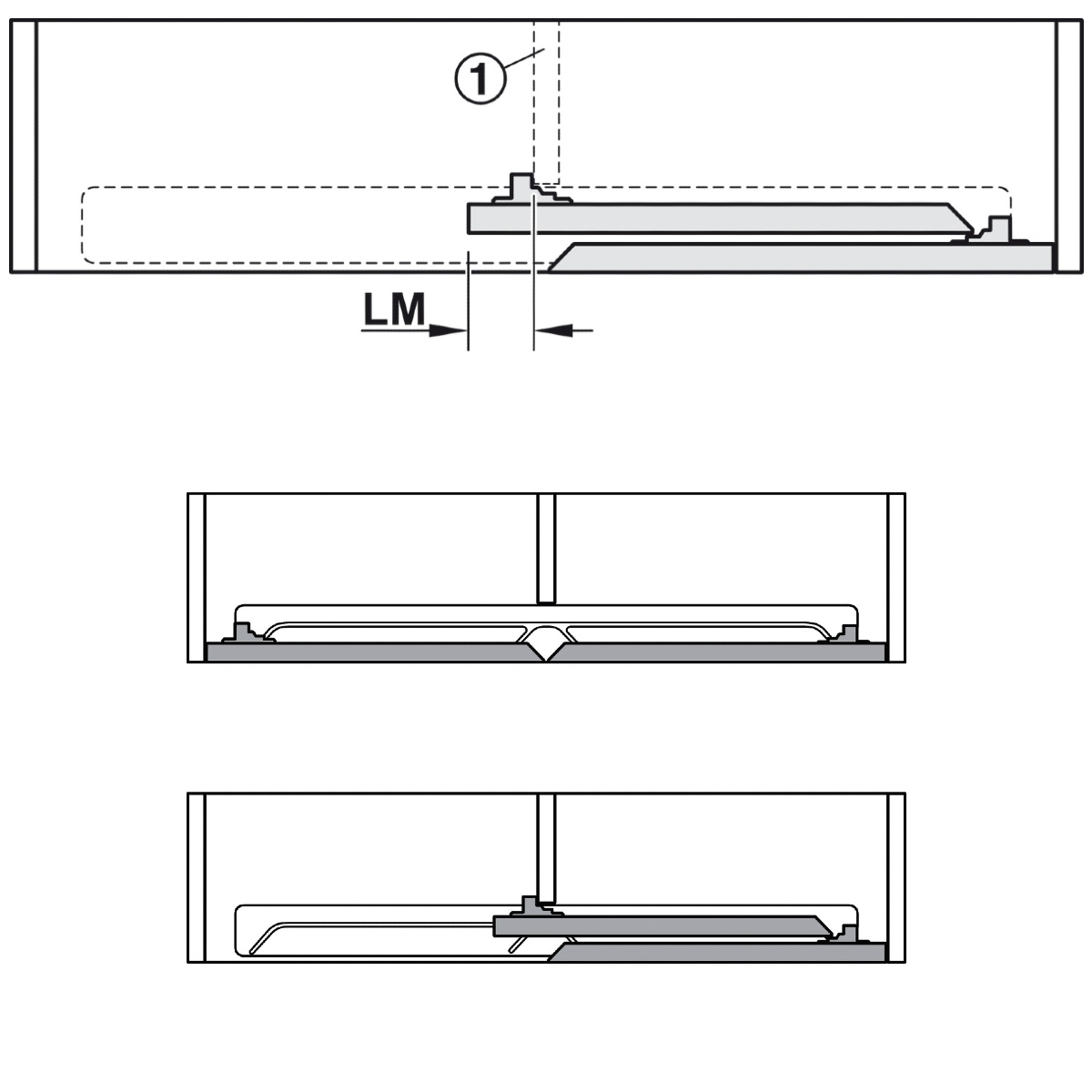

Slido cabinet flush sliding door gear for doors up to 20kg. Perfect solutions for offices, game rooms and cabinet storage. Due to the doors overlapping each other it allows full access to the internal space of the cabinet.

• Flush cabinet doors
• Door offset 50 or 70mm

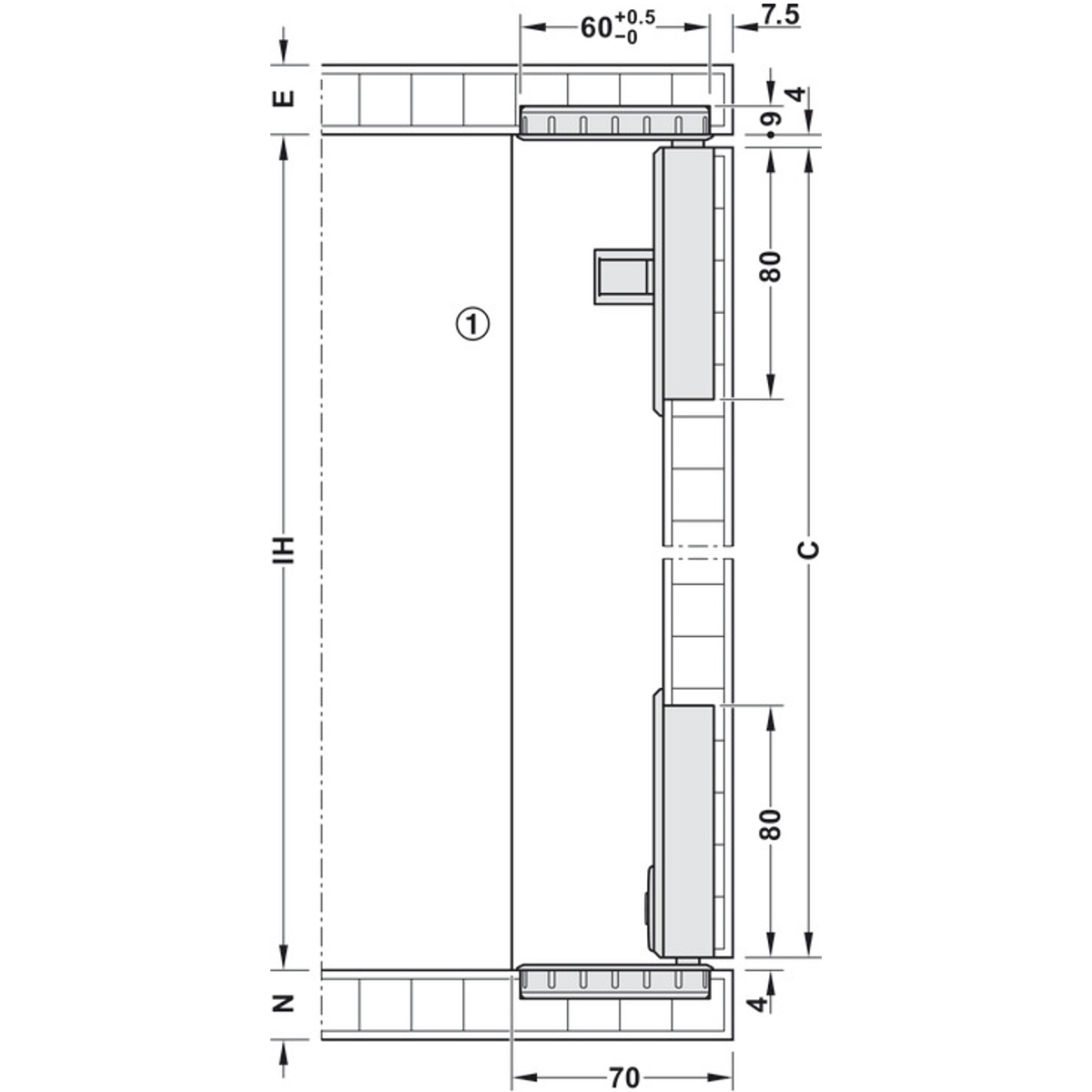

• Installation depth: 70mm
• For door thickness: 18-22mm
• Maximum door weight: 20kg
• Maximum door height: 1600mm
• Available in 2 colours: black/silver
• Adjustment facility: ±2mm via knurled screw
• Recommended Ø4mm countersunk screws to be used
• Maximum number of door panels per kit is 2
• Can be used with different door widths: 600/750/900mm

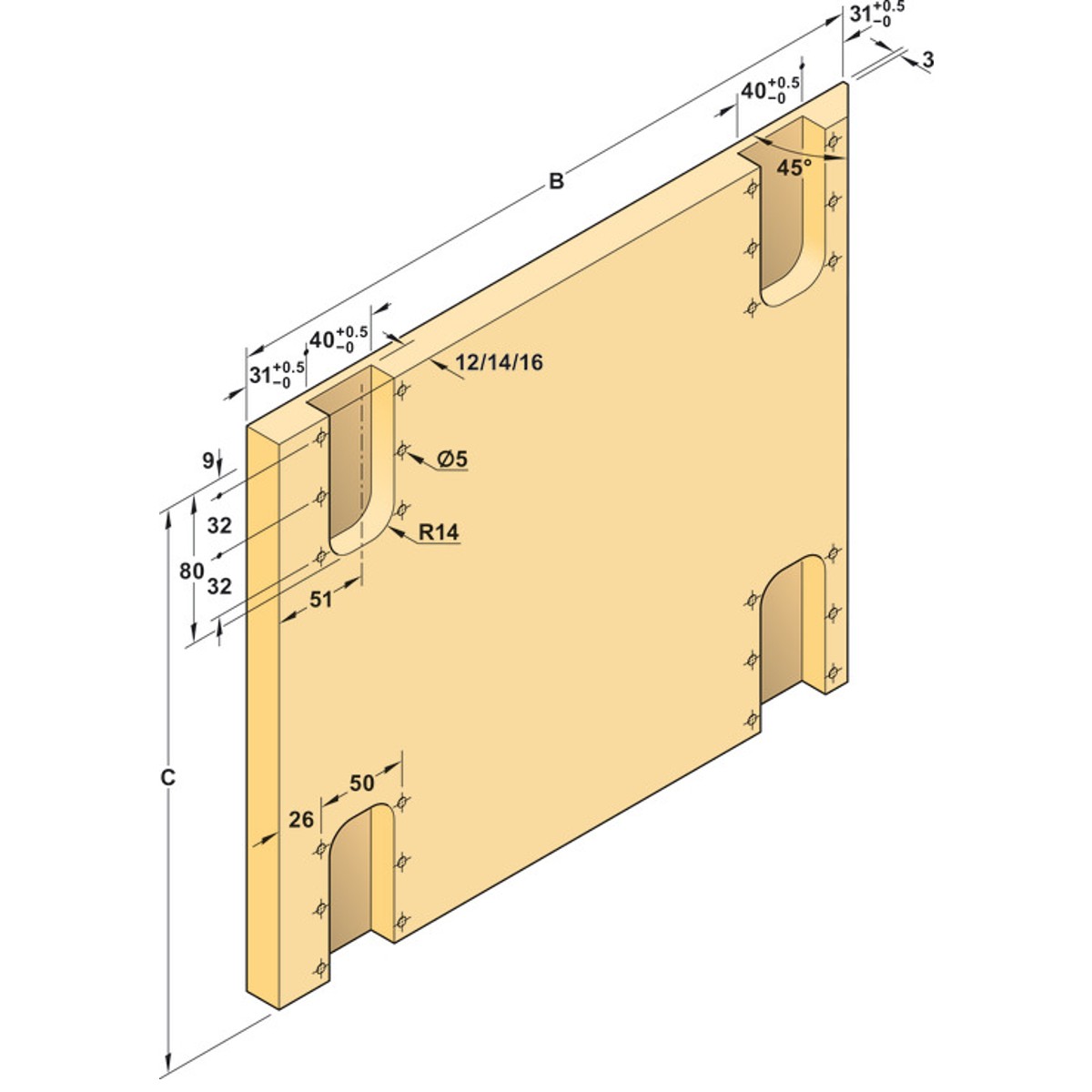

• Tracks can not be cut - cabinet size to be as follows:

Supplied with:

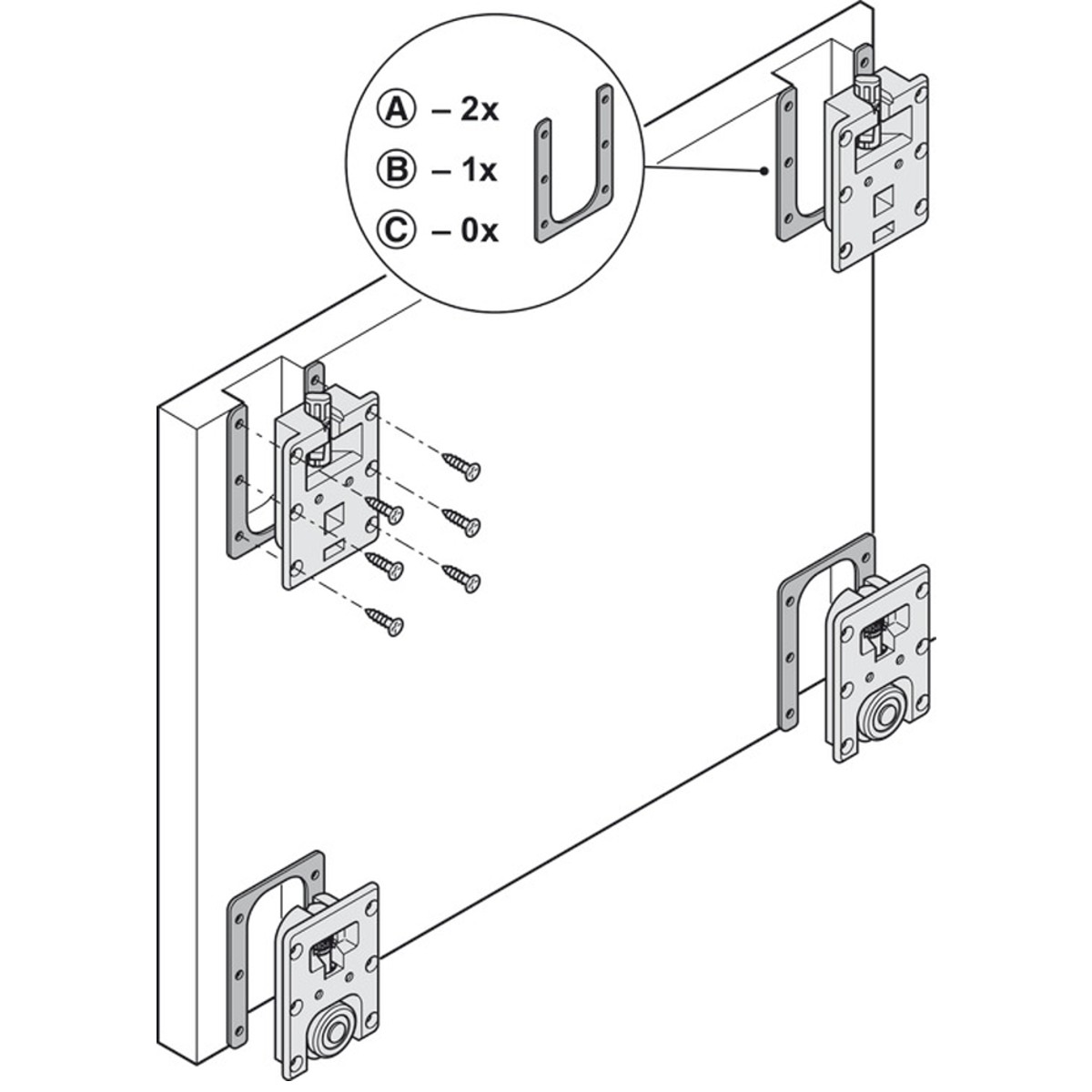

• 1 x hex key
• 2 x top track
• 4 x top guides
• 2 x door buffer
• 4 x bottom guides
• 1 x pair of installation jigs
• 10 x spacer plates for 18/20mm door thickness
