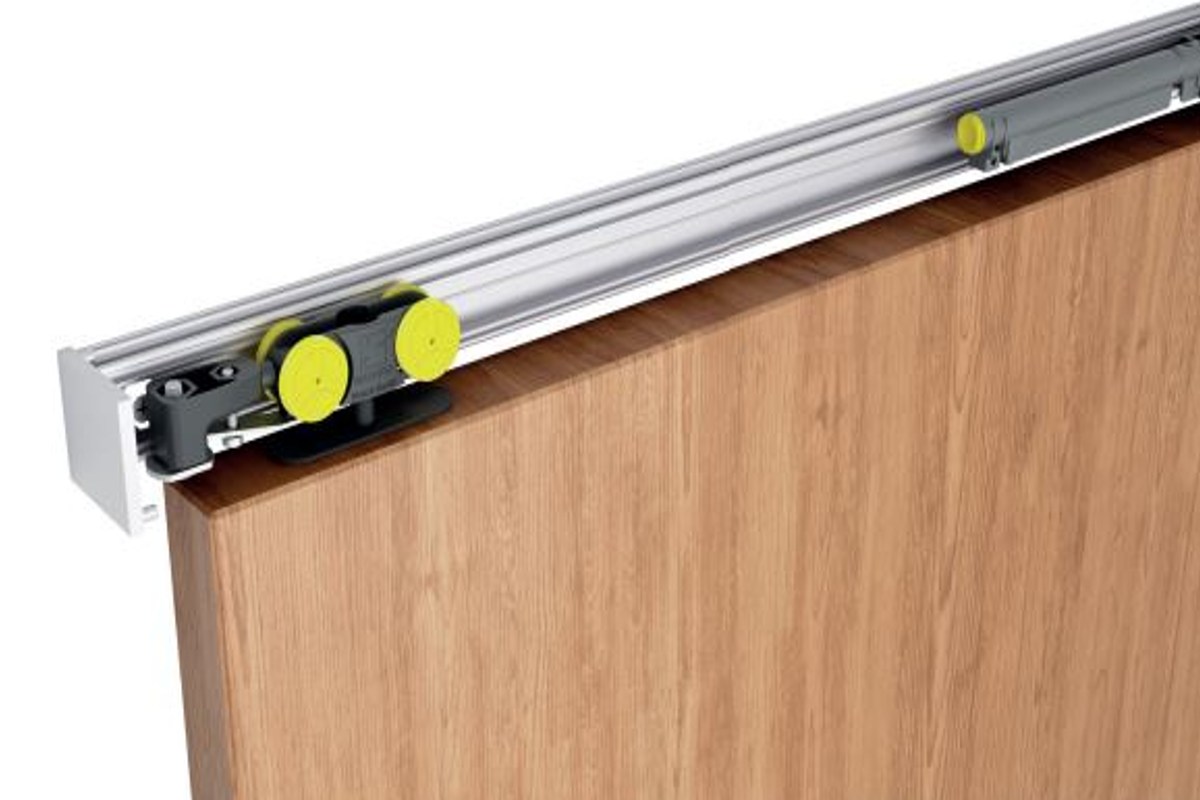

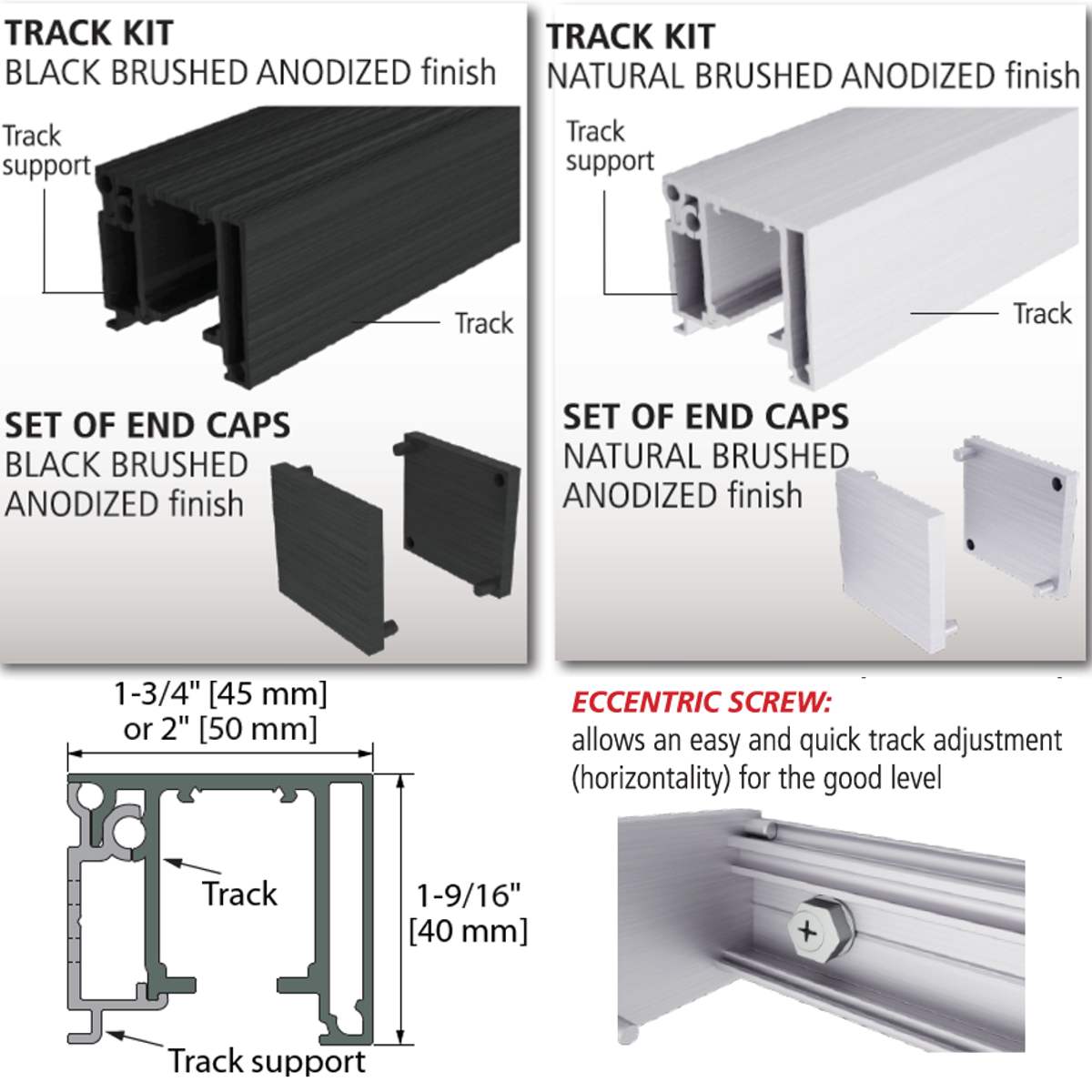

SAF Slim Sliding Door Track Kit For Doors Up To 60kg, Ideal For Room Dividing And Pocket Doors. Track End Caps Provided In A Set Together With A Minimal 3mm Gap Between The Track And Door, Create A Sleek, Compact Finish. Tracks Are Available In Brushed Black Or Brushed Aluminium Finish. Heavy-Duty Sliding Door Gear For Office Or Home.
- Heavy-duty sliding door gear for office or home
- Door weight: 20-60kg
- Door thickness: 25mm-40mm (wall mounted)
- No maximum door thickness if ceiling mounted
- The flush surface of the door and track can be achieved with a 40mm door thickness only
- Available in two track lengths - 1595mm and 1995mm
- Suitable for DIY - relatively easy installation
- Suitable for double-door openings
- Tracks can be cut down or joined together
- Tracks are suitable for wall or ceiling mounting
- Ceiling-mounted installation requires the track to be pre-drilled
- Wall-mounted- use side support included in a track instead of wall brackets. The extra holes are to be drilled every 370mm counting from the first hole
- The bottom guide requires the door to be routed
Recommended door width:
- For 1995mm track: 630mm-1030mm
- For 1595mm track: 630mm-830mm

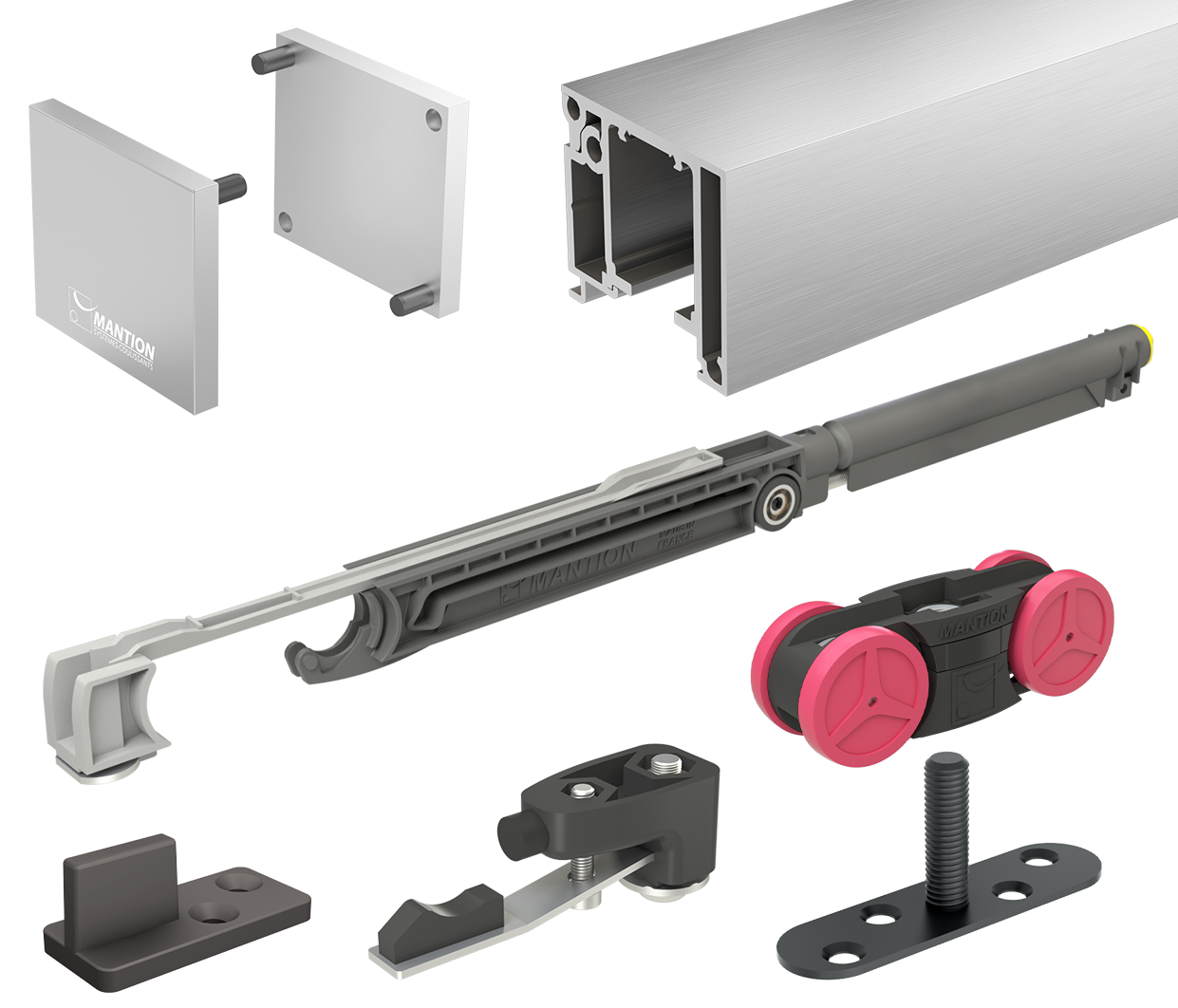

Contents of kit:
- 1 x top track including track support
- 2 x track end caps
- 2 x trolleys for a single door
- 1 x bottom guide
- 1 x door stopper
- 1 x soft-close mechanism
An additional soft-close mechanism is provided in the "Related products" section.
Track Length:
1595mm
