SAF Fold Sliding System 80 Kg

SAF Fold Sliding Door Track Kit For Doors Up To 80kg. Suitable For Wooden Folding Doors With Limited Opening Space. The Ideal Solution For People With Reduced Mobility Who Struggle To Open Doors. Folding Door Leaves Are Convenient To Open And Space-Saving When The Door Is Open.

• Heavy-duty sliding door gear for office or home

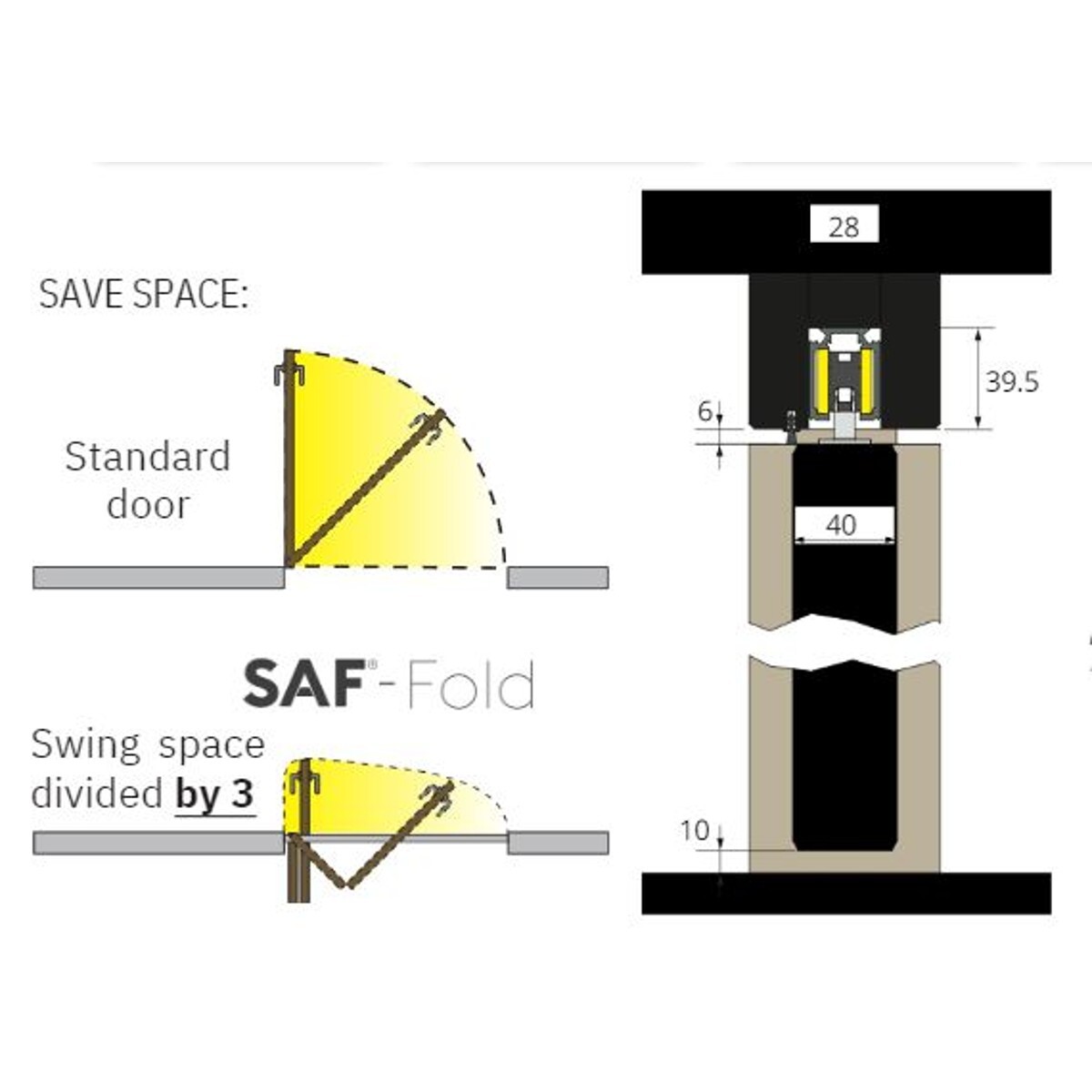

• Saves about 66% of door swing space compared with a standard hinged door
• Maximum door weight: 80kg
• Door thickness: 35mm-50mm
• Top mounted
• The track is made of anodised aluminium
• Track length: 1400mm, pre-drilled every 440mm
• Tracks can be cut down
• Tested in 100,000 cycles
• The set contains an “invisible” flush-mounted hinge. The hinge is concealed inside the panel and is flush with the surface

Door width calculation:

• Lp1-Small panel: Lp1 = (LT1-11) x 0.3
• Lp2-Large panel: Lp2 = (LT1-11) x 0.7
  LT1- opening width within the SAF Fold Frame

Contents of kit:

• 1 x top track
• 1 x ball bearing trolley
• 1 x mounting plate
• 1 x track/panel height adjustment gauge
• 6 x concealed hinges with 3D adjustment: depth (X): ± 2mm / vertical (Z): ± 2.5mm / horizontal (Y): ±1mm
  Hinge width: 23mm

A wooden door frame suitable with a system for easy installation and a neat finish is available in the related product section.

Please note doors need to be purchased separately.
