Railway Soft Close Sliding Door Track Kit - 40/80kg

4703-001
Price from: £90.67inc VAT
+

Railway Soft Close Sliding Door Track Kit For Doors Up To 80kg, Perfect For Room Dividing Doors, Airing Cupboards And Pocket Doors.

  • Supplied with Soft Closer working in both directions
  • Available in two versions - up to 40kg or 80kg
  • Heavy-duty sliding door gear for office or home
  • Max door weight - 80kg
  • Min door thickness 18mm
  • No max thickness if ceiling mounted
  • Max door thickness 44mm if wall-mounted
  • Min door width 600mm
  • No max thickness if ceiling mounted
  • Available in two track lengths - 1600mm, 2300mm and 3000mm
  • Suitable for DIY - relatively easy installation
  • Suitable for double-door openings
  • Tracks can be cut down or joined together

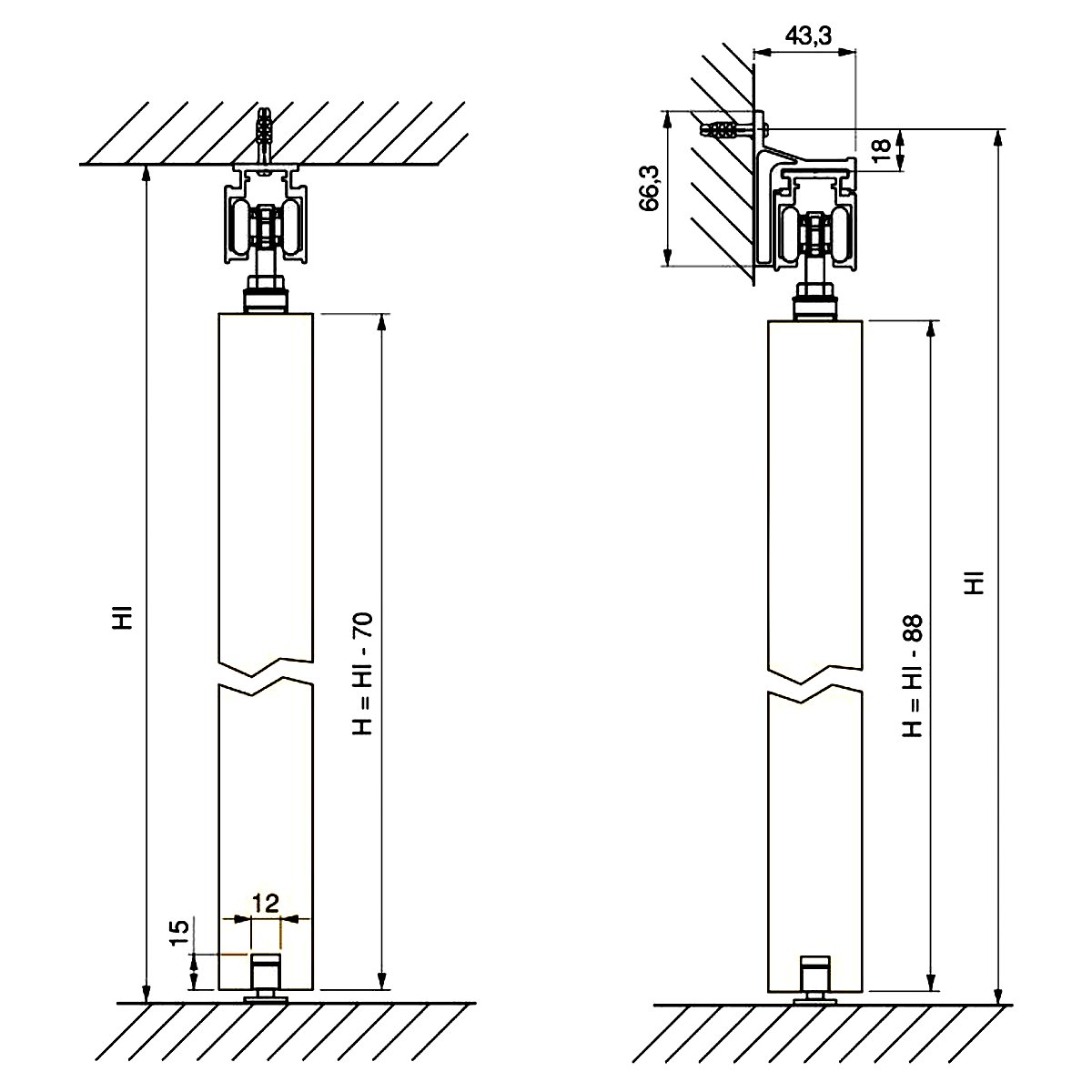

  • Track for face/wall or ceiling mounting (wall brackets required for wall mounting)

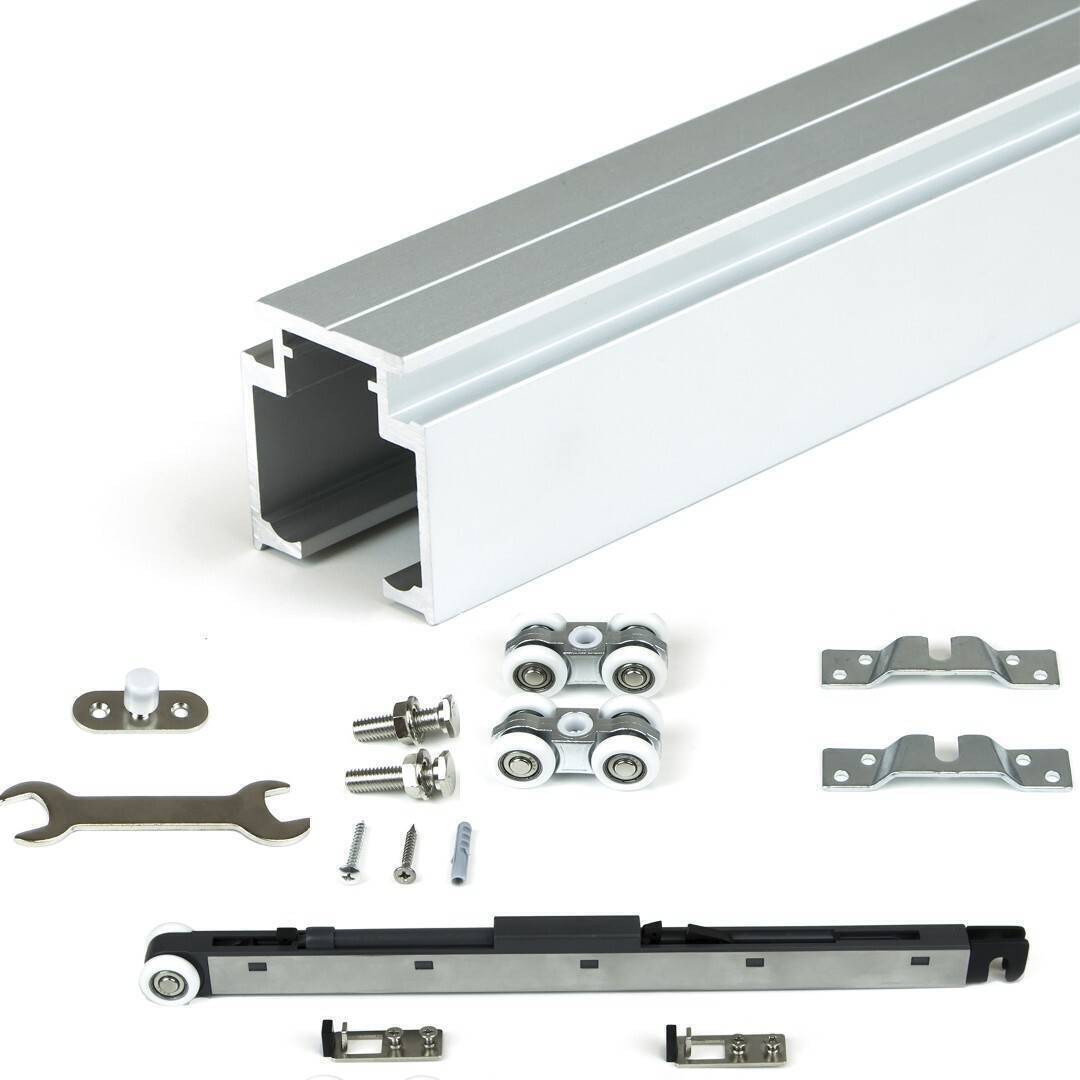

Contents of kit:

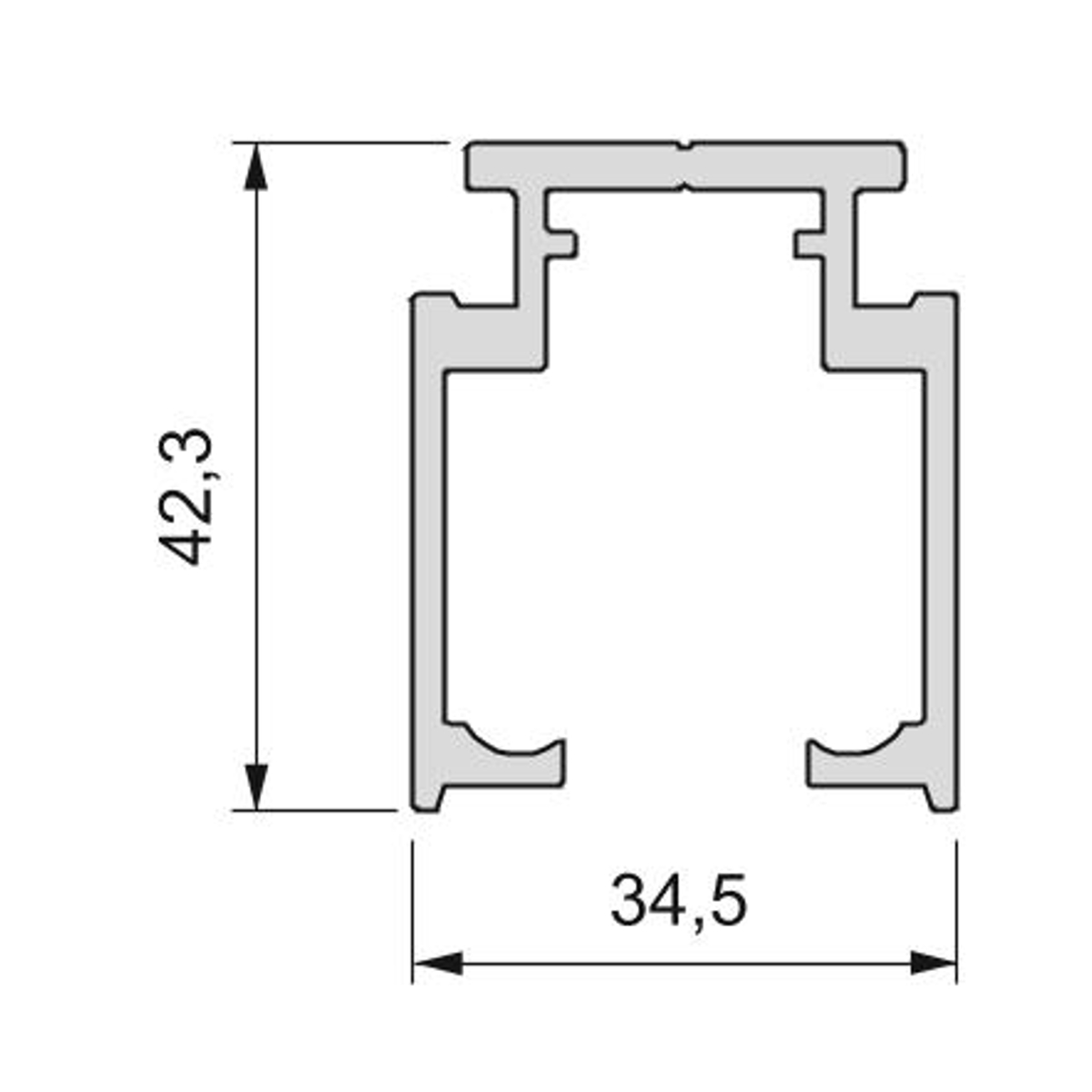

  • Top track
  • Set of trolleys for a single door
  • Soft Closer - working in both directions
  • Bottom guide (requires a groove in the bottom of the door)
  • Door Stoppers
  • Screws

Additional Accessories - need to be purchased separately (in related products below):

  • Track cover in silver
  • Wall brackets
  • Additional door kit
  • Universal bottom guide (doesn't require a groove in the bottom of the door)
Soft Close:
For Door Up To 40kg
Track Length:
1600mm

Sliding Systems

Dedicated for:
  • Pocket Doors
  • Room Dividing Doors
Included accessories for :
  • 1 door
Maximum Door Weight :
80kg
Product short Name:
Railway
System Type:
Top Hung
