Pull-Out Table Fittings

The pull-out table fittings are a versatile mechanism that allows you to extract a medium sized table from a standard drawer or suspended cabinet. It can be installed in furniture with a minimum depth of 39cm, making it suitable for various environments such as living rooms, bedrooms, and offices. The single telescopic folding leg provides stability, accommodating a load rating of 100kg. This pull-out table fitting features anodized aluminium and galvanized steel construction, ensuring both functionality and aesthetics.

• Single folding leg

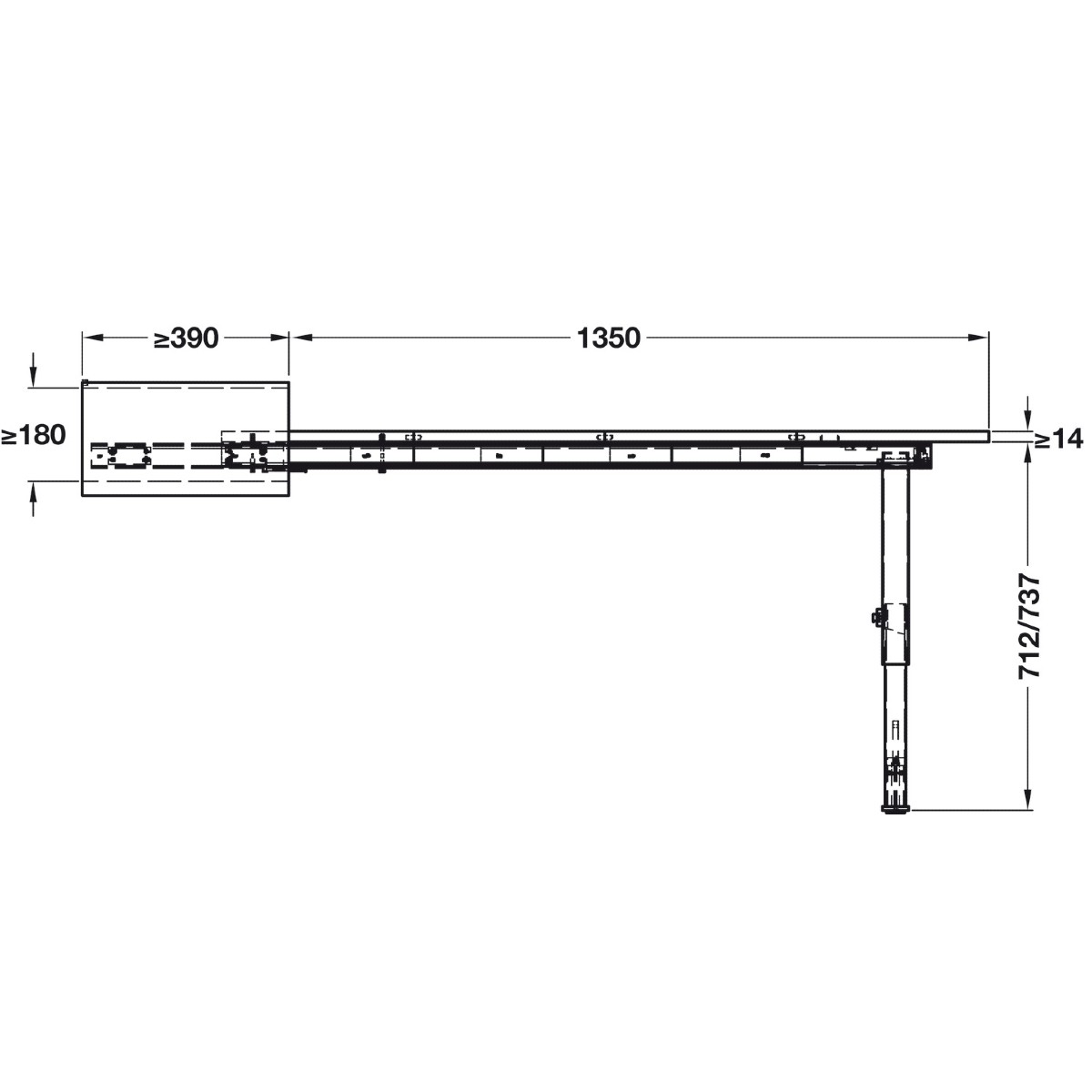

• Extension Length: 1350mm
• Load bearing capacity: 100kg
• Folding leg height: 712/737mm

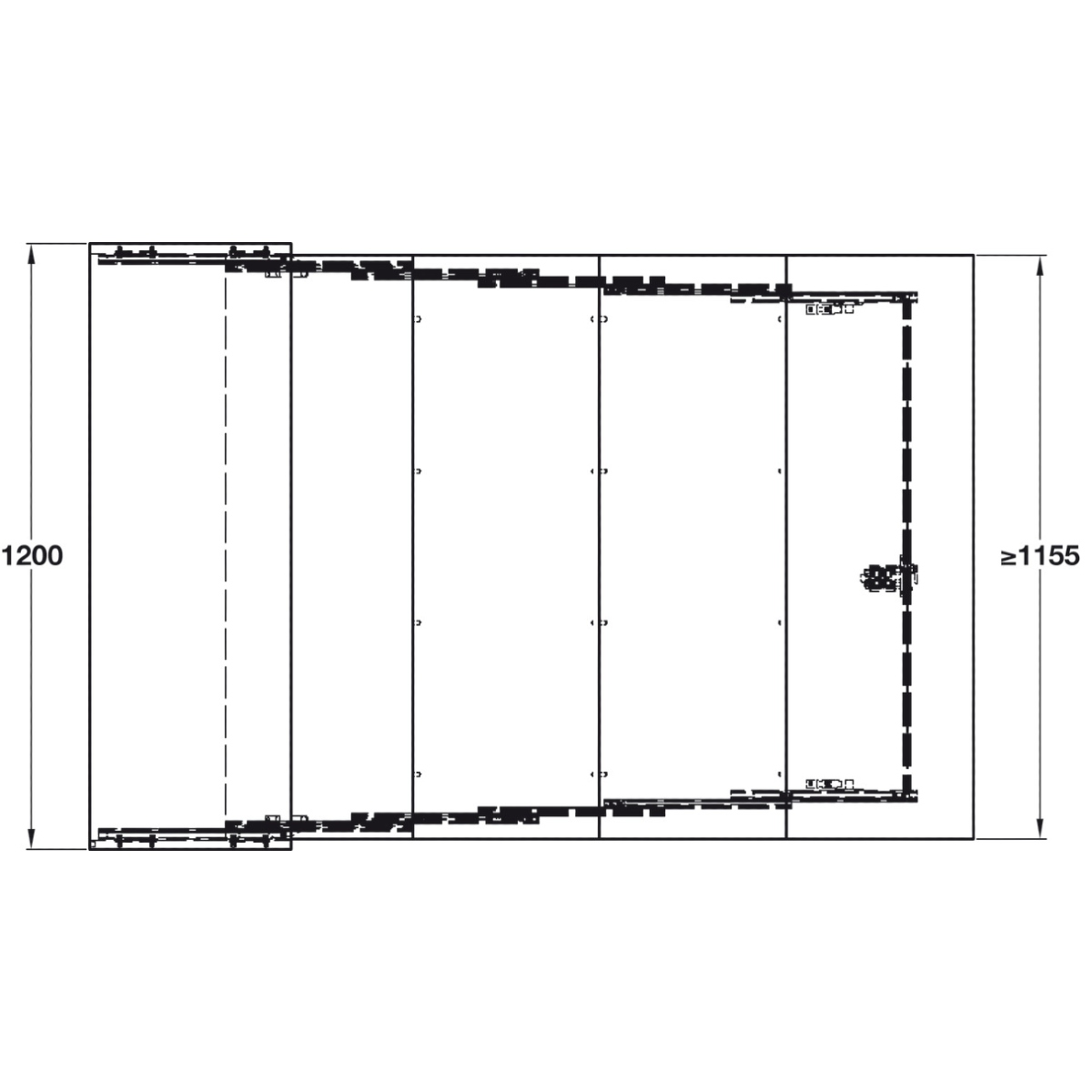

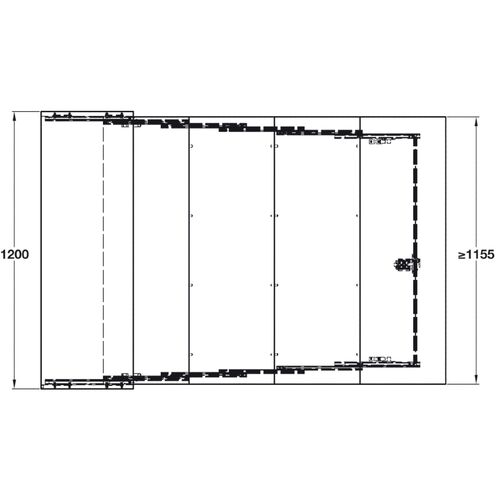

• Internal installation width: 1200mm
• Bronzed coloured anodised aluminium
• Minimum internal cupboard depth required: 390mm
• Minimum internal cupboard height required: 180mm
• For accommodating a pull-out table in place of a drawer
• Minimum board thickness required to make the table top: 14mm
• Maximum width of board required to make the table top: 1155mm

Supplied with:

• 1 x fitting set
• 1 x fixing materials
• 1 x installation instructions

Please note that:

• Tabletop and wooden box not supplied
• Please order hinges for the drawer front separately
