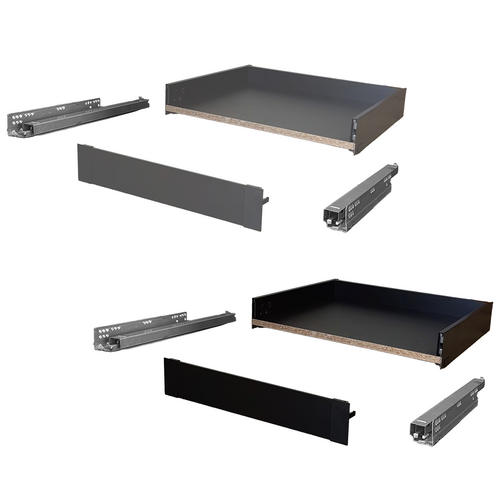

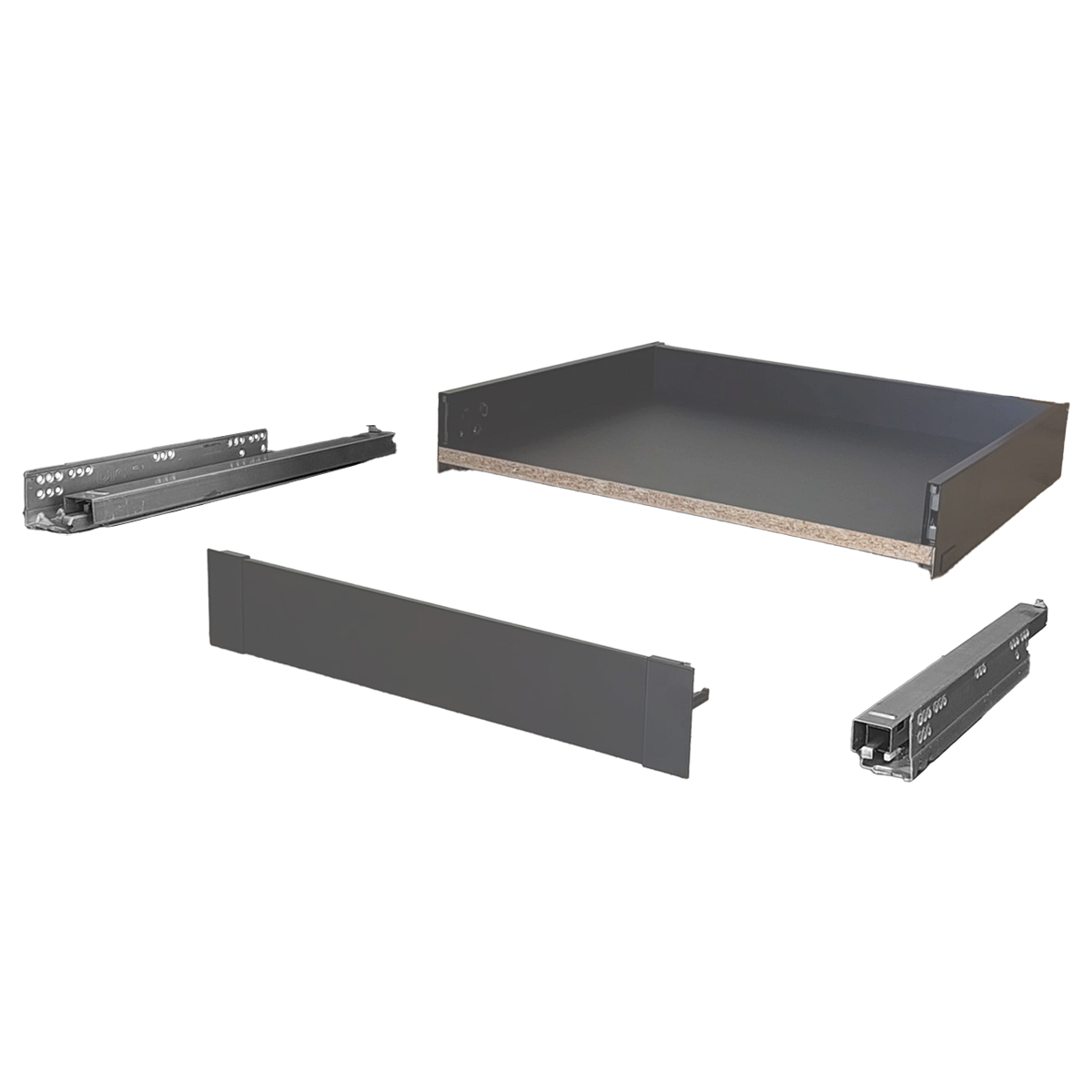

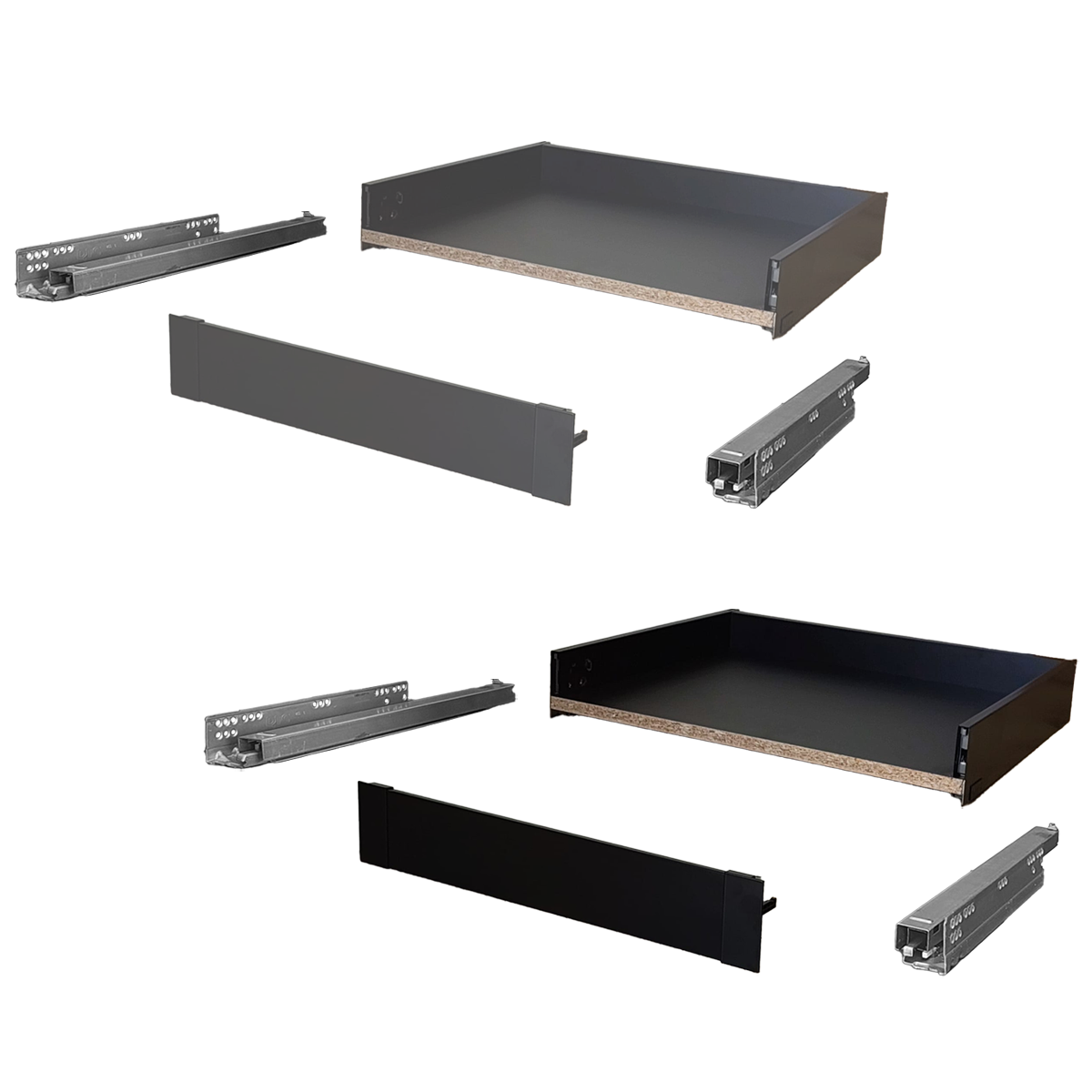

The Magic Pro 88mm drawer system brings together a slim 88mm drawer front and a matching pre‑assembled drawer box, creating a full‑extension soft‑close drawer that can comfortably take up to 40kg. The box is made from sturdy MFC board and uses DTC hardware throughout so everything lines up properly and feels solid once it’s fitted. Its low, modern profile makes it a good choice for top drawers or anywhere you need a neat, shallow storage space. The soft‑close runners keep the movement smooth and let you pull the drawer right out, so you can reach the back without any awkward digging around. Overall, it’s a simple, reliable option for kitchens, bathrooms, wardrobes, or pretty much any furniture project that needs a tidy, lightweight drawer that just works.
- Lifetime warranty

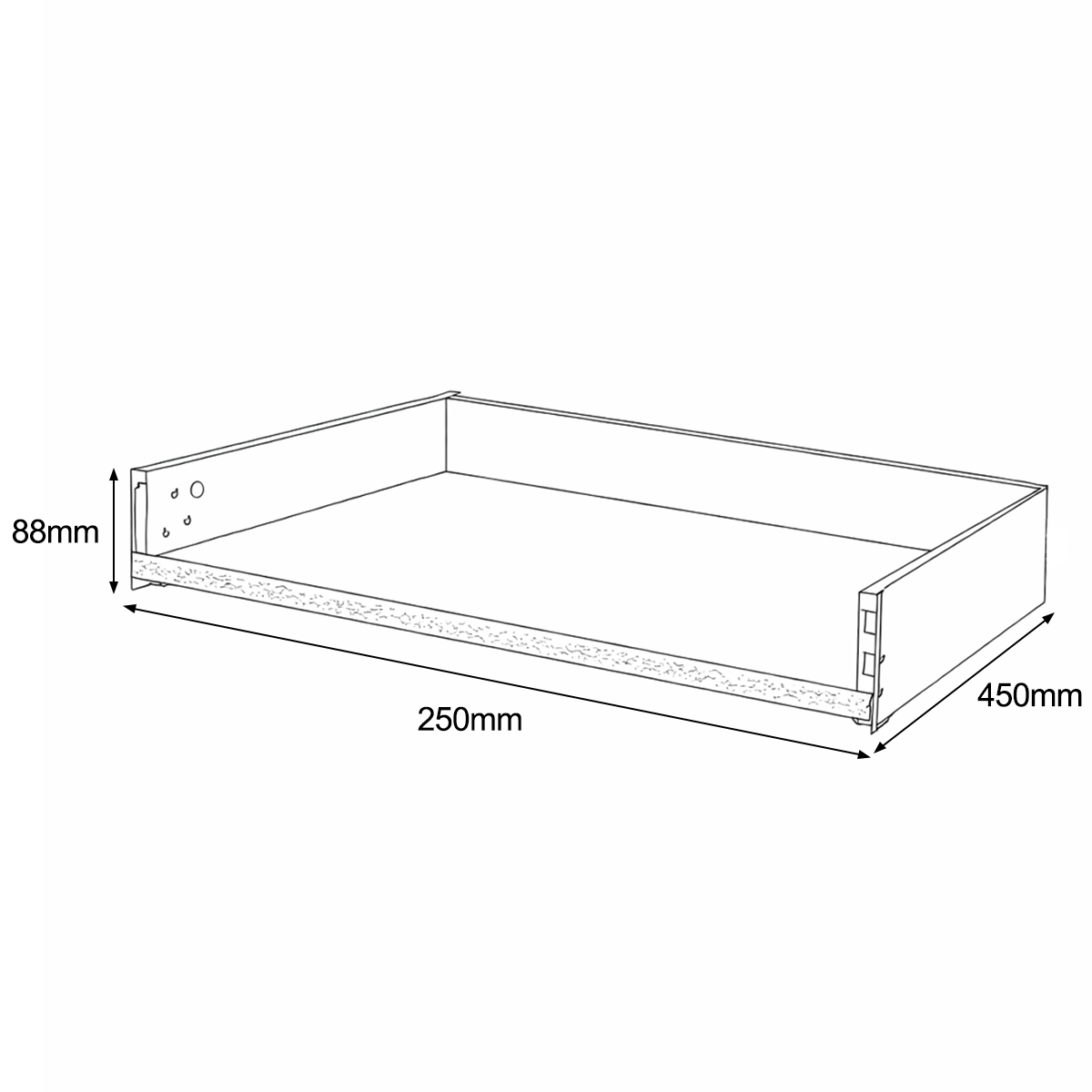

- Drawer height: 88mm
- Drawer depth: 450mm
- Colour: black/dark grey
- Installation height: 106mm
- Suitable for 18mm carcasses
- Minimum internal depth: 453mm
- Cabinet width range: 300-1000mm
- Maximum load capacity: supports up to 40kg
- Backs and bases made out of: melamine-faced chipboard (MFC)
- Built-in soft close: prevents slamming and ensures quiet operation
- Full extension DTC runners: allow complete access to the contents of a drawer
| External Cabinet Width | Internal Cabinet Width Required |
|---|---|
| 300mm | 264mm |
| 400mm | 364mm |
| 500mm | 464mm |
| 600mm | 564mm |
| 800mm | 764mm |
| 900mm | 864mm |
| 1000mm | 964mm |
