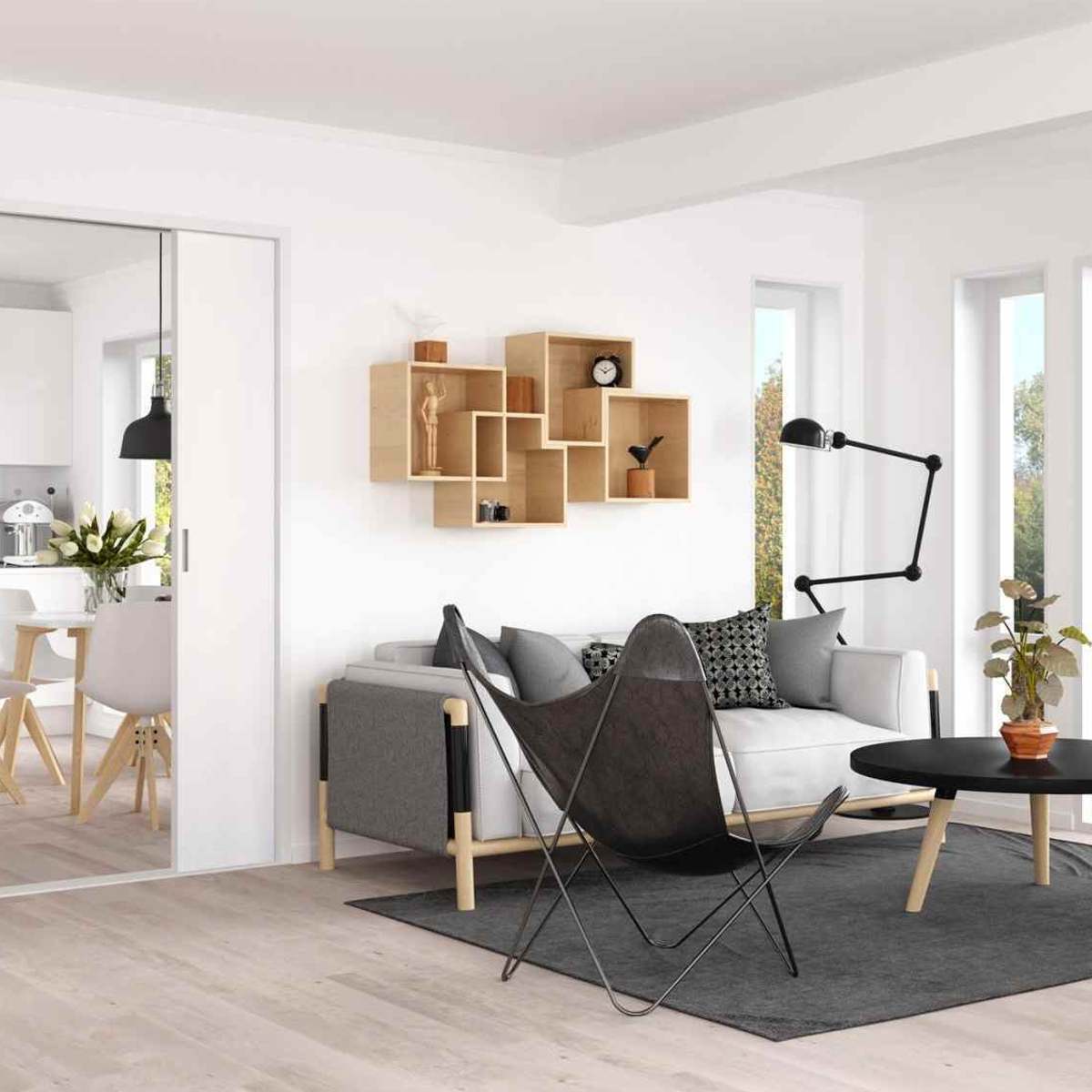

Pocket Door System - 75mm Frame

2046-001
Price from: £167.94inc VAT
+

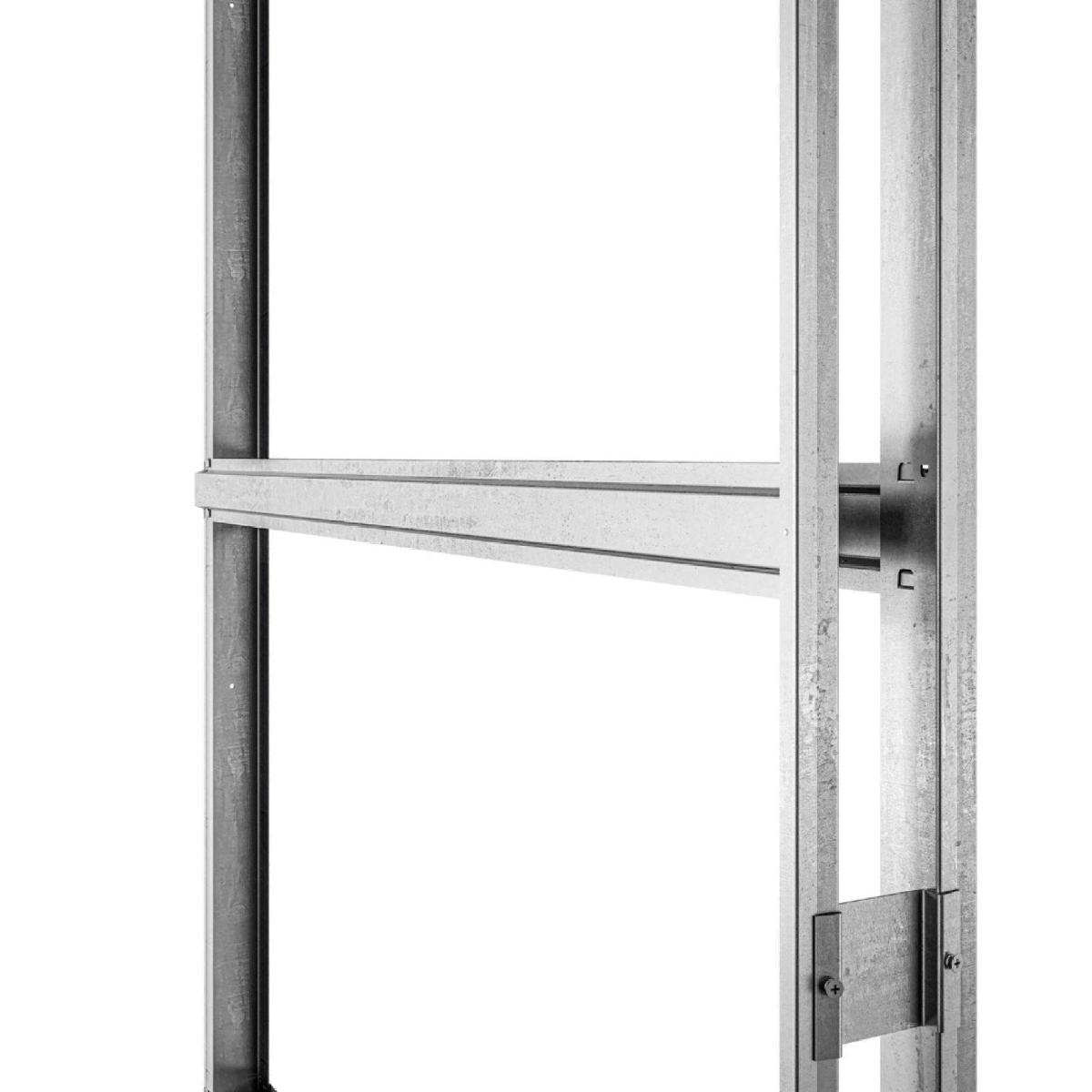

Complete pocket sliding door system with galvanised steel pocket frame, sliding track and running gear. 75mm wide frame specifically made to suit 63mm cls,75mm scant or 100mm stud. Optionally supplied with lining and jamb pocket finishing kit primed in white.

  • 12 year guarantee
  • Maximum door weight: 60kg
  • To fit 35-44mm thick door panels
  • To fit 75mm scant or 100mm stud
  • Optional soft close (available in related products below)

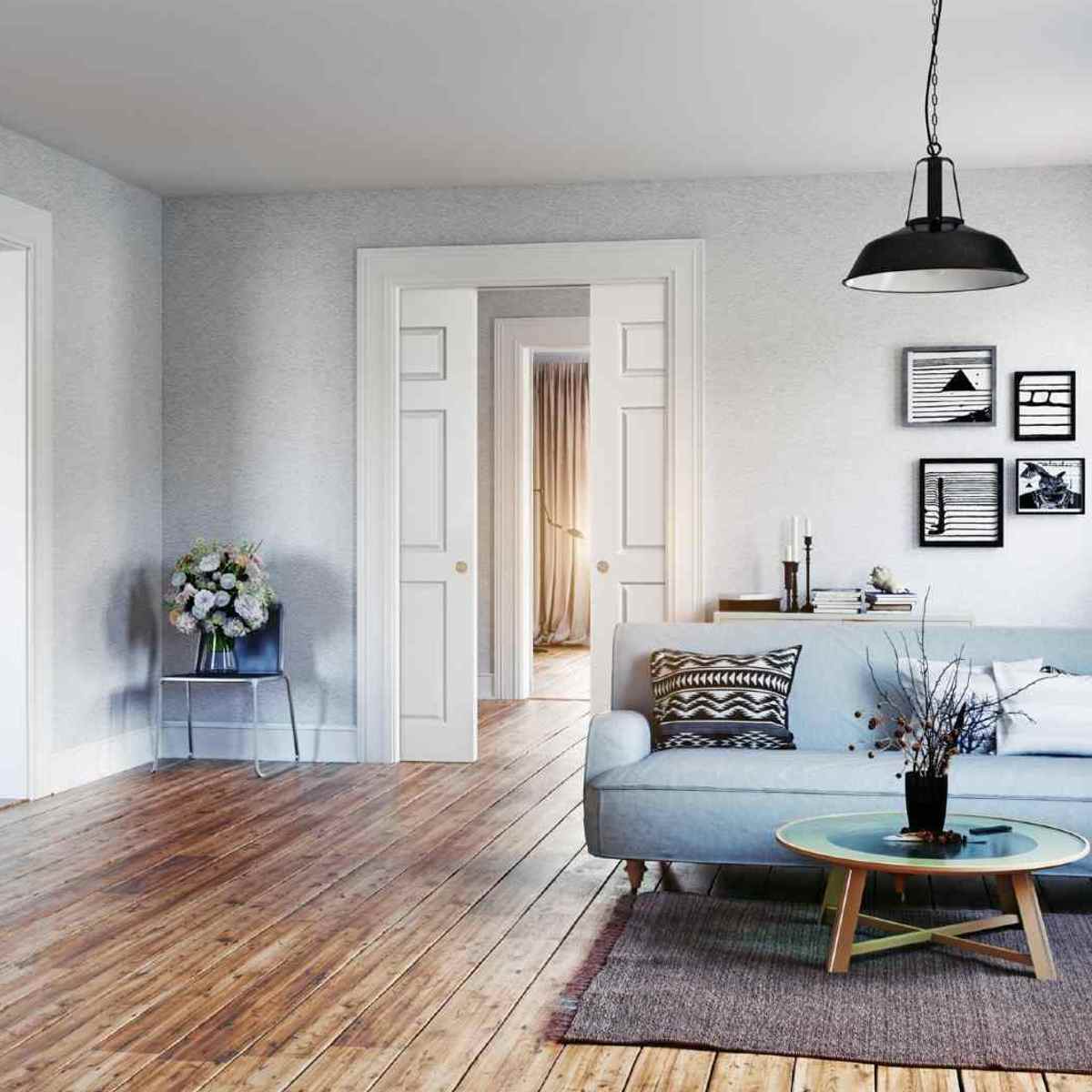

  • Suitable for double doors (two kits can be joined together)

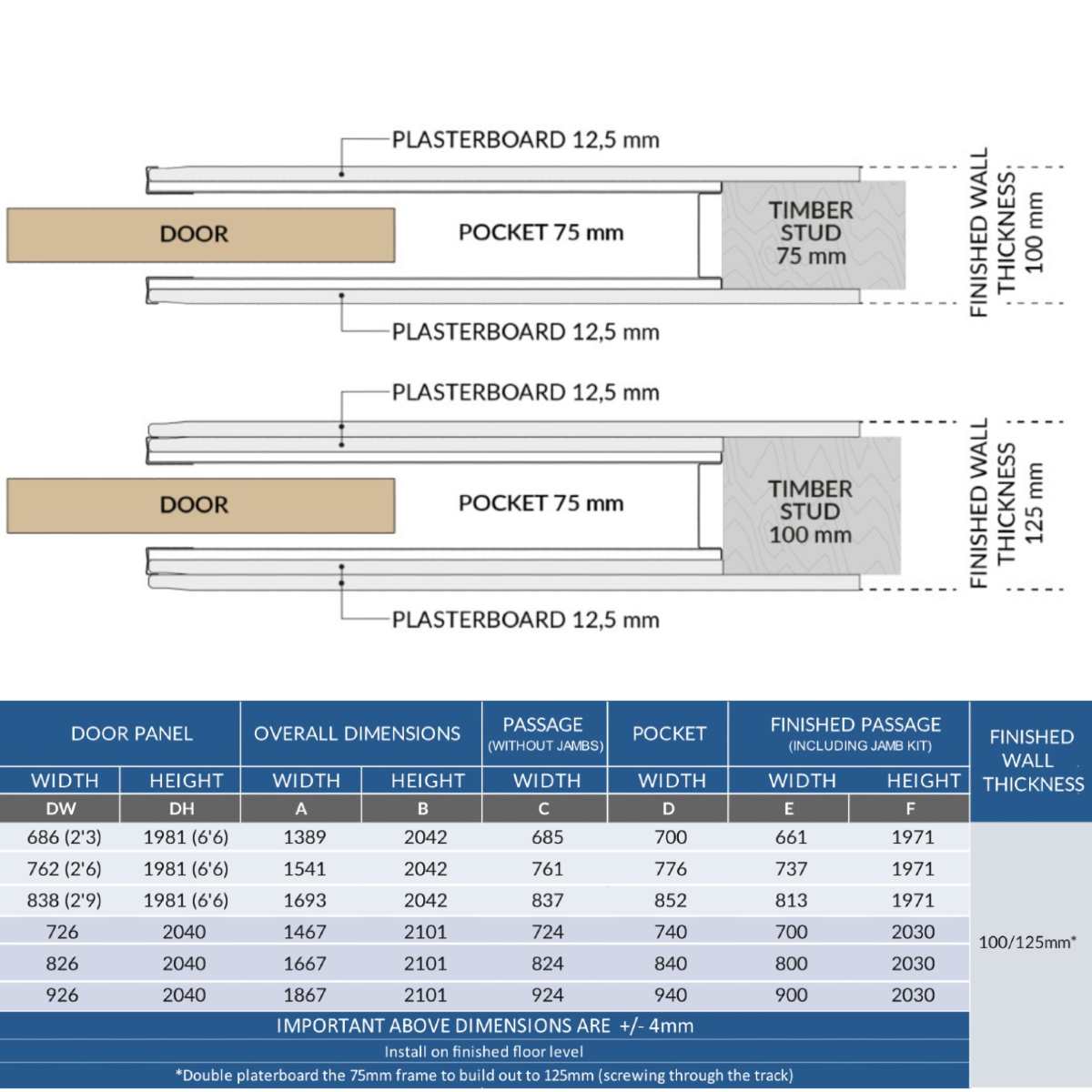

  • 100 mm finished wall thickness (with 12.5 mm plasterboard)
  • Available in various sizes to fit door sizes:
    • 686/762/838mm x 1981mm
    • 726/826/926mm x 2040mm

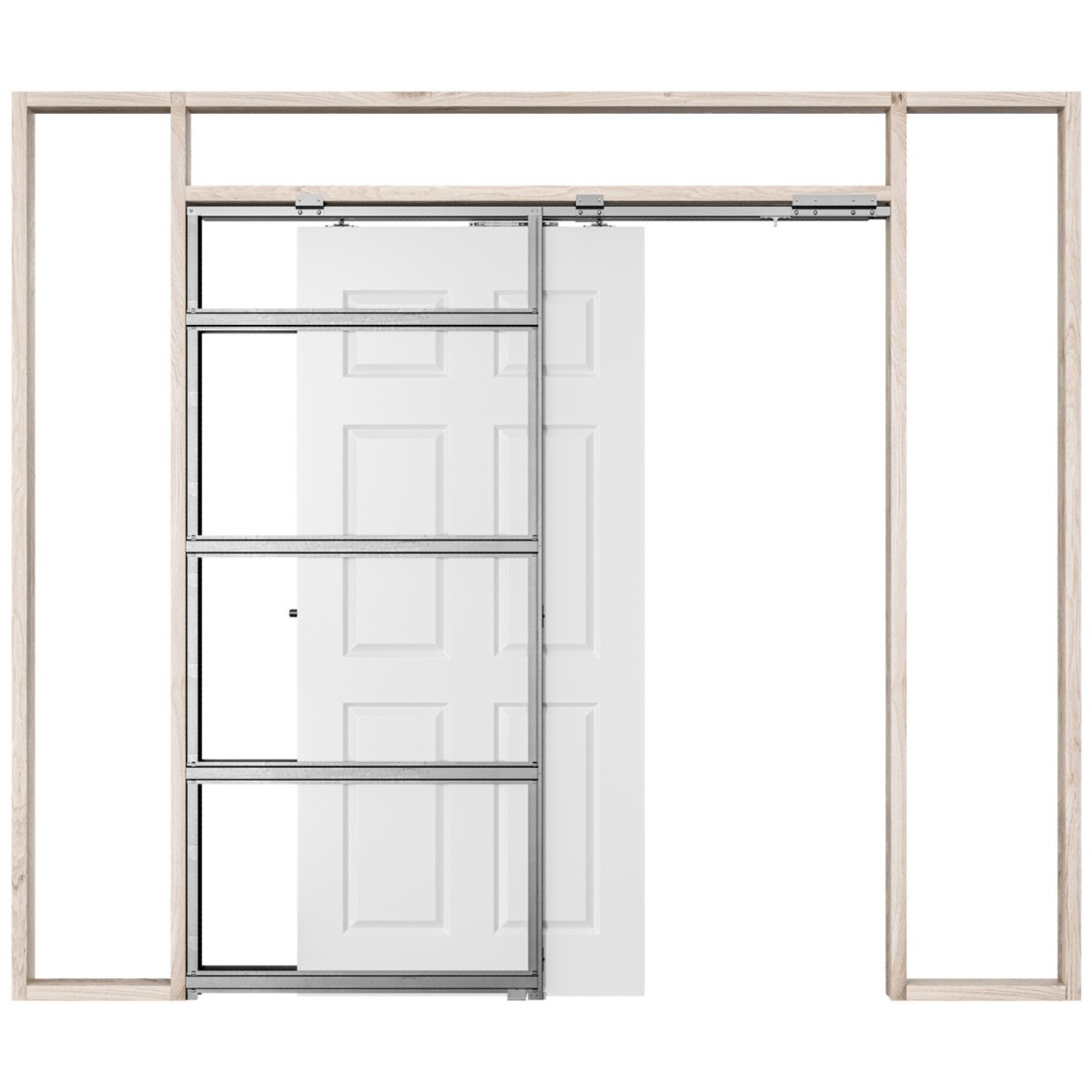

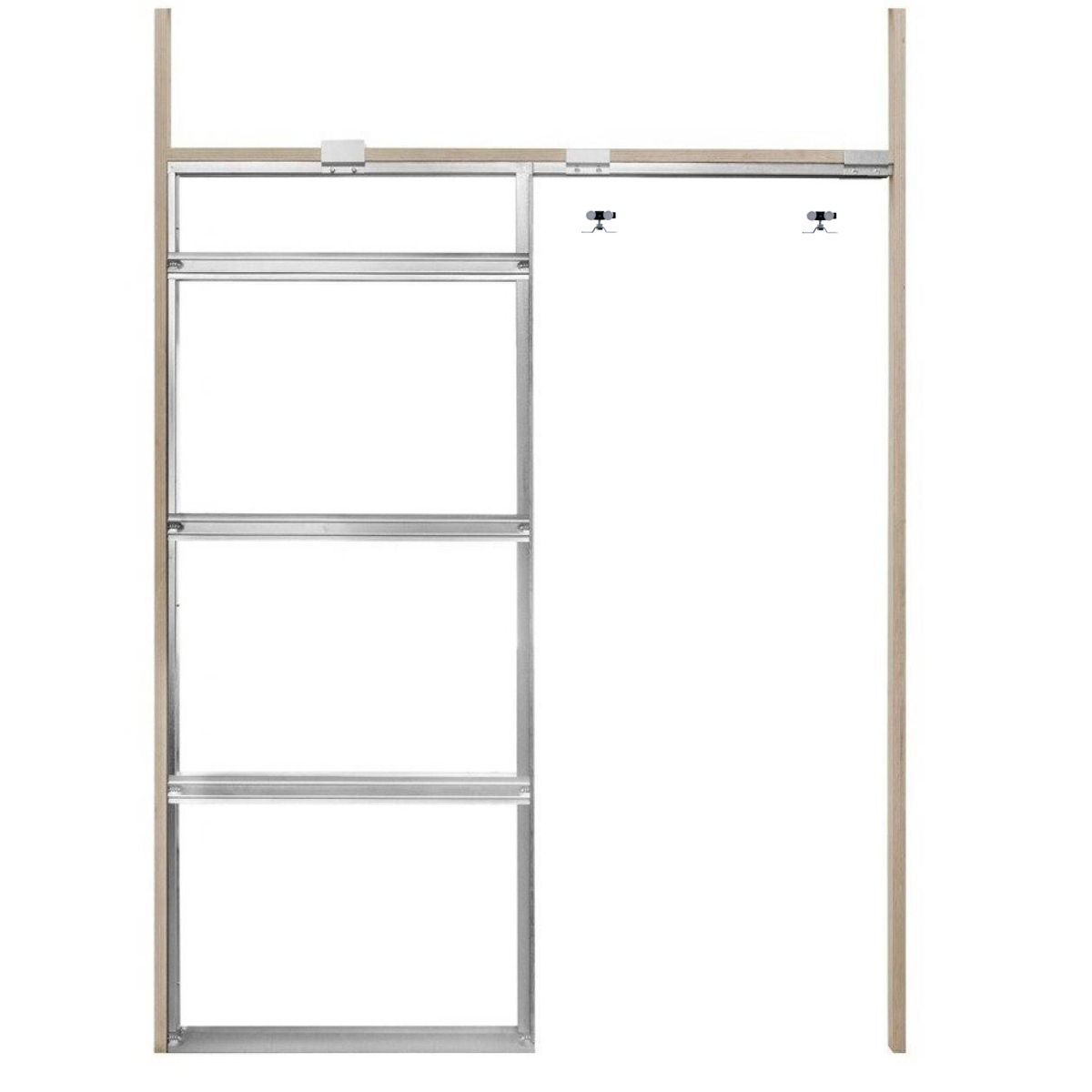

Kit includes:

  • Bumper stopper
  • Bottom door guide
  • Top track with running gear for one door

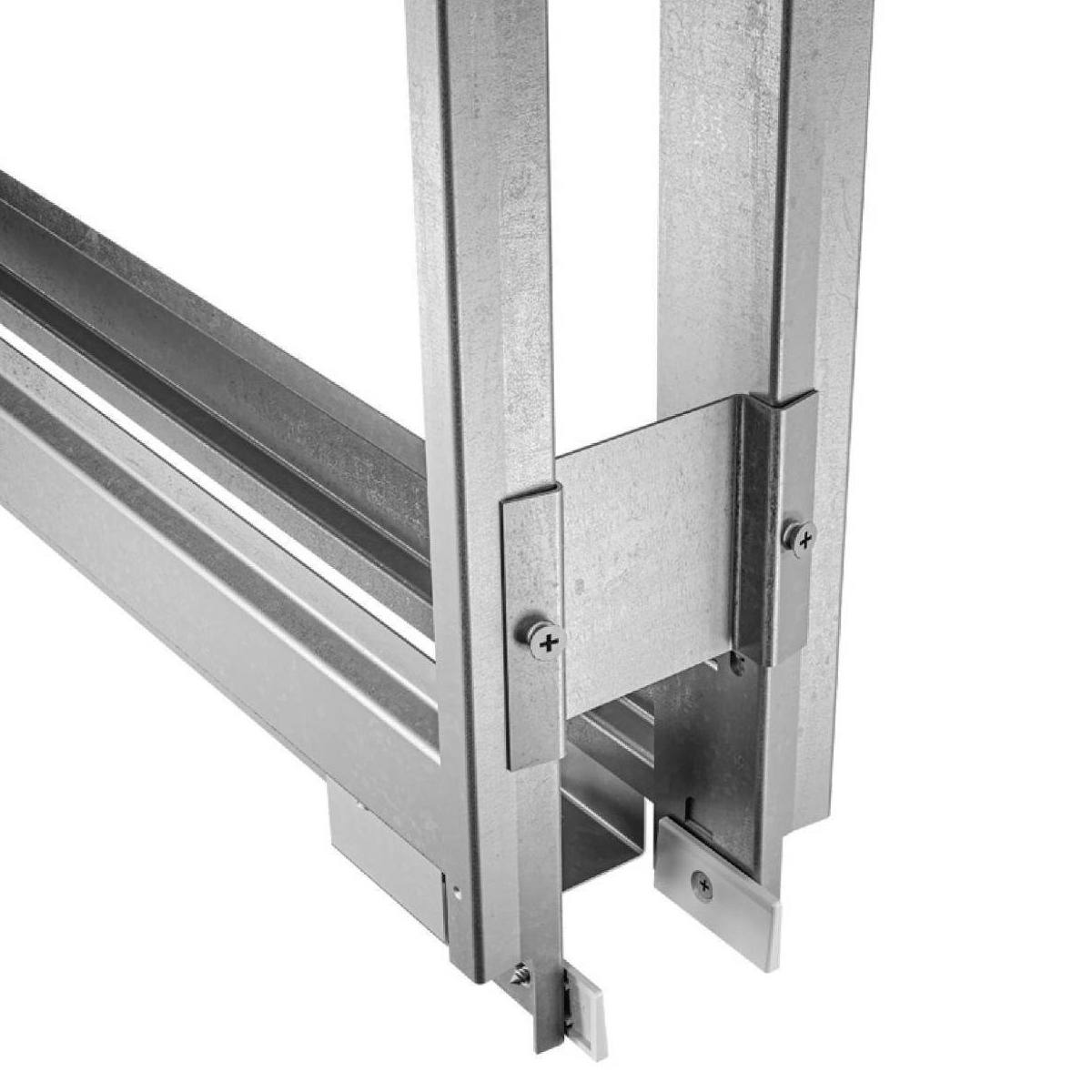

  • Galvanised steel profiles are required to build the pocket

Optional lining and jamb kit:

  • Primed in white
  • Finishing kit made of MDF
  • Consists of a door jamb and liners to cover the gaps and steelwork

Please note that:

  • Door panel is not included
  • This system is not fire rated

Sliding Systems

Size:
686 x 1981mm
Lining And Jamb Kit:
No Jambs
