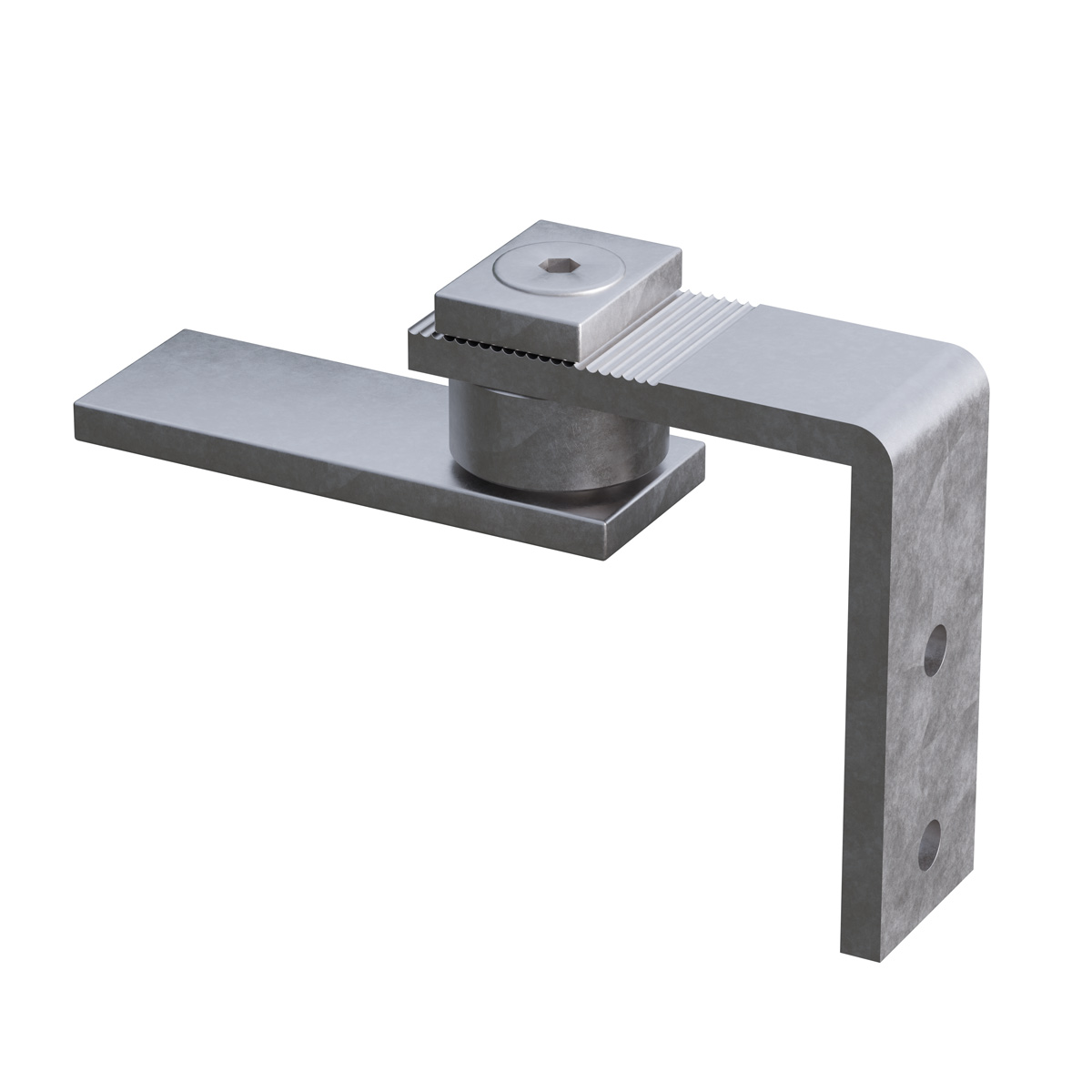

Pivot Hinge 50mm - Side Mounted (1700kg)

5327-001
Price from: £38.40inc VAT
+

Heavy-duty side-mounted 50mm pivot hinge with bearing manufactured from high quality galvanised steel. Perfect for welding to swing gates and doors. Side plates allow for screwing the pivot hinge to the wooden or steel side post

  • Choice of top or bottom pivot hinge -with plates
  • 50mm bearing
  • Maximum weight capacity:
    • Bottom pivot: 1700kg
    • Top pivot: 450kg
  • Perfect for welding to steel gates and doors
  • Supplied with sealing o-ring to protect the bearing from debris
  • Item weight:
    • Bottom pivot: 1.32kg
    • Top Pivot: 1.84kg

Advisory

The top pivot can not be supported just at the top, this system is designed for the weight to be at the bottom. The top pivot is only a guide.

Version:
Top Pivot (450kg)
