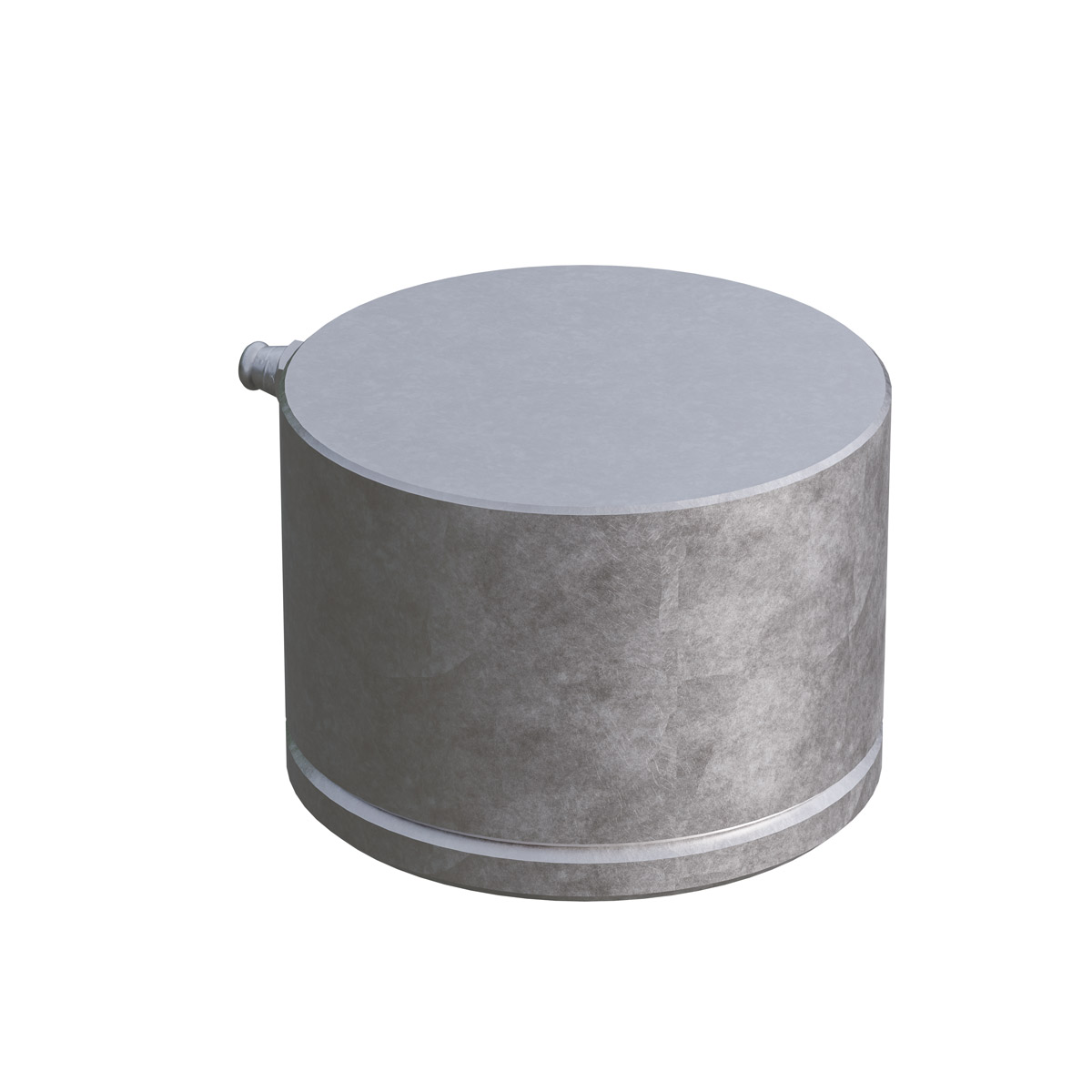

Heavy-duty 50mm pivot hinge with bearing manufactured from high quality galvanised steel. Perfect for welding to swing gates and doors.

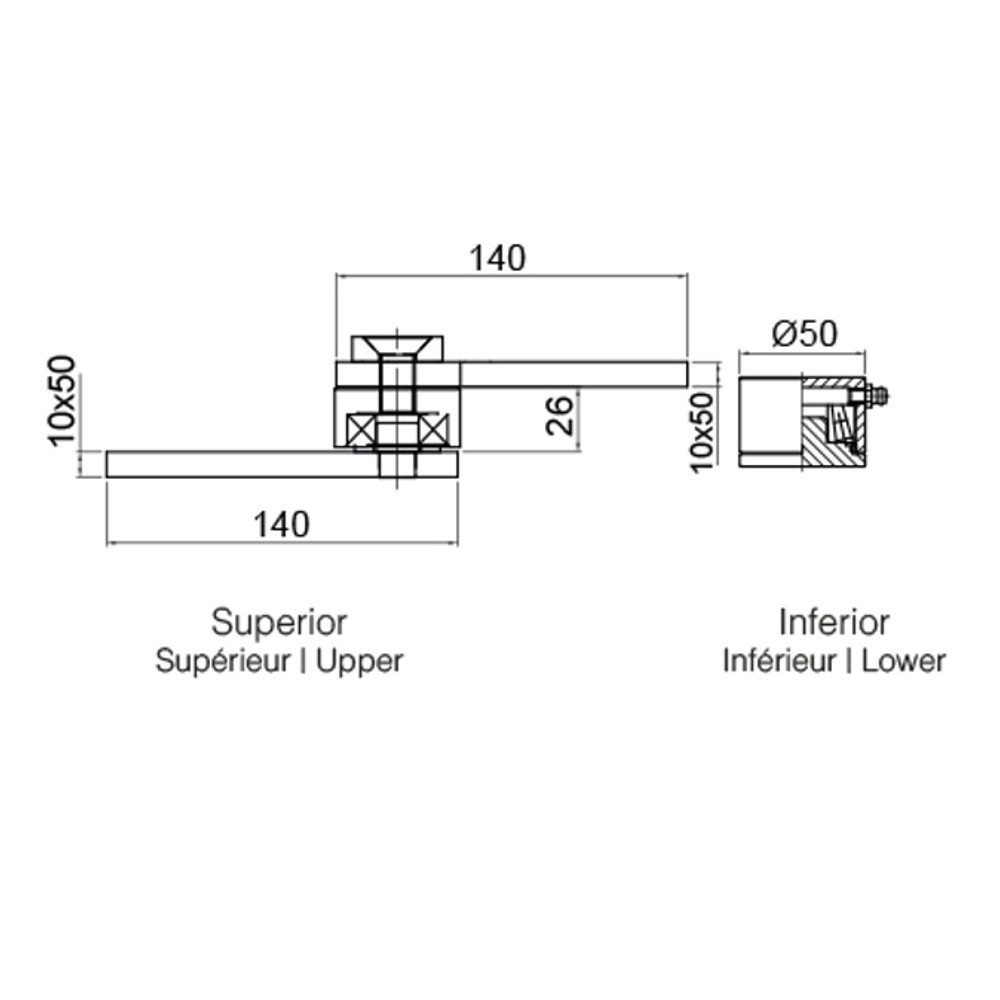

- Choice of top or bottom pivot hinge

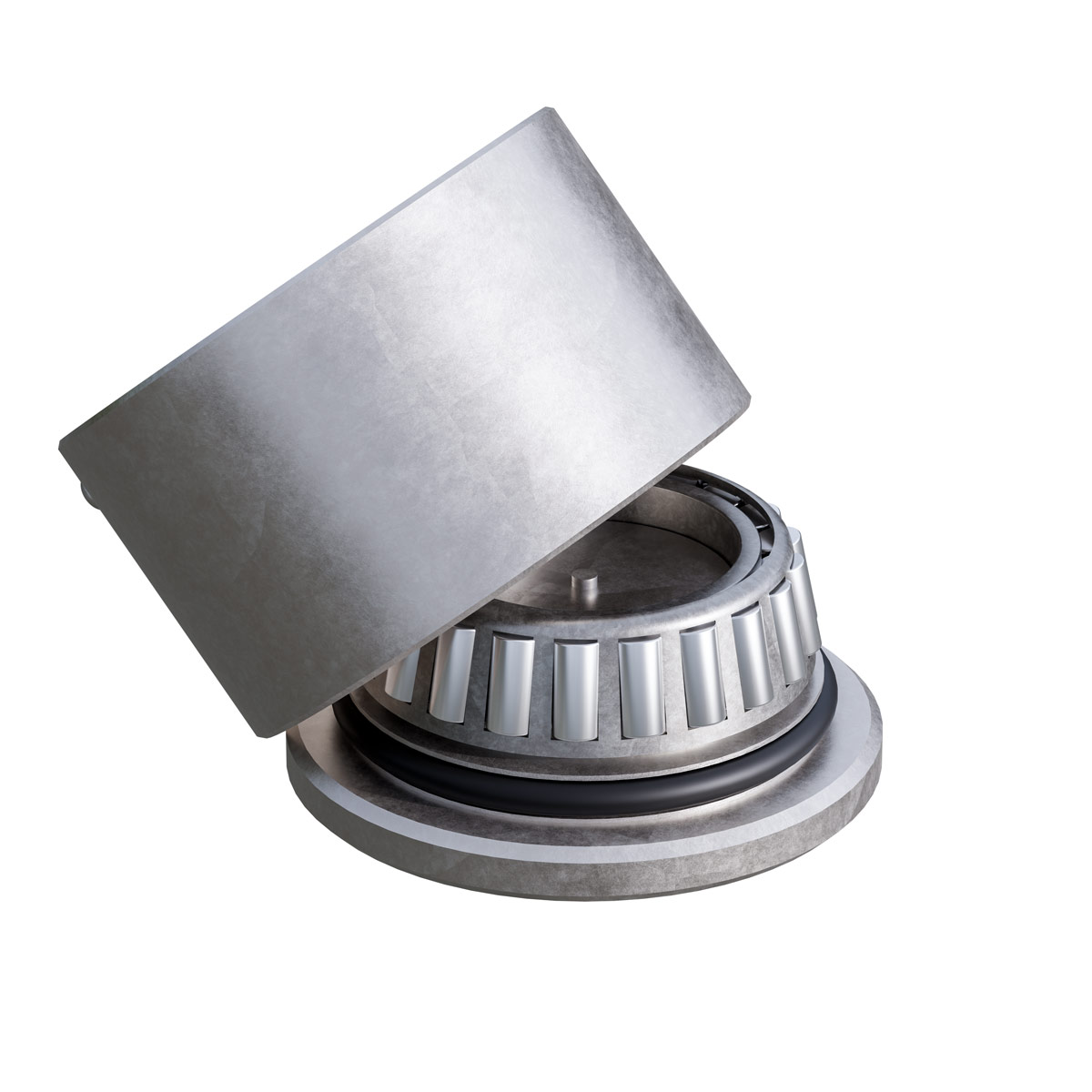

- 50mm bearing in the bottom hinge
- Maximum weight capacity:
- Bottom pivot: 1700kg
- Top pivot: 450kg
- Perfect for welding to steel gates and doors
- Supplied with sealing o-ring to protect the bearing from debris
- Item weight:
- Bottom pivot: 0.43kg
- Top pivot: 1.48 kg
Advisory
The top pivot can not be supported just at the top, this system is designed for the weight to be at the bottom. The top pivot is only a guide.
Version:
Bottom Pivot (1700kg)
