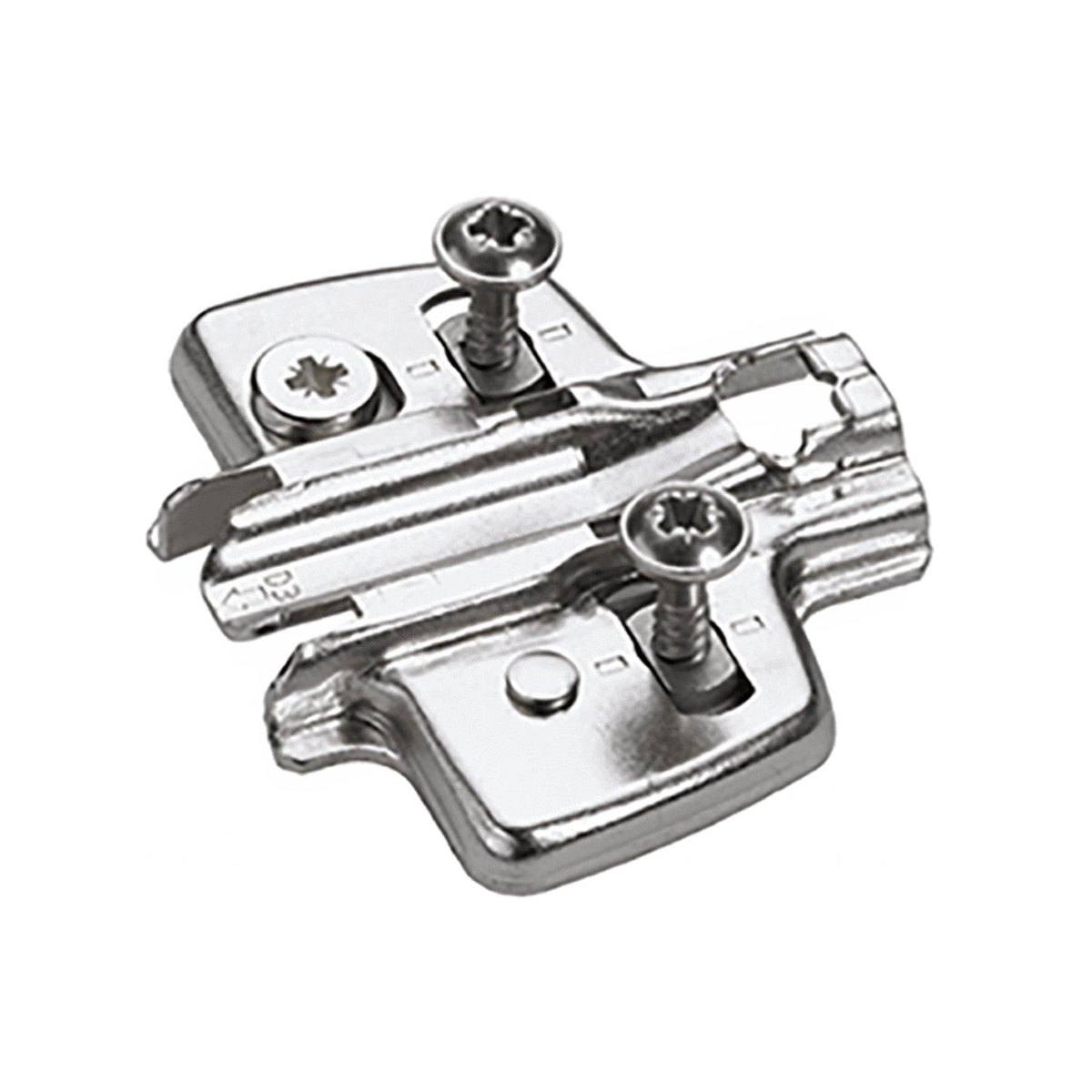

Hettich Hinge Mounting Plate

8865-001
Price from: £0.97inc VAT
+

Our Hettich mounting plates are made of high-quality materials and are designed to last for years, providing you with the durability and reliability you need.

  • Steel nickel plated
  • Cross mounting plate

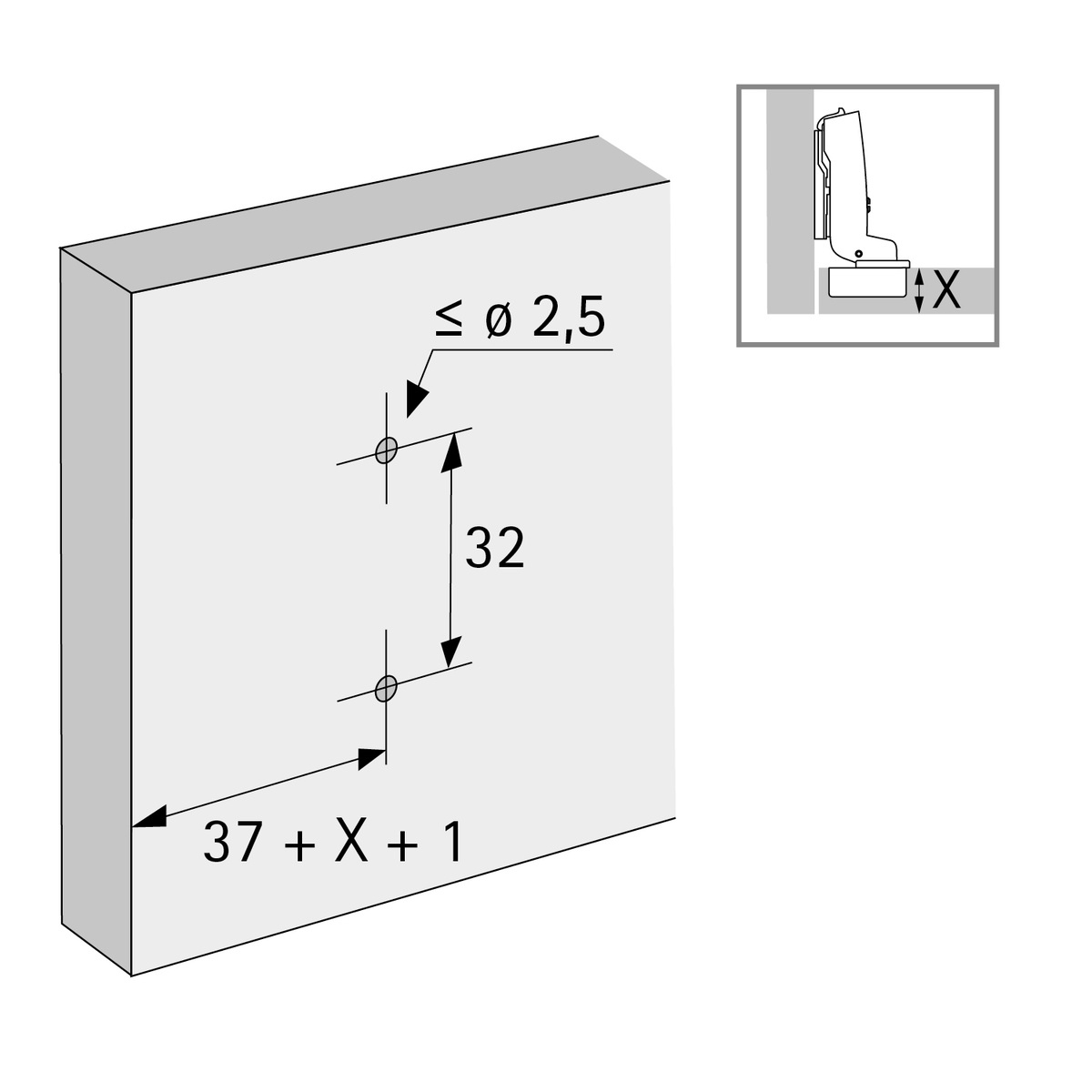

  • Distance: 0,1.5,3,5mm

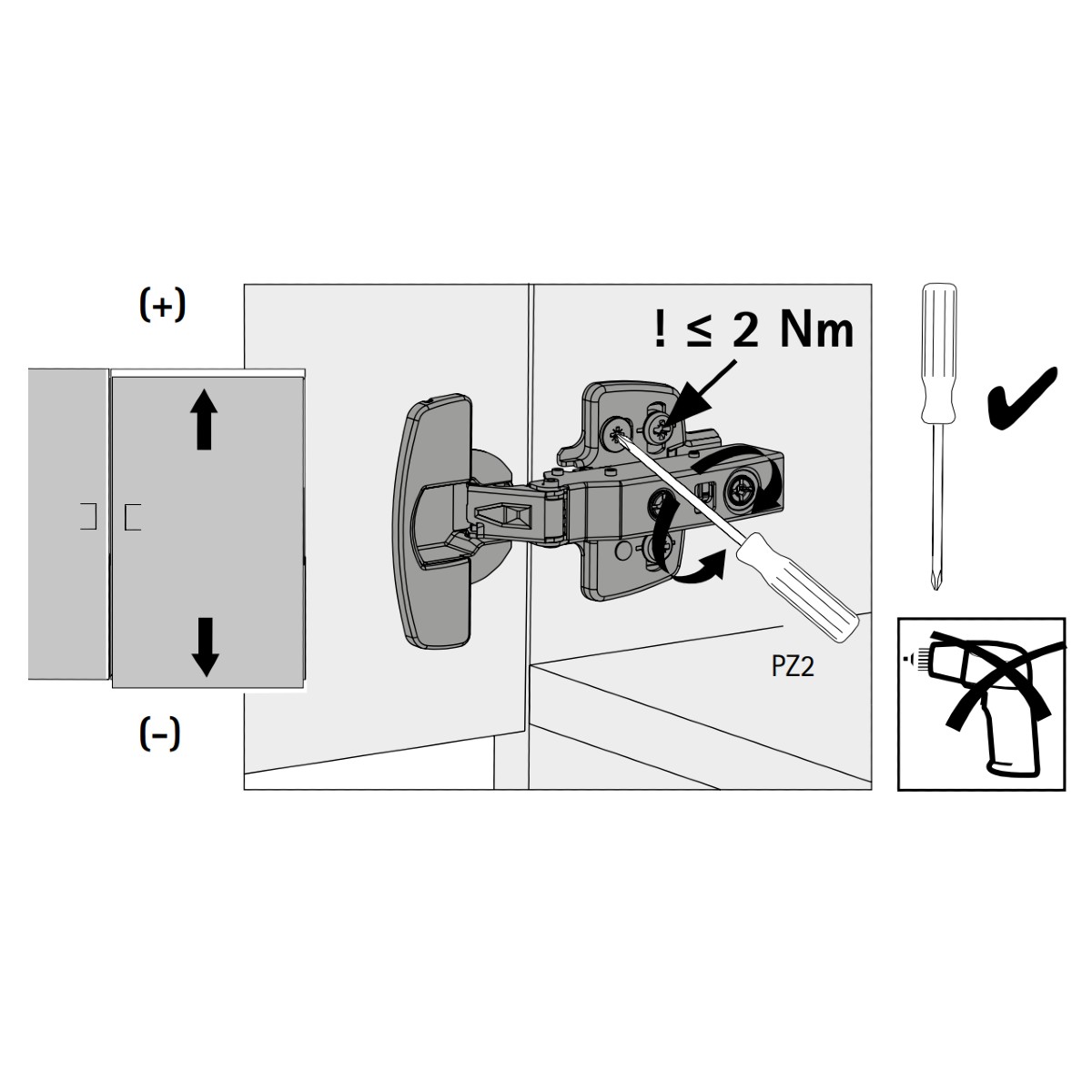

  • Adjustment range: +/-2mm
  • Installation with chipboard screws
  • Quality classification: EN15570 level 3
  • Suitable for: Senesys, Novisys and Intermat

Adjusting Mounting Plate [pdf|84 Kb]

2D Front View CAD [dxf|131 Kb]

2D Side View CAD [dxf|119 Kb]

2D Top View CAD [dxf|110 Kb]

3D CAD [dxf|340 Kb]
