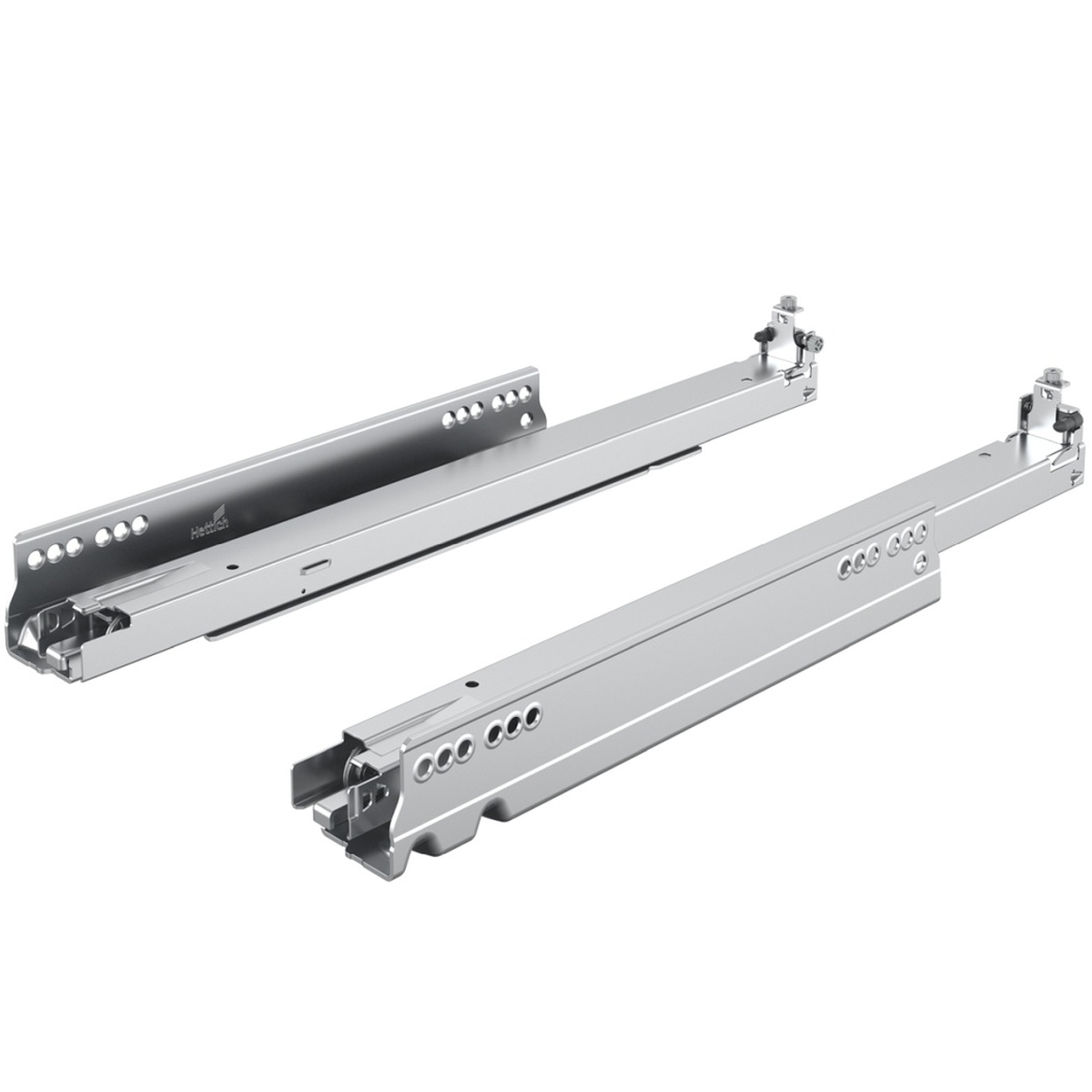

Hettich Actro 5D Full Extension Soft Close Runners 40kg

Hettich Actro 5d soft close drawer runner slide is the ideal choice for drawers in kitchens, bedrooms and due to being made out of galvanised steel you can also use them in bathrooms. These drawer runners can take any weight up to 40kg. The option of having soft close push to open is also available in related products.

• Sold in pairs
• Made by Hettich
• Made in Germany
• Integrated soft-close
• Material: galvanised steel
• Nominal length: 250-600mm
• Maximum load capacity: 40kg
• Full extension concealed runner
• Load capacity to EN 15338 (level 3)
• Suitable for board thickness: 12-16mm
• Compatible with optional push to open device (please see related products)
• 4D tool-less adjustment with option to make it 5D:
  • Height adjustment up to +3mm
  • Side adjustment up to +/-1.5mm
  • Tilt adjustment up to +4mm
  • Radial adjustment up to +/-1.5mm
  • Depth adjustment up to +4mm (optional)

Please note that:

• Push to open mechanism will not work with 250-350mm long runners
