Grass Tiomos 95º Half Overlay Soft Close Hinge

Price: £7.37inc VAT

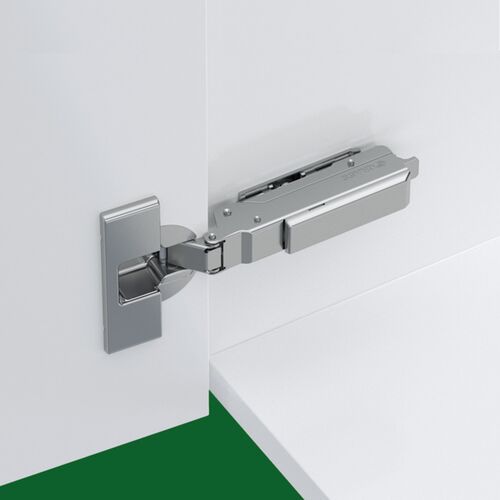

The Grass Tiomos 95º half overlay hinge is a remarkable piece of hardware that combines maximum stability, integrated damping, and pure design.

  • For up to 36mm thick doors
  • Opening angle 95º
  • Ø35mm cup
  • For door thicknesses up to 36mm (for door thicknesses 29mm and above, a trial fitting is recommended)
  • With integrated soft close
  • Screw fixing cup
  • Click on arm
  • Steel cup and zinc alloy hinge arm

Please note that:

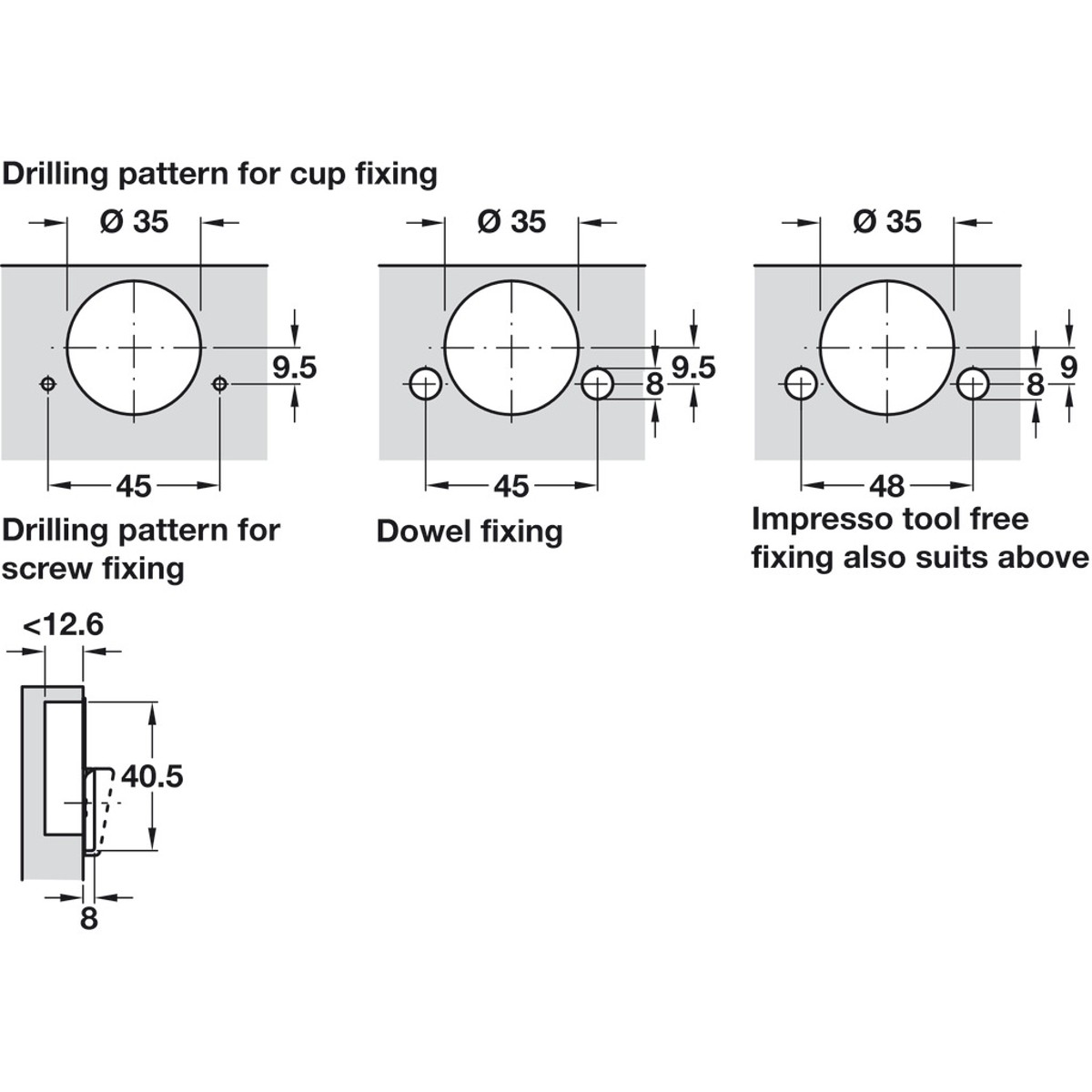

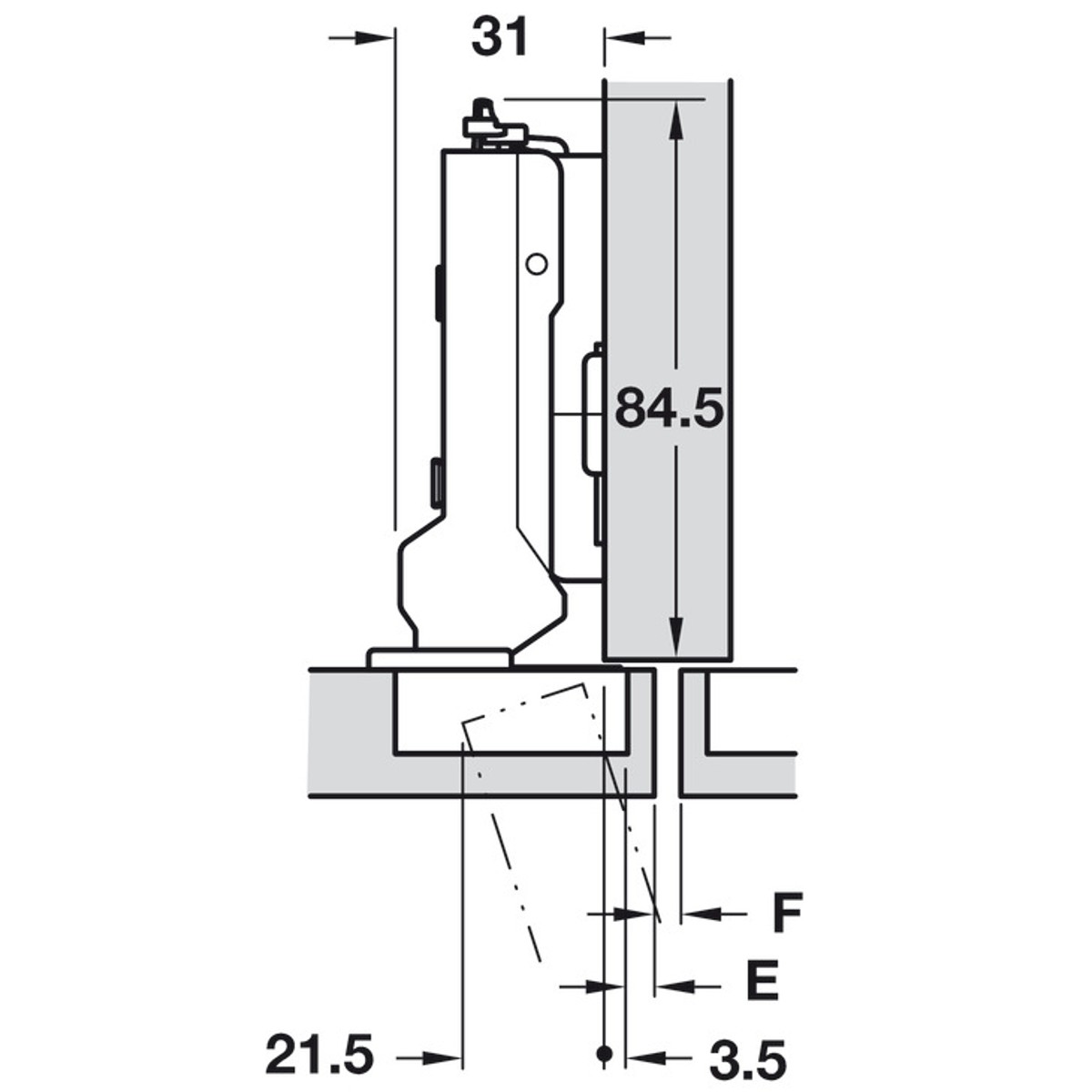

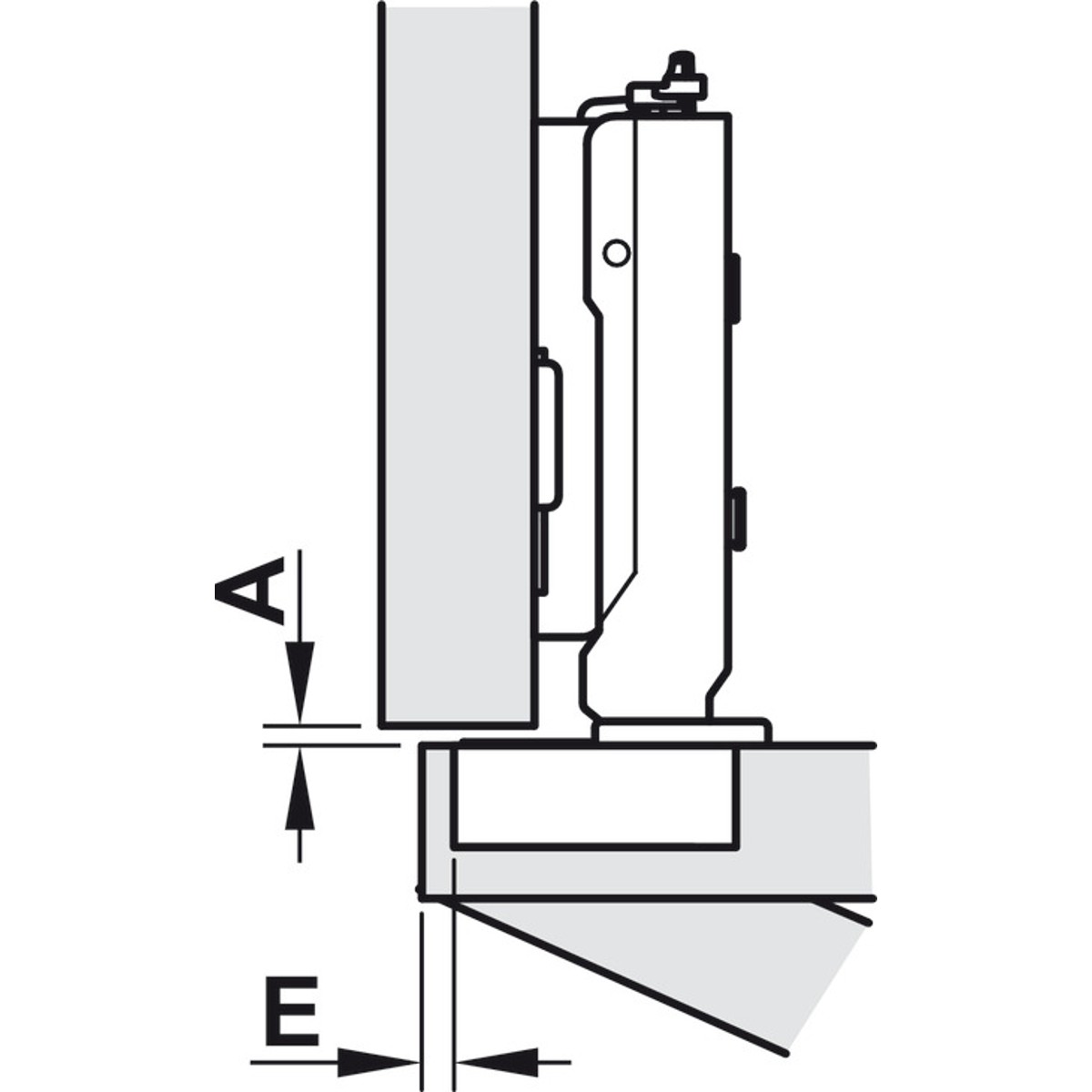

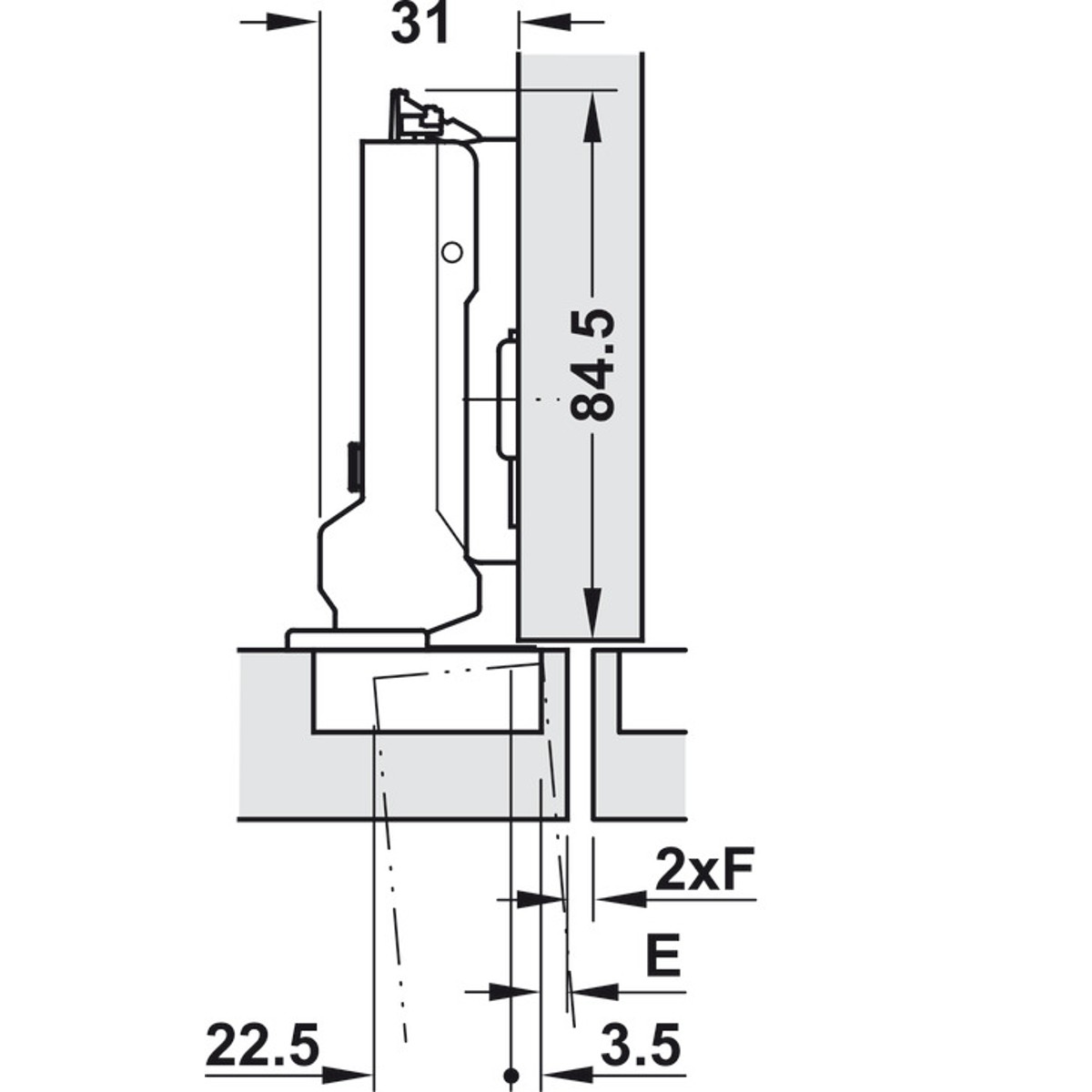

  • Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2mm
  • Mounting plates and cover caps are not included and are shown in extras
  • Refer to PDF for tables and measurements
