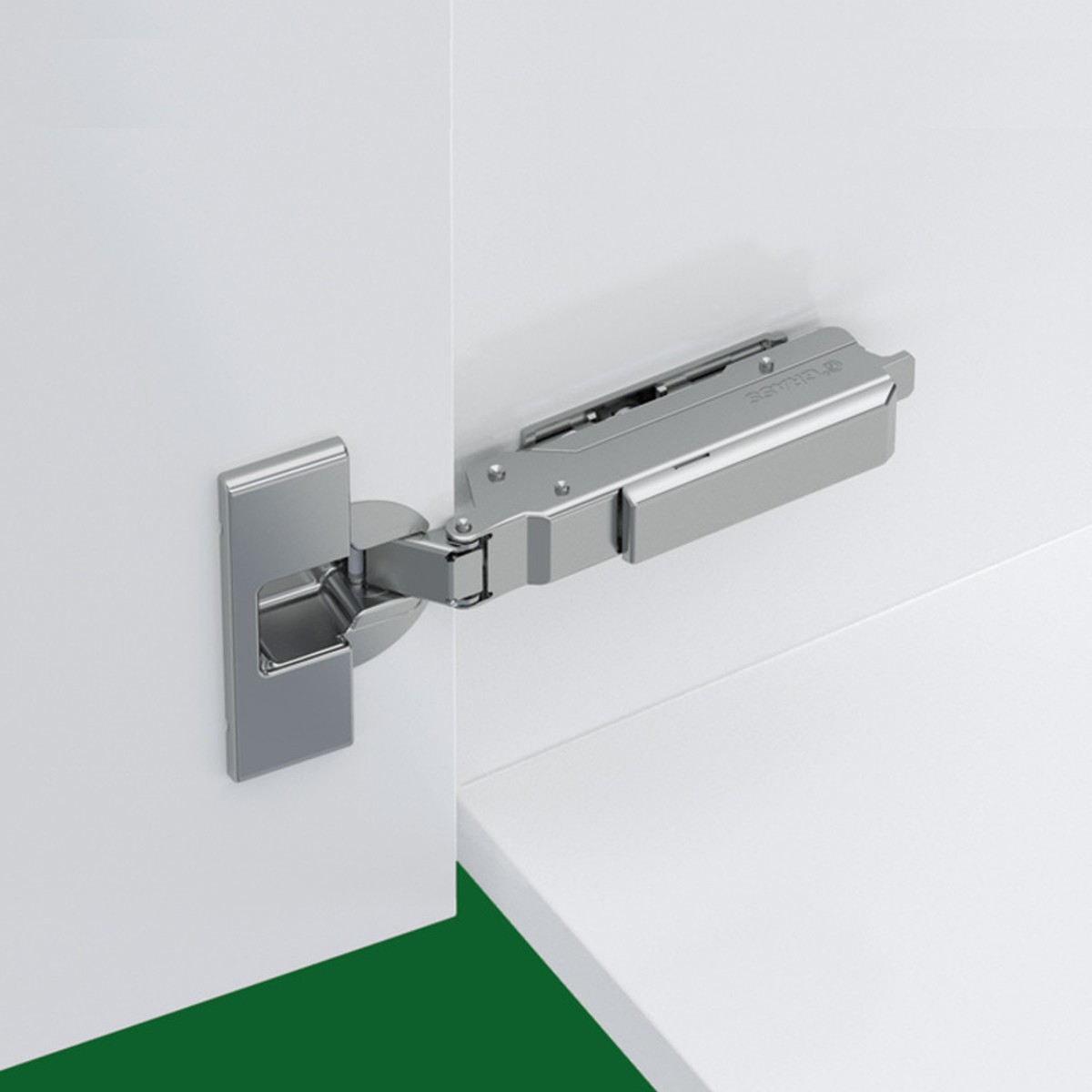

Grass TIOMOS 95º Full Overlay

1089-001
from: £3.91
(£3.26 EX VAT)

Please, select one

Select the previous option first

Minimum quantity for "Grass TIOMOS 95º Full Overlay" is 5.

+
  • For up to 36 mm thick doors
  • Opening angle 95º
  • Ø 35 mm cup
  • For door thickness up to 36 mm (for door thicknesses 29 mm and above, a trial fitting is recommended)
  • Available with or without integrated soft close
  • Screw or Impresso (quick fix) fixing cup
  • Click on arm
  • Steel cup and hinge arm

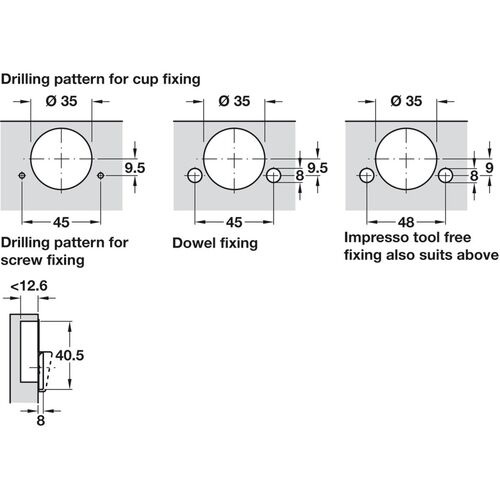

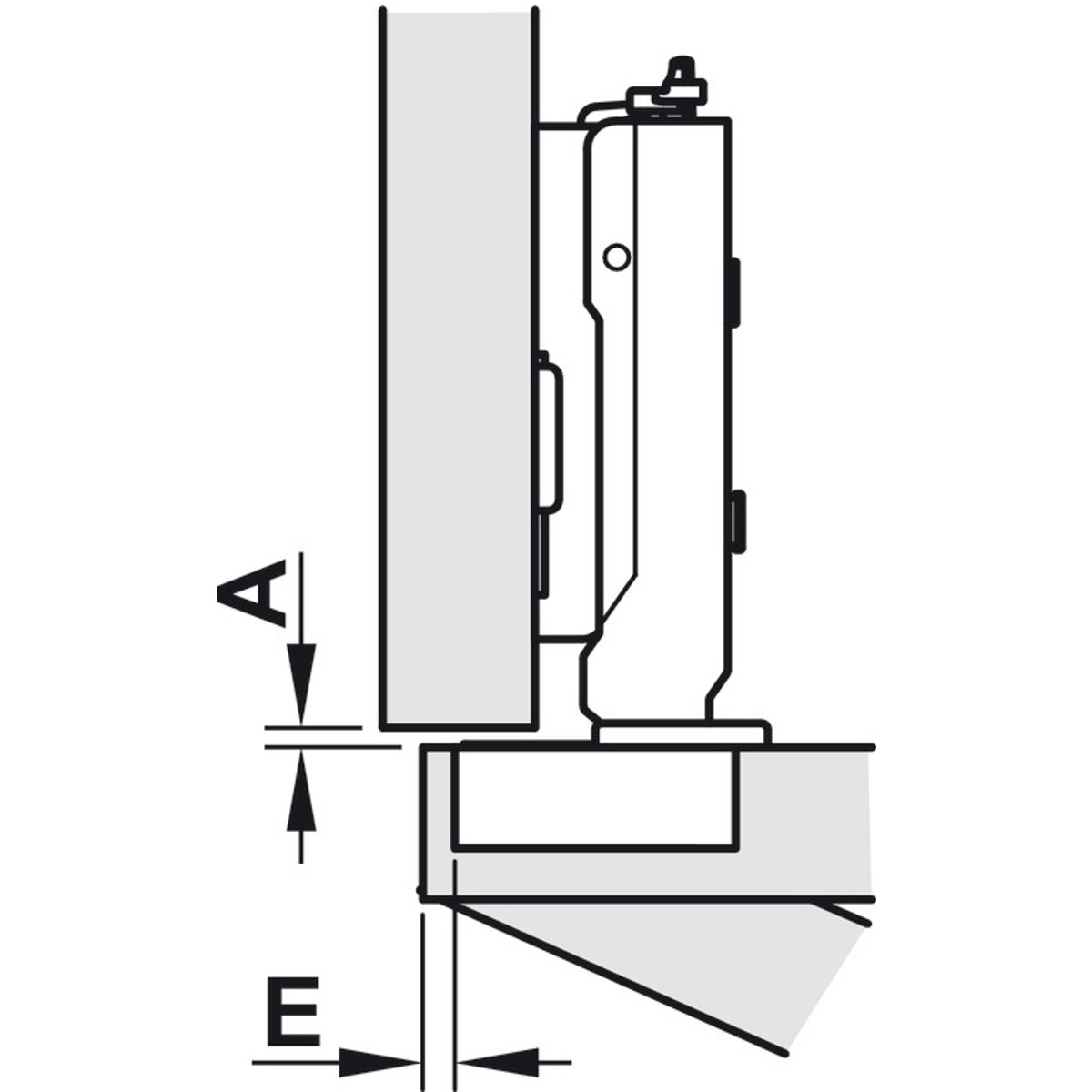

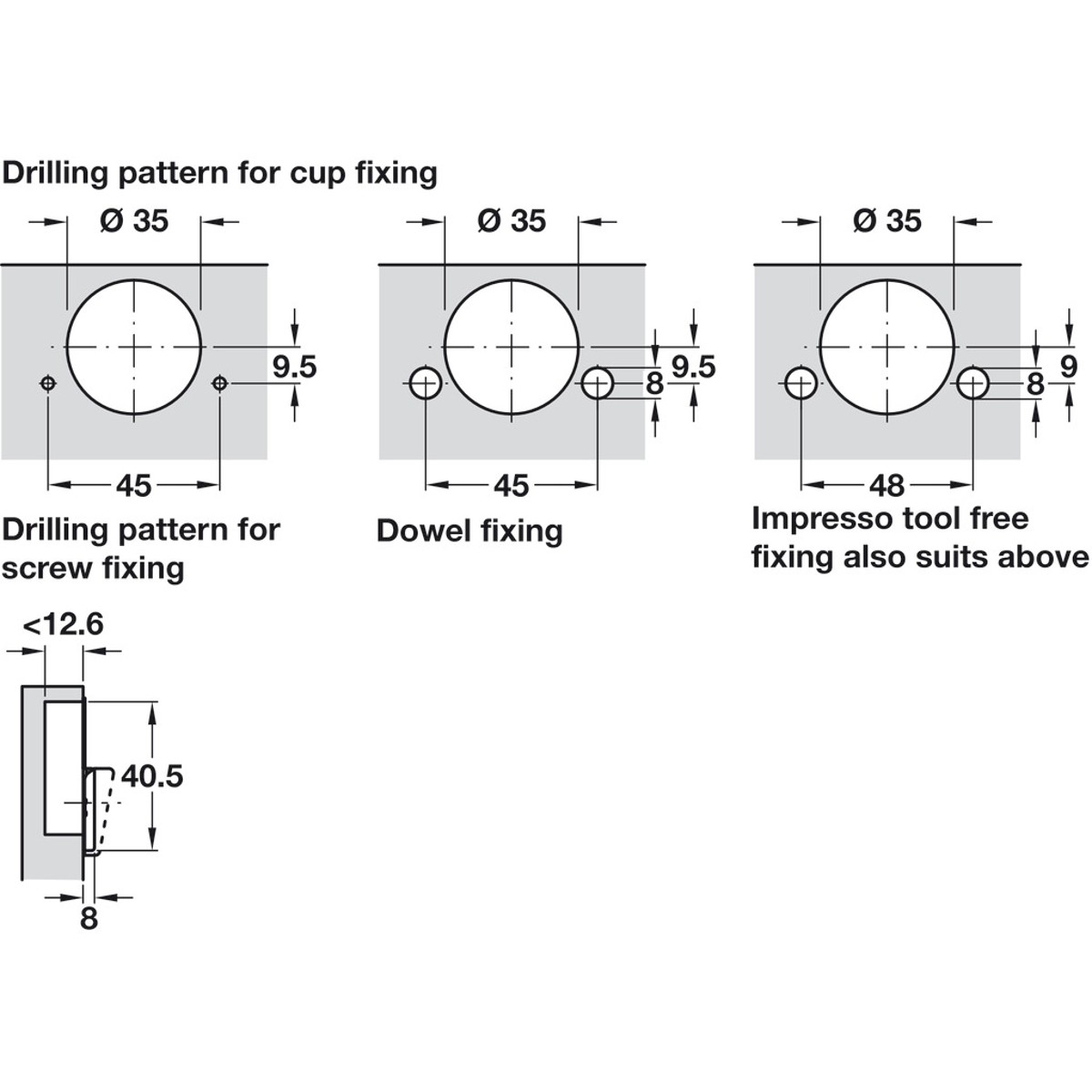

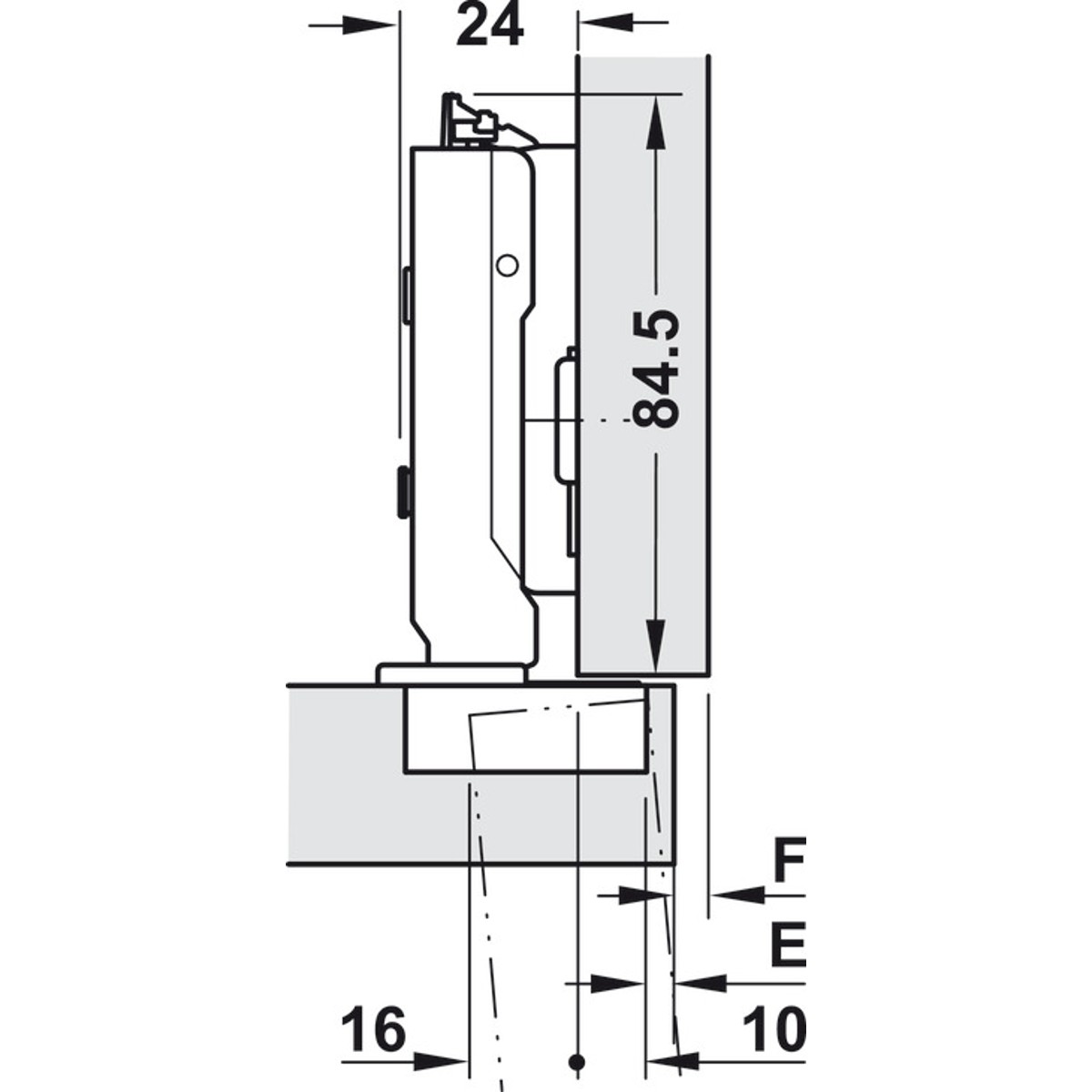

  • Note: Dimensions in drawings and tables are calculated using factory settings and for mounting plate distance 2 mm
  • Mounting plates and cover caps are not included and shown in Extras
  • Refer to PDF for tables and measurements

Tables and Measurements (13LTS73.pdf, 365 Kb) [Download]
