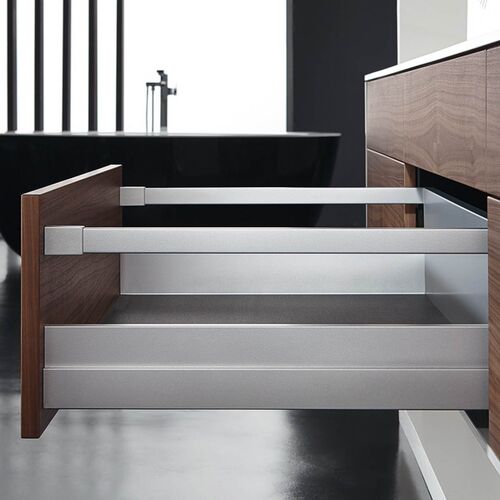

Assembled Pan Drawer With Gallery Rails
- Exceptional quality drawer box supplied with integrated liquid soft-close drawer slides
- Supplied with a grass lifetime warranty
- Available in a range of sizes to fit cabinets 300 - 1000 mm
- Available in two colours: silver and stone (anthracite grey)
- Integrated height and side adjustment
- The drawer front can be removed without the tools - drawer front not included
- Painted and lacquered drawer sides provide a high gloss hygienic finish
- Provided with gallery rails
- Drawer height: 186mm
- Drawer depth: 450mm
- Weight capacity: 40kg
Assembled Drawer Set Consists Of:
- 1x pair of steel lacquered drawer sides 90mm
- 1x pair of gallery rails
- 1x pair of full extension liquid soft close runners 450mm
- 1x MFC drawer base 16mm thick
- 1x steel lacquered drawer back
- Set of fixing screws and front fixing (drawer front not included)
- Fitting instructions
Additional options (available in related products):
- Push to open set - transforms the drawer to work as a soft-close and push to open for handleless fronts

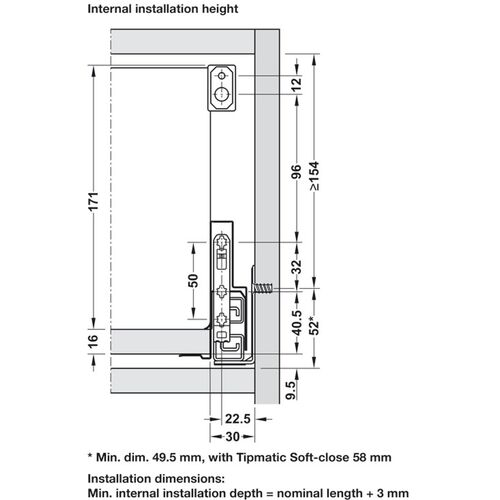

Specifications:
- 300mm cabinet requires 264mm internal width
- 400mm cabinet requires 364mm internal width
- 450mm cabinet requires 414mm internal width
- 500mm cabinet requires 464mm internal width
- 600mm cabinet requires 564mm internal width
- 800mm cabinet requires 764mm internal width
- 900mm cabinet requires 864mm internal width
- 1000mm cabinet requires 964mm internal width
Drawers
To Suit Cabinet Width:
300mm
Drawer Finish:
Silver
