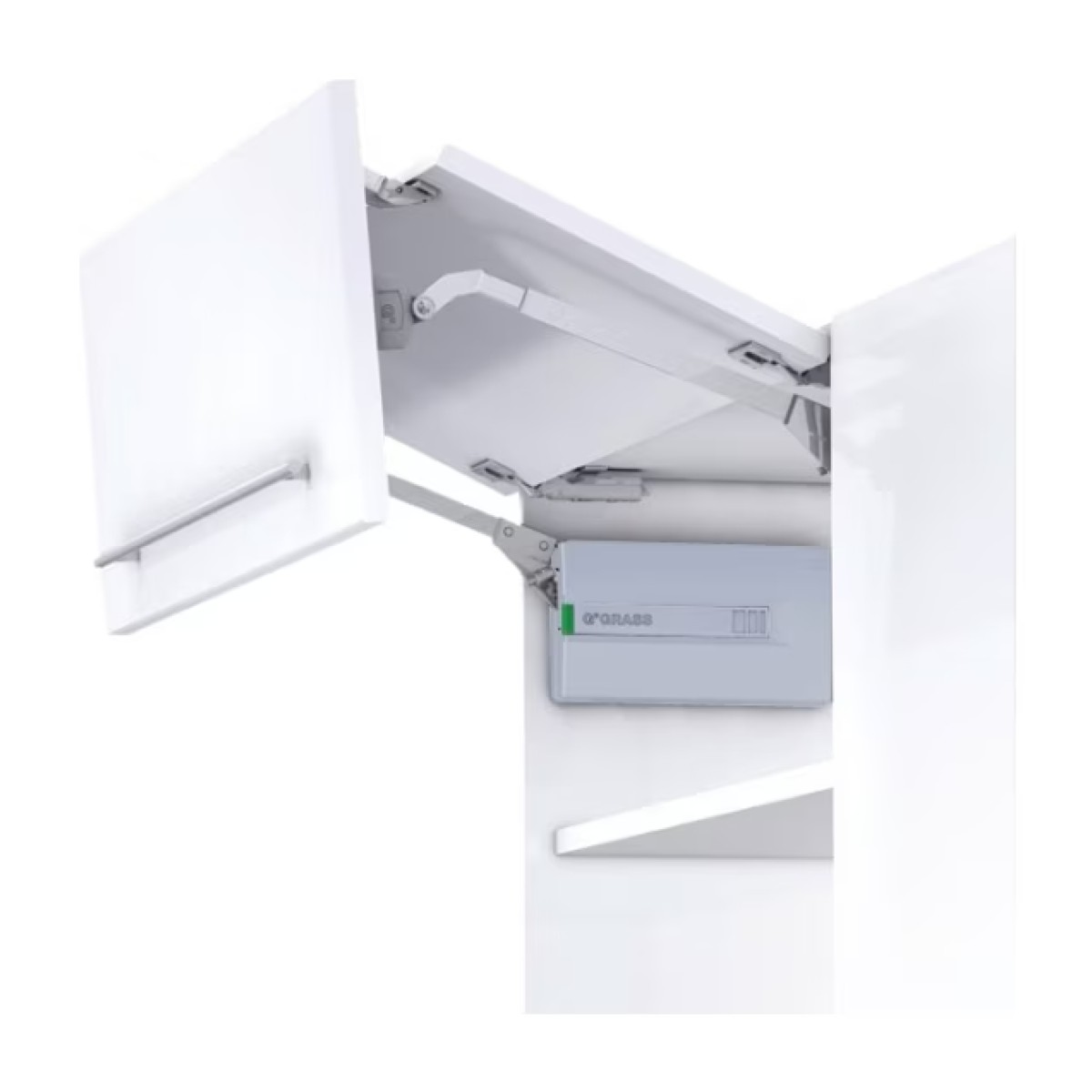

Grass Kinvaro F-20 Lift Mechanism

0866-001
from: £122.88inc VAT

Please, select one

+

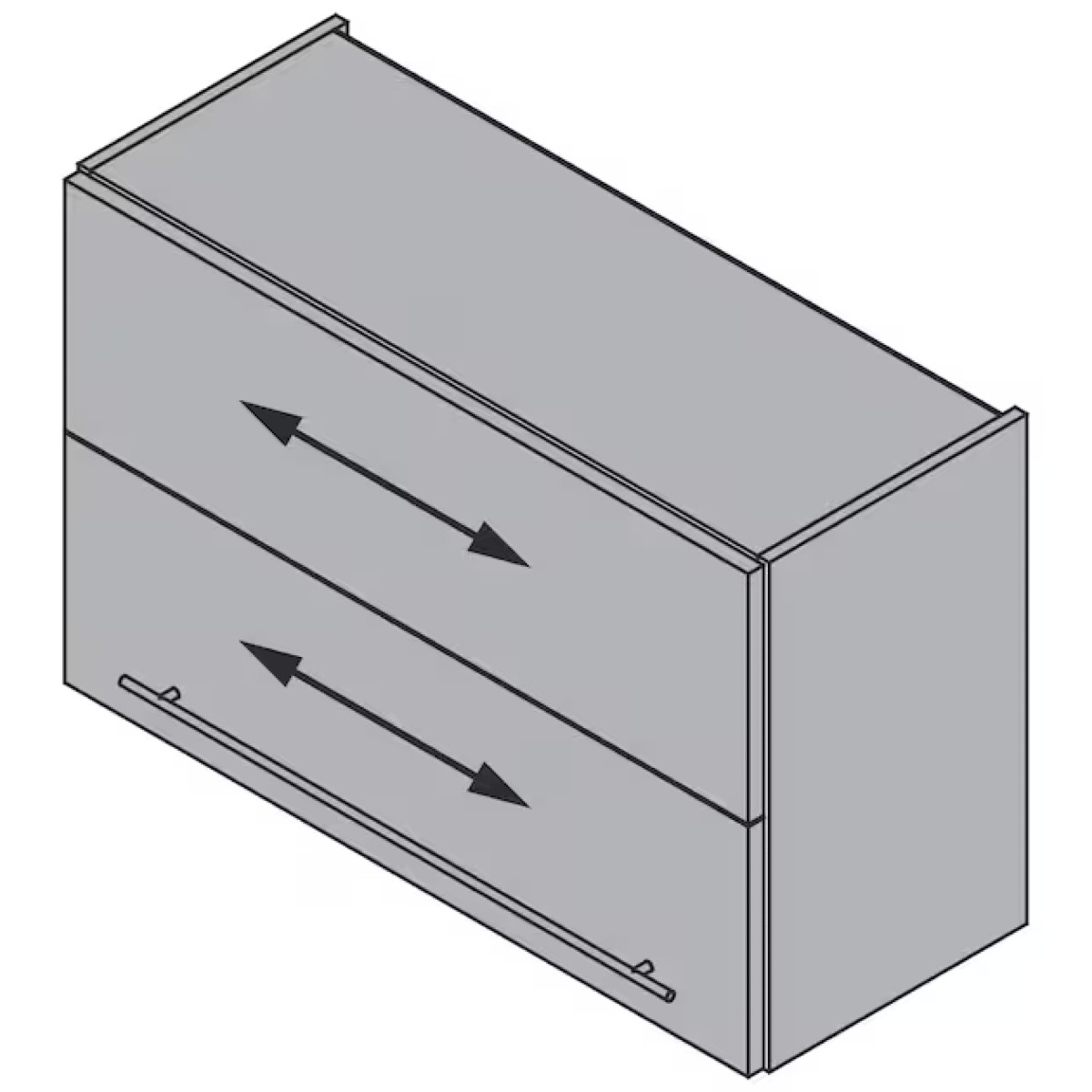

For folding flap doors

  • For wooden doors and glass doors with wide aluminium frame (40/50 mm) with and without handle
  • Simple to install and adjust
  • Connecting hinge with finger protection and 3D adjustment
  • Integrated adjustable damped action gives quiet, gentle closing

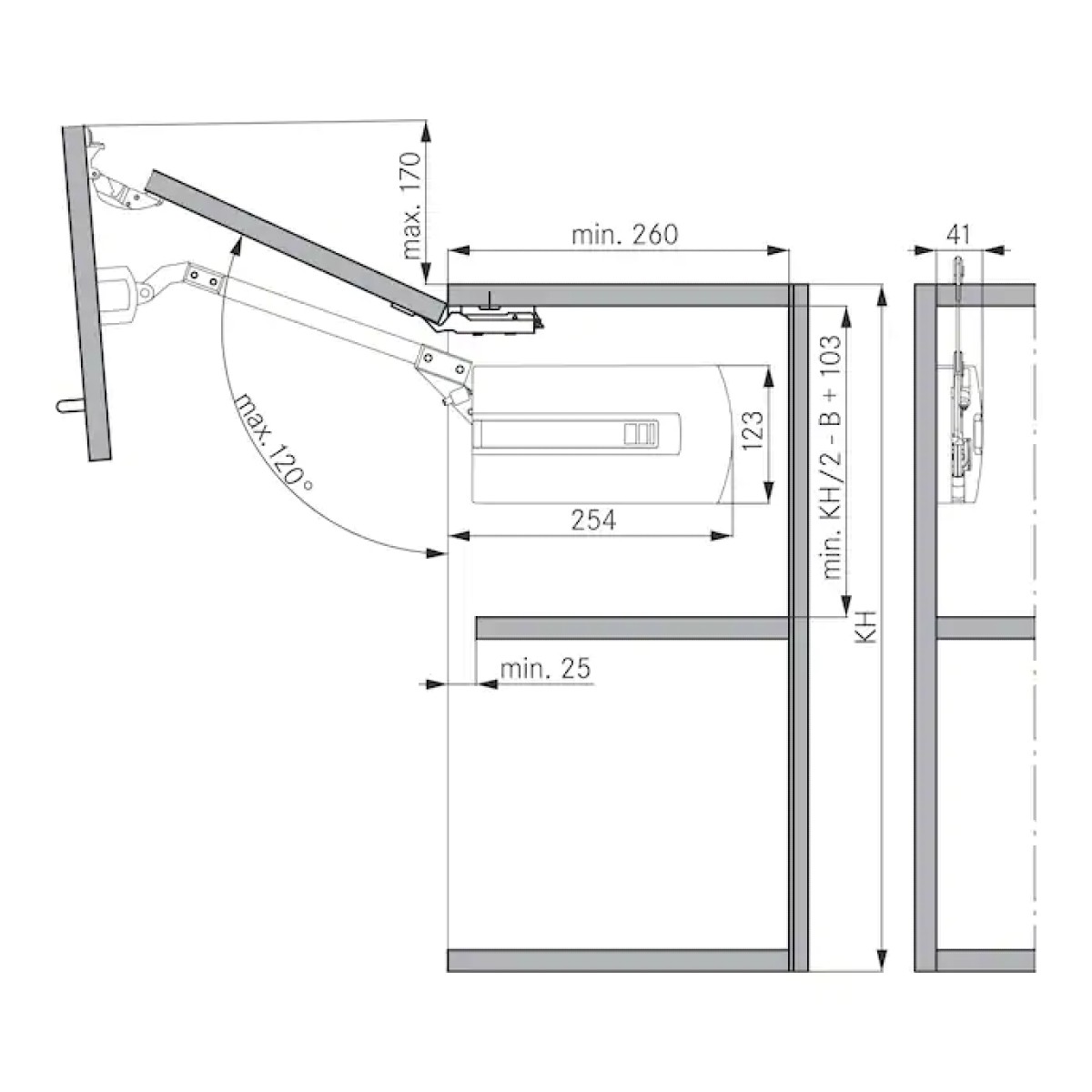

  • For total flap weight:

- 4.4 to 12.6 kg for 570 mm flap height
- 6.5 to 16.4 kg
for 715 mm flap height

  • For flap width: 400-1200 mm
  • For flap height: 2x 285 or 2x 357 mm
  • For flap thickness 18 mm
  • Holds flap securely in any position, opening limiter adjustable up to 90º

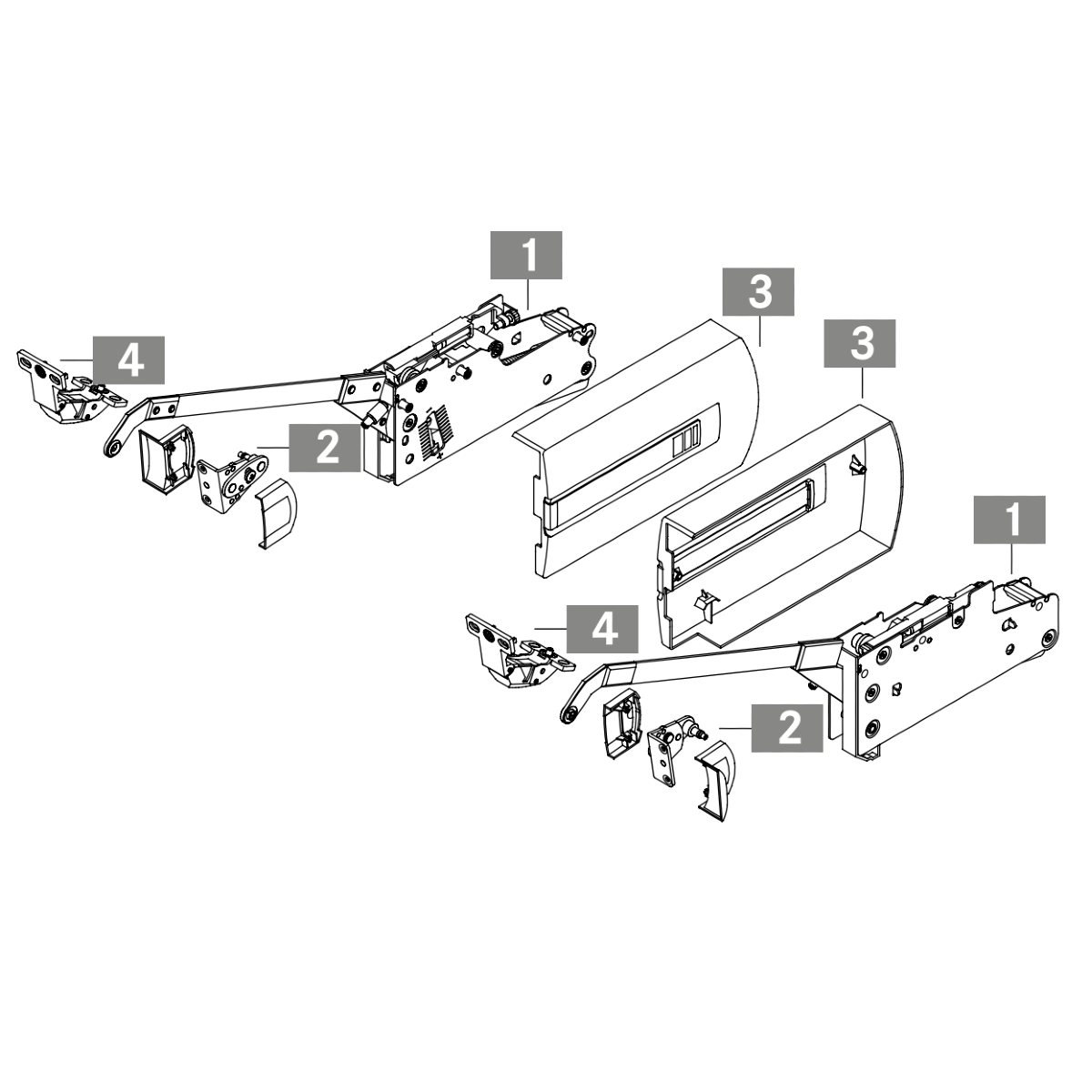

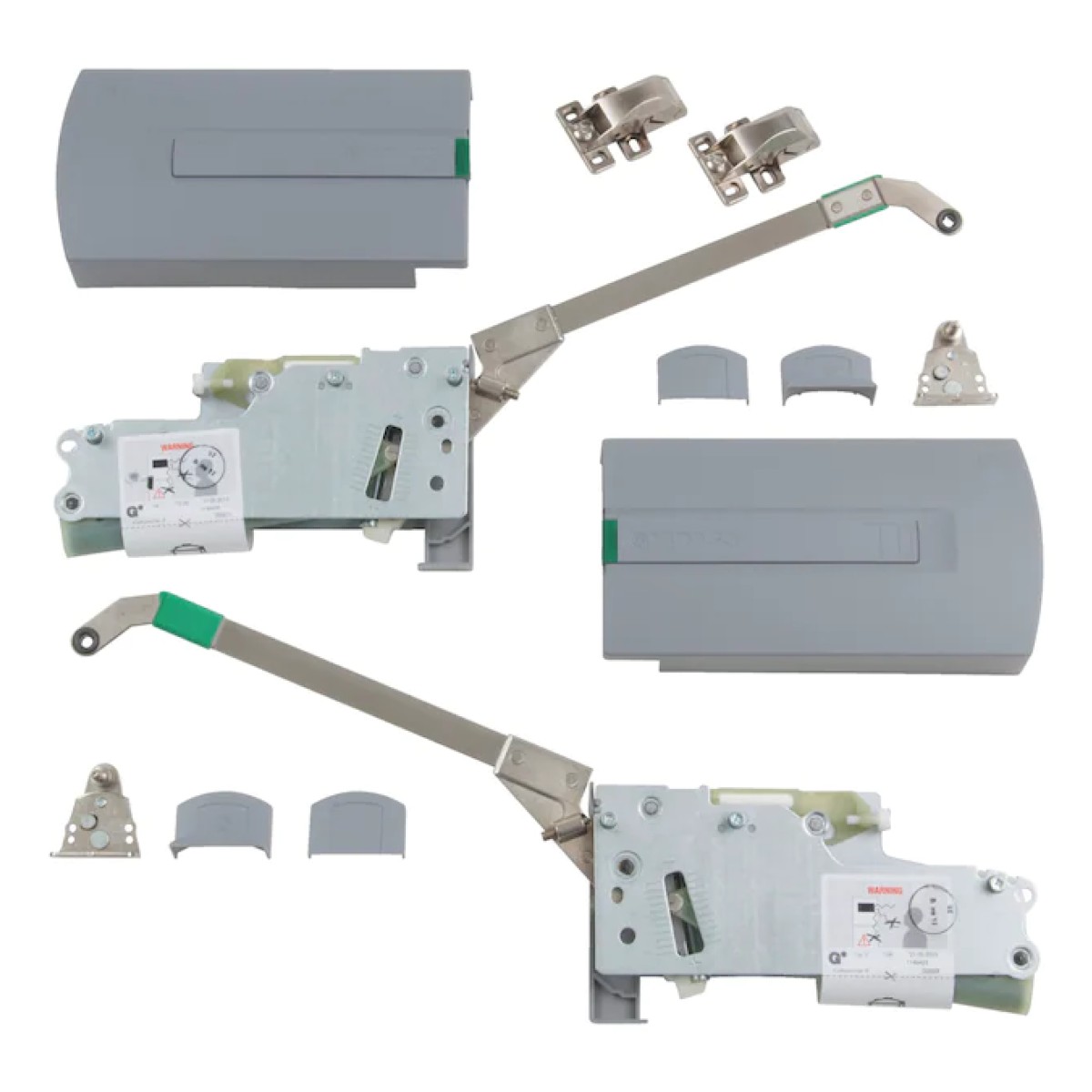

  • Set includes 1 pair galvanised steel fittings with pre-mounted Euro screws, galvanised steel hinges, grey RAL 7045 plastic cover caps and fitting instructions
  • Concealed sprung hinges with 120° opening angle must be ordered separately

Fitting Instruction (Kinvaro_F-20_Einstellanleitung_2_Generation.pdf, 1,201 Kb) [Download]

Adjustments Instruction (Kinvaro_F-20_Einbauanleitung_2_Generation.pdf, 1,391 Kb) [Download]

Product Certificate (LGA_Qualitäts-Zertifikat_Kinvaro_F20_EN.pdf, 306 Kb) [Download]
