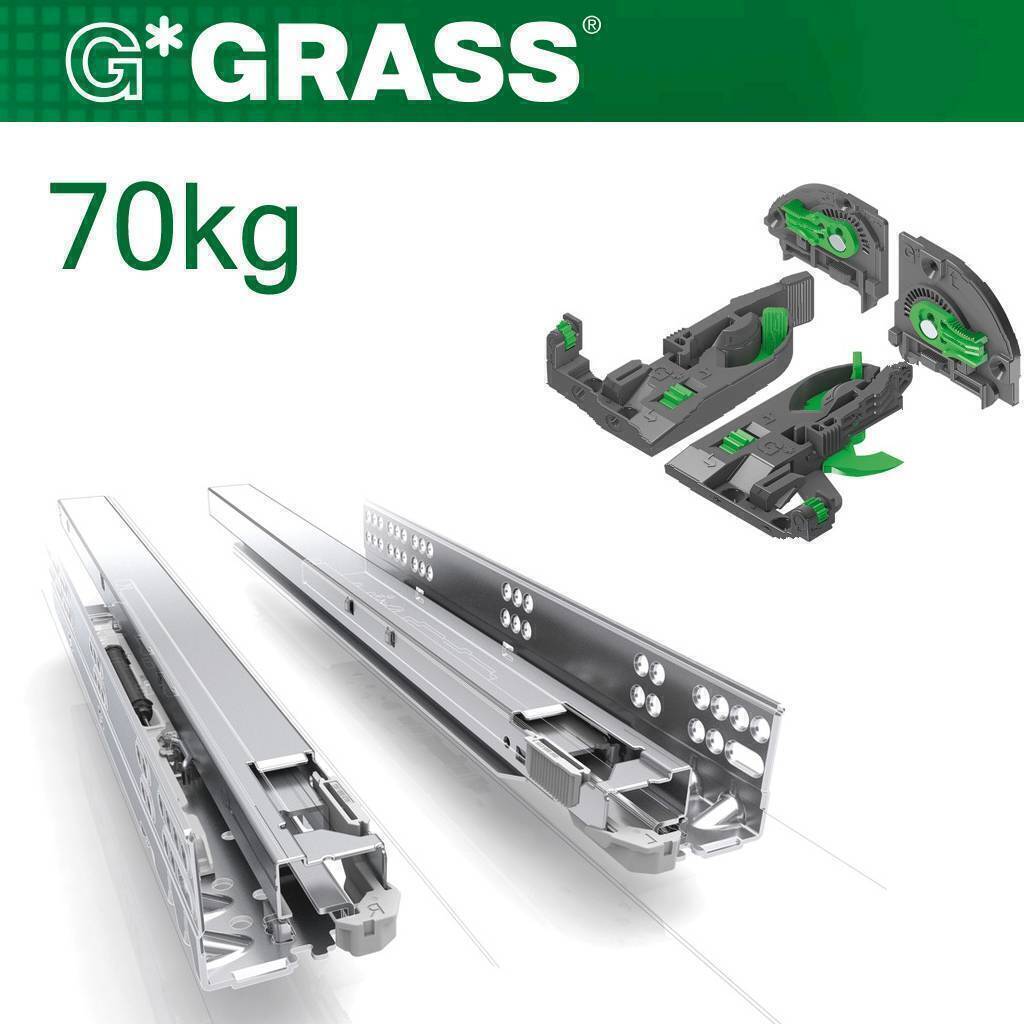

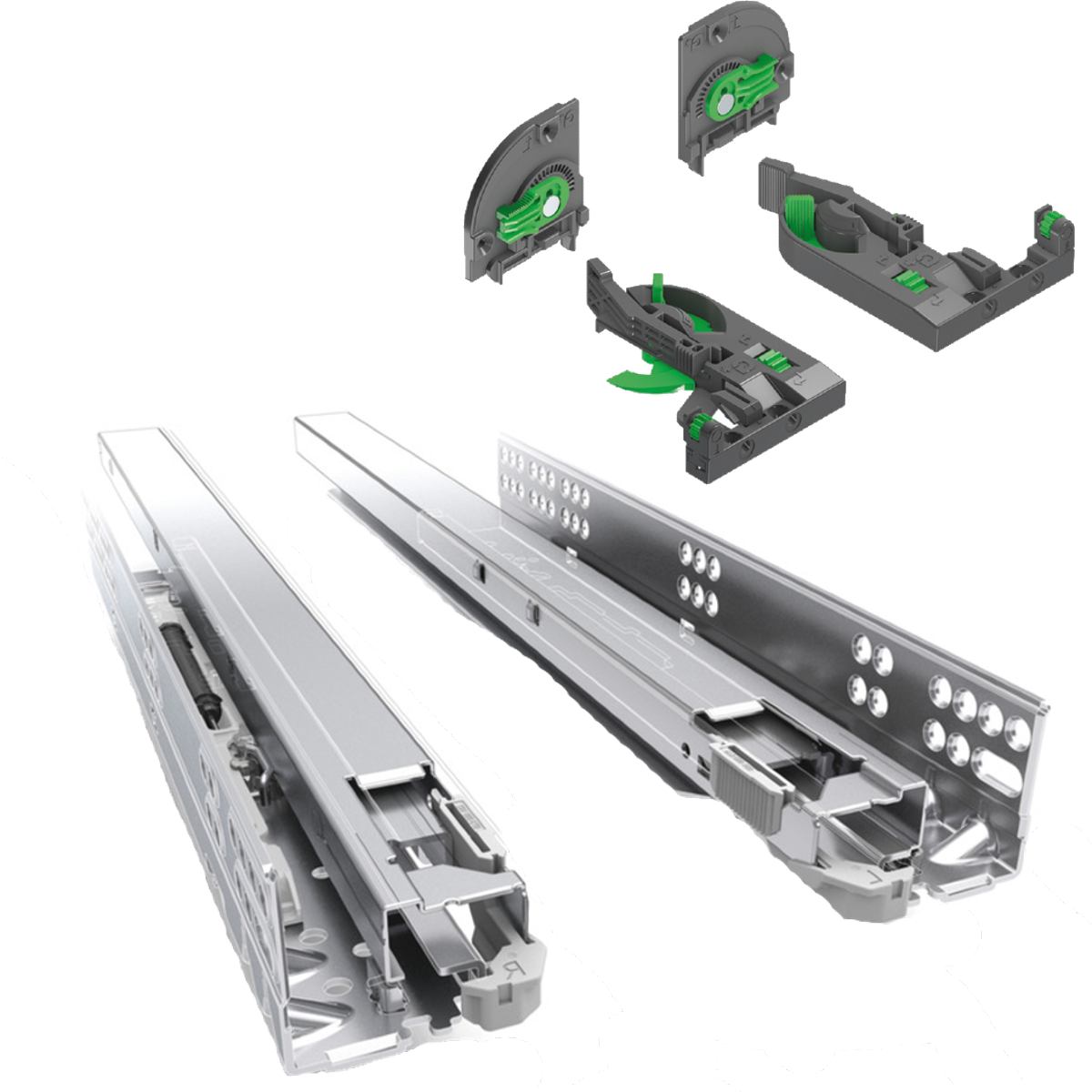

Grass Concealed Dynapro Drawer Runners 70kg - Soft Close (for maximum 16mm drawer sides)

0781-001
Price: £56.40inc VAT
+

New Grass concealed drawer slides for wooden drawers. Improved liquid soft close provides you with effortless opening and closing action and 4d adjustment allows to align the drawer precisely without use of any tools.

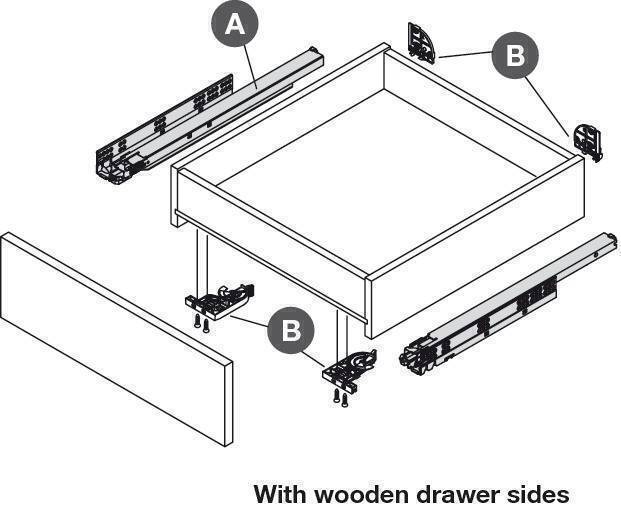

Set contains:

  • Pair of runners with 70kg weight rating
  • Front fixing clips
  • Rear fixing clips

Features:

  • Supplied in lengths 450-650mm
  • Mounted under the drawer
  • 70kg carrying capacity
  • With integrated liquid Soft-close®
  • Continuous self locking of drawer when pushed onto the drawer
  • Integrated height adjustment +3.5 mm without tools

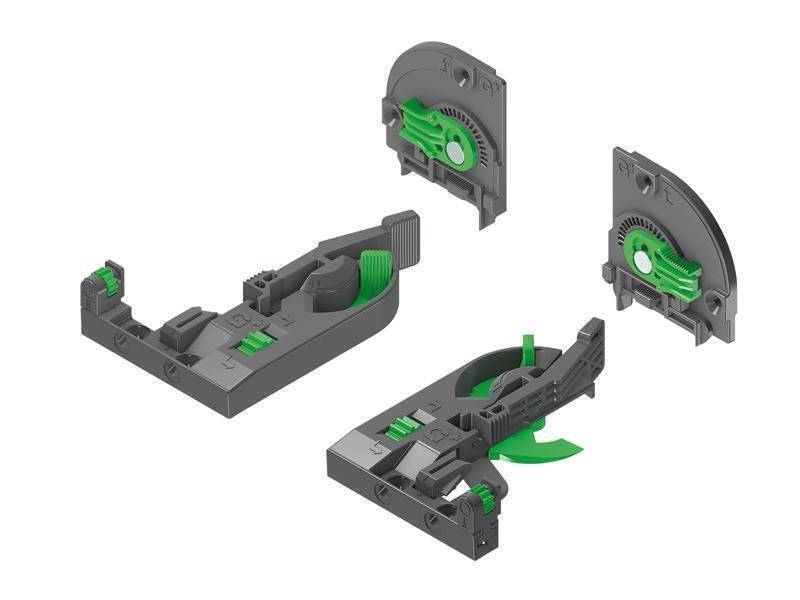

  • Adjustment adaptor for side adjustment ±1.5 mm, and tilt adjustment +4 mm, depth adjustment +3.5mm without tools
  • 32 mm drilling pattern
  • Zinc-plated steel
  • Jigs available, more information on request
Length:
450mm
Runner Type :
Concealed Full Extension

Drawer Runners

Closing Mechanism:
Soft Close
Runner Size :
  • 450mm
  • 500mm
  • 550mm
  • 600mm
  • 650mm
  • 700mm
  • 750mm
Weight Rating:
60kg
