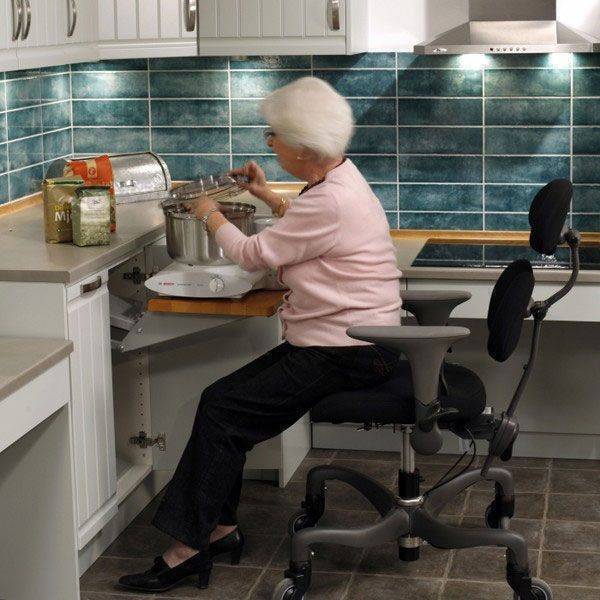

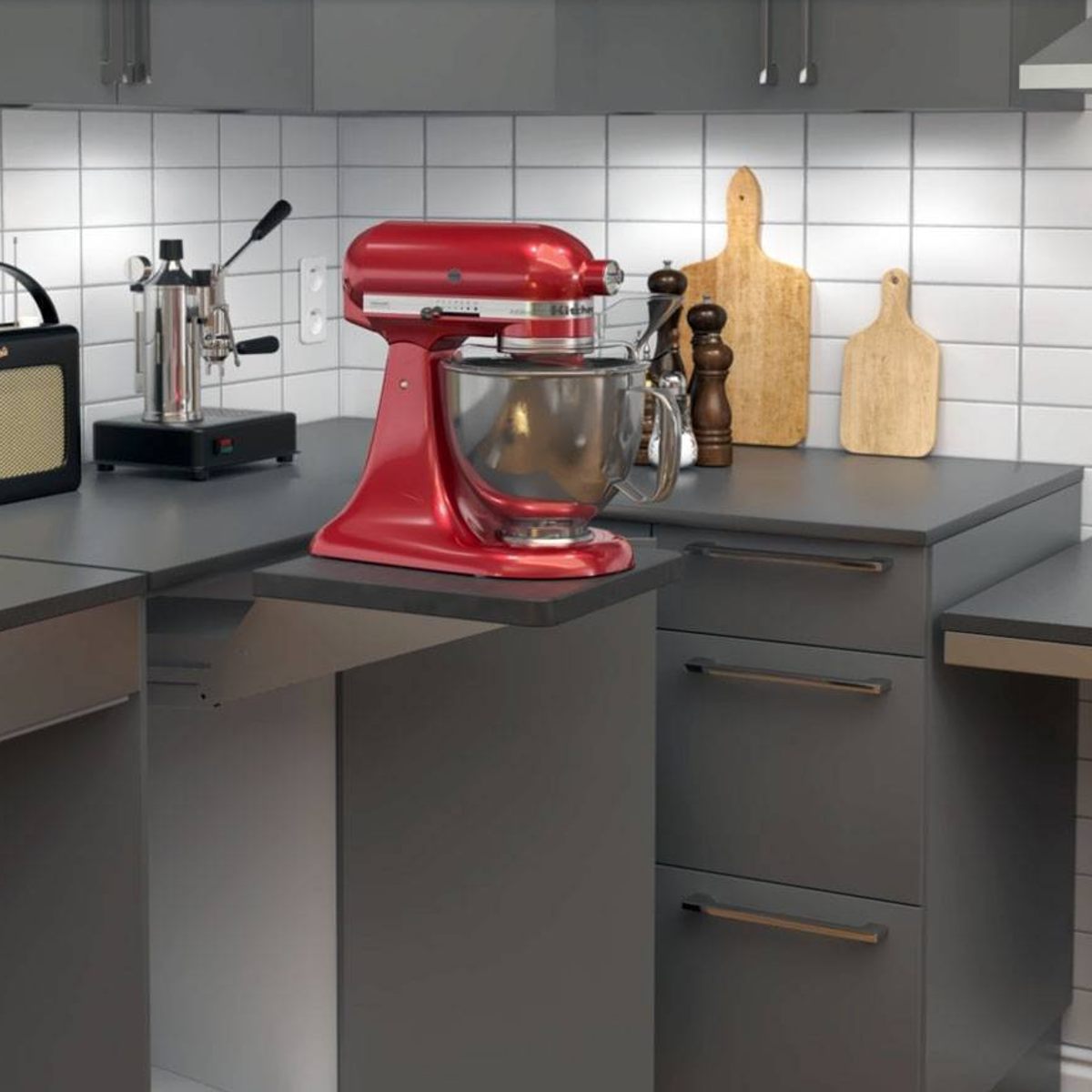

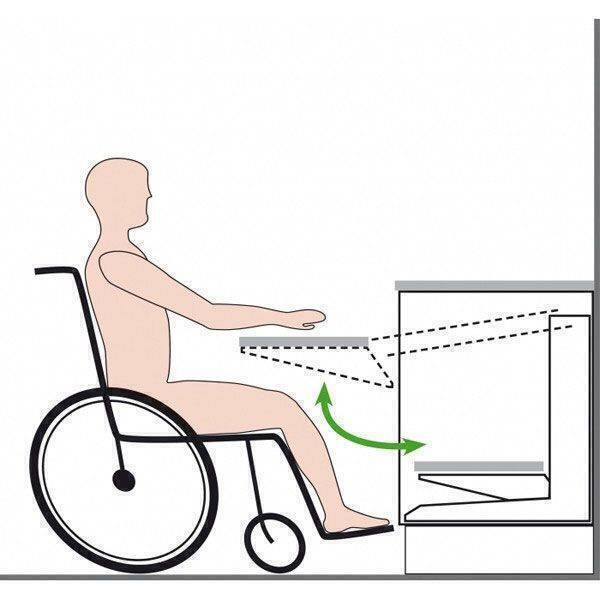

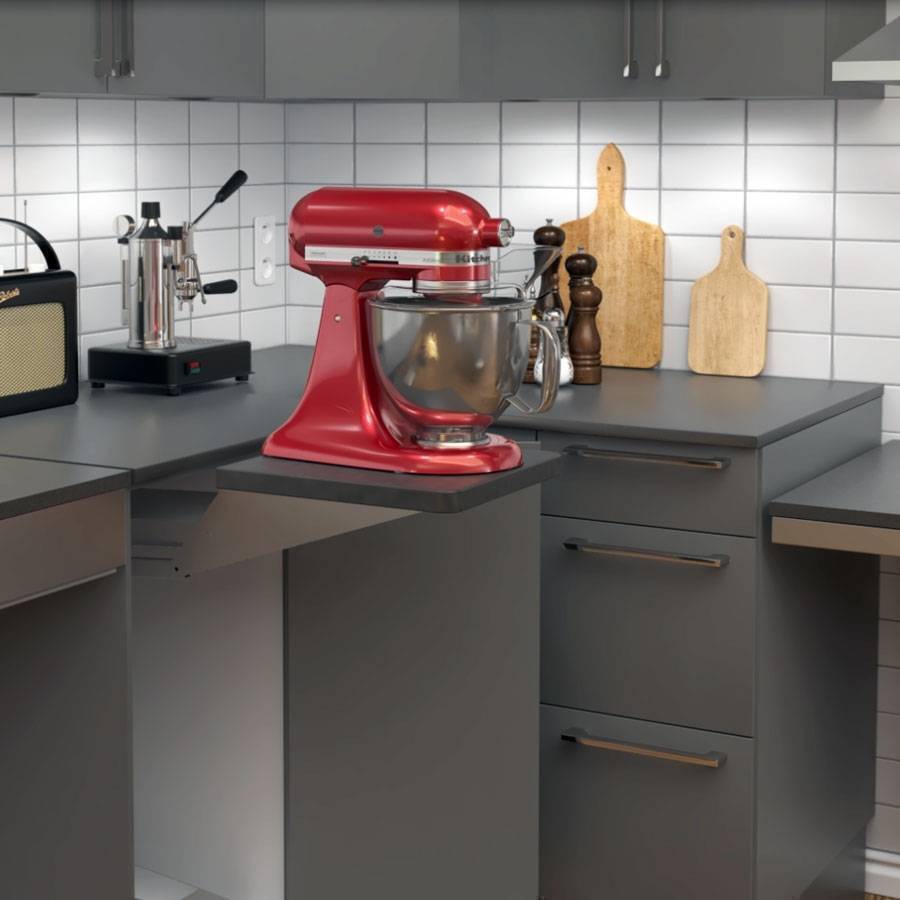

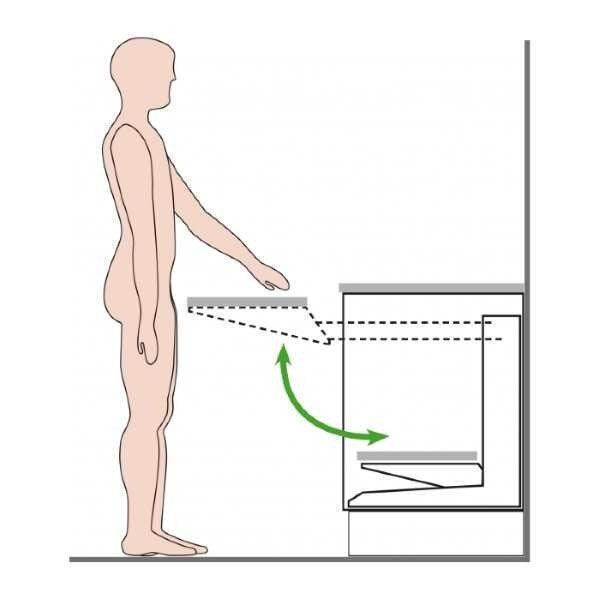

The Granberg Unilift 870 Raises A Panel From The Bottom Of A Kitchen Floor Or Wall Cabinet To The Desired Working Height. It Can Be Used To Lift Food Processors, Microwaves Or Other Household Appliances.
- Simply mounted in the base of a kitchen floor cabinet or wall cabinet
- Lifts heavy kitchen appliances quietly and quickly
- Can stop at any height

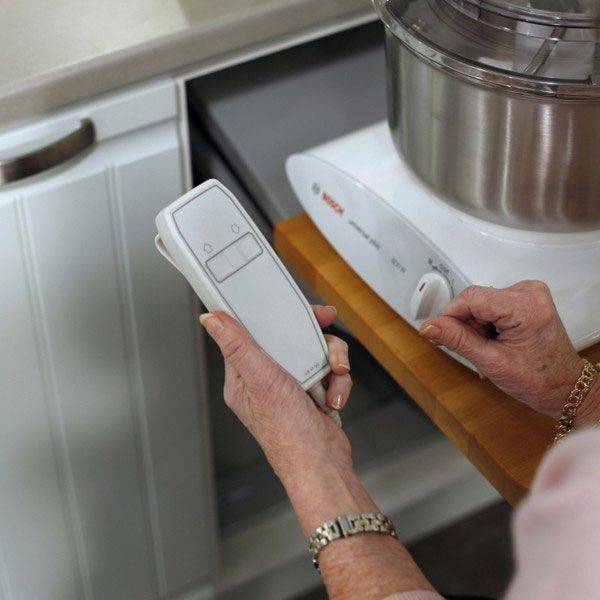

- Includes cable hand control

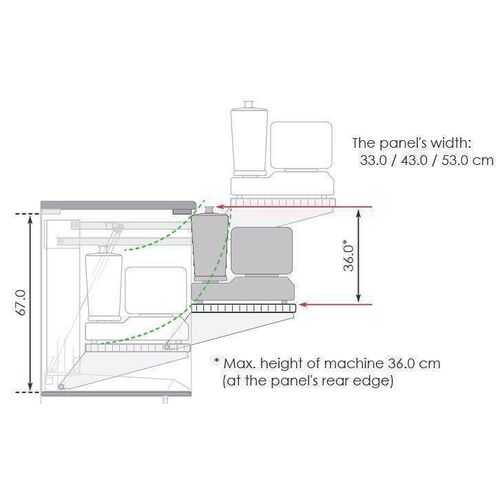

- Includes 350 x 330/430/530 x 28mm shelf panel
- Maximum load: 20kg
- Control voltage: 24V DC
Planning:
- Suitable for 400/500/600mm cabinet width
- Electrical connection to be located in the cabinet or close to it
Mechanical Construction:

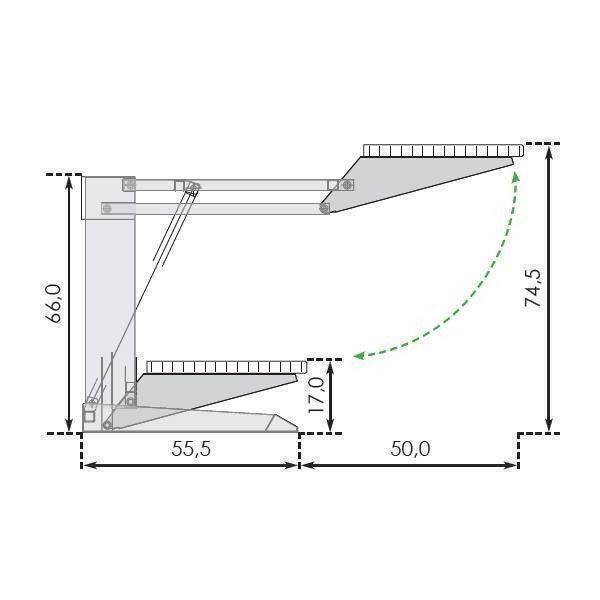

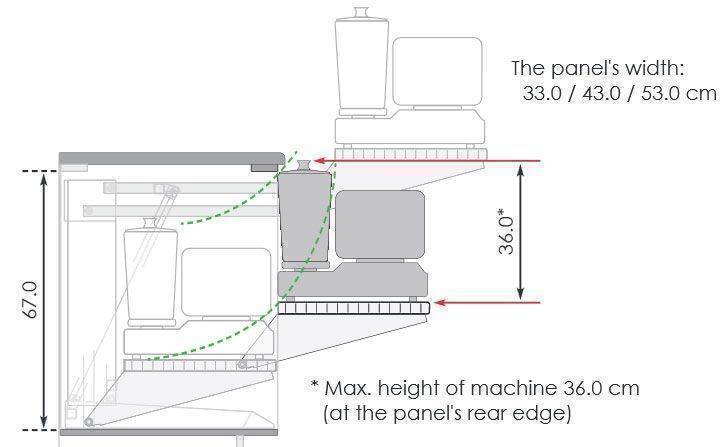

- The UNILIFT 870 comprises a motor-powered parallel-acting arm system that lifts and lowers the platform
- The lifting arrangement is fixed onto a framework
- The curved lifting and lowering motion is achieved by an electrically powered screw jack - attached in the framework and in the arm system
Please note:
Appliances and base unit not included. Lead time 7-12 working days.
Please Be Aware Tha this Item Is Made To Order. There Is A Lead Time Of 10-14 Working Days.
Cabinet Size:
400mm (364mm)
