"Free Space" Door Flap Fitting (White)

4640-001
Price: £24.68inc VAT
+

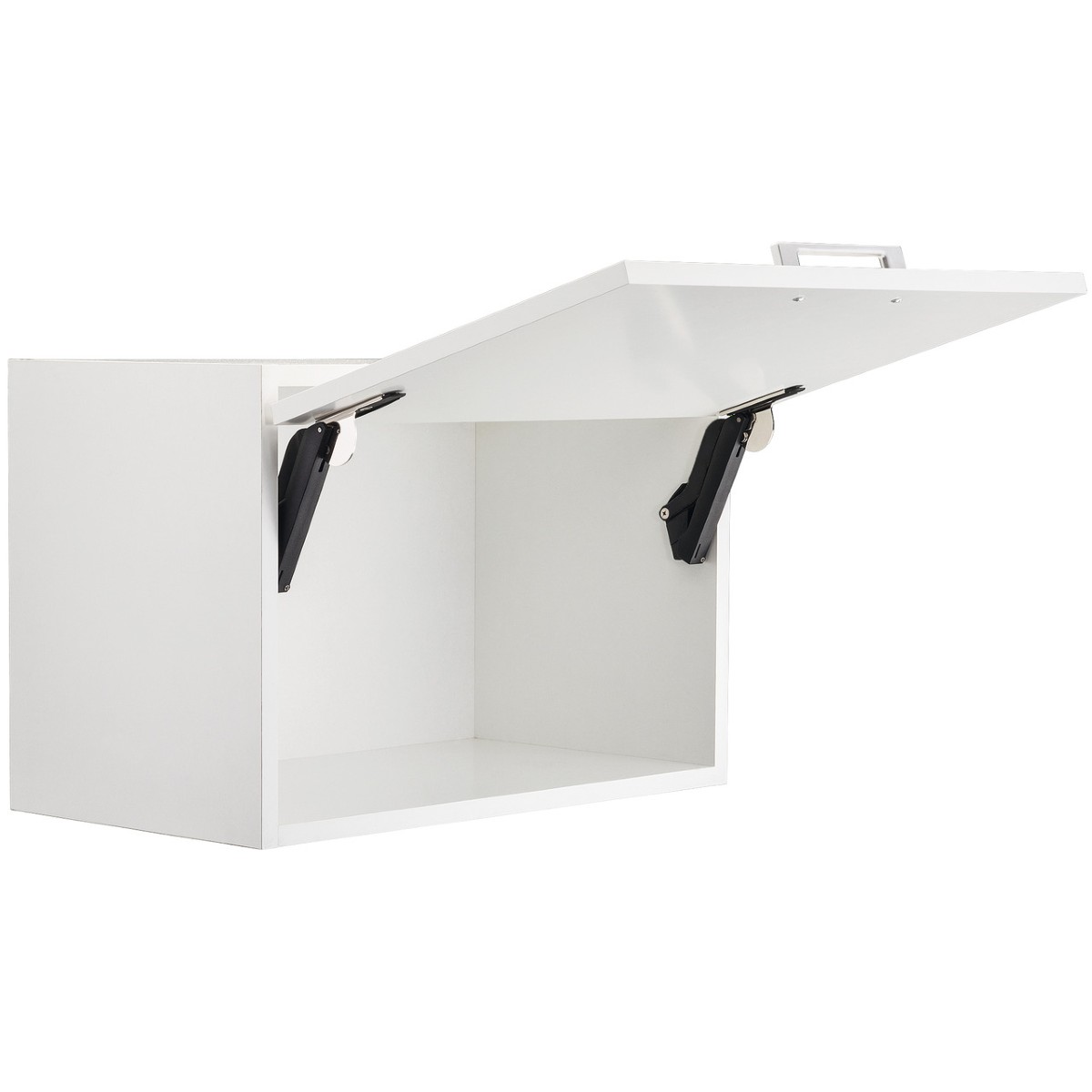

Free Space Set Of Cabinet Door Flap Fittings in White

  • A Stay Flap Fitting For One-Piece Wooden Flaps Or Flaps With Aluminium Frames
  • The Free Space's Compact Size Allows For More Storage Space In The Cabinet
  • Hinge-Less Stay Flap Fitting For More Free Room In All Respects

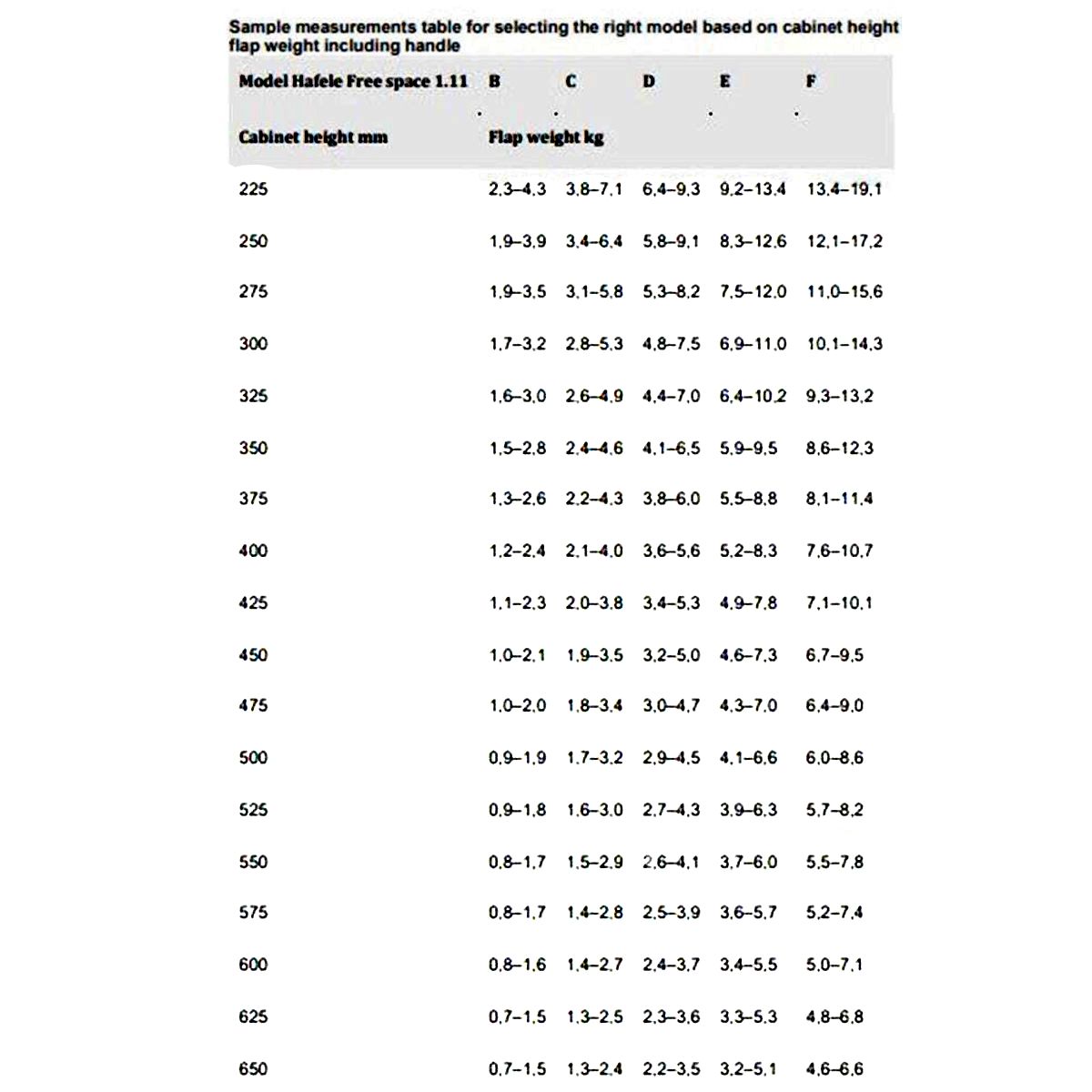

  • Required Model Type Depends On The Thickness And Size Of The Panel - Please Refer To Technical Docs For Dimensions
  • Very Powerful
  • Suitable For Most Of The Common Flap Sizes And Weights
  • Extremely Compact : Minimizes The Use Of Internal Space
  • Gentle Running Characteristics Making It A Pleasure To Use
  • Fast And Time-Saving Operation
  • Fully Adjustable
  • Available in Three Standard Colours And A Series For Handle-Free Applications (Push to open)

Product Features:

  • Application : For Standard Stay Flap Applications With Front Height Up To 650mm

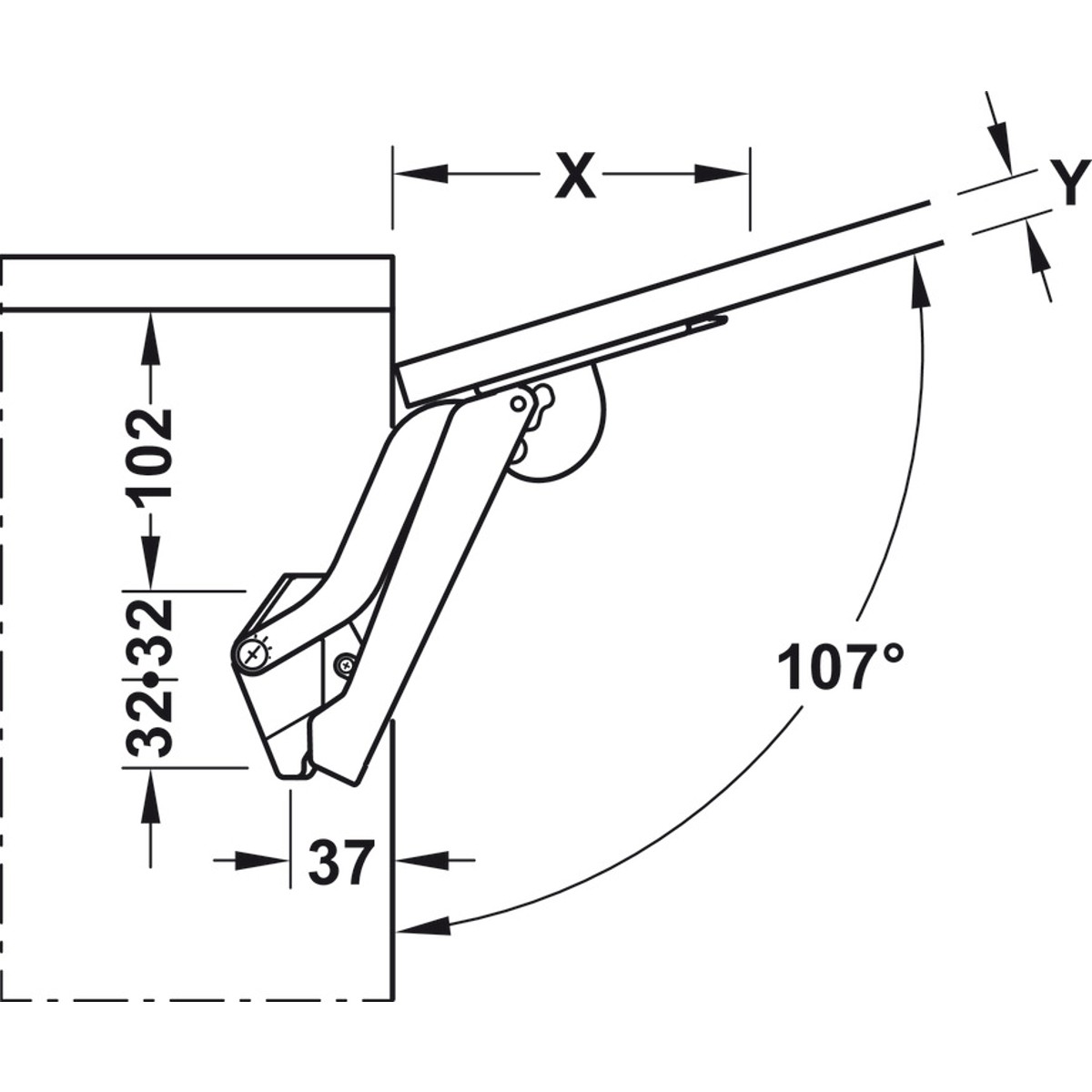

  • Opening Angle : 90 Degree or 107 Degree
  • Adjustment Facility : Height, Side, Tilting Angle and Holding Power
  • Guarantee : 25 Years
  • Supplied As A Pair Of Brackets ( 2 Brackets ) - Price shown per pair

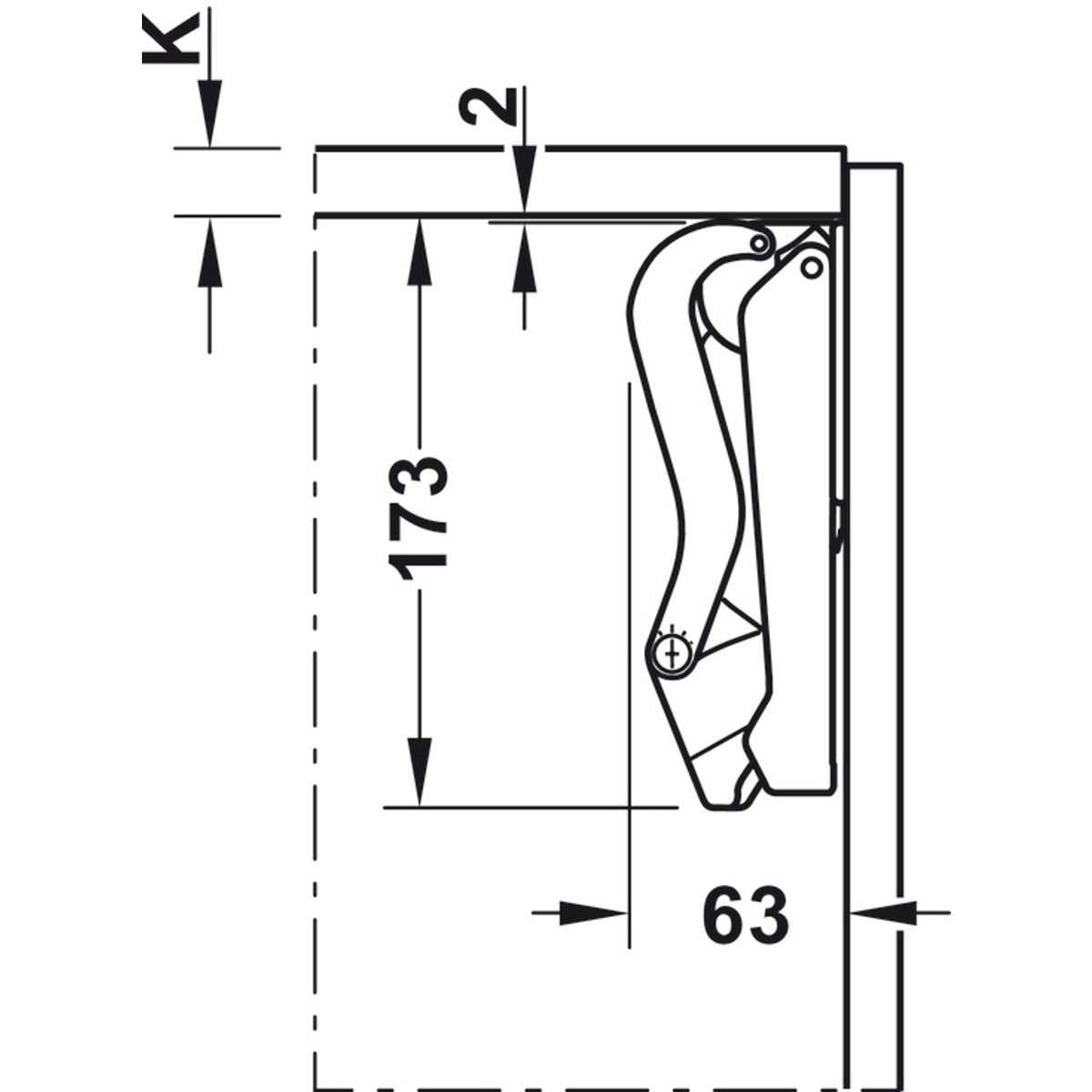

  • Bracket Height : 173mm
  • Bracket Depth : 63mm

Material & Finish:

  • Housing : Anthracite Grey Plastic in White
  • Front Fixing Bracket And Support Lever : Steel
  • Front Fixing Bracket And Support Lever : Nickel Plated

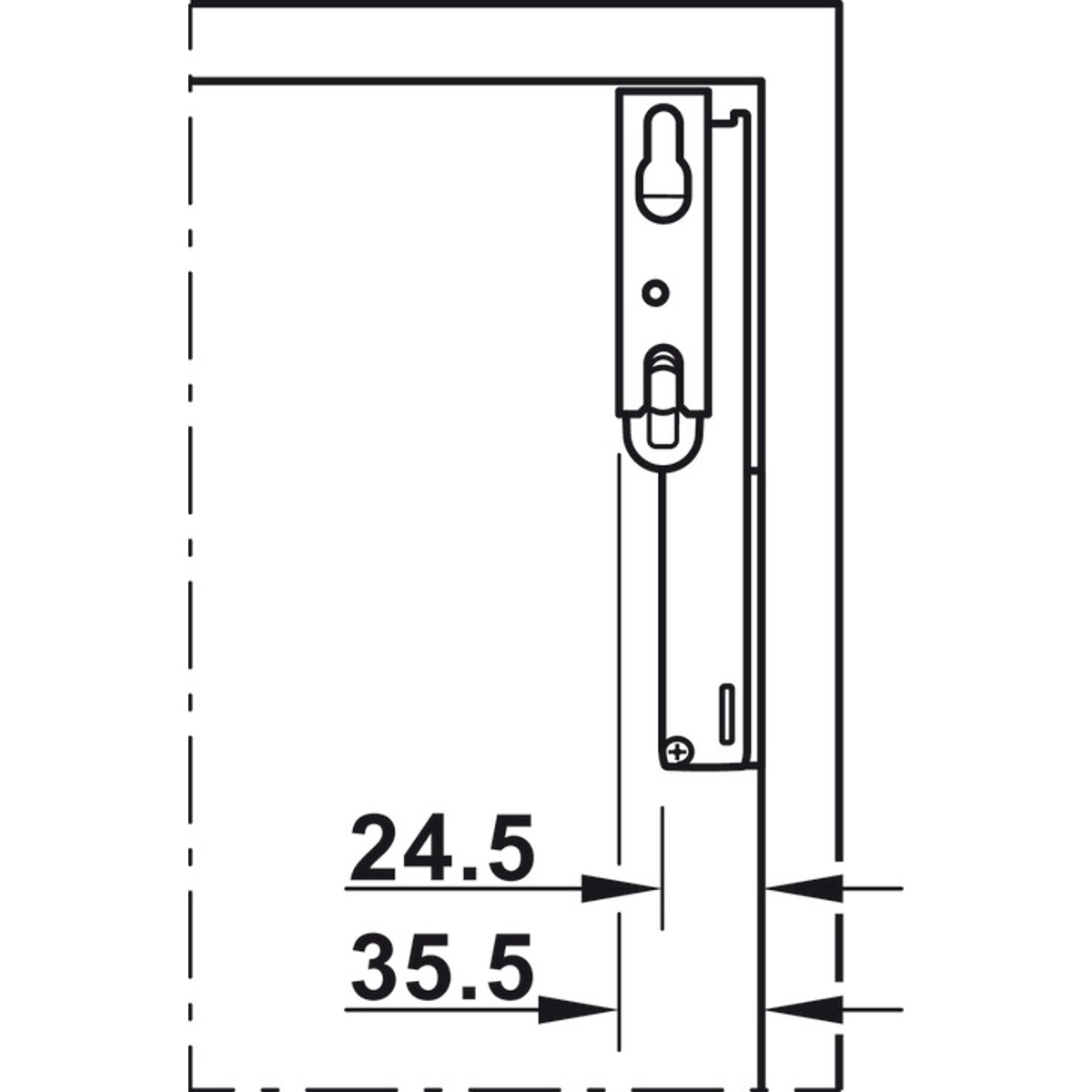

For Measurement And Picking The Correct Model Please Refer To Technical Docs

Version:
Soft Close
Type / Diameter:
Model B

Gas Struts

Finish:
  • White
