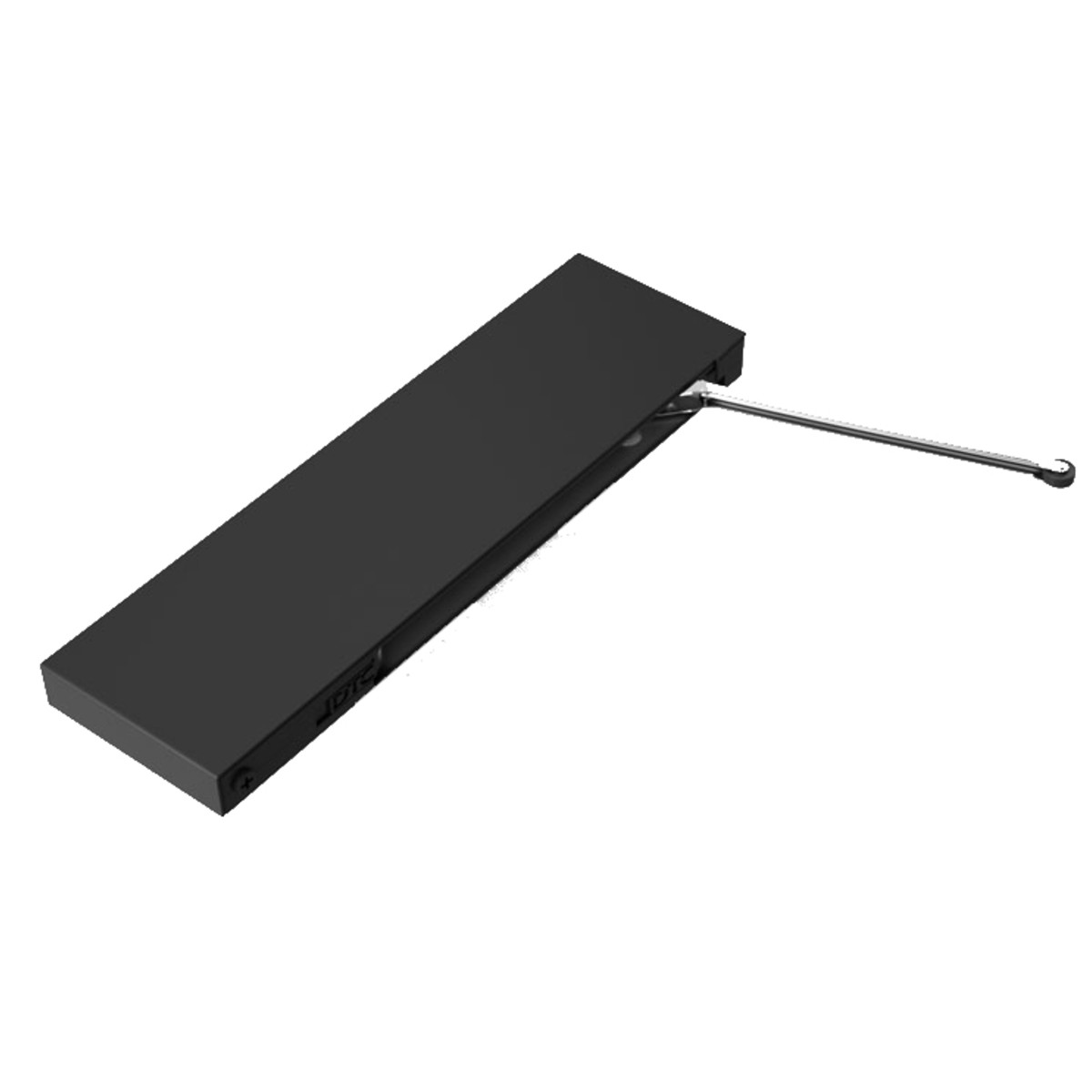

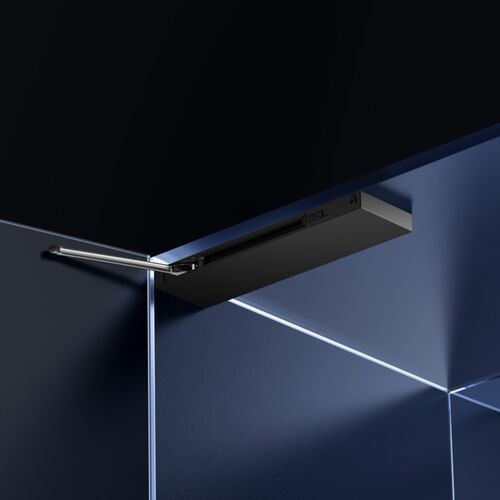

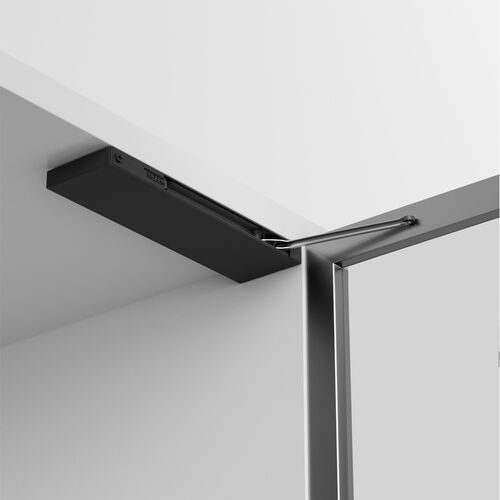

DTC Push To Open Latch

Upgrade your cabinets with the DTC push-to-open latch, designed for effortless operation. Perfect for doors up to 2400mm in height and cabinet widths between 300-600mm, this dark grey latch ensures smooth opening without needing a handle. Effortlessly open doors with a gentle push, along with a swing arm that resets the push mechanism, to allow for soft close hinges to work for your cabinet, all while offering a modern, minimalist look. Ideal for kitchen cabinet doors, wardrobe doors, bathrooms, and storage spaces, it combines convenience with premium functionality.

• Finish: dark grey
• Manufactured by: DTC
• Maximum door height: 2400mm
• Cabinet width range: 300-600mm
• Can be used with soft-close hinges
• Compatible with inset, half overlay and overlay hinges
• Suitable for: wooden doors, narrow-edge aluminum frame doors and glass doors
• Maximum door weight:
  • Doors up to 900mm: 7.7kg
  • Doors up to 1600mm: 13.7kg
  • Doors up to 2000mm: 17.7kg
  • Doors up to 2400mm: 22kg

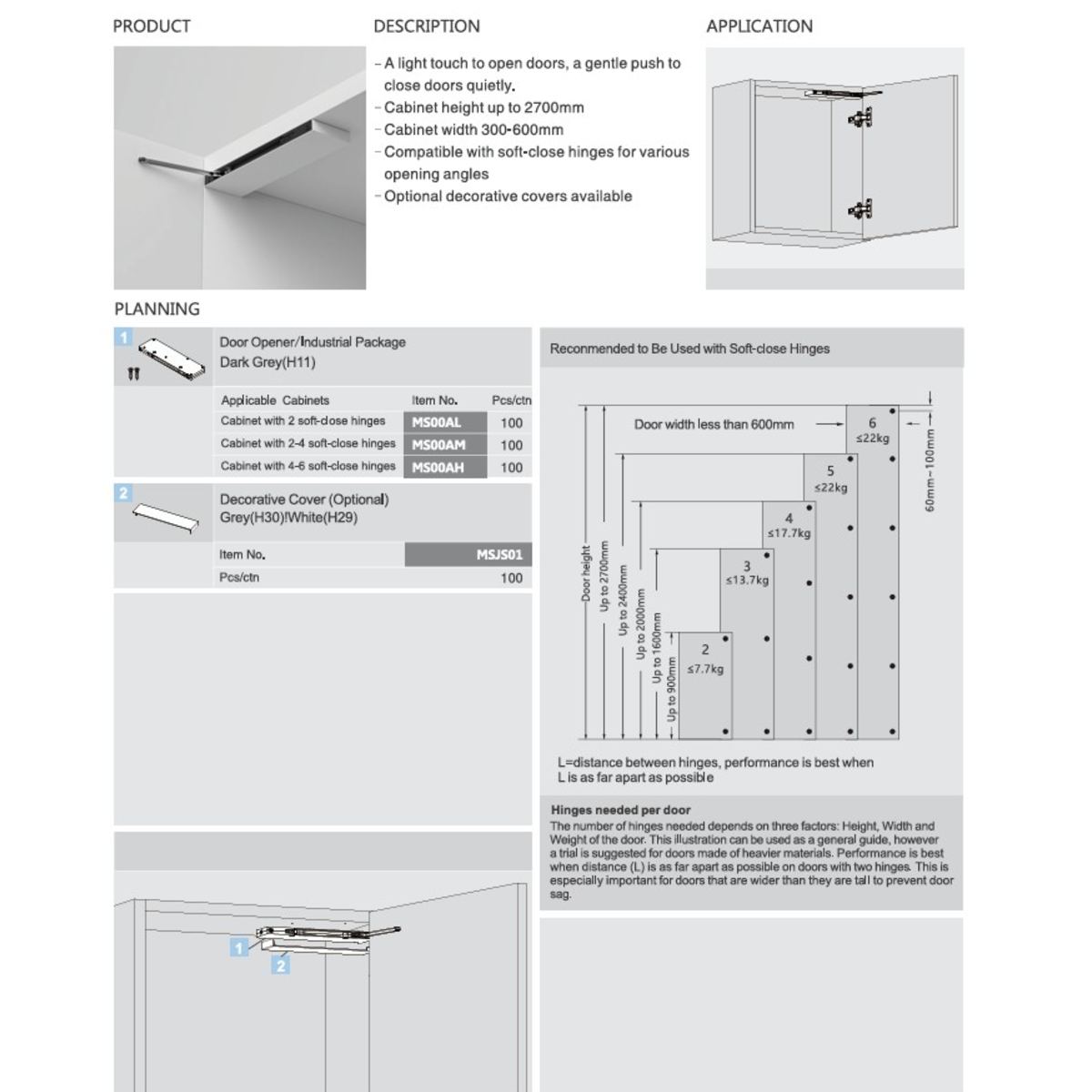

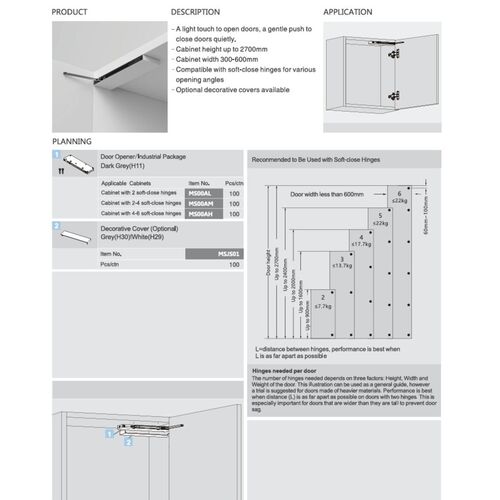

• Recommended hinge quantity per door:
  • Doors up to 900mm: 2
  • Doors up to 1600mm: 3
  • Doors up to 2000mm: 4
  • Doors up to 2400mm: 5
• Set contains:
  • 1 x casing
  • 1 x set of screws
  • 1 x push-to-open latch

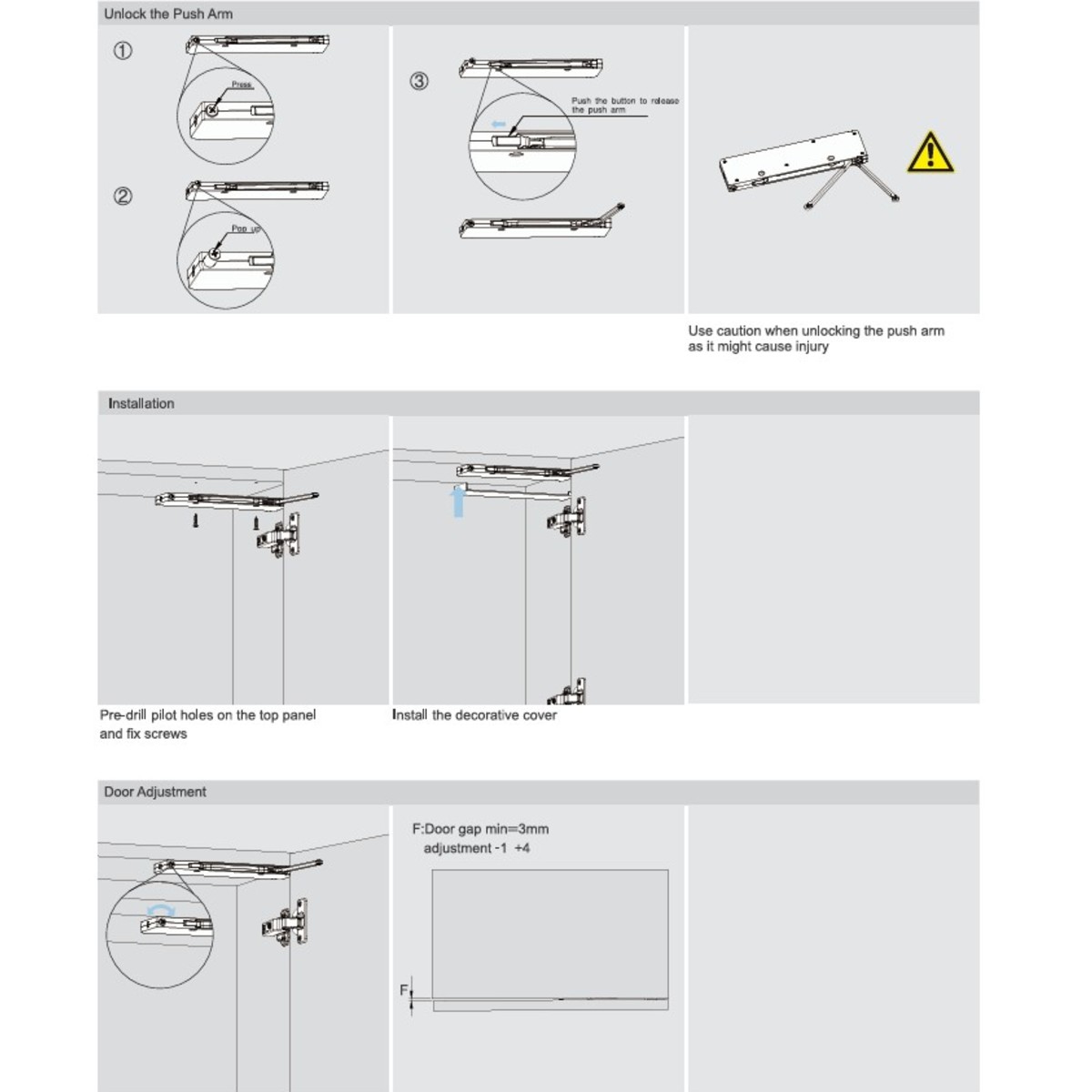

Please note

Swing arm purpose is to reset the push to open mechanism, to allow for your soft close hinges to close without any need to push the door close yourself. The swing arm will not open the cabinet door for you.
