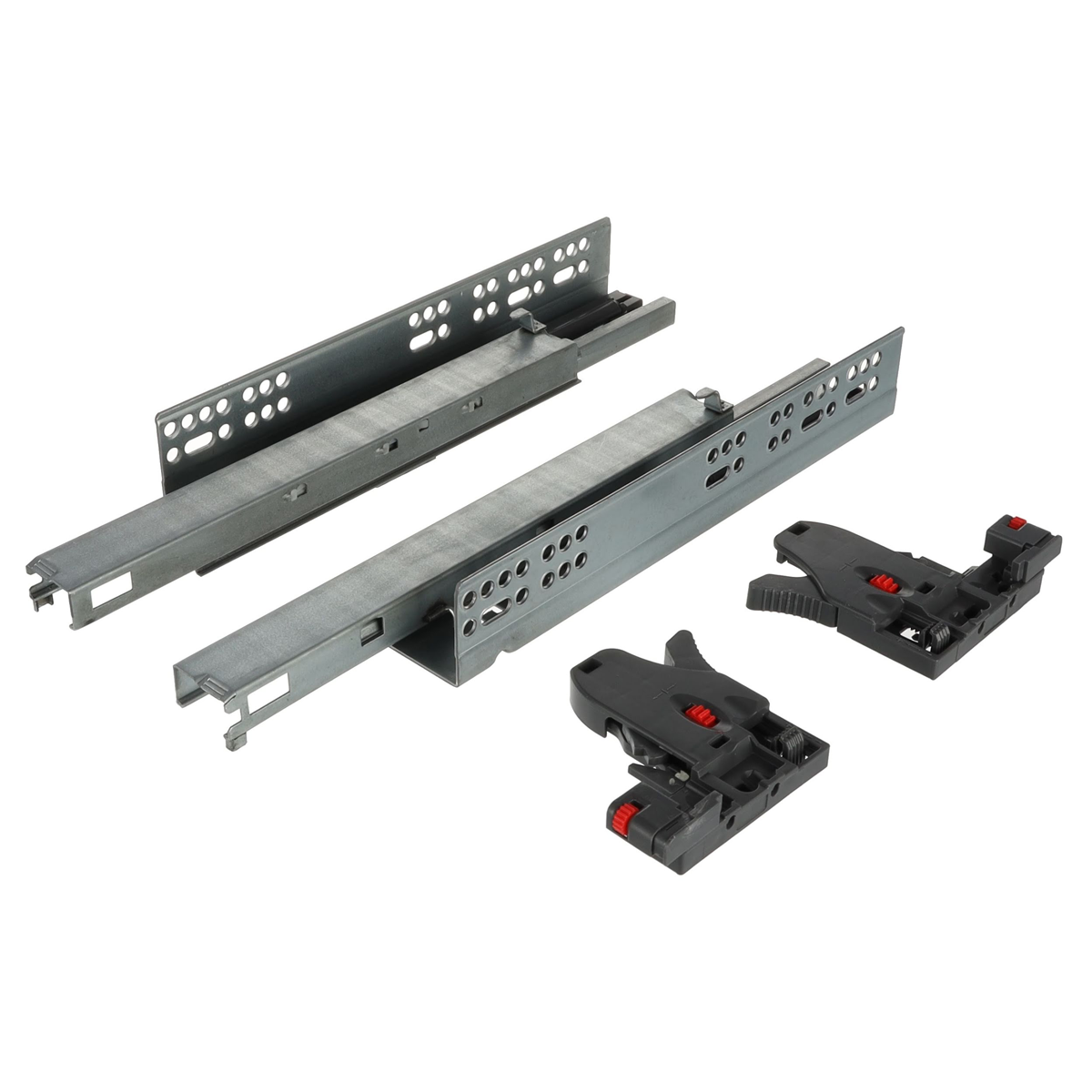

The Riex NU80 concealed drawer runner is a full extension soft close slide designed for modern kitchen cabinets, wardrobes and storage units, providing smooth and controlled closing action. Manufactured from steel and available in lengths from 300mm to 650mm, these undermount runners support up to 40kg and feature an integrated synchronisation mechanism for consistent, quiet operation. Suitable for use in kitchens, bedrooms and commercial furniture, the concealed design maximises internal drawer space while 3D adjustment brackets allow precise alignment, making it ideal for improving access, durability and overall drawer performance.
- Full extension
- Material: steel

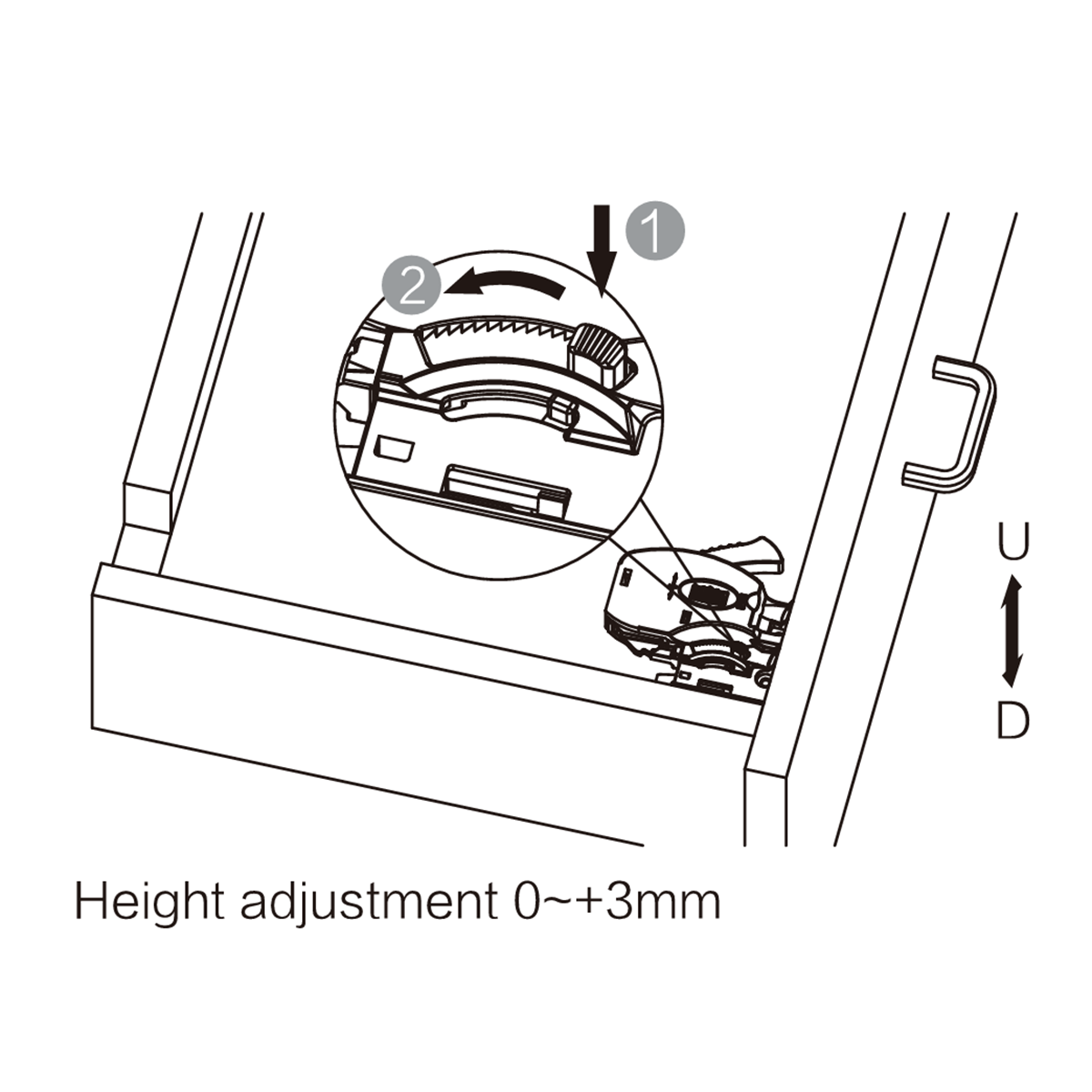

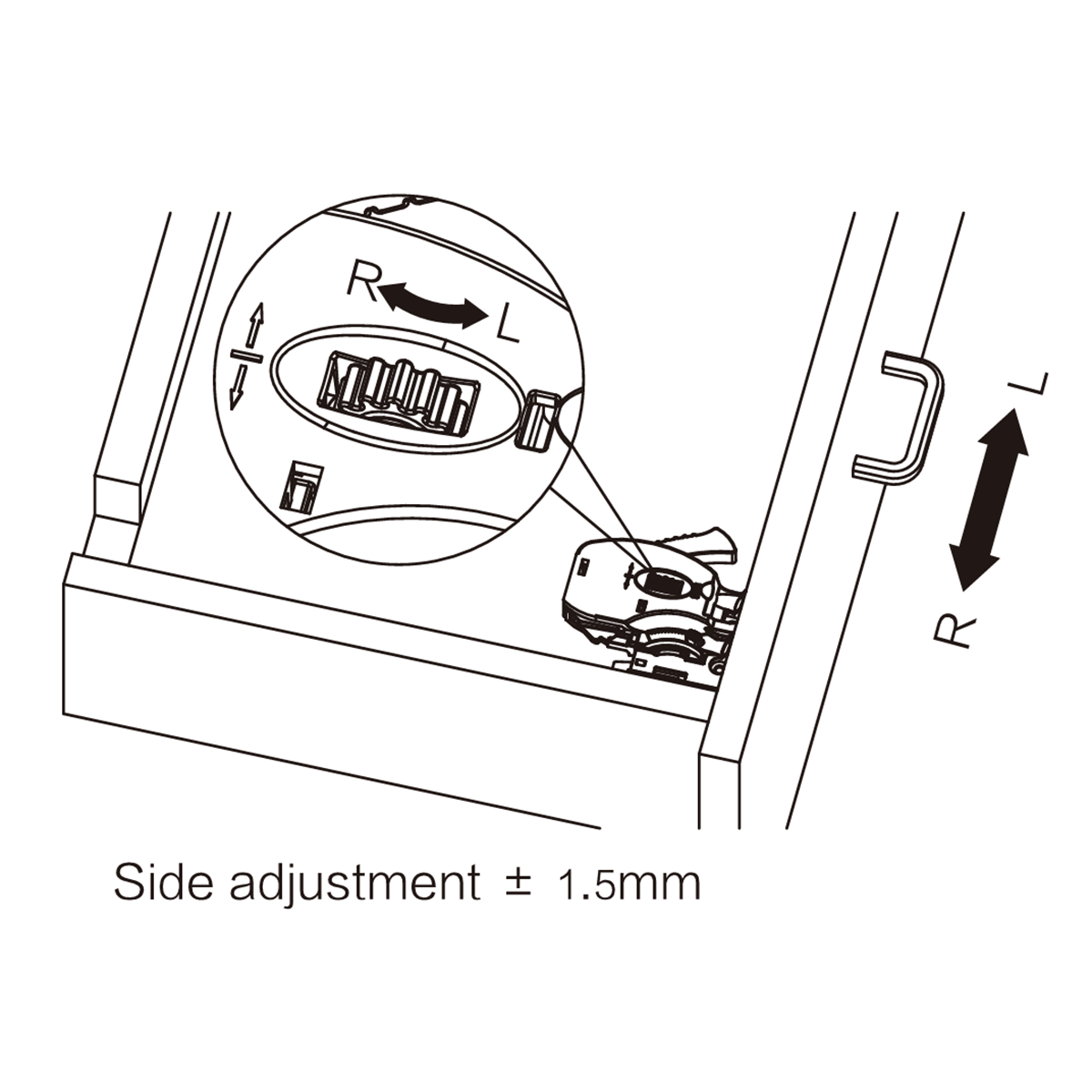

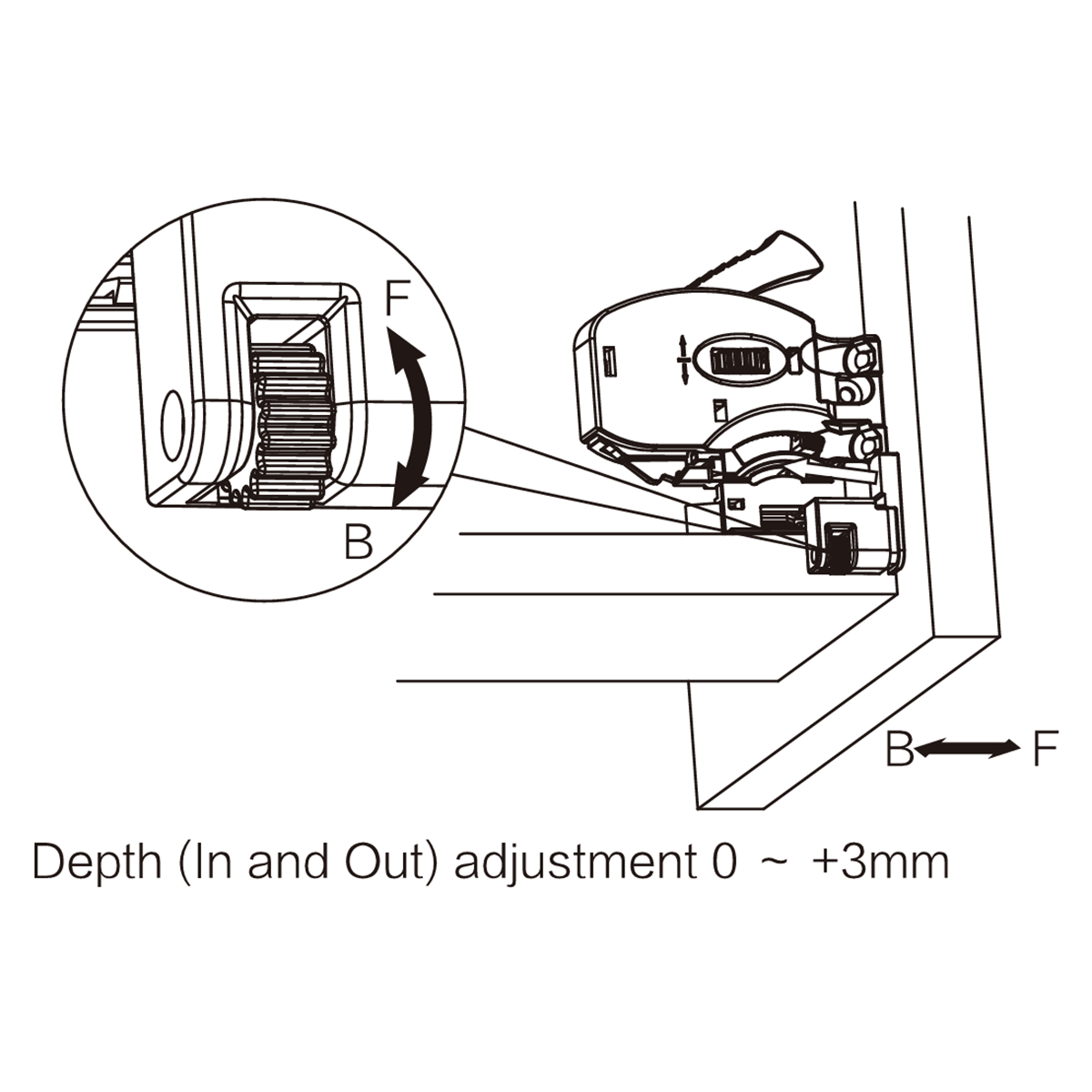

- 3D adjustments
- Soft close mechanism

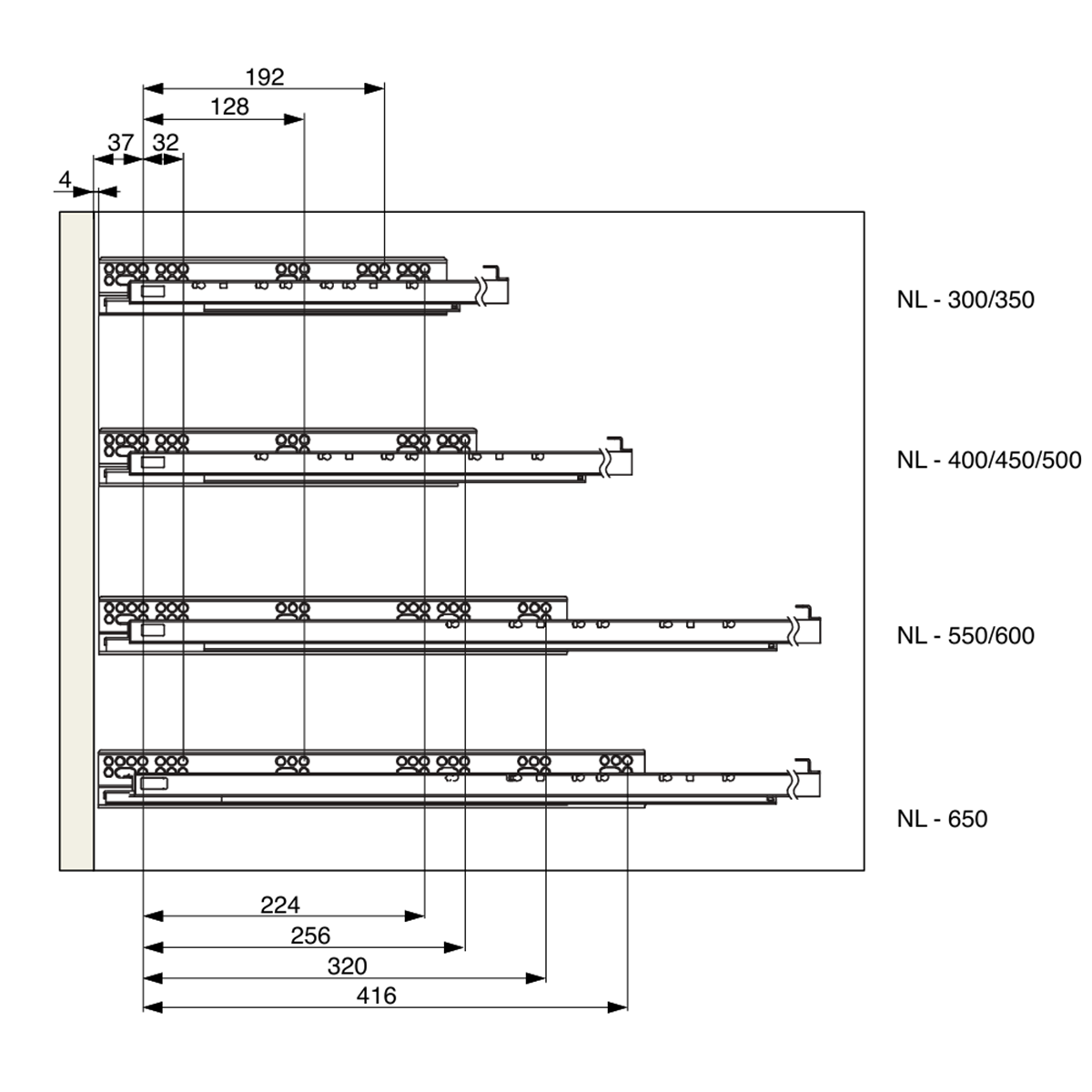

- Available lengths: 300-650mm
- Maximum drawer weight: 40kg
- Smooth and quiet running action
- Concealed undermount installation
- Integrated synchronisation mechanism

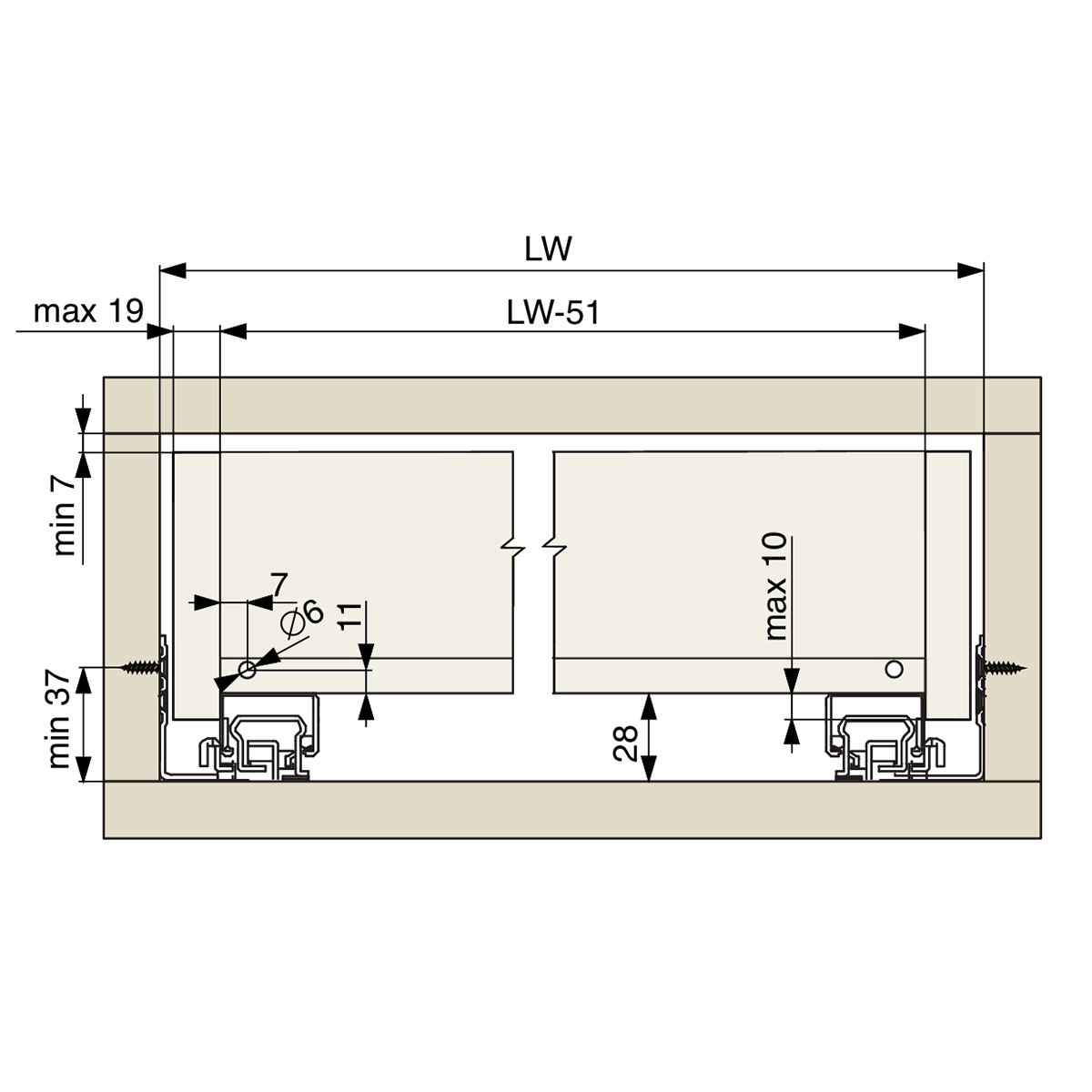

- To suit wooden drawers up to 19mm thick

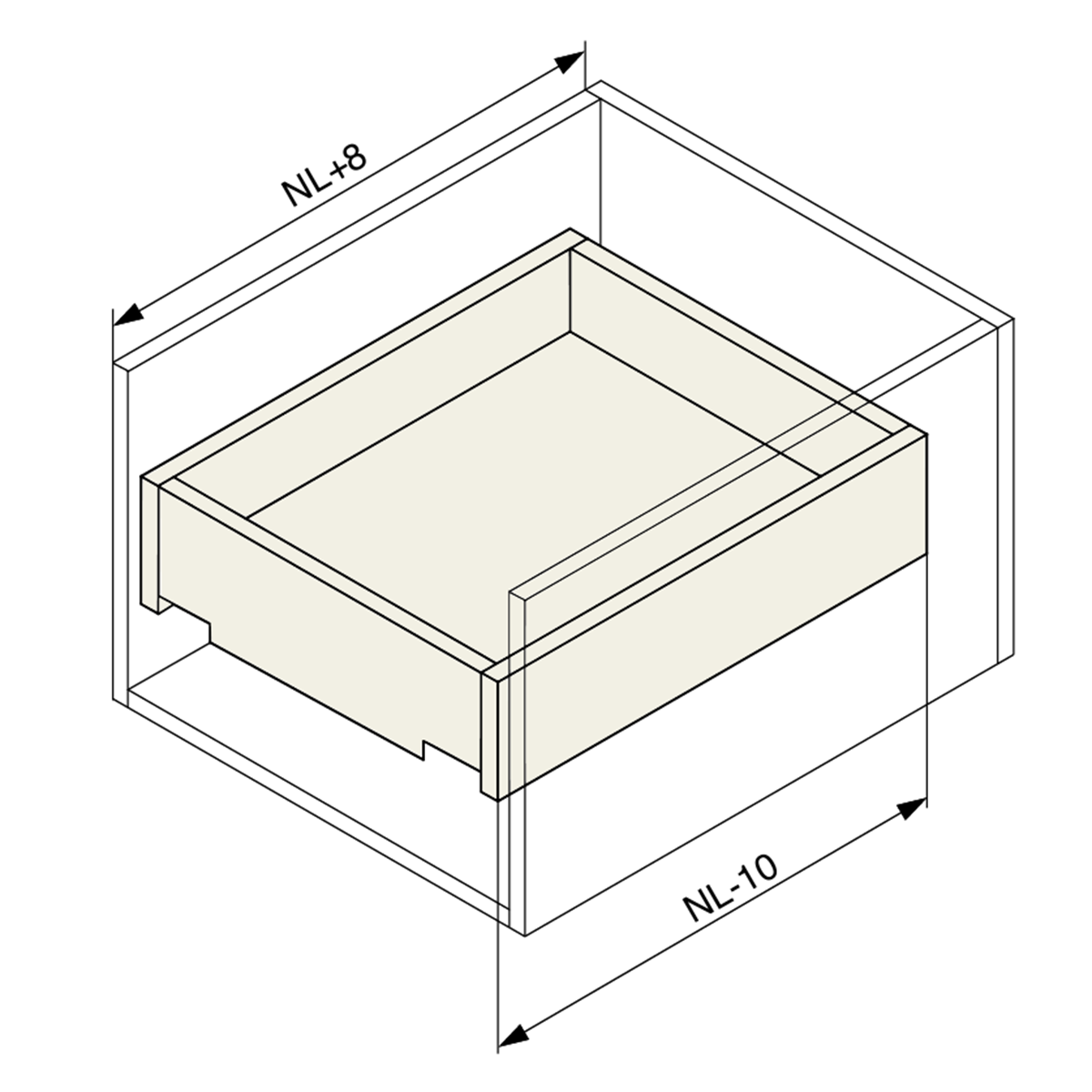

| Runner Length | Minimum Cabinet Depth | Required Drawer Depth |
|---|---|---|
| 300mm | 308mm | 290mm |
| 350mm | 358mm | 340mm |
| 400mm | 408mm | 390mm |
| 450mm | 458mm | 440mm |
| 500mm | 508mm | 490mm |
| 550mm | 558mm | 540mm |
| 600mm | 608mm | 590mm |
| 650mm | 658mm | 640mm |
