Concealed Drawer Runner Push To Open Soft Close Full Extension 30kg (Maximum 19mm Drawer Sides)

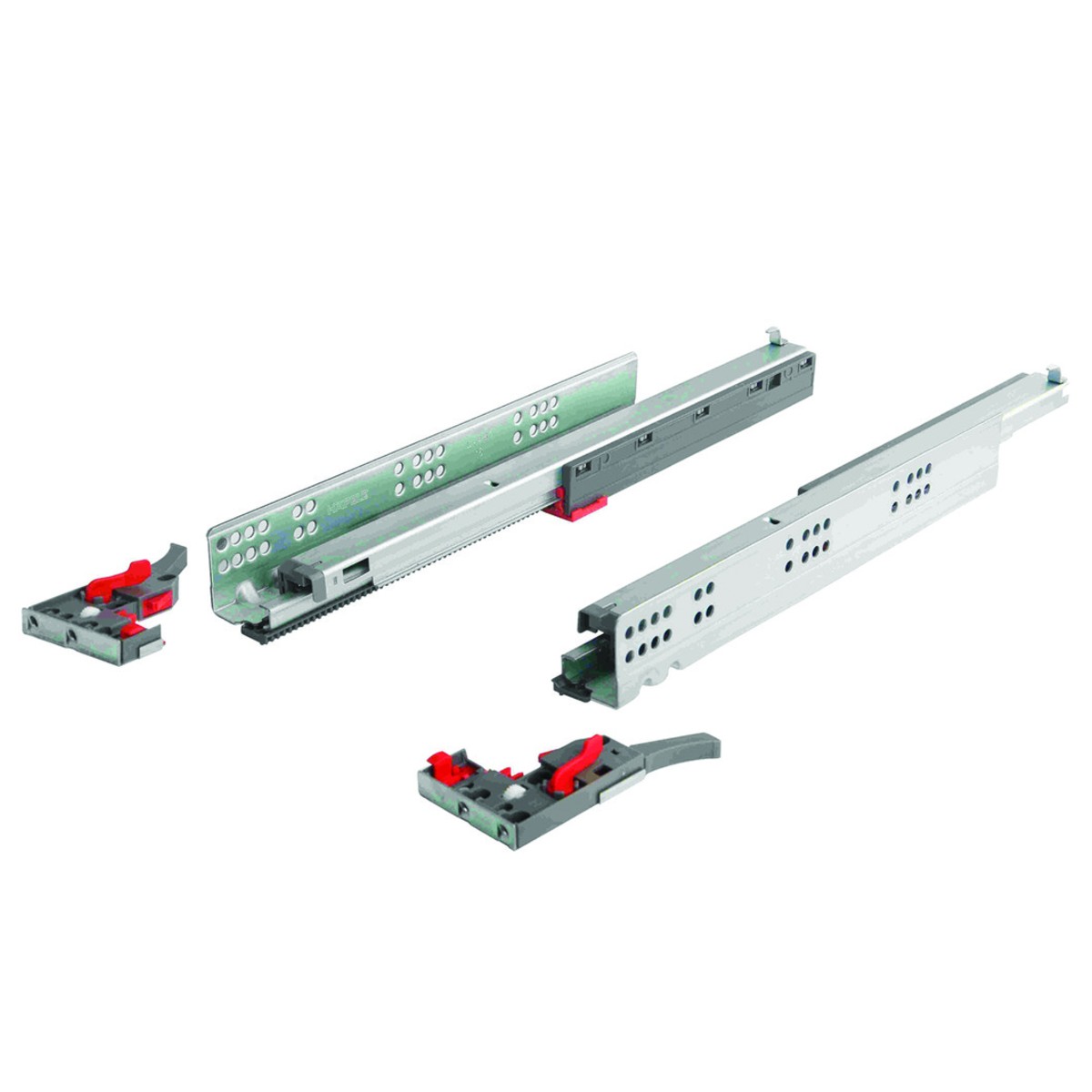

The Matrix concealed drawer runner is a full‑extension, push‑to‑open soft‑close slide made for modern handleless furniture. It gives a smooth, controlled action and works well in kitchens, bedrooms and commercial storage. With lengths from 300 to 550mm, it covers most cabinet sizes. The steel runners are built for up to 19mm side panels, and the hidden undermount layout helps you keep as much internal drawer space as possible while keeping the outside clean and simple. It supports up to 30kg, and the built‑in push‑to‑open feature removes the need for handles, keeping the whole setup looking neat and contemporary.

• Full extension
• Material: steel
• Push to open and soft close
• Available lengths: 305-555mm
• Minimum drawer weight: 10kg
• Maximum drawer weight: 30kg
• Concealed undermount installation
• 3D adjustments (gap, height and side)
• To suit wooden drawers up to 19mm thick

Please note that:

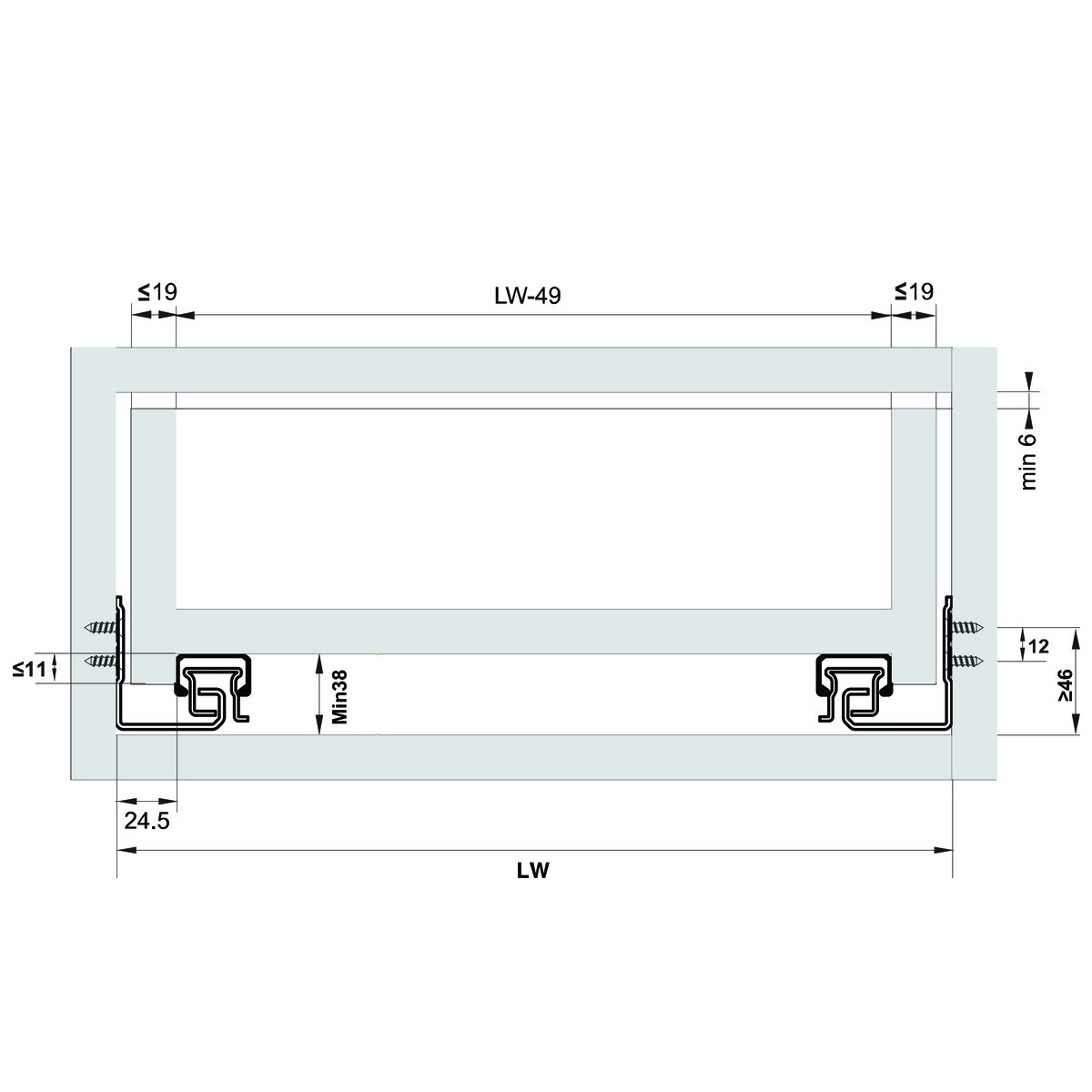

• Dim: maximum drawer width = (internal cabinet width - 49 mm) + 2 x drawer side thickness
