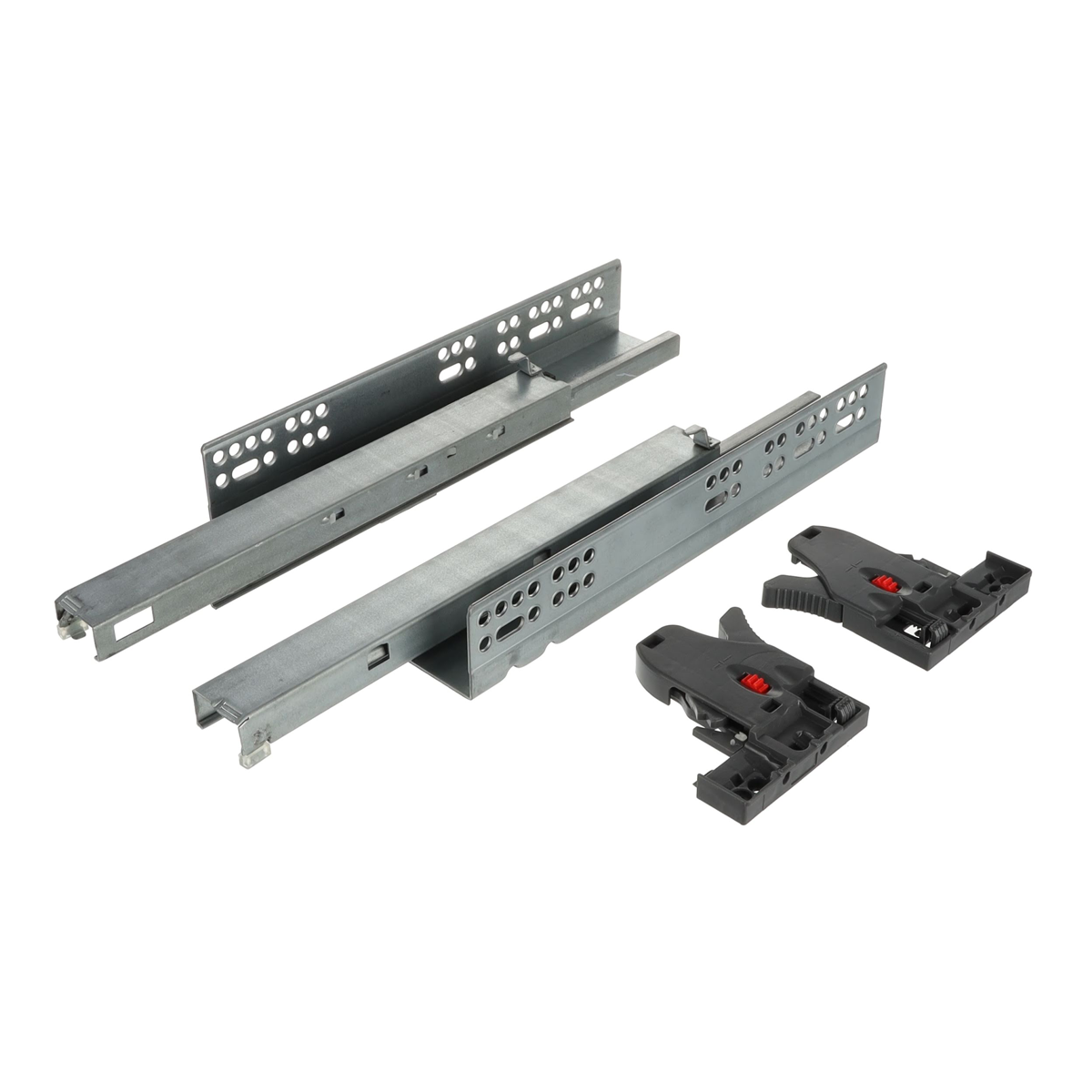

The Riex concealed drawer runner is a full extension push-to-open slide designed for modern handleless furniture, commonly used in kitchen cabinets, wardrobes and storage units. Manufactured from steel and available in lengths from 300mm to 650mm, these undermount runners support up to 35kg and provide smooth, synchronised movement with reliable opening and closing. Suitable for use in kitchens, bedrooms and commercial furniture, the integrated push-to-open mechanism removes the need for handles while the concealed design maximises internal drawer space, making it ideal for improving access and maintaining a clean, minimal cabinet appearance.
- Full extension
- Material: steel
- 3D adjustments
- Available lengths: 300-650mm
- Maximum drawer weight: 35kg
- Smooth and quiet running action
- Concealed undermount installation
- Push to open (handleless operation)
- Integrated synchronisation mechanism

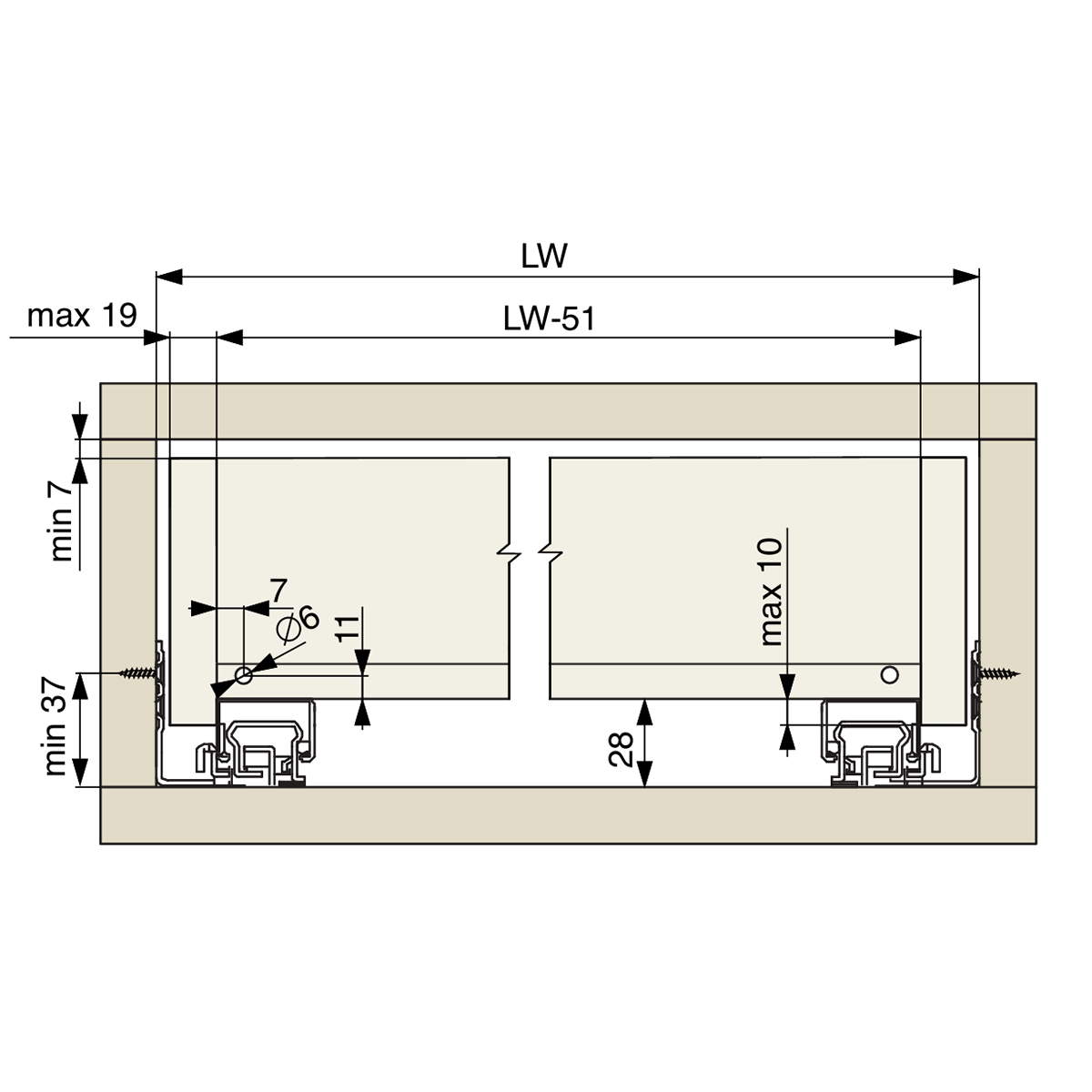

- To suit wooden drawers up to 19mm thick
- Adjustable opening force via integrated slider

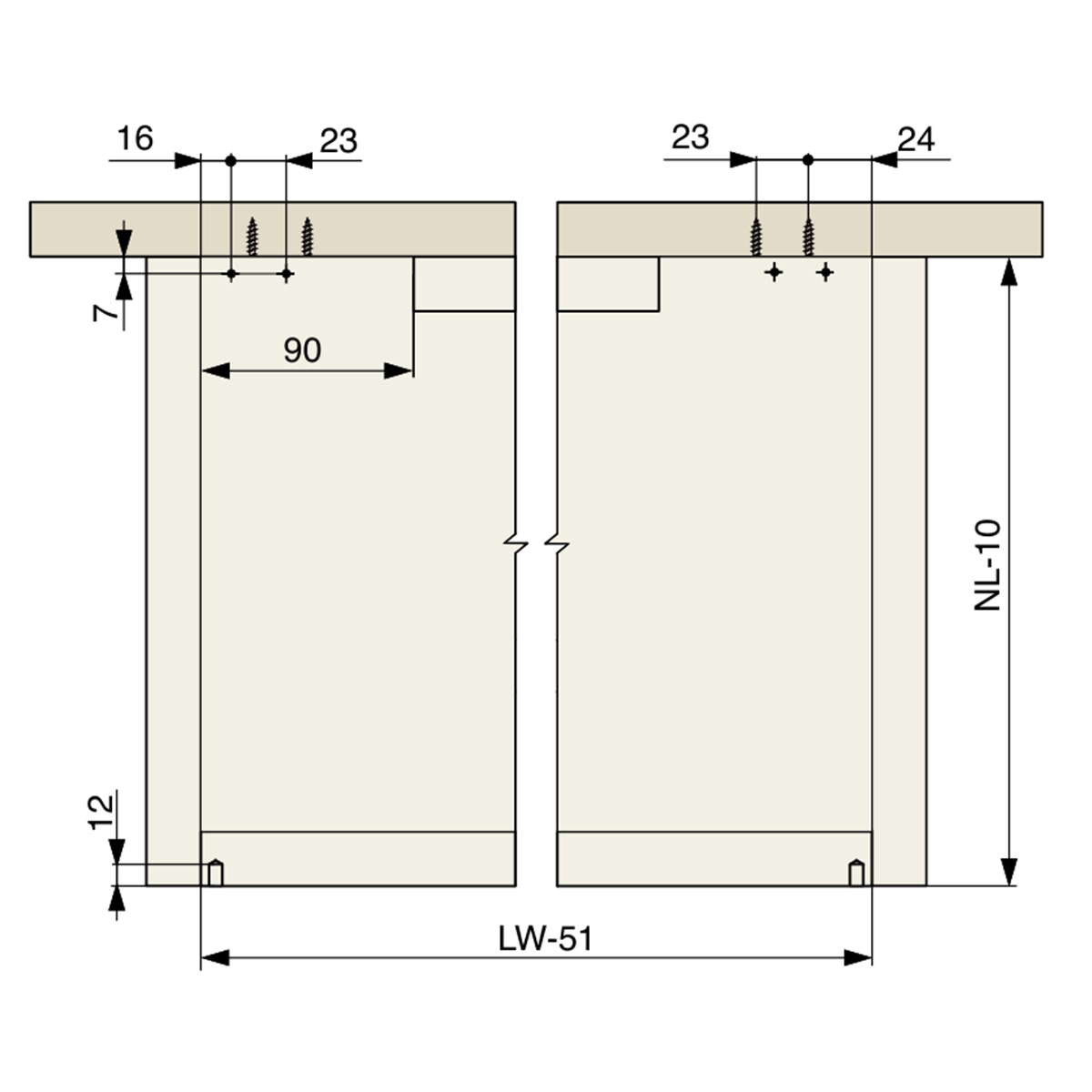

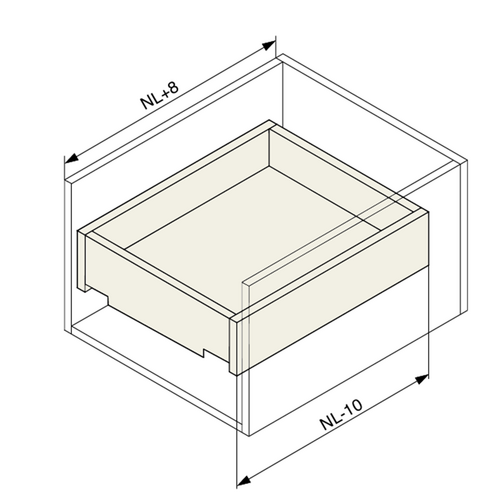

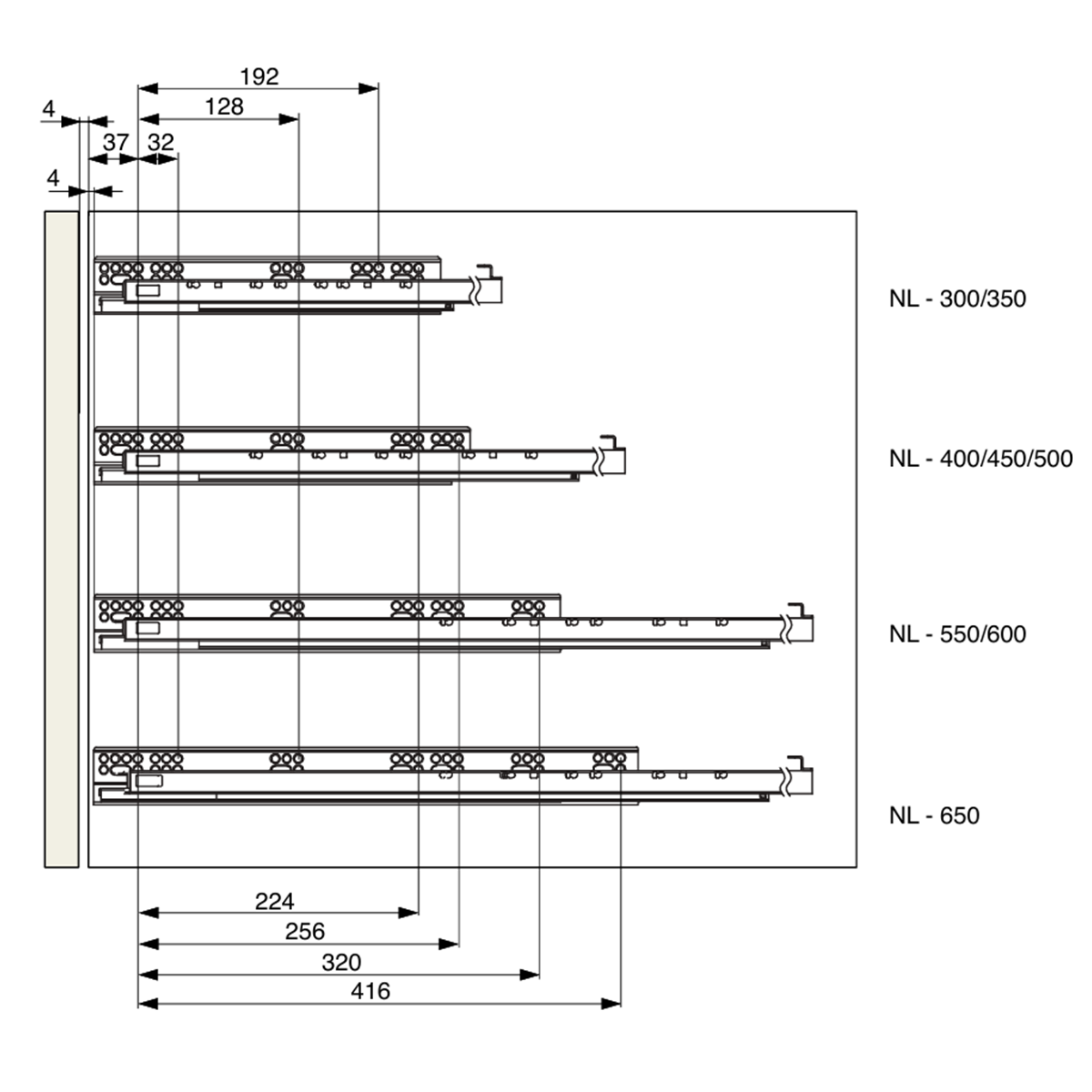

| Runner Length | Minimum Cabinet Depth | Required Drawer Depth |
|---|---|---|
| 300mm | 308mm | 290mm |
| 350mm | 358mm | 340mm |
| 400mm | 408mm | 390mm |
| 450mm | 458mm | 440mm |
| 500mm | 508mm | 490mm |
| 550mm | 558mm | 540mm |
| 600mm | 608mm | 590mm |
| 650mm | 658mm | 640mm |
