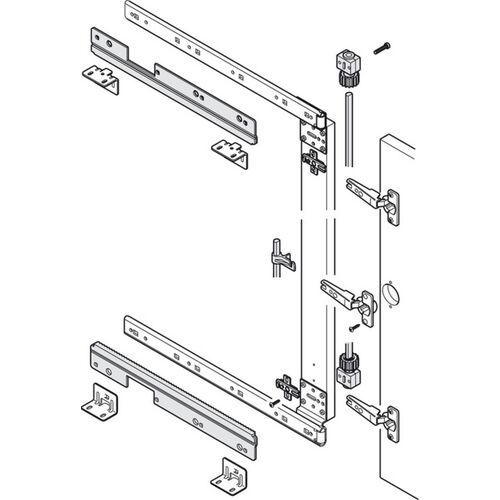

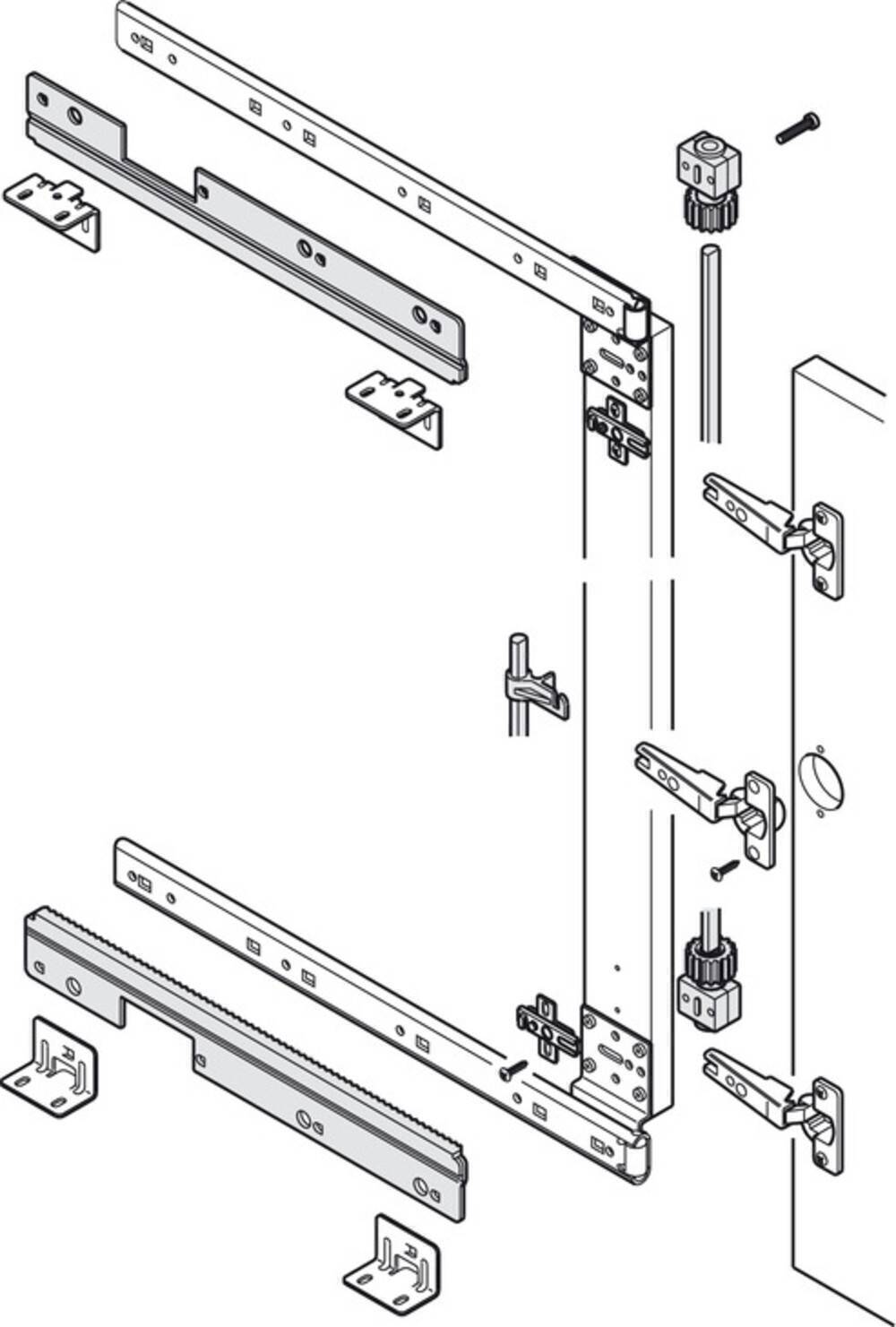

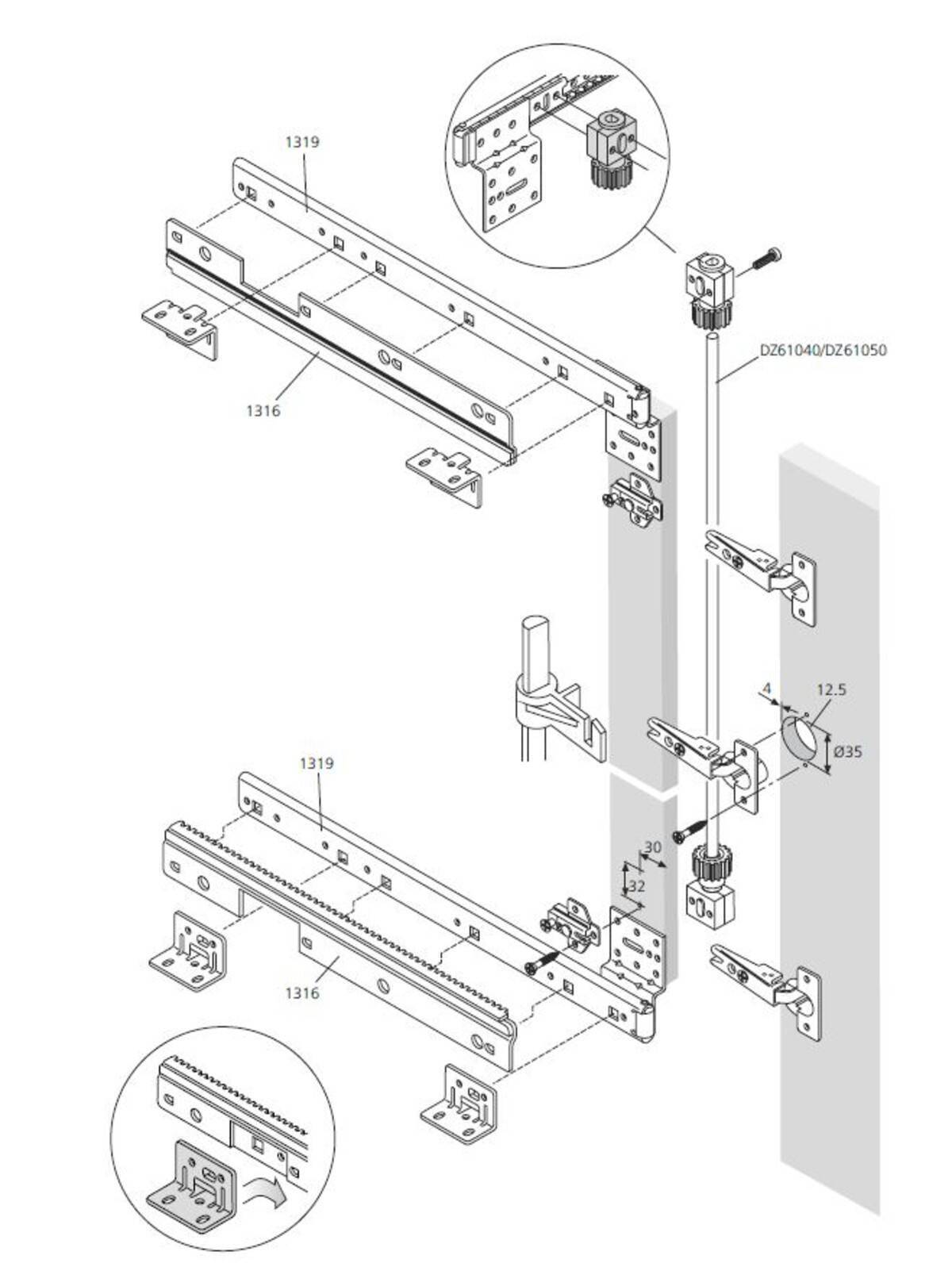

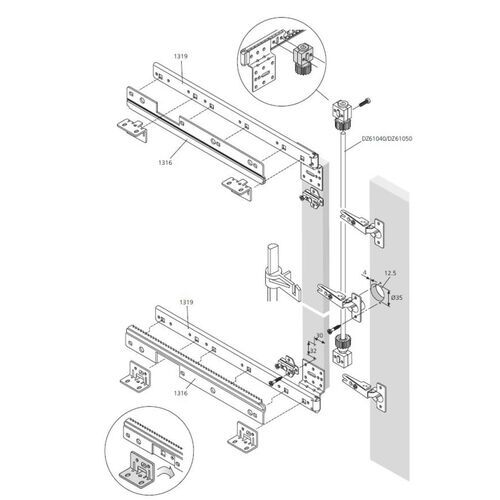

Synchronisation 1316 is dedicated for Accuride 1319 Pivot Folding door kit. It increases door weight and size capacity and helps with the smooth synchronised operation.
- To be used with Accuride 1319 Pivot Folding Door Gear
- Increases weight capacity of 1319 system up to 25 kg per door
- Increases max door height up to 2000mm (1200mm for horizontal fixings)
- 2-5 hinges to be used depending on the door width. The maximum recommended door width is 600mm
Set consists of:
- 2 Pinions with screw mounts
- 2 Tracks
- 2 Rod guides
- Screws
Folding kit Accuride 1319, hinges and mounting plates are not included. Available in related products below.
Length:
350mm
