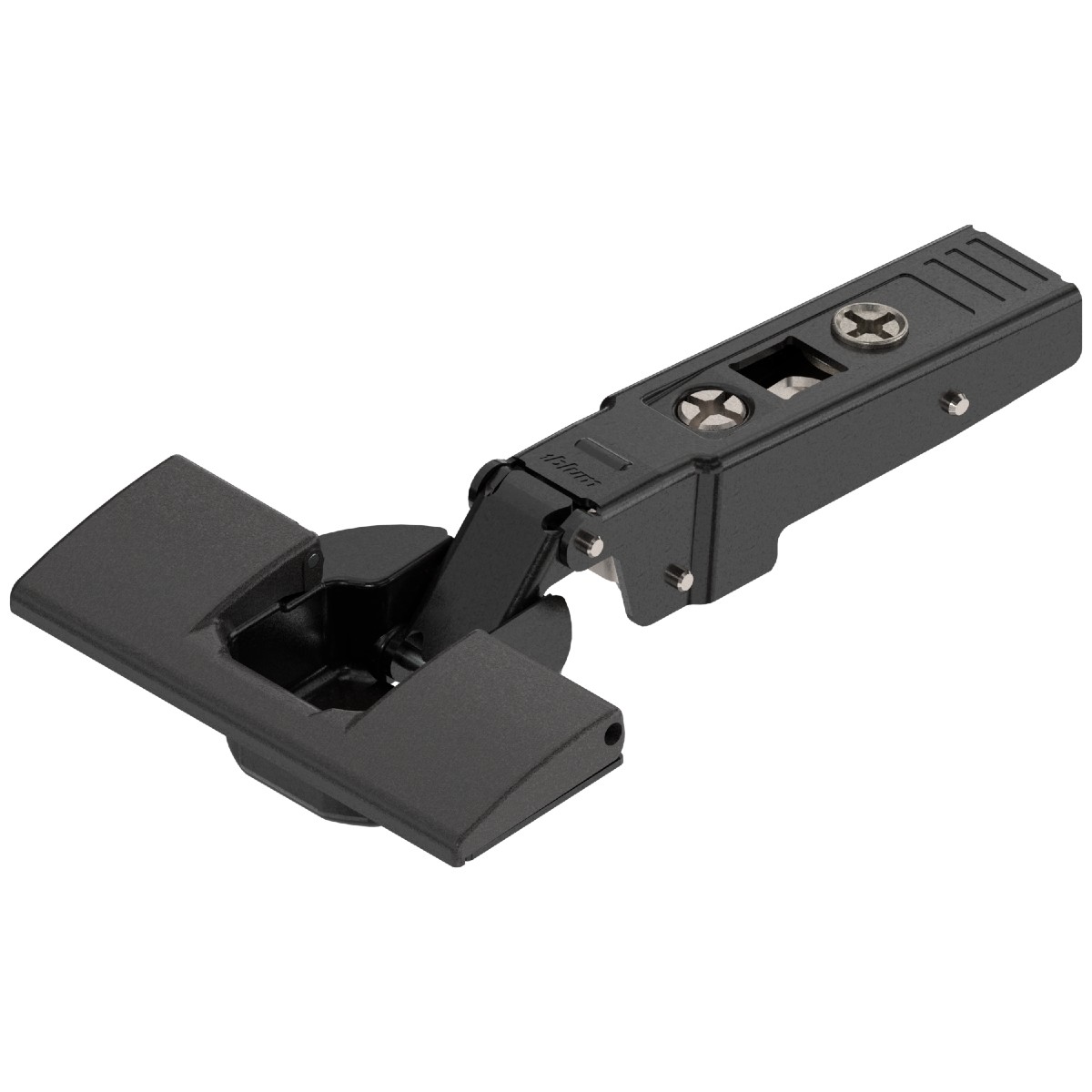

Blum Clip Top Overlay 95 Degree Blumotion Cabinet Hinge 70T9590BTL Black Onyx Inserta

8344-001
Price: £3.76inc VAT
Write a review
− +

The Blum clip top overlay 95 degree cabinet hinge 70T9590BTL inserta is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

  • Clip top hinge 70T9590BTL
  • Opening angle: 95°
  • Door thickness: 16-32mm

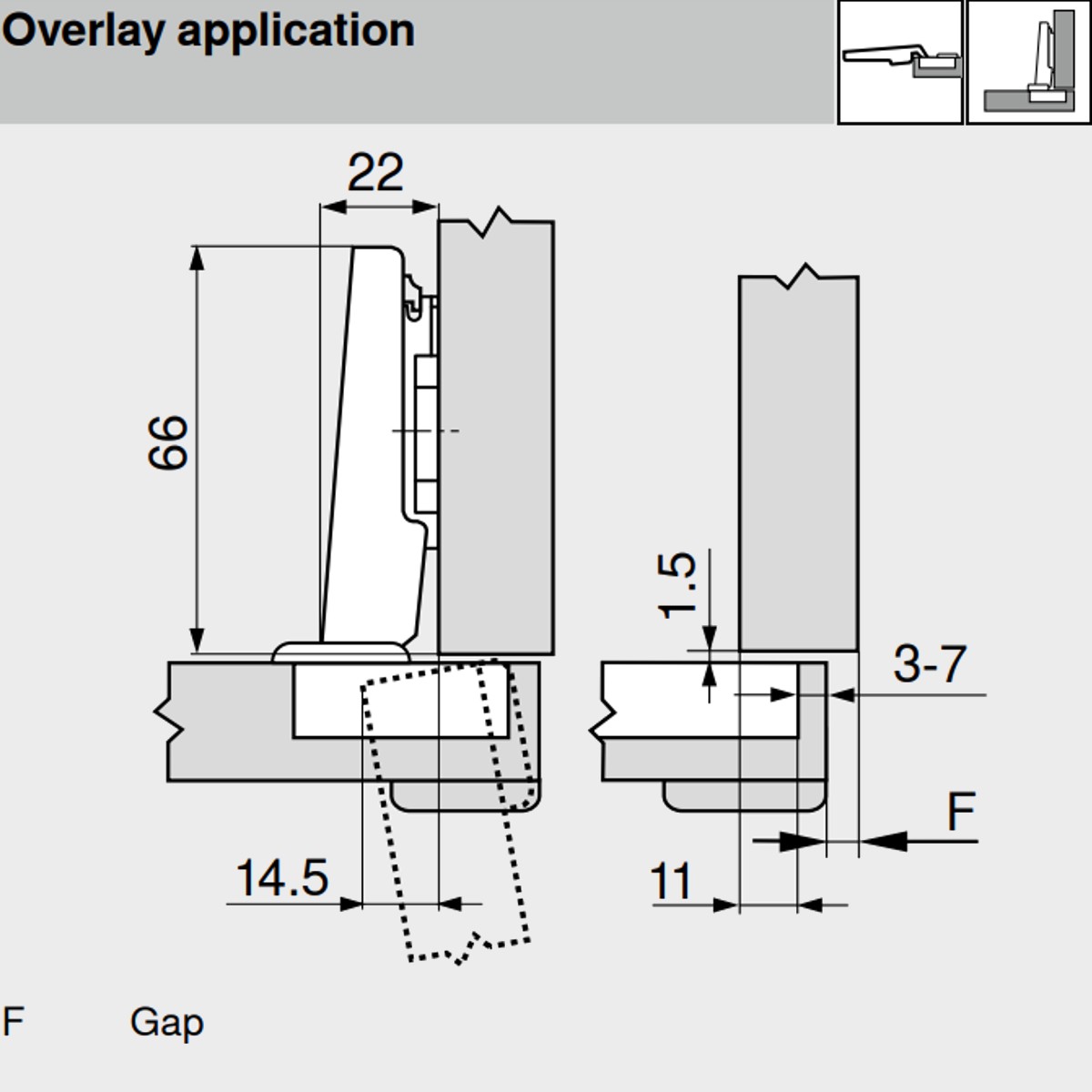

  • Cranking: overlay application
  • Boss assembly: screw-on
  • Boss material: steel boss
  • Closing mechanism: unsprung

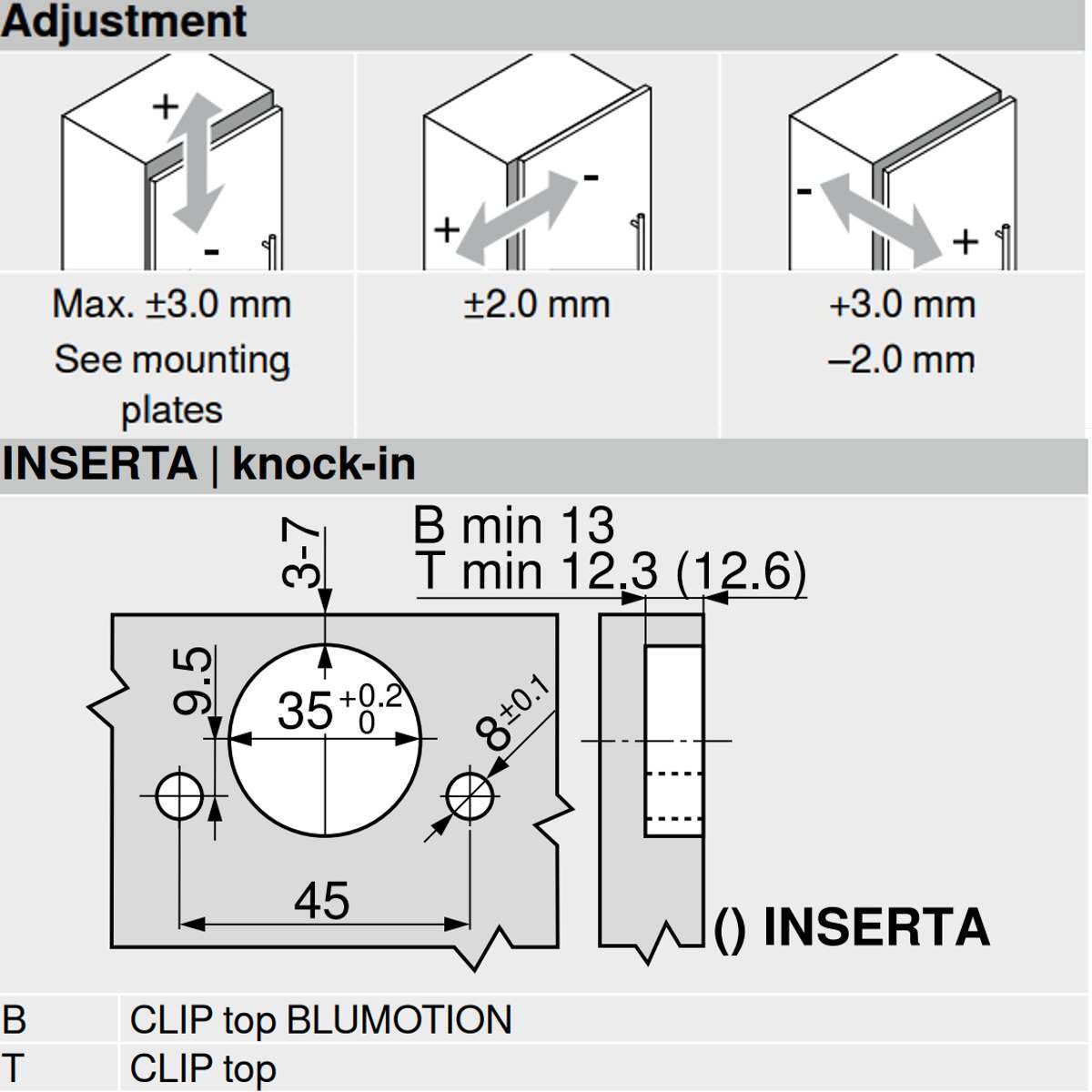

  • Side adjustment: +/- 2mm
  • Depth adjustment: + 3/- 2mm, convenient with spiral screw

Please note that:

  • The hinge mounting plate, cover cap, arm cover and screws are not included

Download Product Details (pdf)

Download CAD File (dxf)
