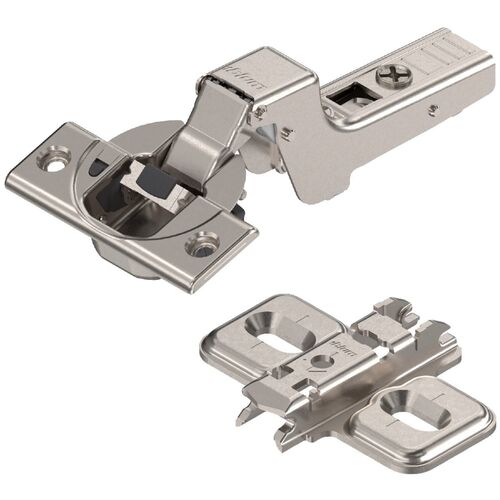

Blum Clip Top Inset 110 Degree Cabinet Hinge 71B3750 And Mounting Plates (175H7100, 175H3100, 173L8100, 173L6100 And 173H7100)
- Clip top standard door hinge 71B3750
- Opening angle: 110 degrees
- Door thickness 16-26mm

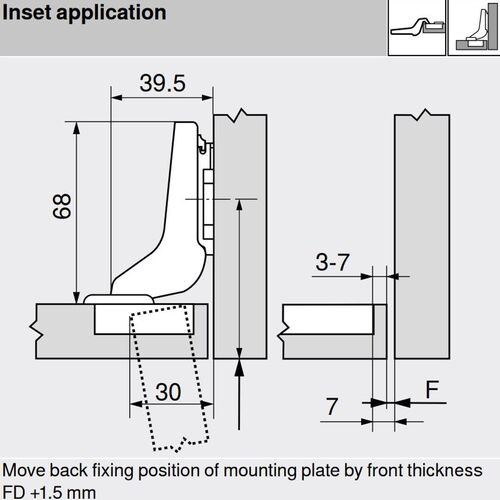

- Cranking: inset application

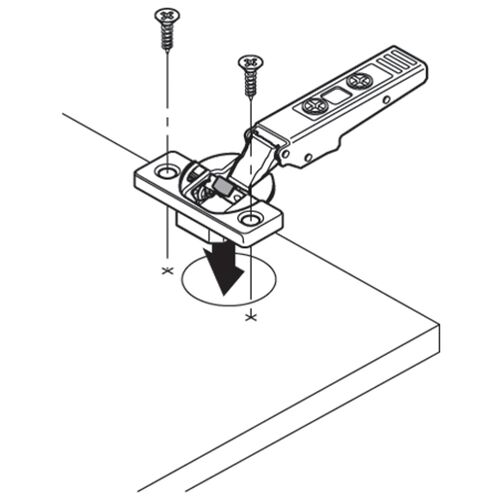

- Boss assembly: screw-on
- Boss material: steel boss
- Closing mechanism: blumotion soft-close

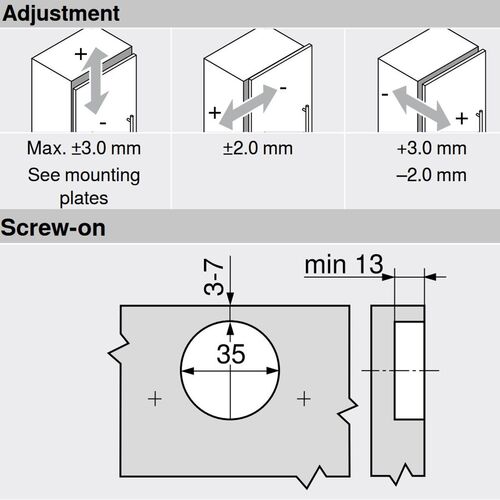

- Side adjustment: +/- 2mm
- Depth adjustment: + 3/- 2mm, convenient with spiral screw

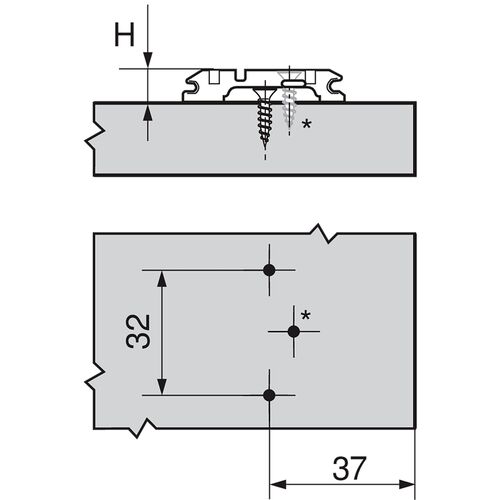

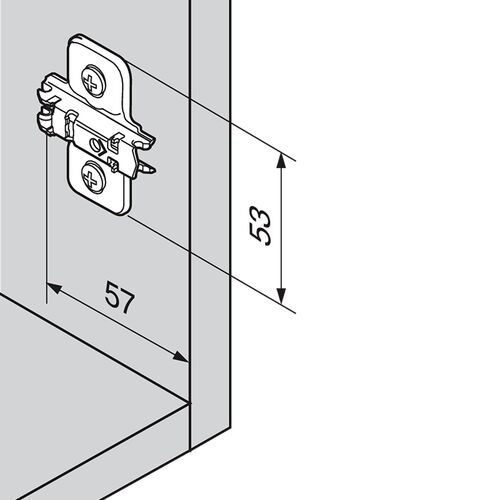

Mounting Plates:
- 173L6100:
- Mounting plate system: Clip
- The shape of the mounting plate: cruciform
- Spacing: 0mm
- 173L8100
- Mounting plate system: clip
- The shape of the mounting plate: cruciform
- Spacing: 0mm
- 175H3100
- Mounting plate system: clip
- The shape of the mounting plate: inline
- Spacing: 0mm
- 173H7100
- Mounting plate system: clip
- The shape of the mounting plate: cruciform
- Spacing: 0mm
- 175H7100
- Mounting plate system: clip
- The shape of the mounting plate: cruciform
- Spacing: 0mm
Mounting Plate:
173L6100
Cover Caps:
No
