Blum Clip Top Half Overlay 110 Degree Blumotion Cabinet Hinge 71B3650 With Mounting Plate

Name: Blum Clip Top Half Overlay 110 Degree Blumotion Cabinet Hinge 71B3650 With Mounting Plate
Brand: Blum
SKU: 8761-001

Part no: 8761-001

Price from: £4.26inc VAT

Write a review

Mounting Plate:

173L6100 173L8100 175H3100 173H7100 175H7100

Cover Caps:

No Yes

Quantity:

− +

Link for quick purchase

Description
Technical Docs
Features
Reviews

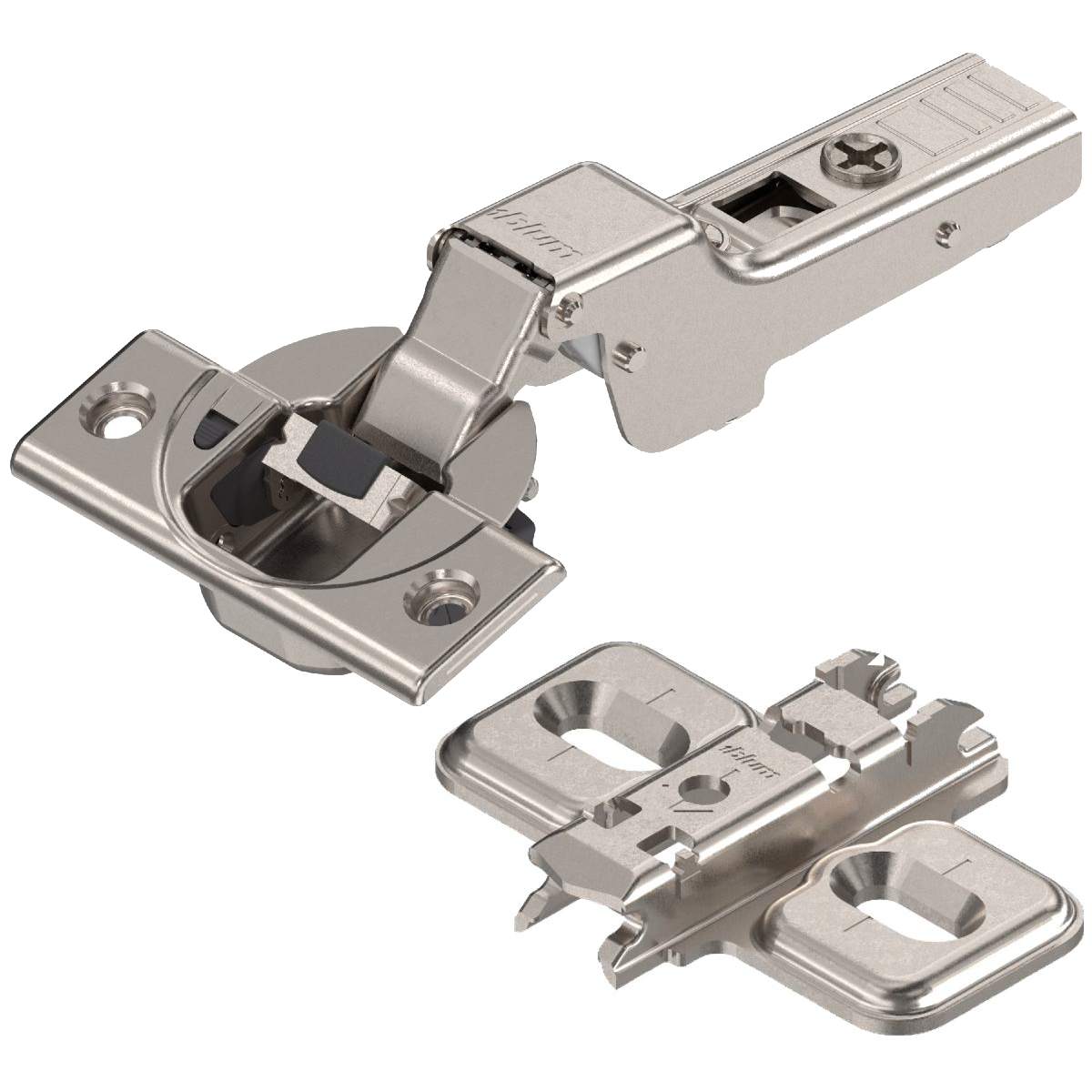

Blum Clip Top Half Overlay 110 Degree Cabinet Hinge 71B3650 And Mounting Plates (175H7100, 175H3100, 173L8100, 173L6100 And 173H7100)

Clip top standard door hinge 71B3650
Opening angle: 110 degrees
Door thickness 16-26mm

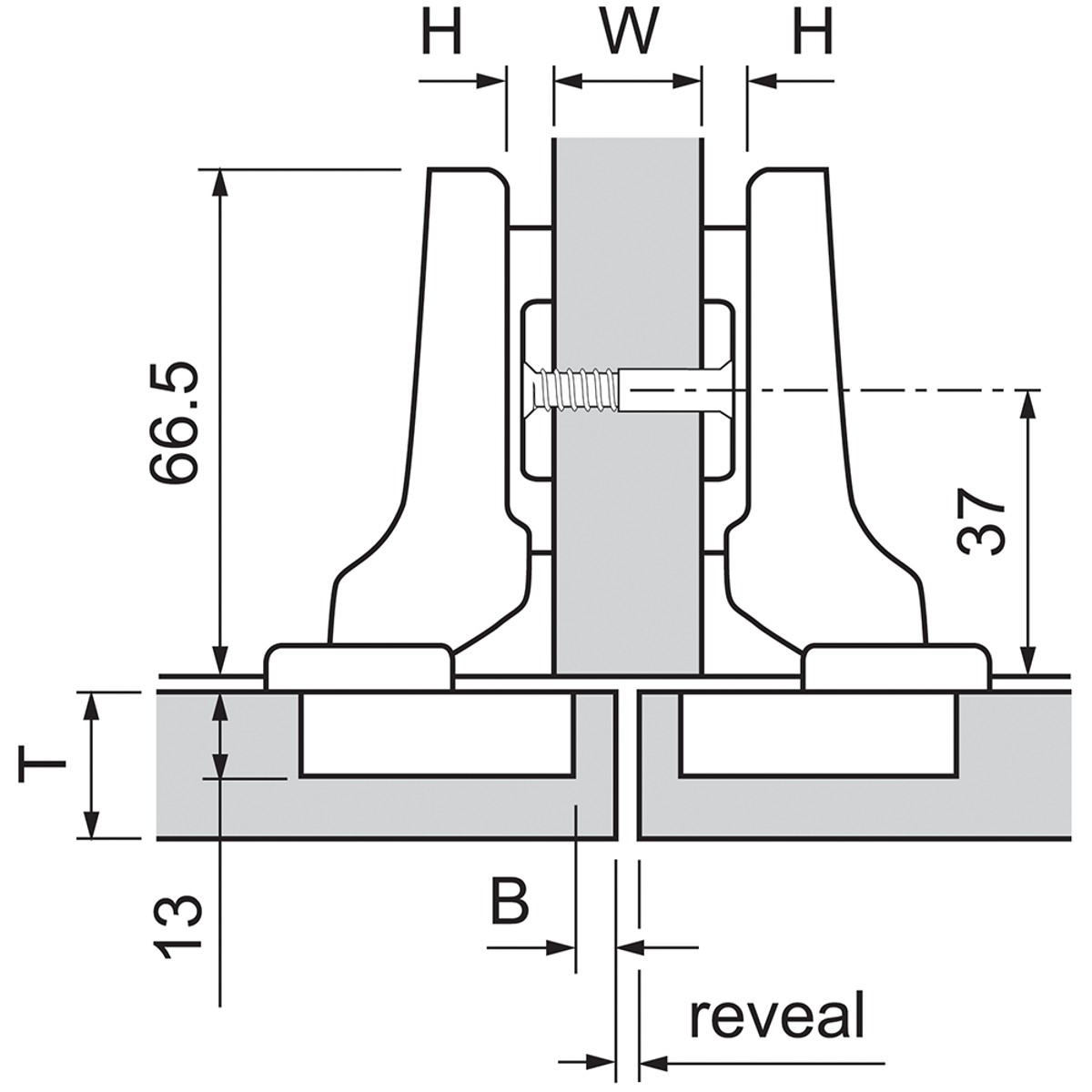

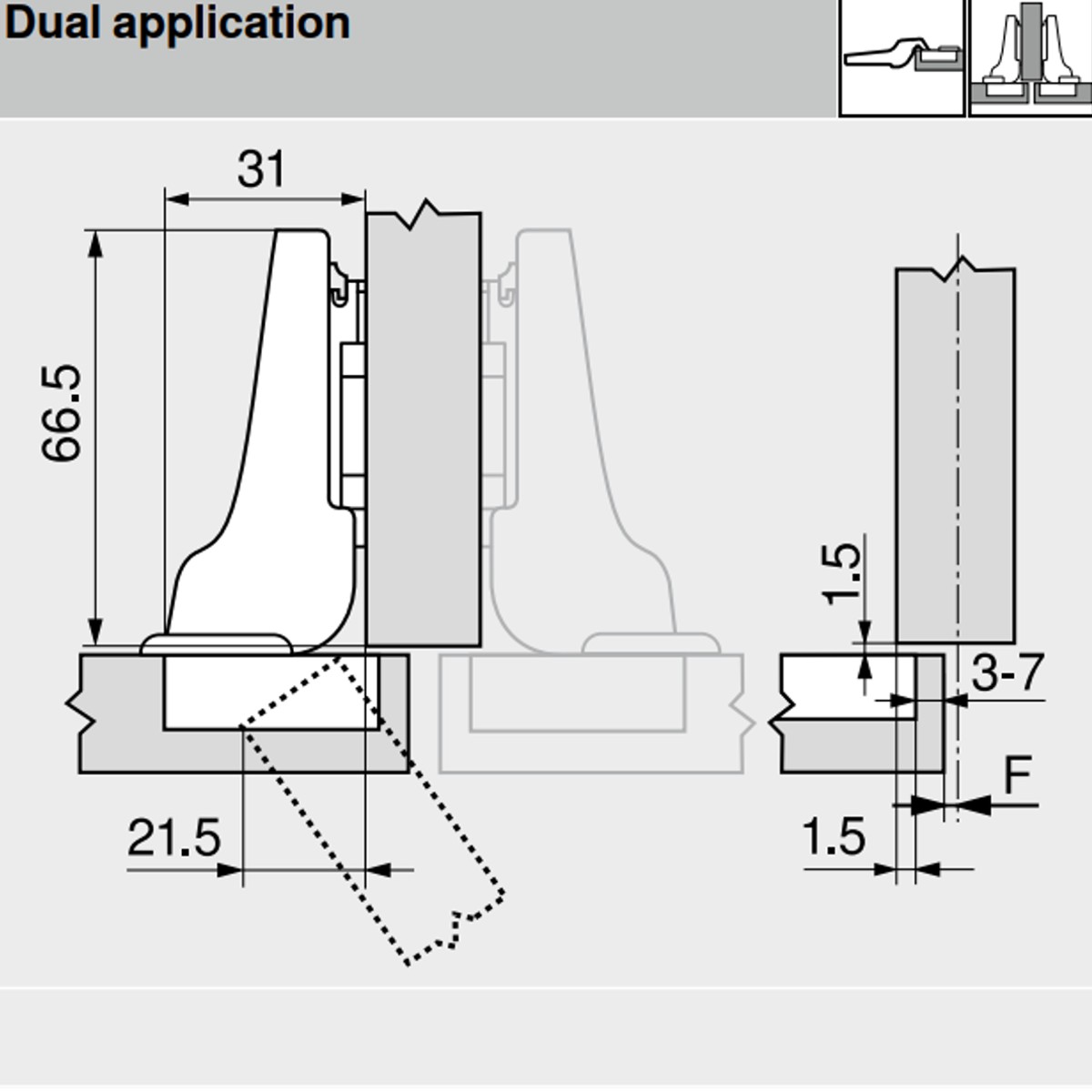

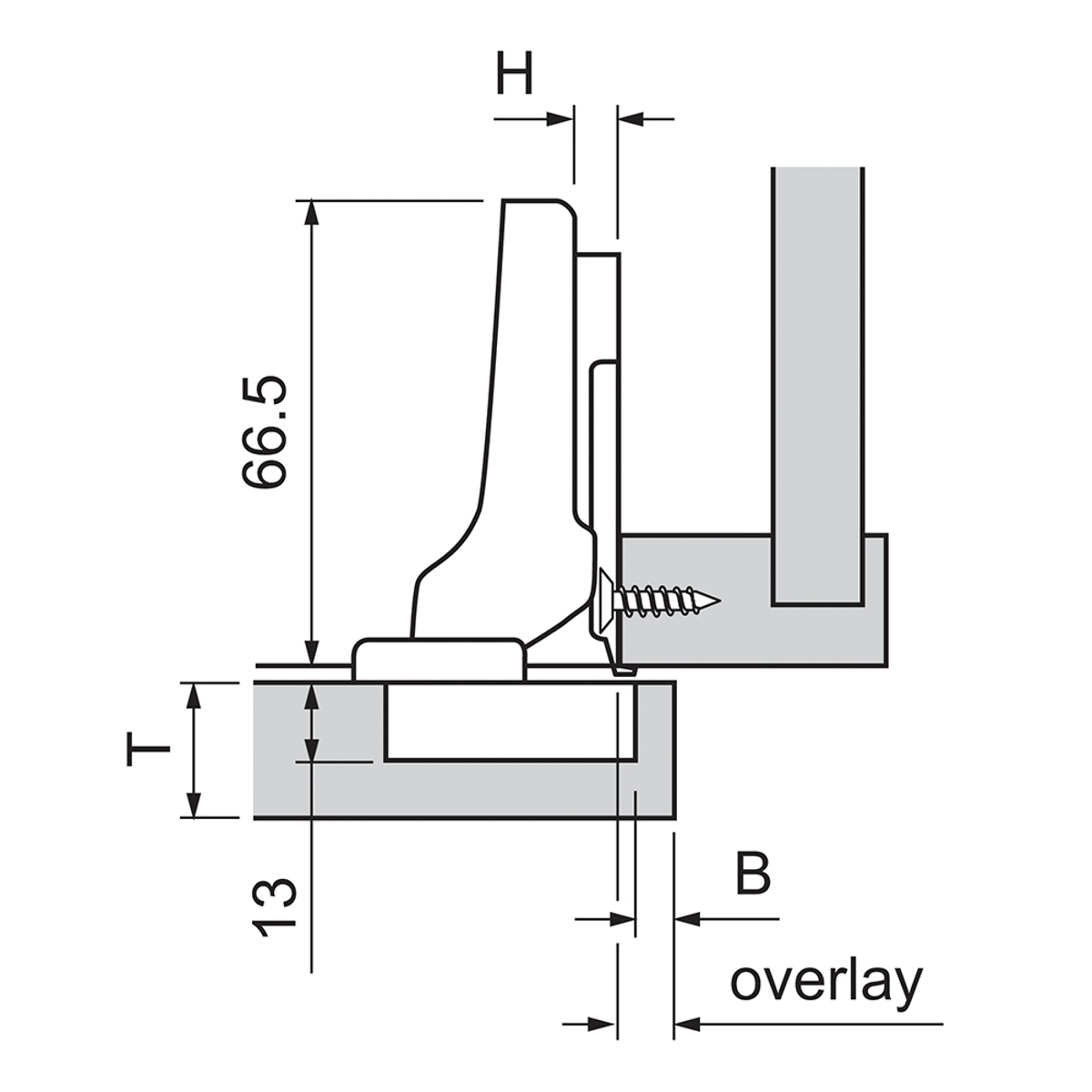

Cranking: half-overlay application

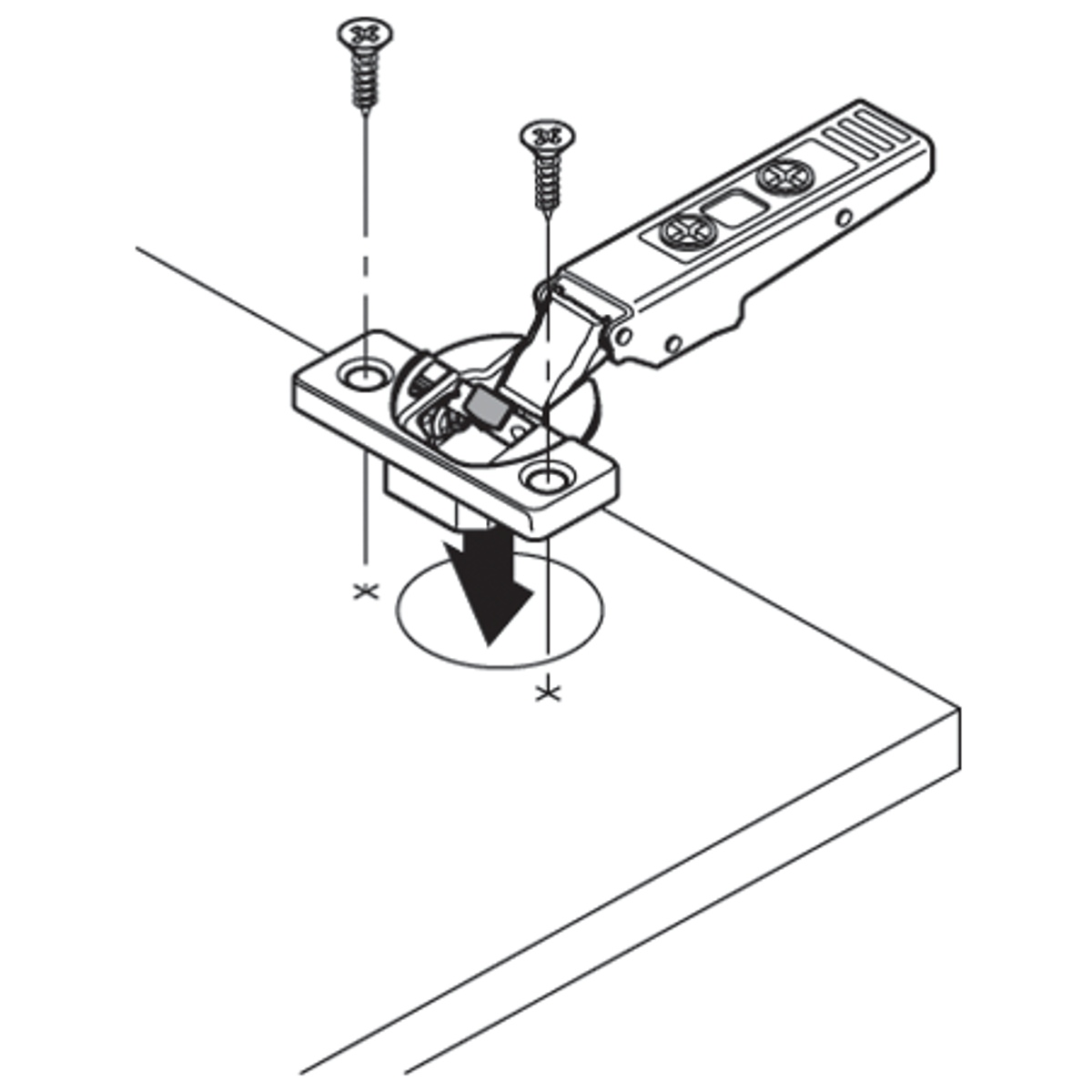

Boss assembly: screw-on
Boss material: steel boss
Closing mechanism: blumotion soft-close

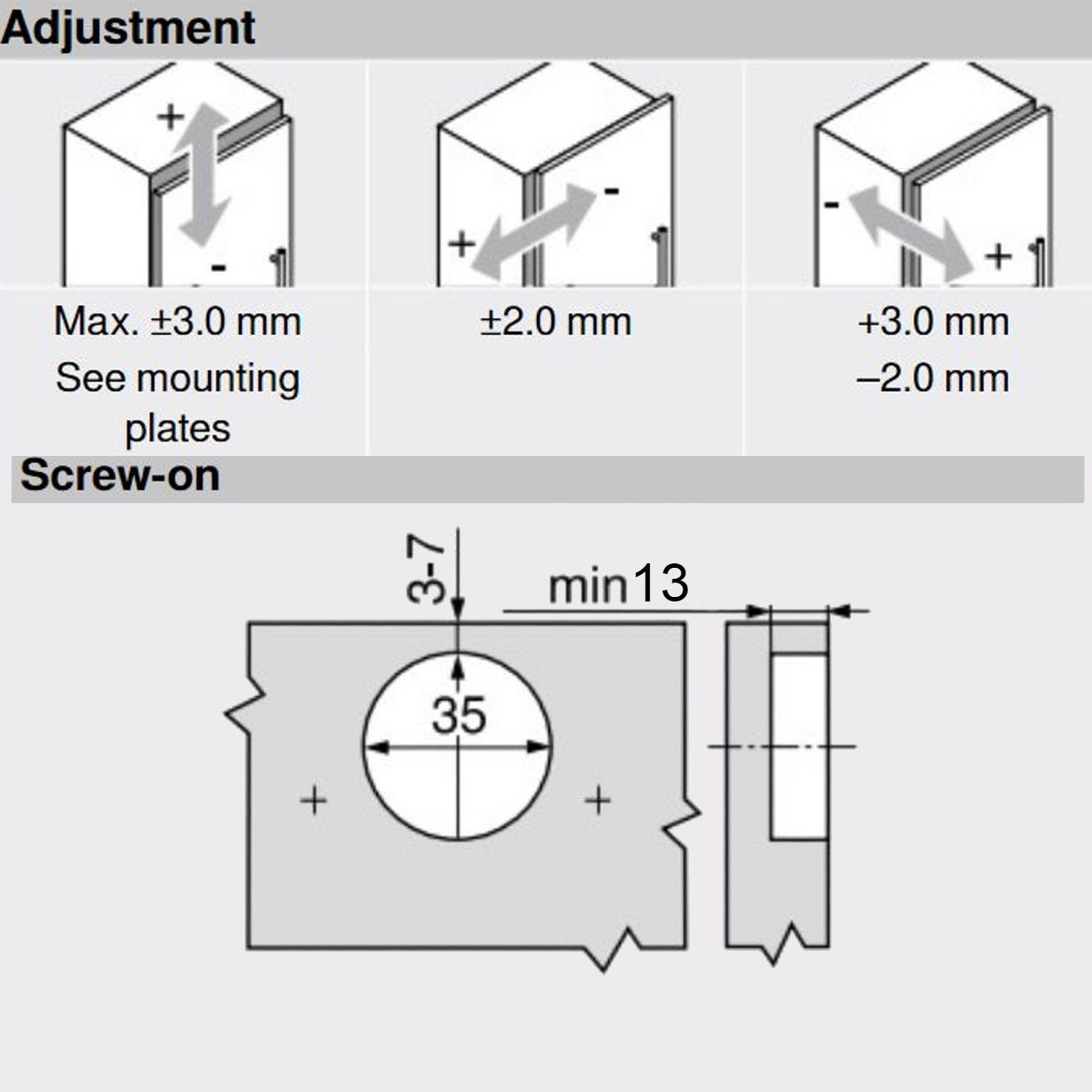

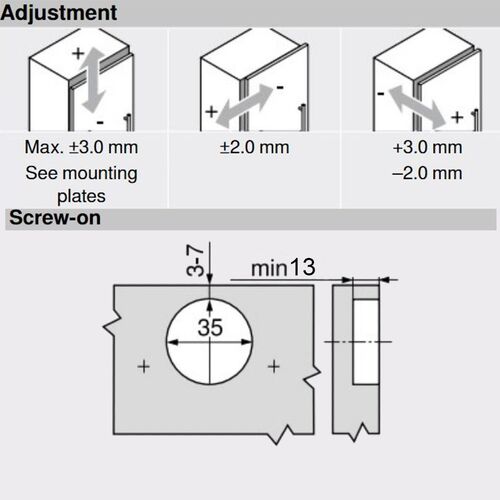

Side adjustment: +/- 2mm
Depth adjustment: + 3/- 2mm, convenient with spiral screw

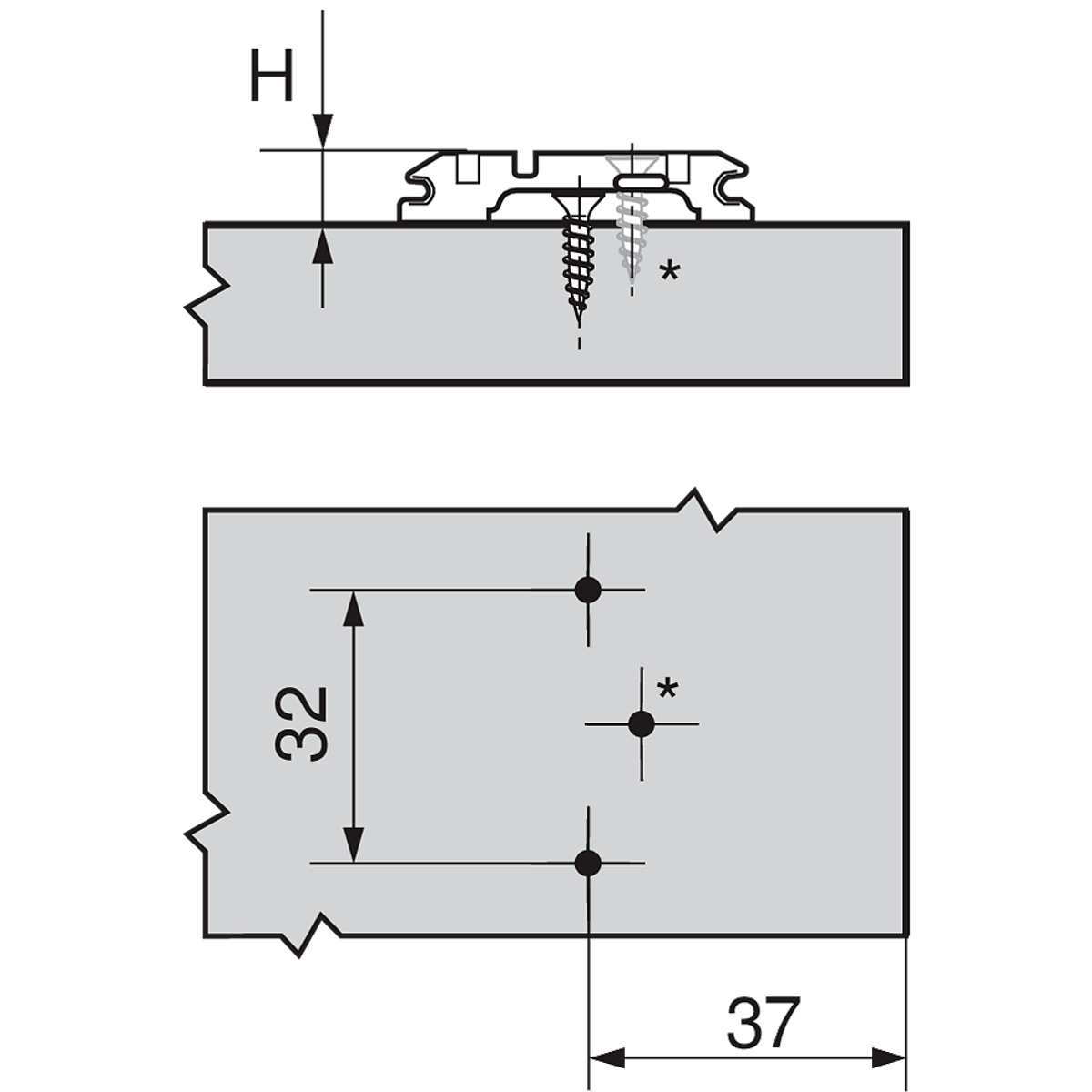

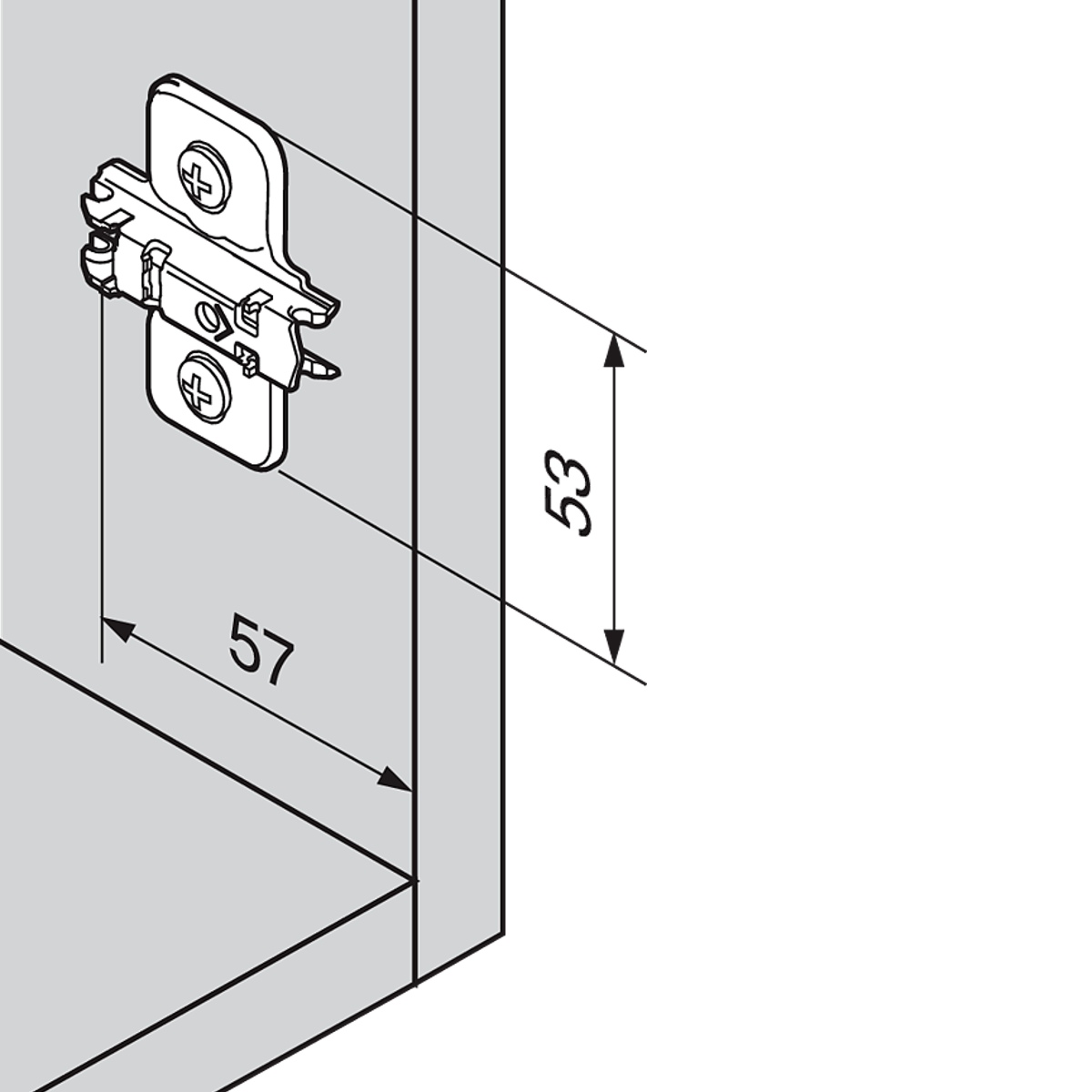

Mounting Plates:

173L6100:
- Mounting plate system: Clip
- The shape of the mounting plate: cruciform
- Spacing: 0mm
173L8100
- Mounting plate system: clip
- The shape of the mounting plate: cruciform
- Spacing: 0mm
175H3100
- Mounting plate system: clip
- The shape of the mounting plate: inline
- Spacing: 0mm
173H7100
- Mounting plate system: clip
- The shape of the mounting plate: cruciform
- Spacing: 0mm
175H7100
- Mounting plate system: clip
- The shape of the mounting plate: cruciform
- Spacing: 0mm
