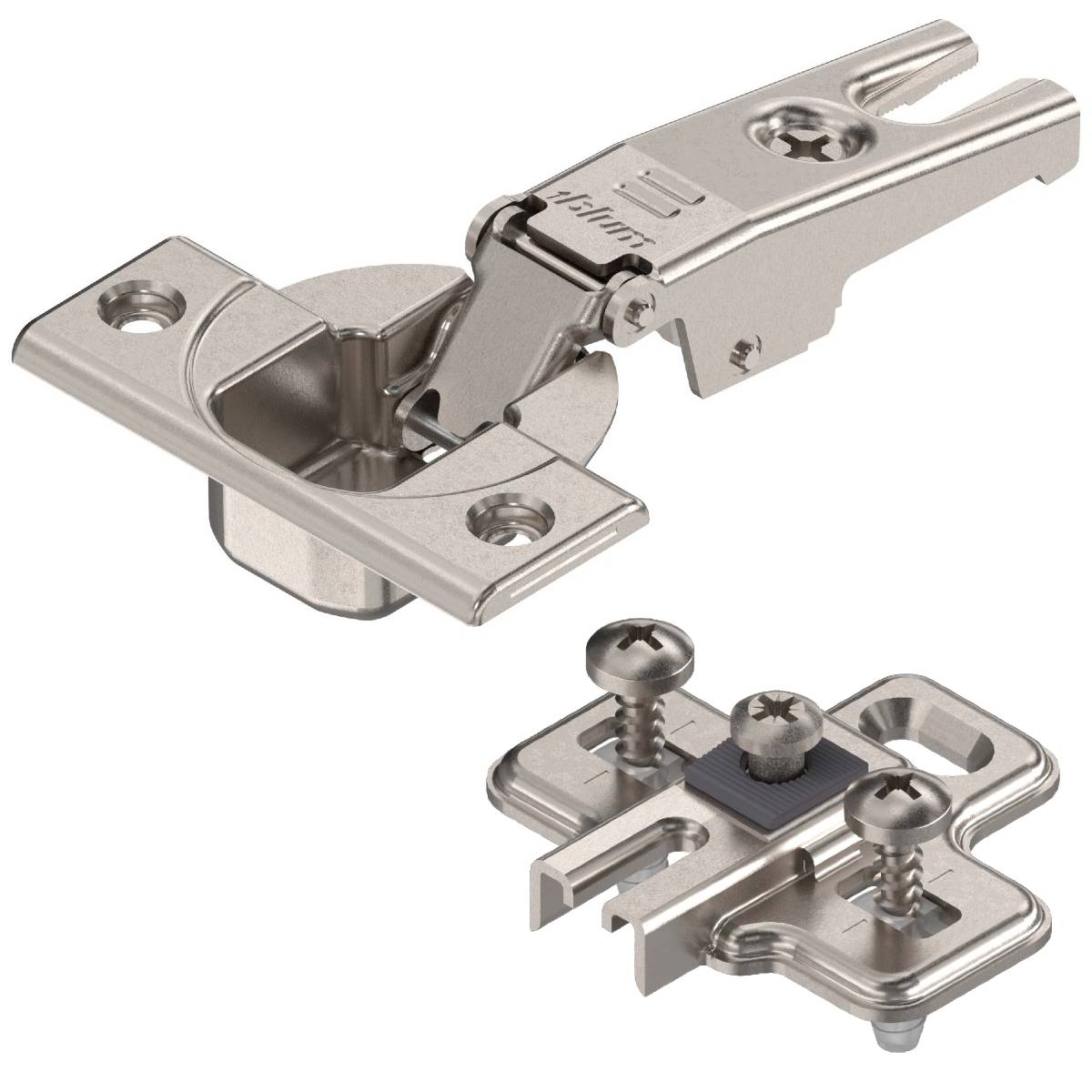

Blum Clip Top Full Overlay 95 Degree Sprung Refrigerator Door Hinge 91K9550 Mounting Plate

Blum Clip Top Full Overlay 95 Degree Sprung Refrigerator Door Hinge 91K9550 is a high-quality hinge designed for fridge doors with an overlay. It comes with a suitable choice of mounting plate. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new fridge doors or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

Hinge specifications

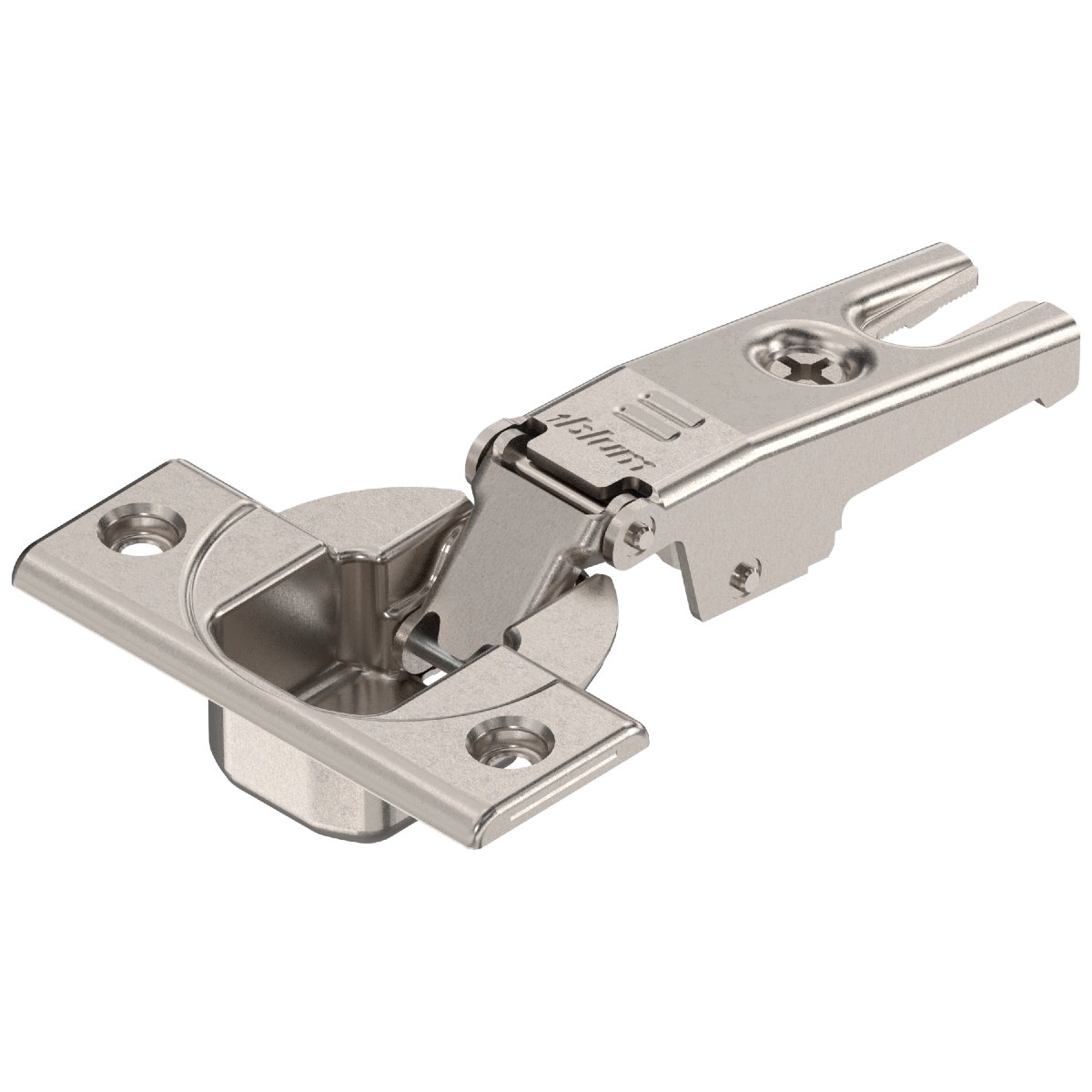

• Clip standard hinge 91K9550
• Opening angle: 95 degrees
• Door thickness: 16-32mm

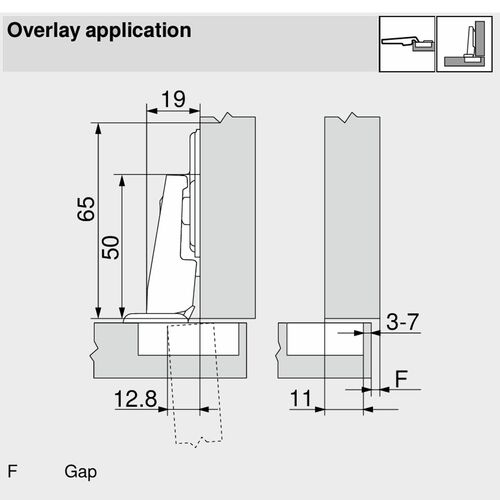

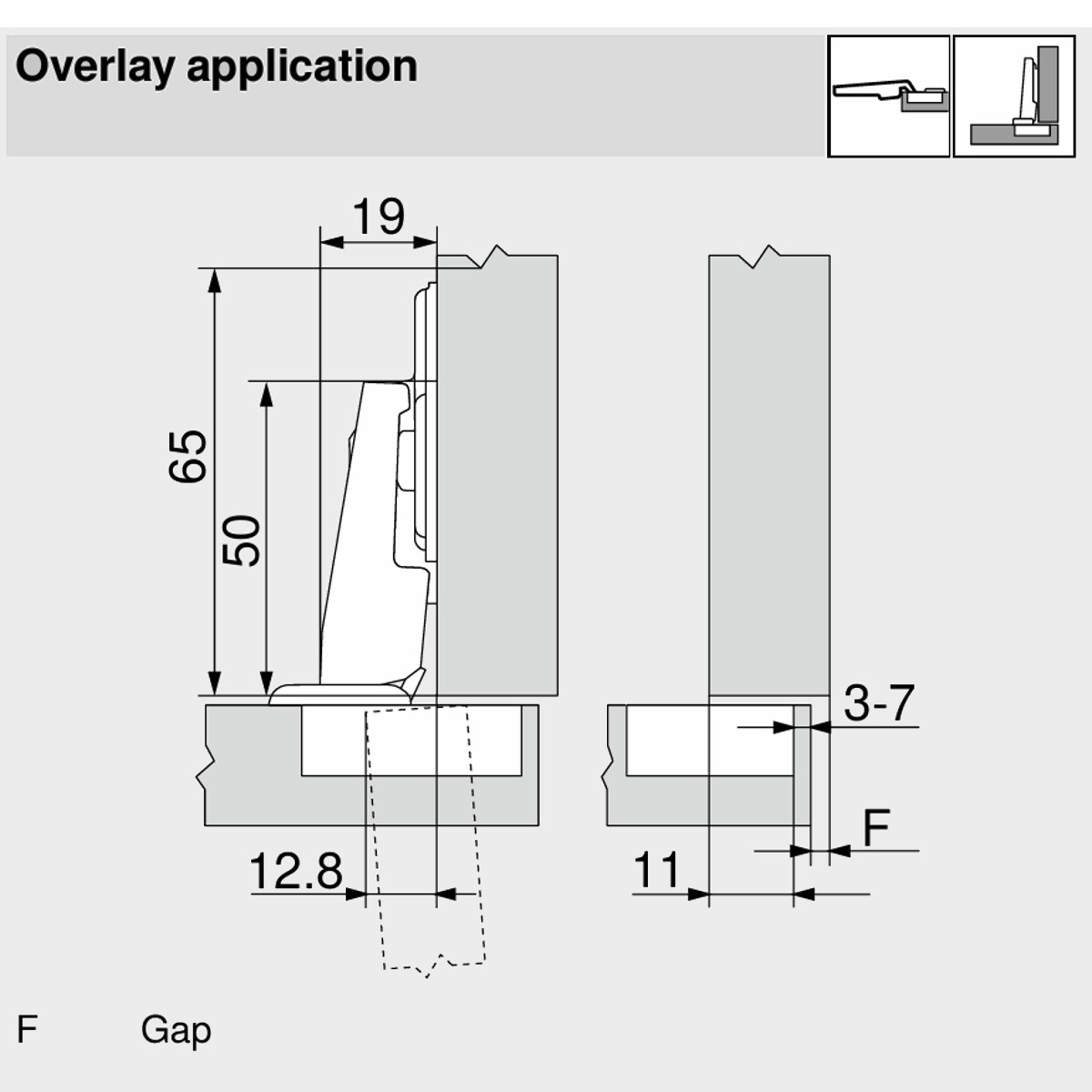

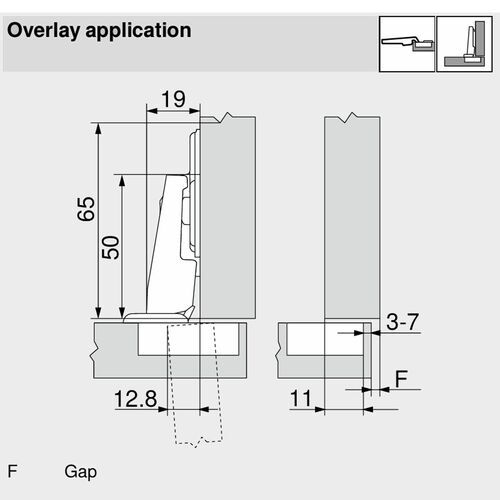

• Cranking: overlay
• Boss assembly: screw-on
• Boss material: steel boss
• Closing mechanism: with spring

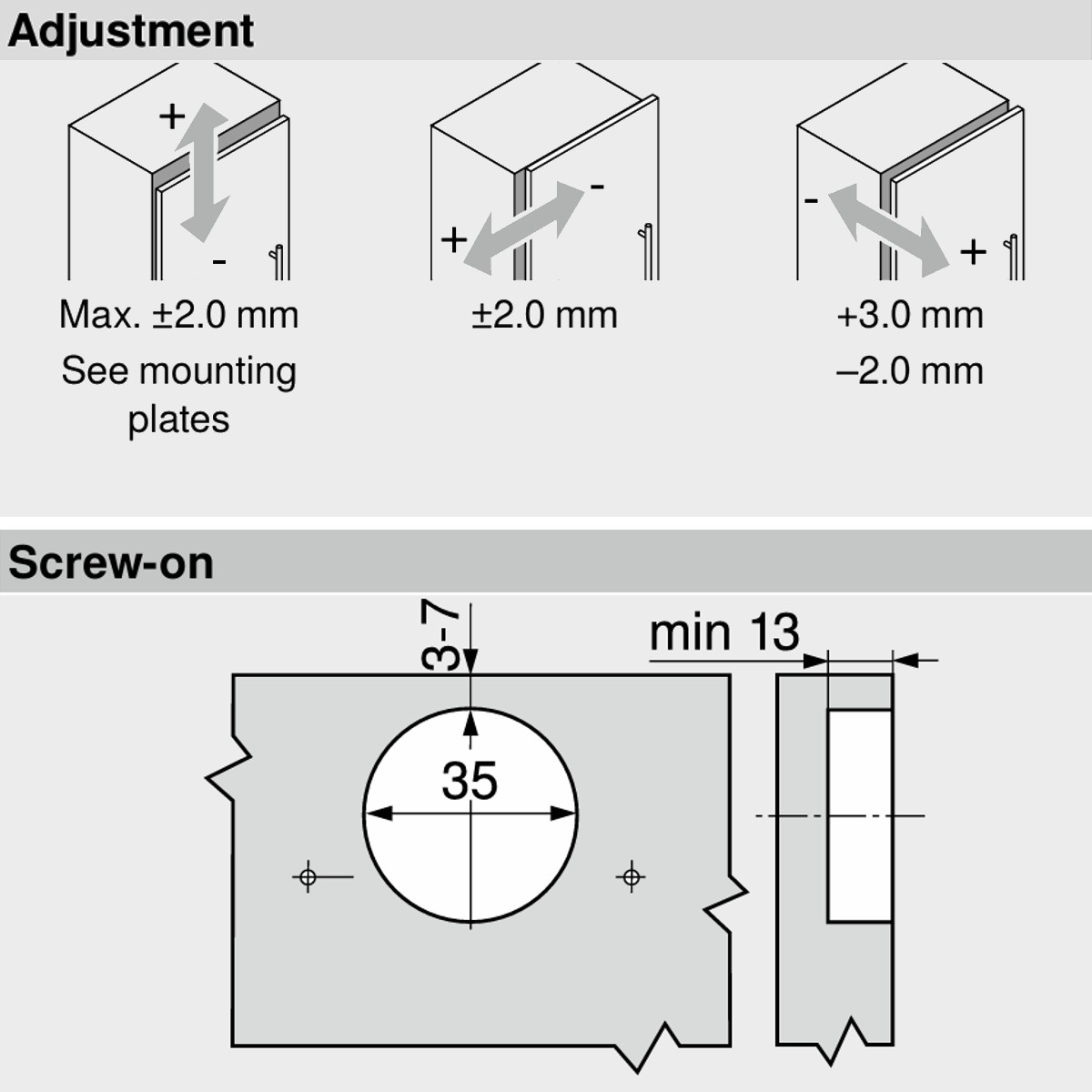

• Side adjustment: +/- 1.8mm
• Depth adjustment: +/- 2mm
• Please refer to 'technical documents' for more information regarding this product

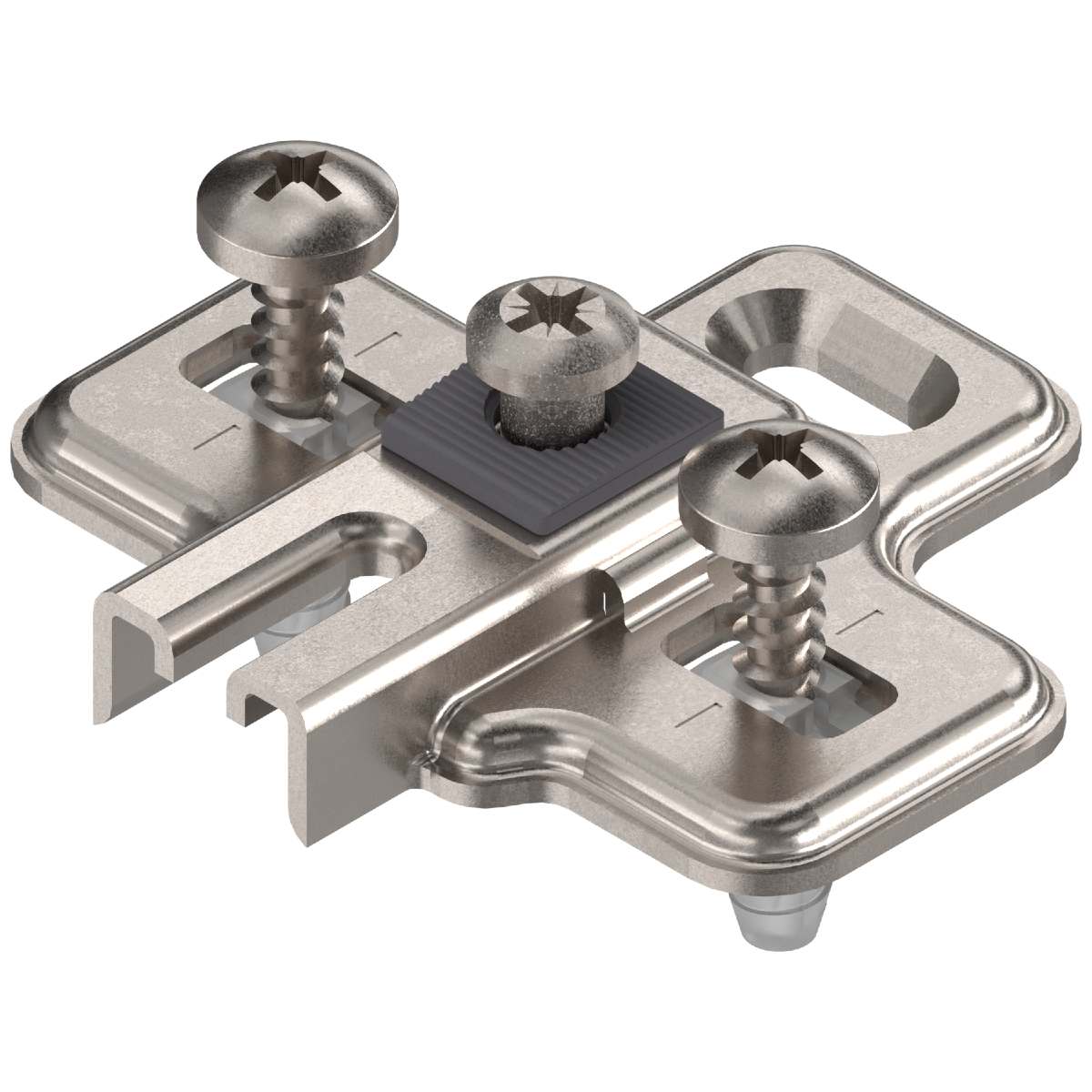

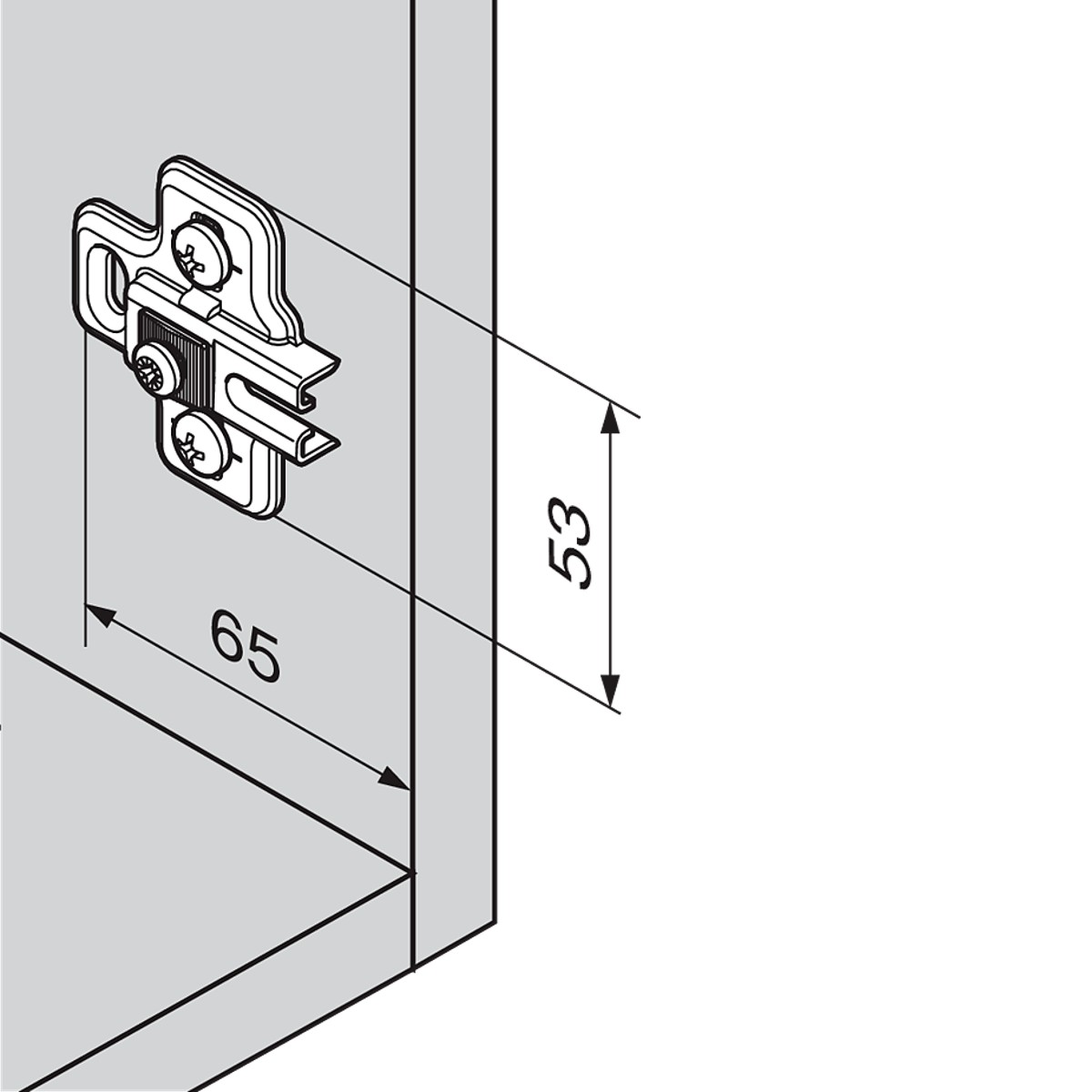

Mounting plate specifications

194K6100E

• Spacing: 0mm
• Material: zinc
• Finish: nickel-plated
• Mounting plate system: Modul

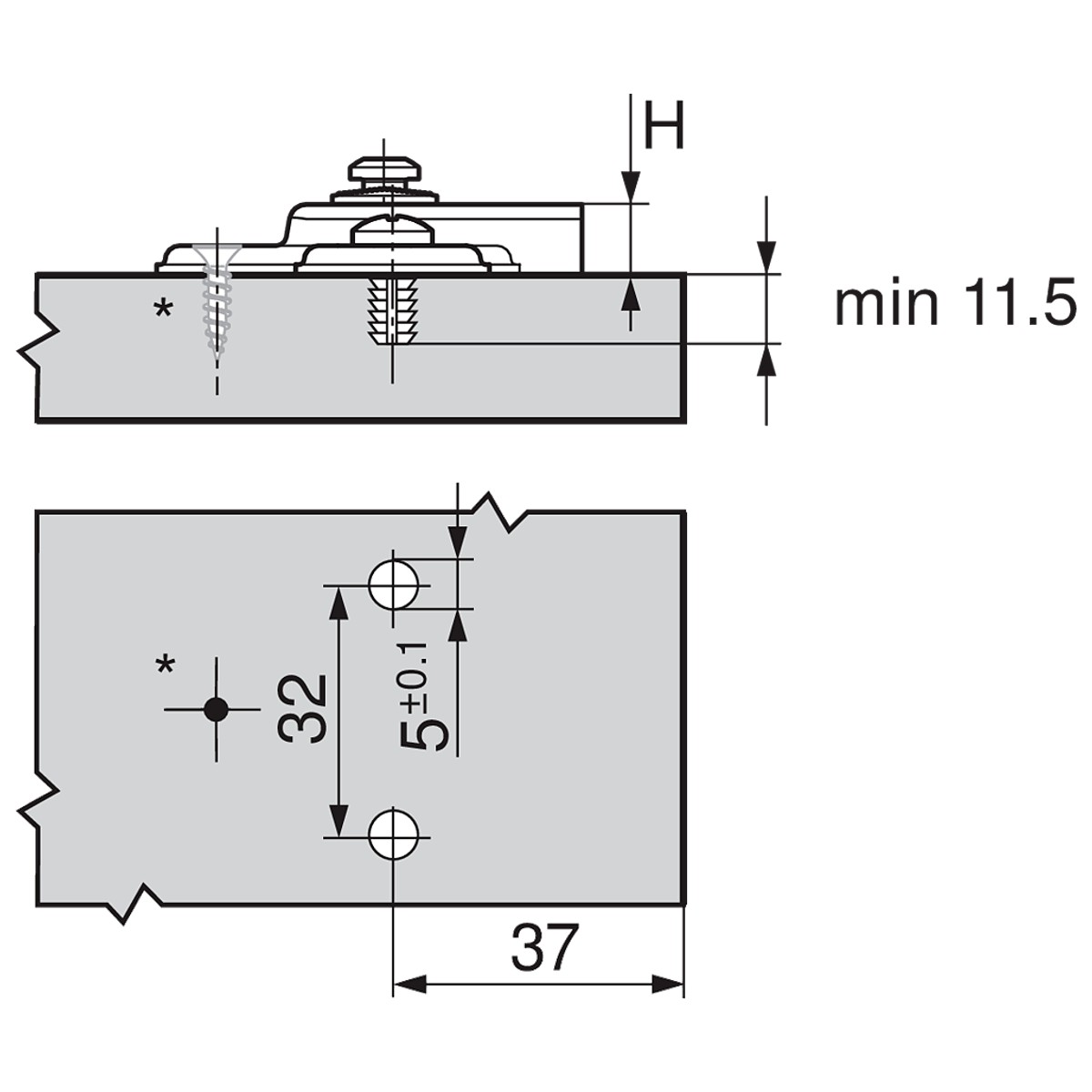

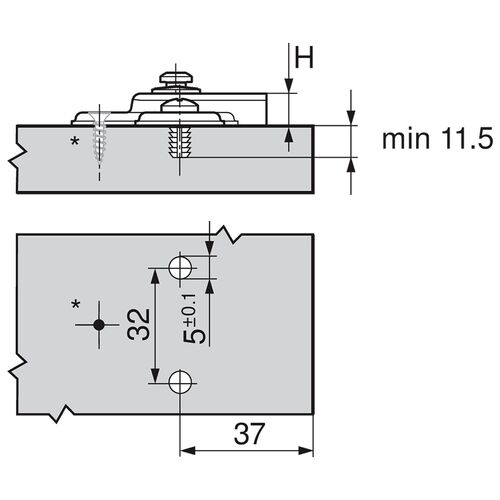

• Distance between fixing positions: 32mm
• The shape of the mounting plate: cruciform
• Fixing: expando (pre-mounted screws with split dowels)
• Distance cabinet front edge to first fixing position: 37mm

195H7130

• Spacing: 3mm
• Material: zinc
• Finish: nickel-plated
• Mounting plate system: Modul
• Distance between fixing positions: 32mm
• The shape of the mounting plate: cruciform
• Fixing: for screwing on with chipboard screws
• Distance cabinet front edge to first fixing position: 37mm

195H9100

• Spacing: 0mm
• Material: zinc
• Finish: nickel-plated
• Mounting plate system: Modul
• Distance between fixing positions: 32mm
• The shape of the mounting plate: cruciform
• Fixing: for screwing on with chipboard screws
• Distance cabinet front edge to first fixing position: 37mm
