Blum Clip Top Full Overlay 95 Degree Blumotion Cabinet Hinge 71B9550 With Mounting Plate

8653-001
Price from: £4.94inc VAT
Write a review
− +

The Blum clip top overlay 95 degree cabinet hinge 71B9550 is a high-quality hinge designed for cabinet doors with an overlay. This hinge ensures reliable function and attractive design for your cabinet doors. Whether you’re installing new cabinets or upgrading existing ones, the Blum clip top hinge provides ease of adjustment and smooth operation.

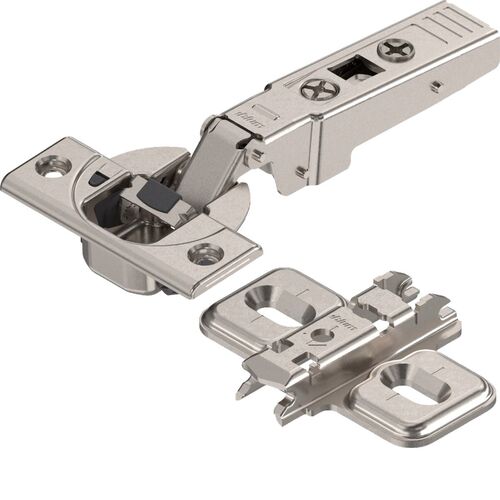

  • Clip top profile door hinge 71B9550
  • Opening angle: 95 degrees
  • Door thickness 16-32mm

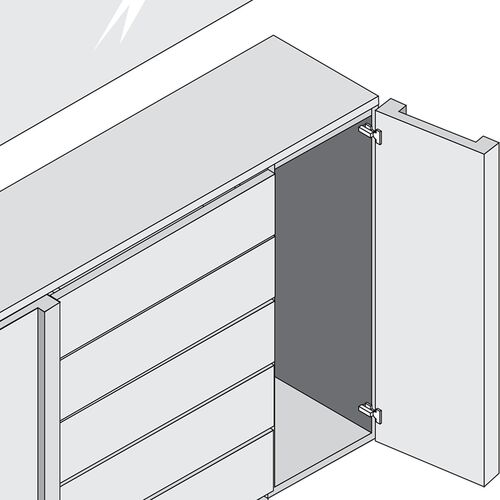

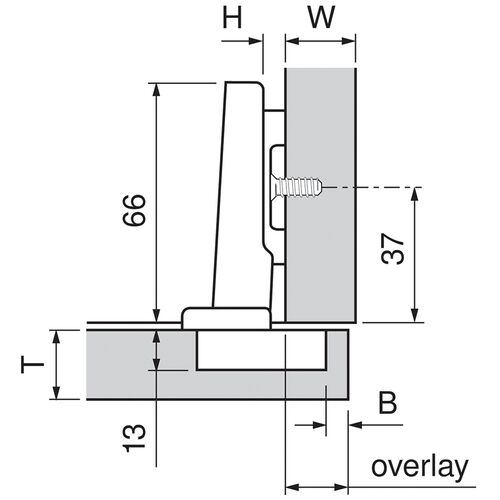

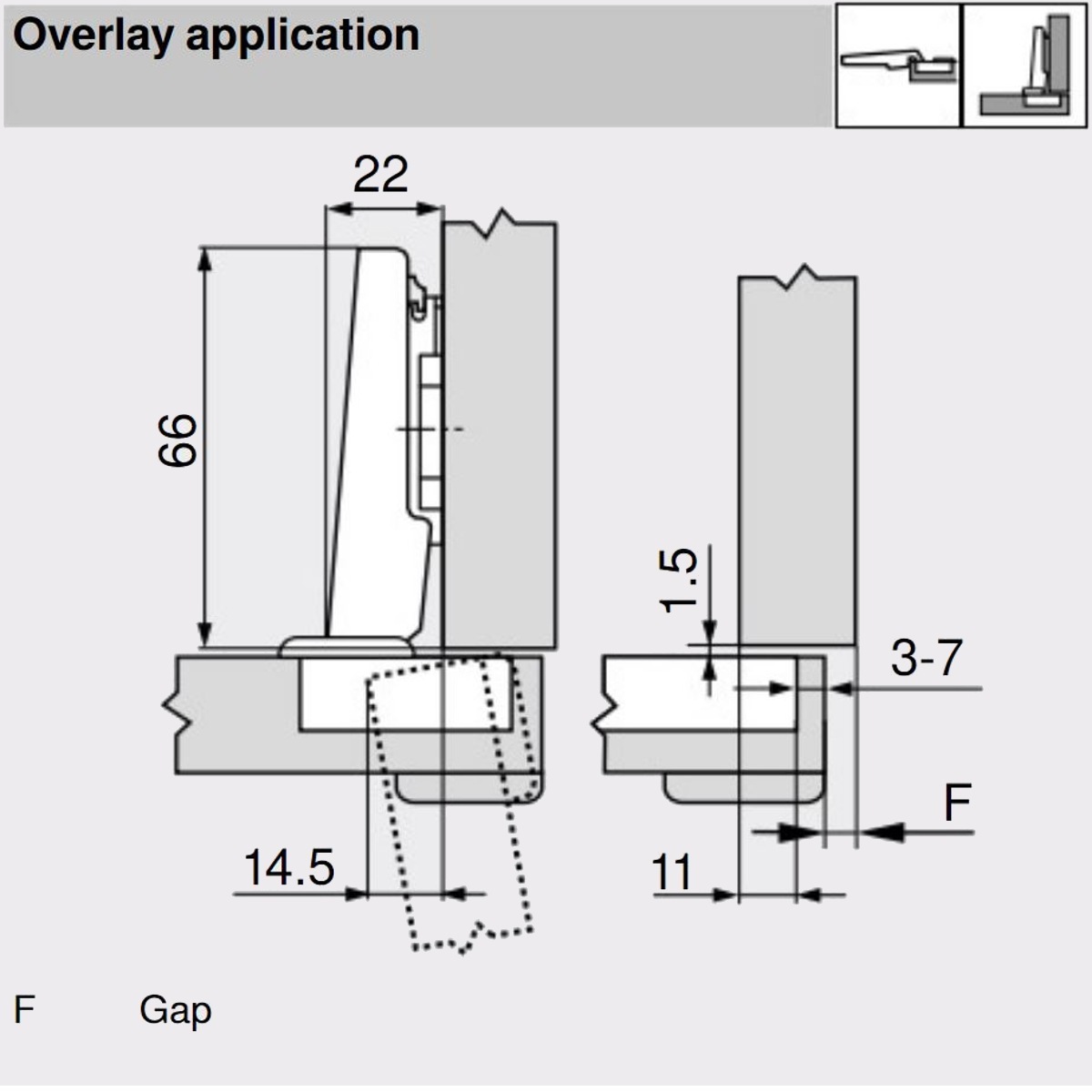

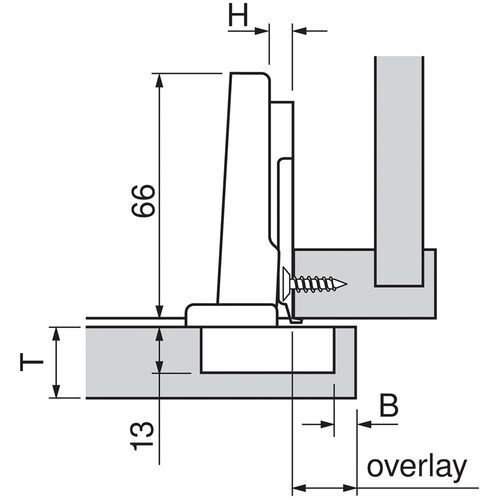

  • Cranking: overlay application

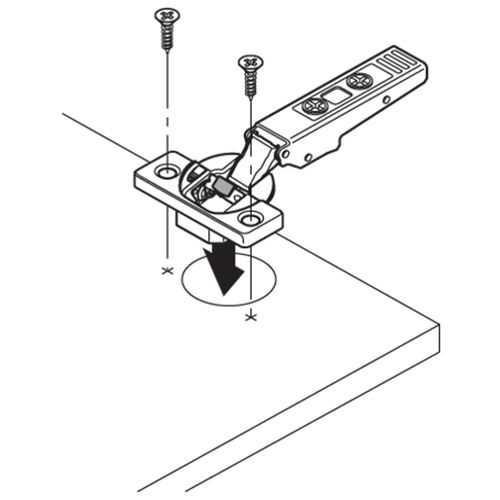

  • Boss assembly: screw-on
  • Boss material: steel boss
  • Closing mechanism: blumotion soft-close

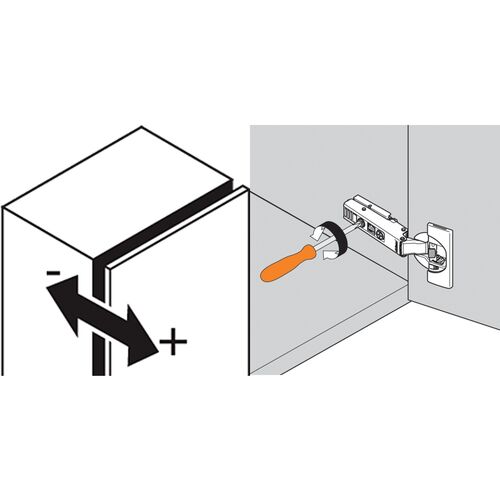

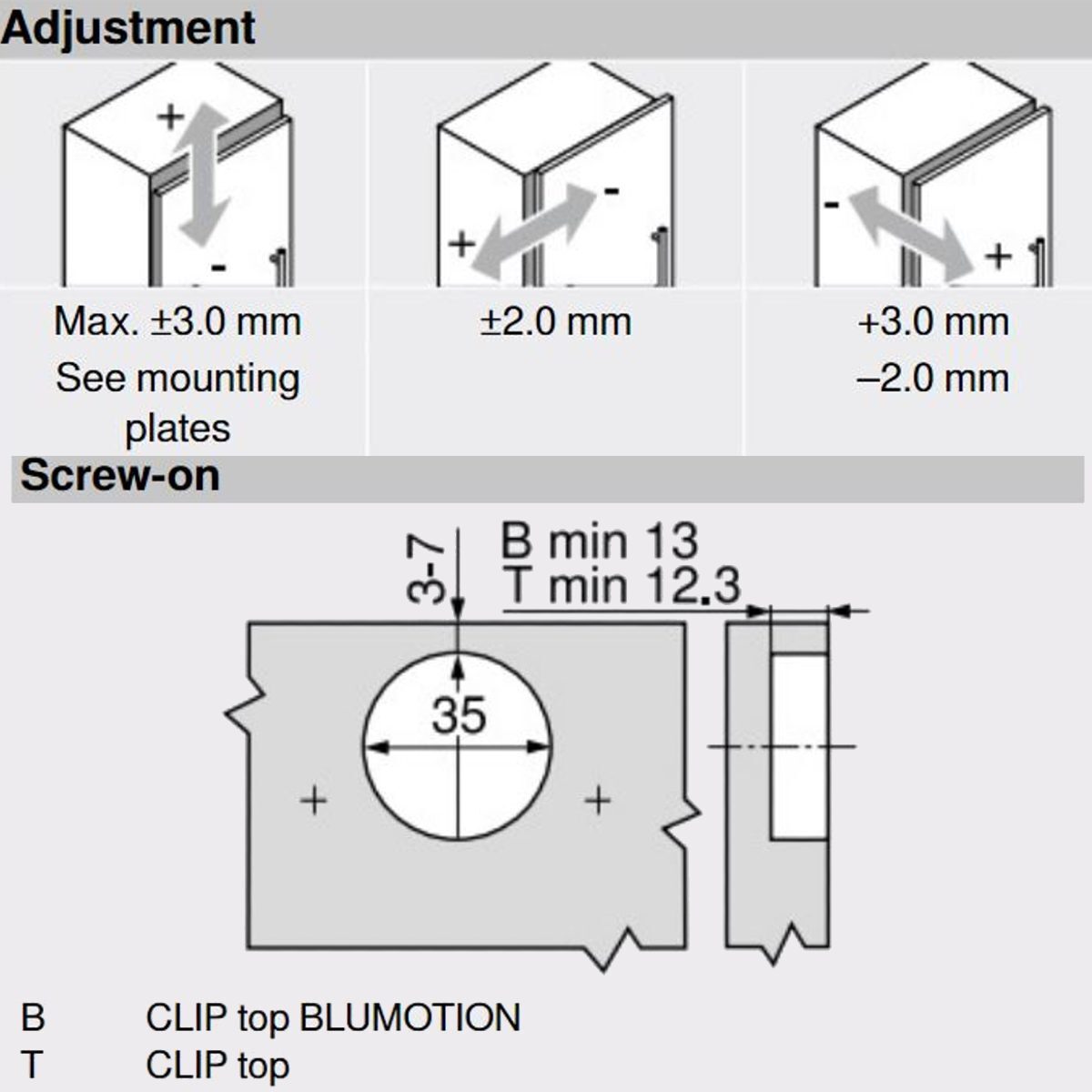

  • Side adjustment: +/- 2mm
  • Depth adjustment: + 3/- 2mm, convenient with spiral screw

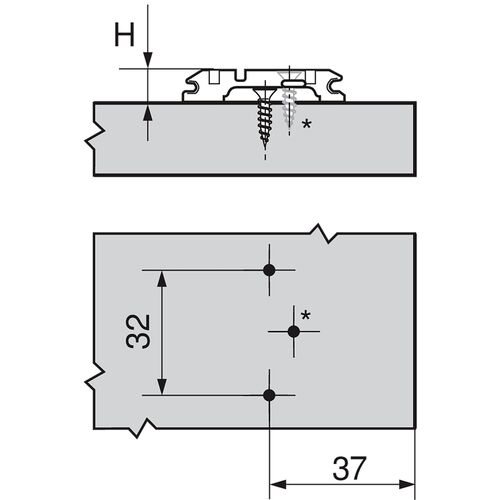

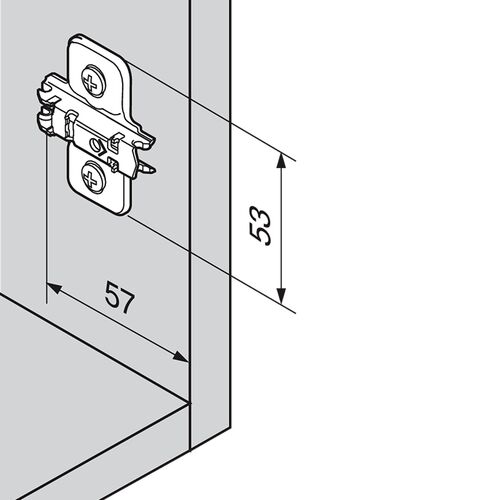

Mounting Plates:

  • 173L6100:
    • Mounting plate system: Clip
    • The shape of the mounting plate: cruciform
    • Spacing: 0mm
  • 173L8100
    • Mounting plate system: clip
    • The shape of the mounting plate: cruciform
    • Spacing: 0mm
  • 175H3100
    • Mounting plate system: clip
    • The shape of the mounting plate: inline
    • Spacing: 0mm
  • 173H7100
    • Mounting plate system: clip
    • The shape of the mounting plate: cruciform
    • Spacing: 0mm
  • 175H7100
    • Mounting plate system: clip
    • The shape of the mounting plate: cruciform
    • Spacing: 0mm

Download Specification (pdf)

Download Soft-Close Instruction (pdf)

Download Hinge Details (pdf)

Download DXF CAD File (dxf)

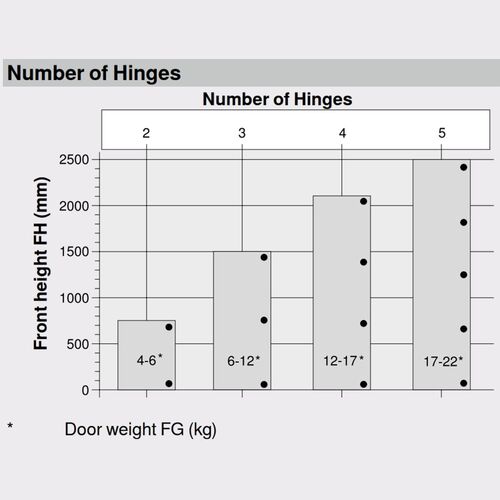

Download Number of hinges (jpg)

Mounting Plate:
173L6100
Cover Caps:
No
