Agile Cabinet Door Lift

Agile cabinet lift with a strength range of 580-1250, made out of steel and plastic, and in a variety colour. These are designed for lift-up doors in kitchen and home furniture and are noted for their soft and precise functioning without the need for assembly hinges. They can be used for doors with a width of up to 1200mm and a height between 250 and 500mm, with board thicknesses between 16-28mm. The product comes with a pair of lift-up compasses (right and left hand), covers, hooks, fixing screws, and a marking template.

• Assembly without the need of hinges
• 107° door opening angle
• Available in three strength options - adjustable strengths
• For door thickness 16-28mm
• Two colours to choose from
• 3d adjustable door position
• Adjustable speed of the soft-closing
• Includes mounting template, hooks and screws

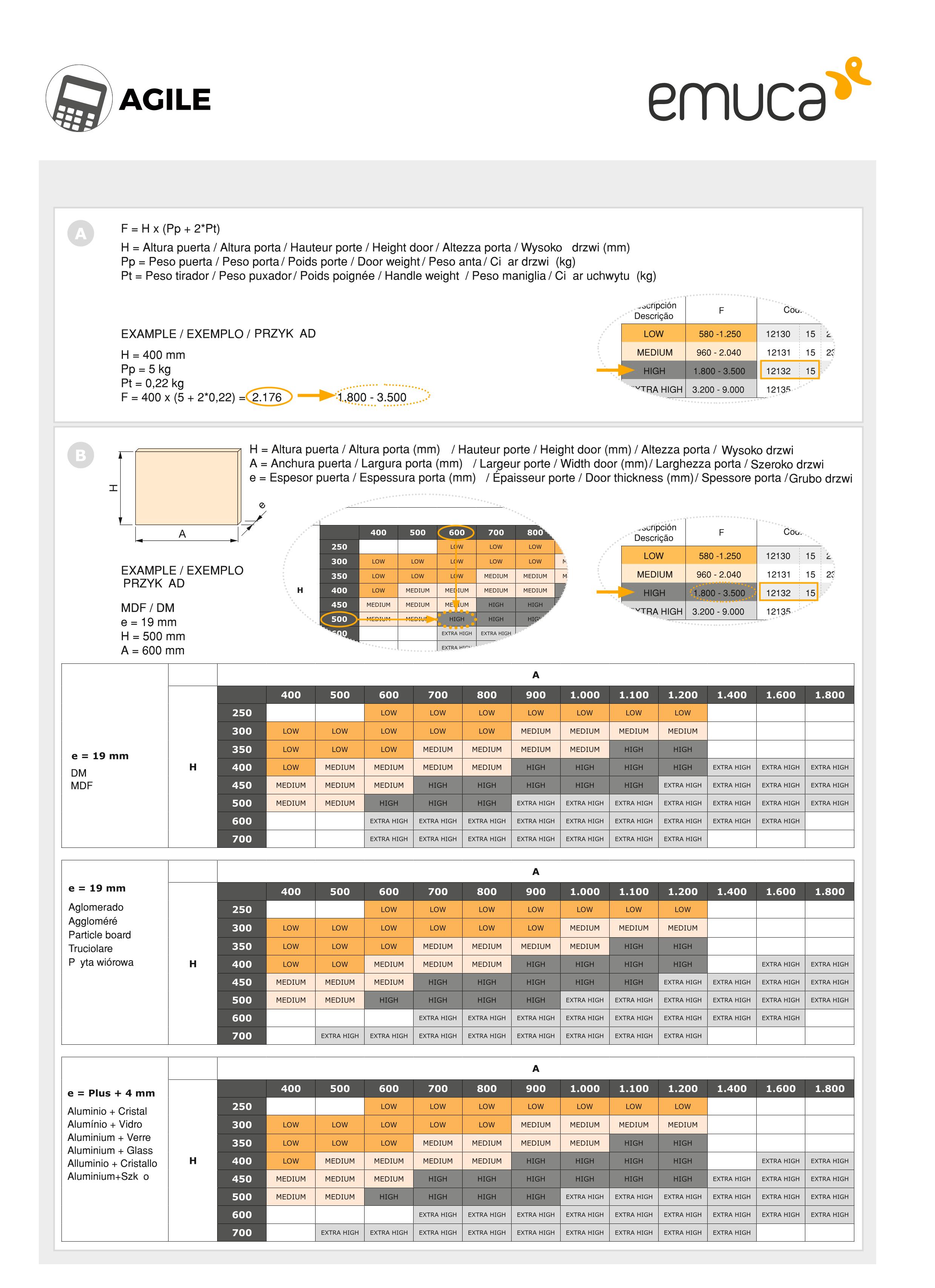

• Formula to calculate required strength:
  • (F) f= door height(mm) x door weight(kg)

1 Agile cabinet door lift includes:

• 2 x hooks
• 1 x set of screws for fastening
• 2 x door lifts
• 1 x template for screws
• 2 x cover caps
