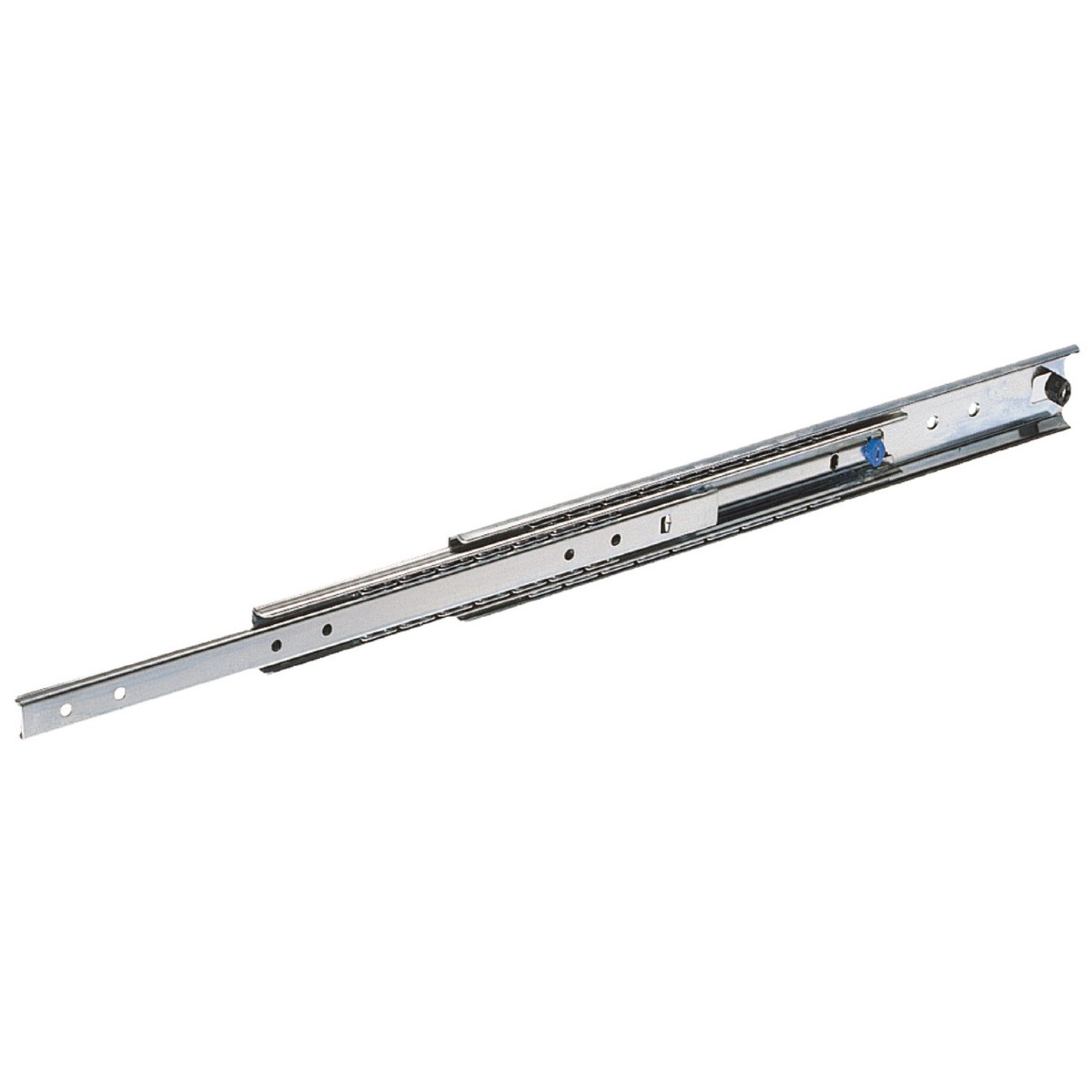

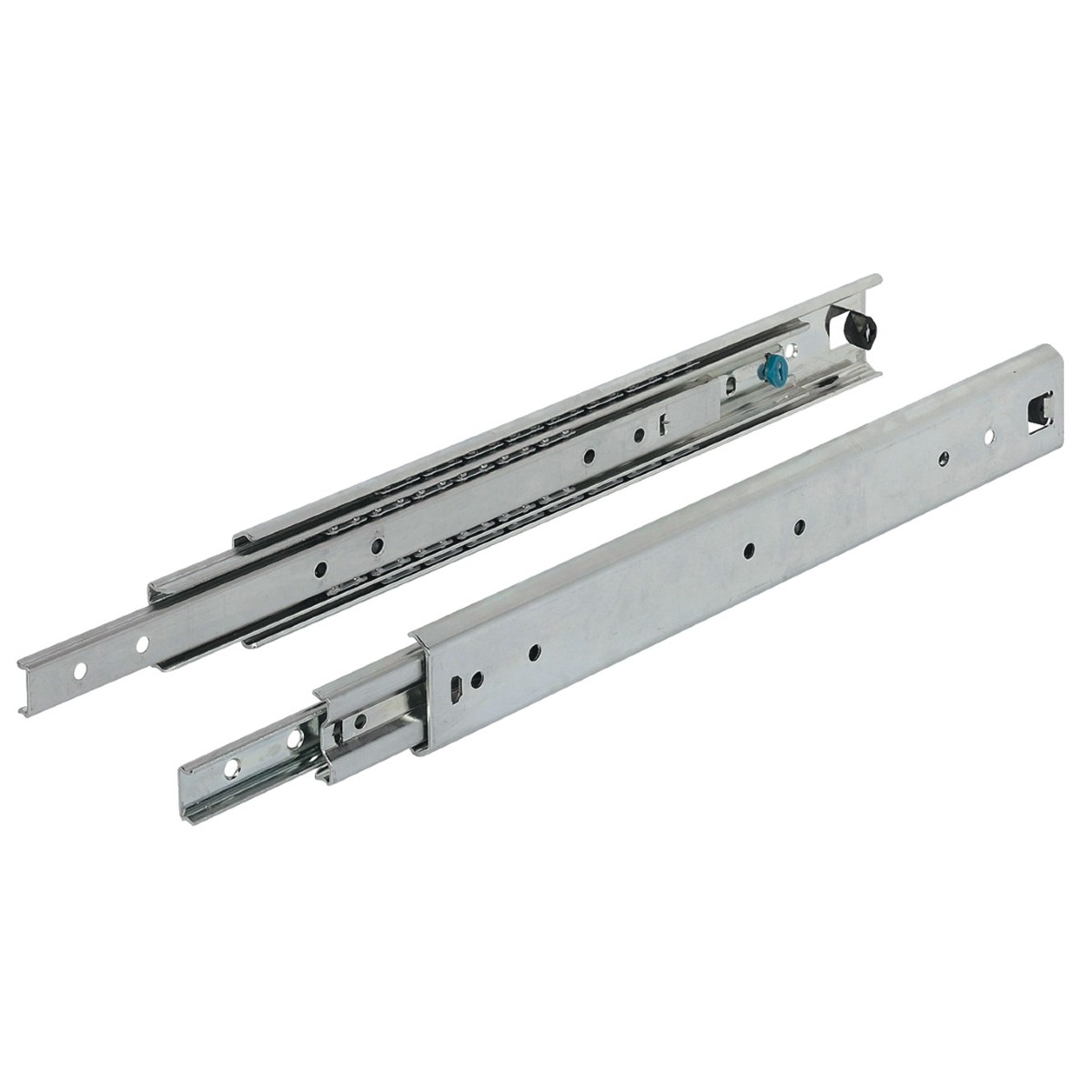

Accuride Runners Stainless Steel (5321SS) 60-150kg

1562-001
Price from: £105.95inc VAT
+

Our stainless steel drawer runners from Accuride are designed to provide exceptional durability, load-bearing capacity and to withstand years of use without showing signs of wear and tear. They are available in a variety of sizes to match your project needs.

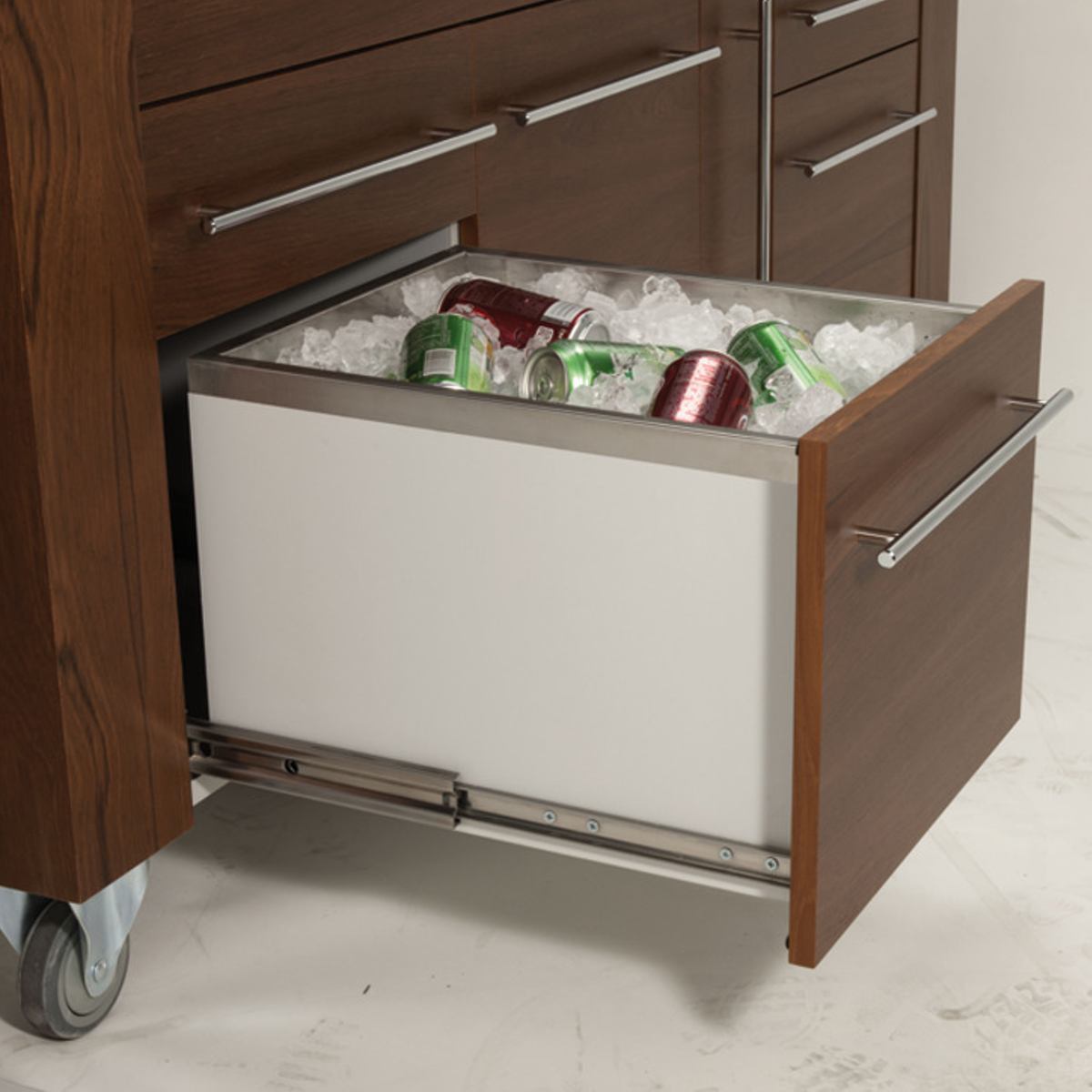

  • For applications such as lateral filing cabinets or extra heavy duty storage drawers
  • Maximum weight capacity: 160kg
  • Hold-in feature holds the closed drawer in

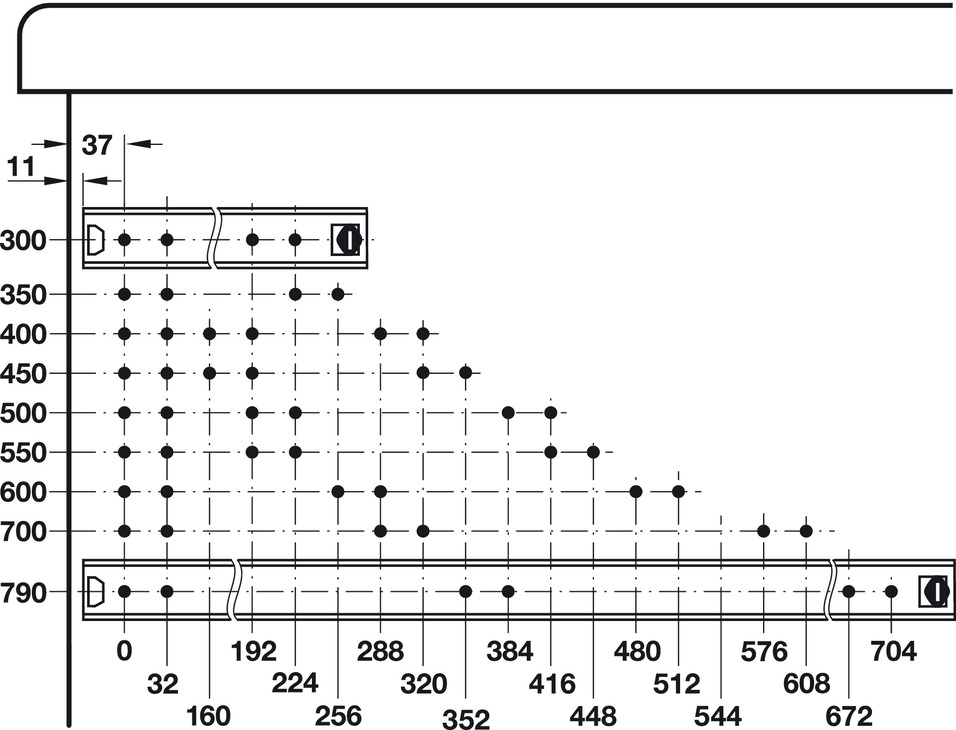

  • Drilling pattern: 32mm
  • Ensure all fixing holes are used for heavier loads
  • High grade stainless steel
  • Order fixings screws separately (max. head height 2.5mm, Ø 9.6mm)

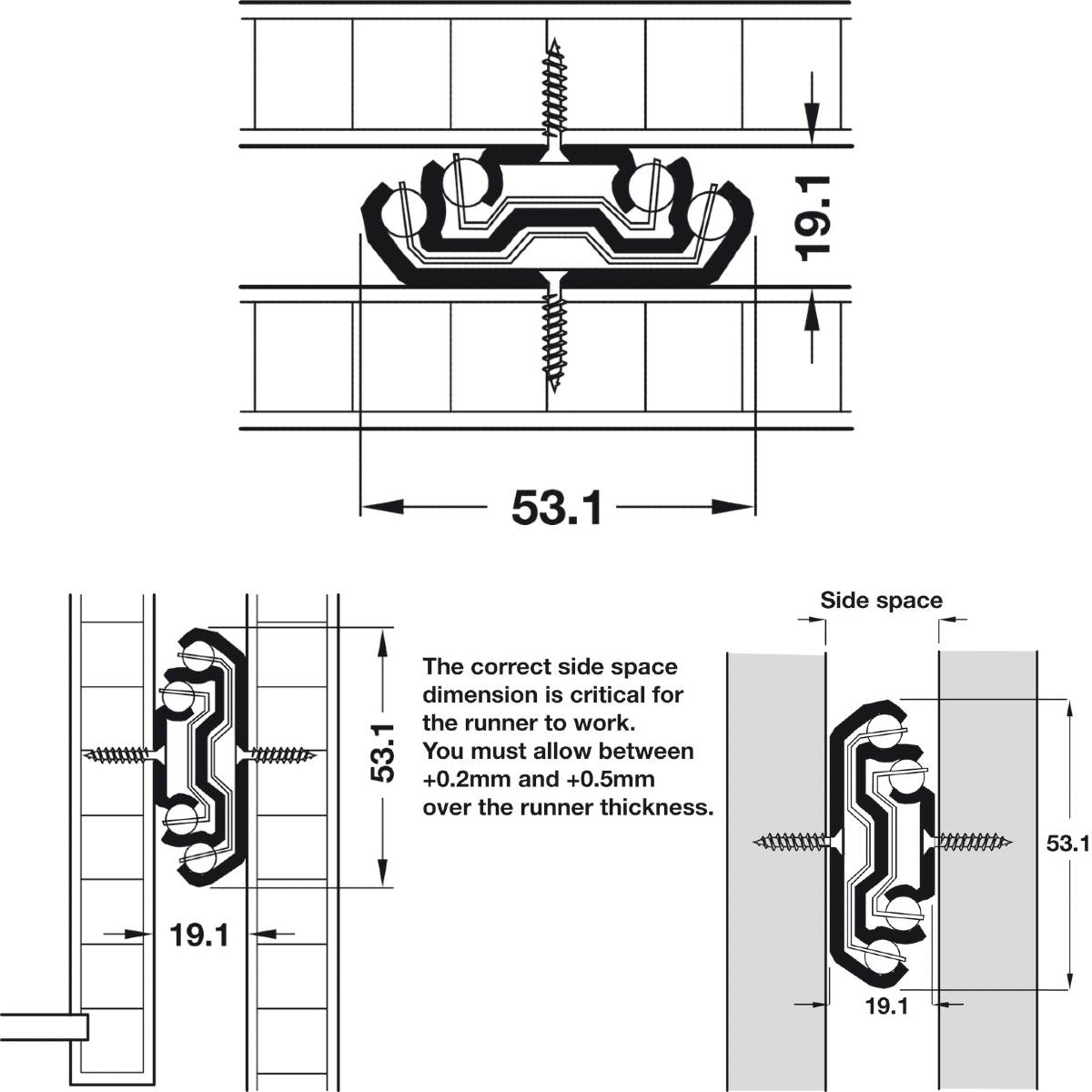

  • Dimensions:
    • Height: 53.1mm
    • Thickness: 19.1mm

Weight capacity per length:

  • 300mm = 120kg
  • 400mm = 120kg
  • 450mm = 140kg
  • 500mm = 150kg
  • 550mm = 140kg
  • 600mm = 120kg
  • 700mm = 110kg
  • 790mm = 100kg
Length:
300mm

Drawer Runners

Runner Type :
Full Extension
Closing Mechanism:
None
Runner Height :
53.1mm
