Accuride Runners (5321) 60-150kg

1560-004
Price from: £65.44inc VAT
+

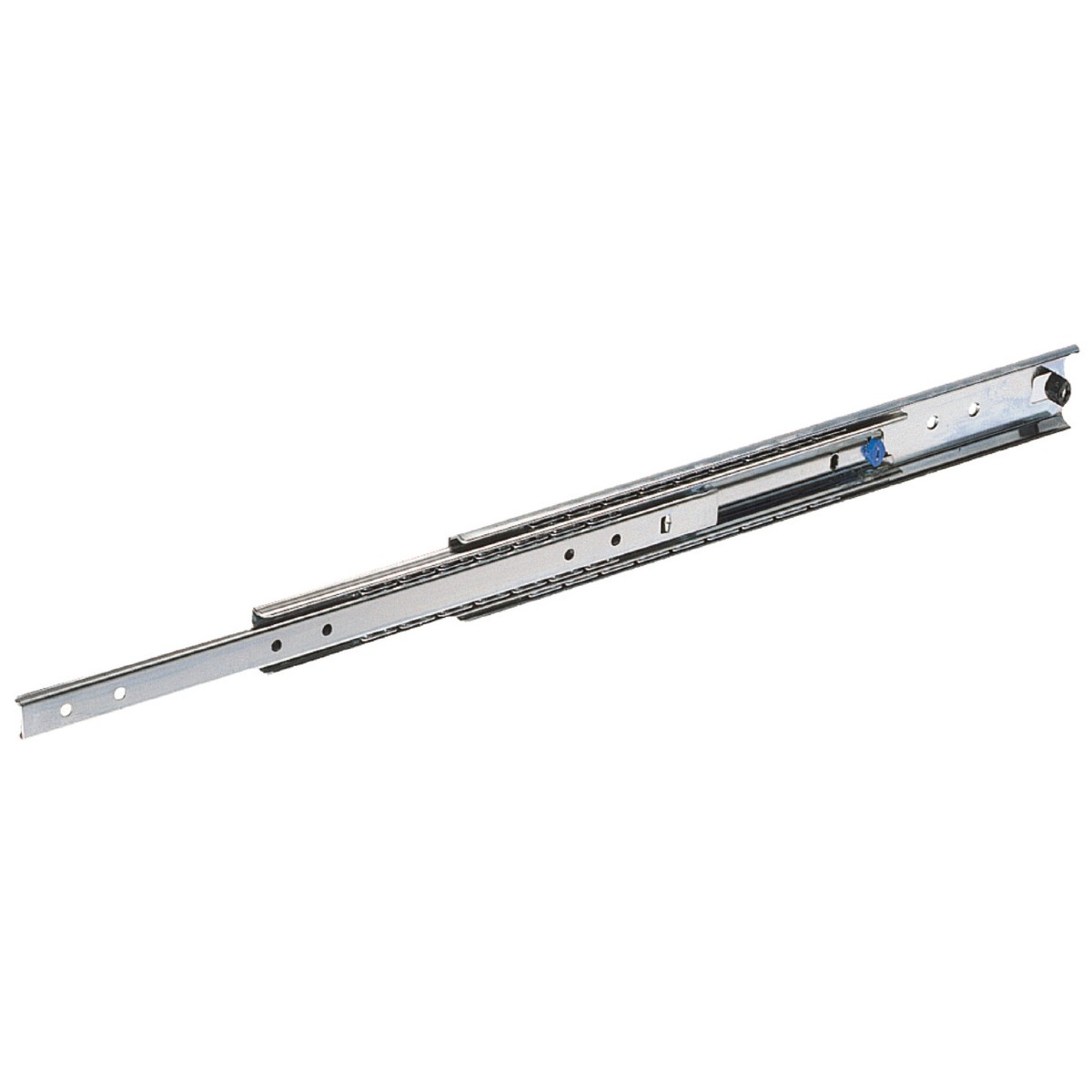

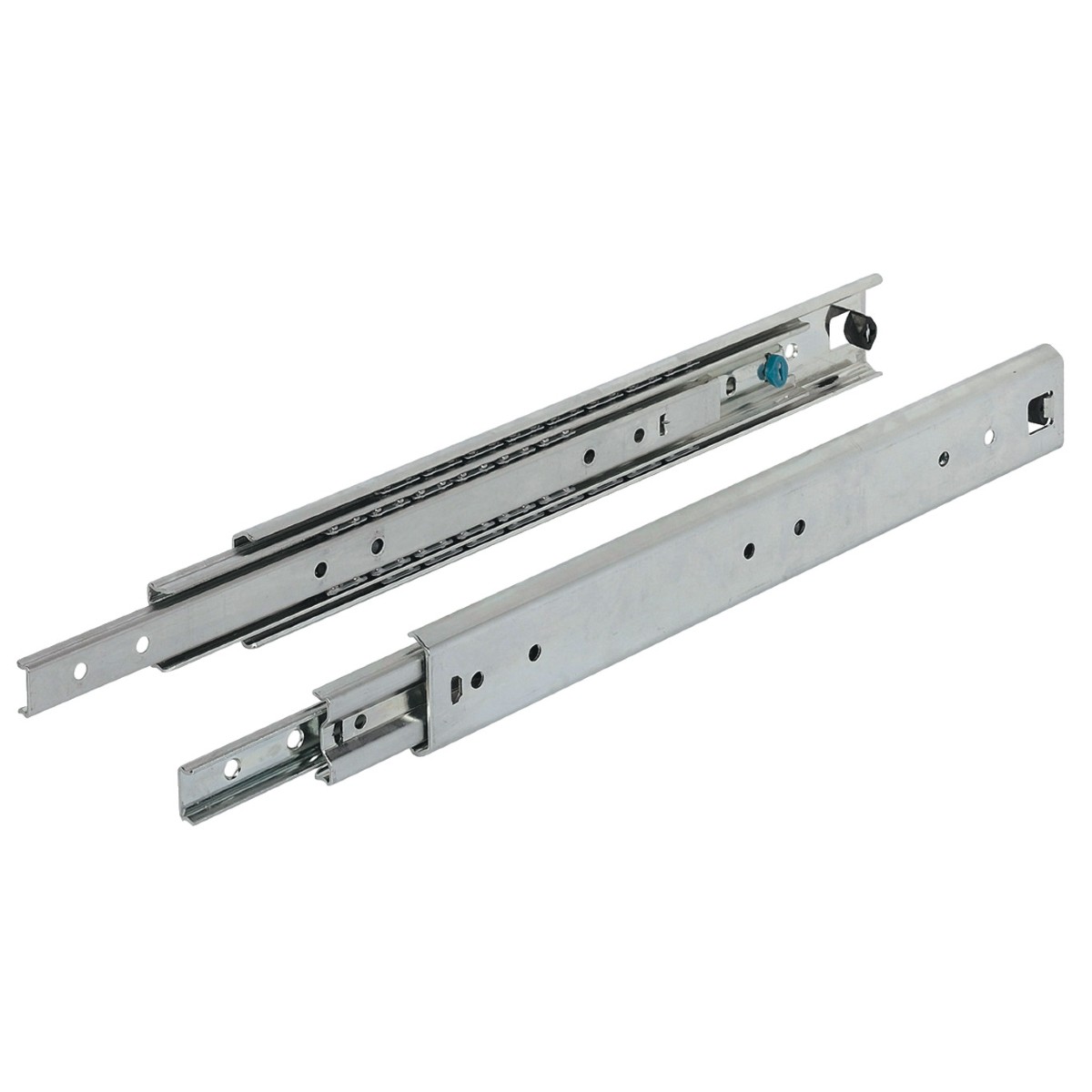

Accuride 5321 ball bearing runners with load capacity 60-150kg and full extension. For applications such as lateral filing cabinets, extra heavy duty storage drawers.

  • For applications such as lateral filing cabinets

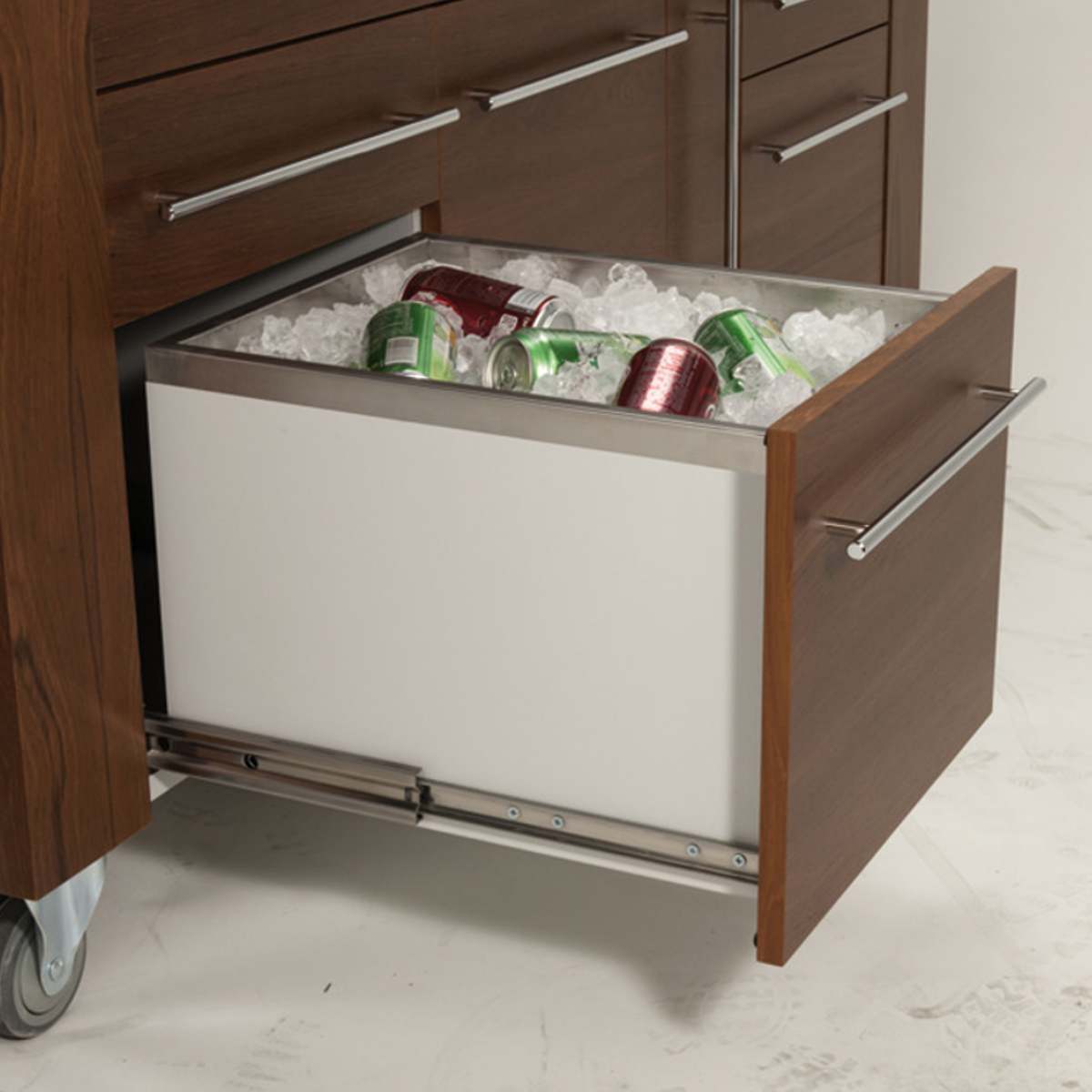

  • Extra heavy duty storage drawers
  • Load capacity: 120-160kg (depedning on the length of the runner)
  • Base-mounted runners can support 25% of the total weight
  • Hold-in feature holds the closed drawer in

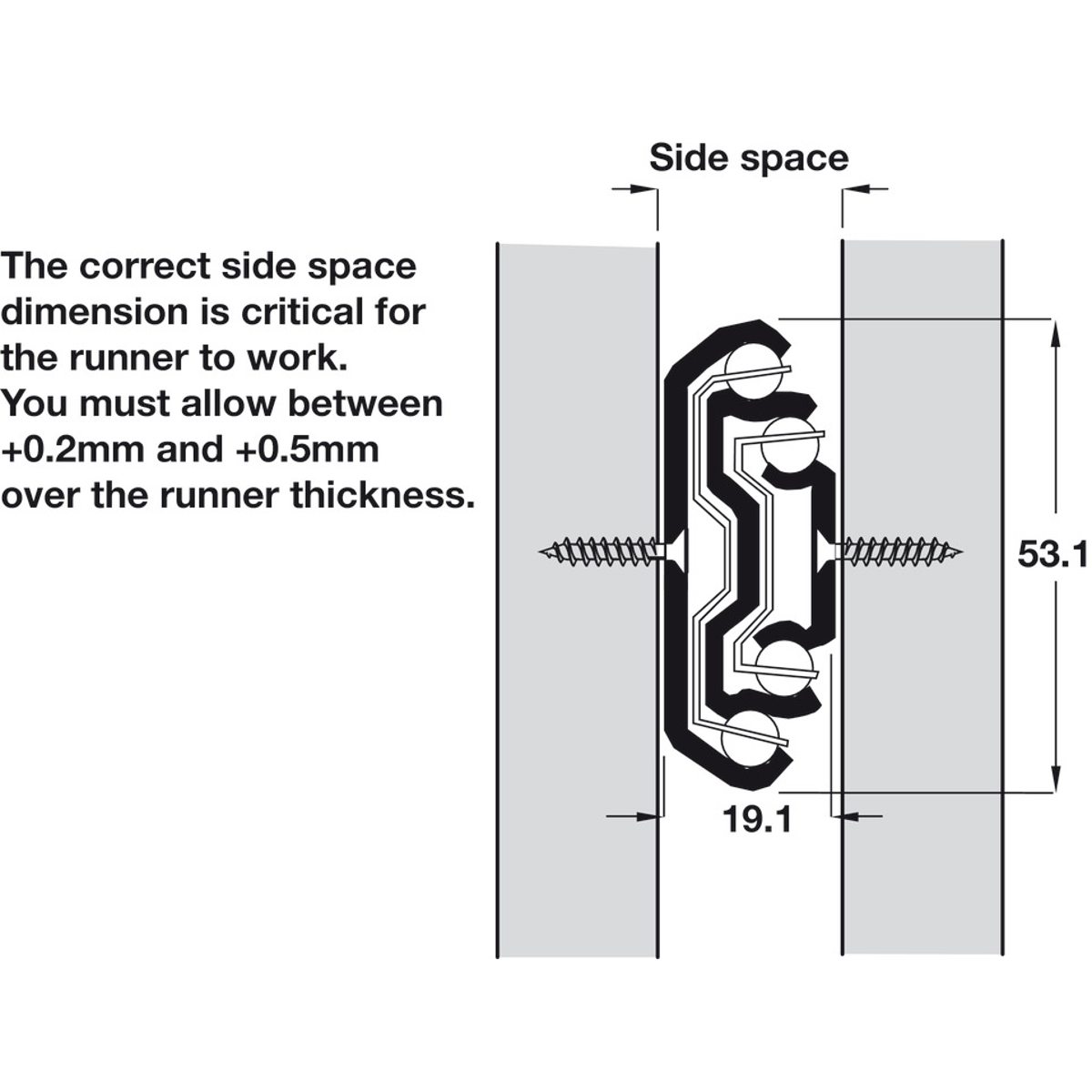

  • Dimensions:
    • Height: 53.1mm
    • Thickness: 19.1mm

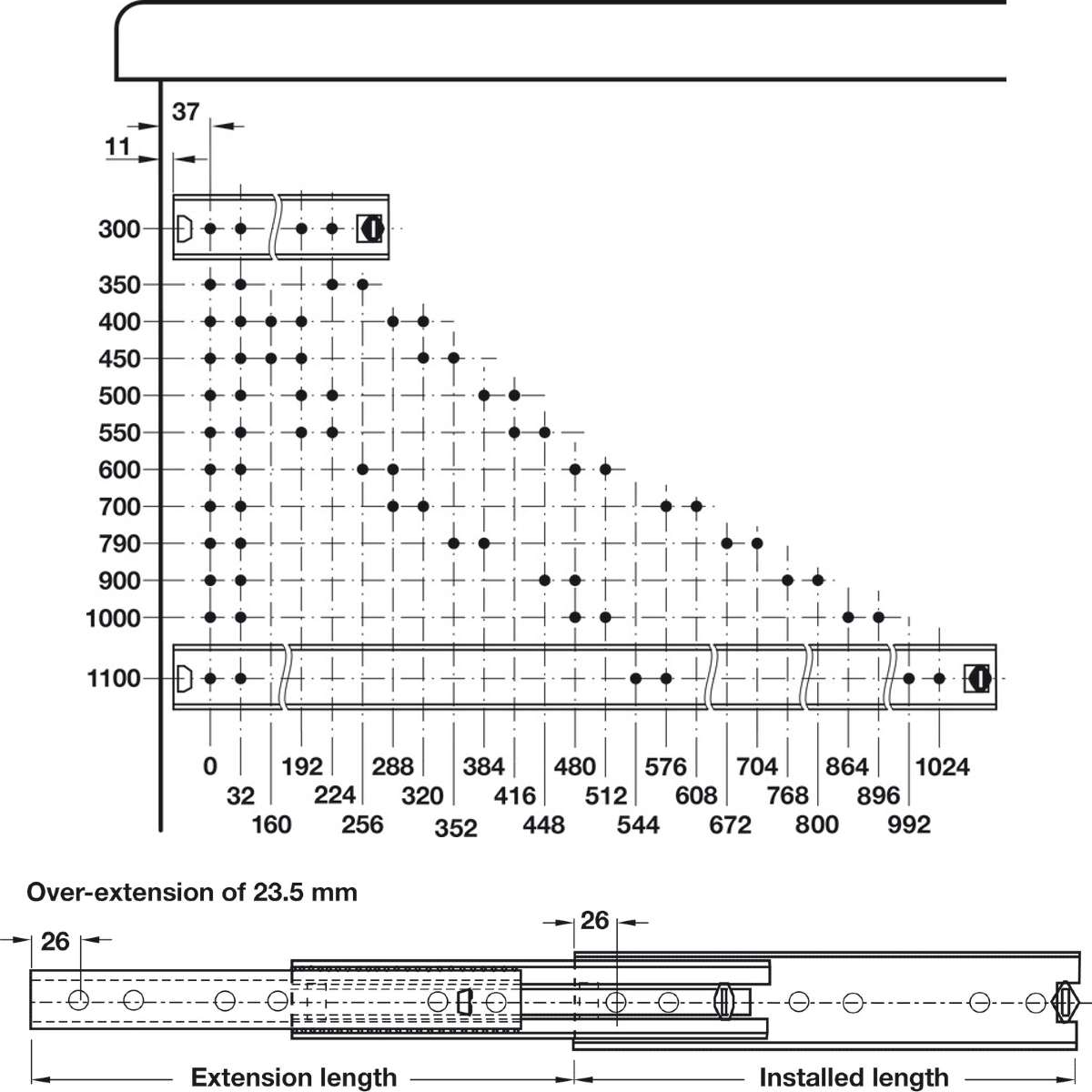

    • Drilling pattern: 32mm
  • Ensure all fixing holes are used for heavier loads
  • Bright zinc-plated steel
  • Order fixings screws separately

Weight capacity per length:

  • 300mm = 120kg
  • 350mm = 120kg
  • 400mm = 120kg
  • 450mm = 140kg
  • 500mm = 150kg
  • 550mm = 140kg
  • 600mm = 120kg
  • 700mm = 110kg
  • 790mm = 100kg
  • 900mm = 80kg
  • 1000mm = 70kg
  • 1100mm = 60kg
Length:
350mm

Drawer Runners

Runner Type :
Full Extension
Closing Mechanism:
None
Runner Height :
53.1mm
