Accuride Push To Open Runners (3832TR) 45kg

1045-001
Price from: £27.58inc VAT
+

Accuride 3832TR Touch Release Is A Telescopic, Side-Mounted Cam Adjust Slide With A Full Extension And A Load Capacity Of 45kg. The Slide Is Activated By A Push That Requires Only A Minimum Amount Of Effort And Eliminates The Need For Knobs Or Handles. The Opening Mechanism Is Activated By 2mm Travel Inward And Propels Drawers Open Approximately 51-27mm From The Closed Position. The Slide Also Features A Lock-In Feature That Helps Keep Drawers Closed, A Lever Disconnect, And A Cam Drawer Adjust Feature

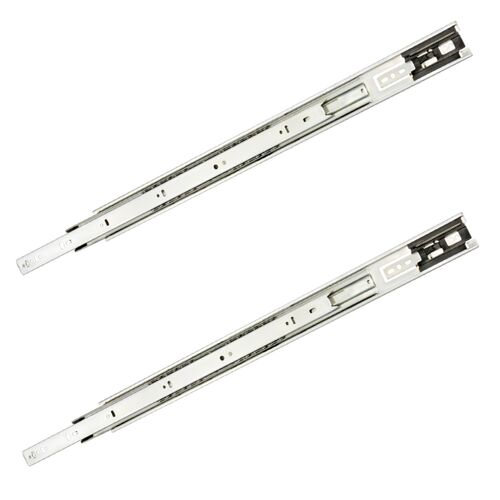

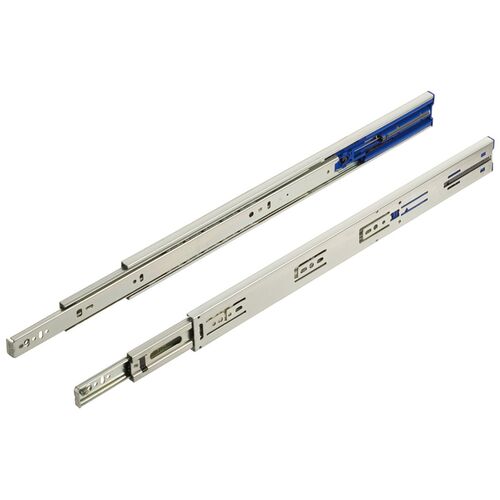

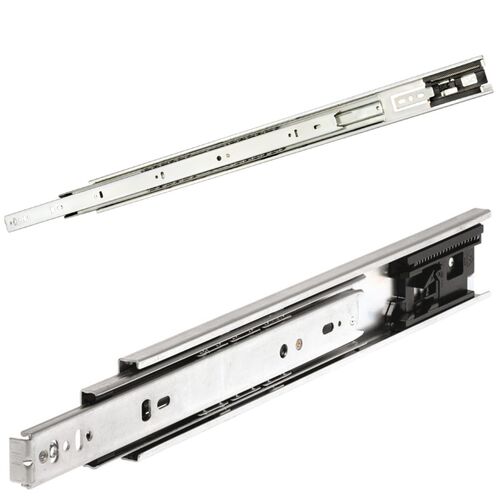

  • Full-extension, side-mounted ball bearing runners
  • Runners are zink plated
  • Supplied in pairs
  • Maximum carrying capacity: 42kg
  • Runner thickness: 12.7mm
  • Push on the drawer front to open or close the drawer
  • Opening mechanism activated by 1/16"(2 mm) travel inward
  • Propel drawers open approximately 50mm
  • Maximum recommended drawer width: 600mm
  • Hold-in feature holds the drawer in place in a closed position
  • Front disconnect (by depressing lever) for removal
  • Available in 3 colours: white, black or bright zink plated

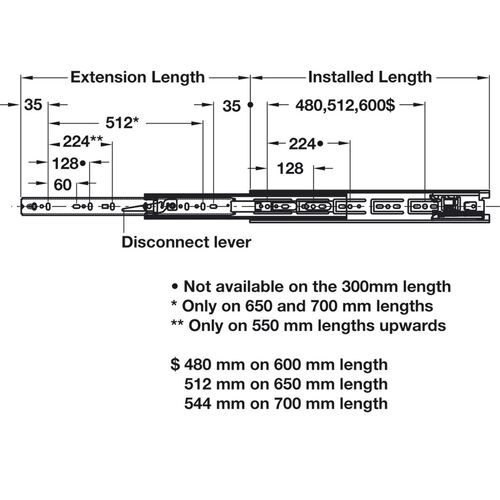

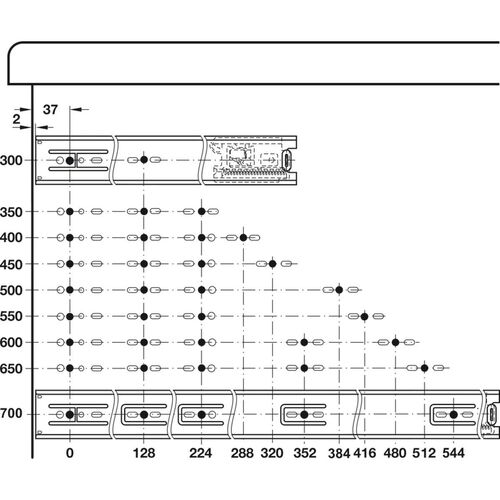

  • For full illustrations and dimensions please see PDF Page
Length:
300mm
Colour/Finish:
Silver

Drawer Runners

Runner Type :
Full Extension
Closing Mechanism:
Push to Open
Runner Height :
46mm
