80kg Sportub Sliding Door Gear For Heavy Doors

1032-001
Price: £163.31inc VAT
+

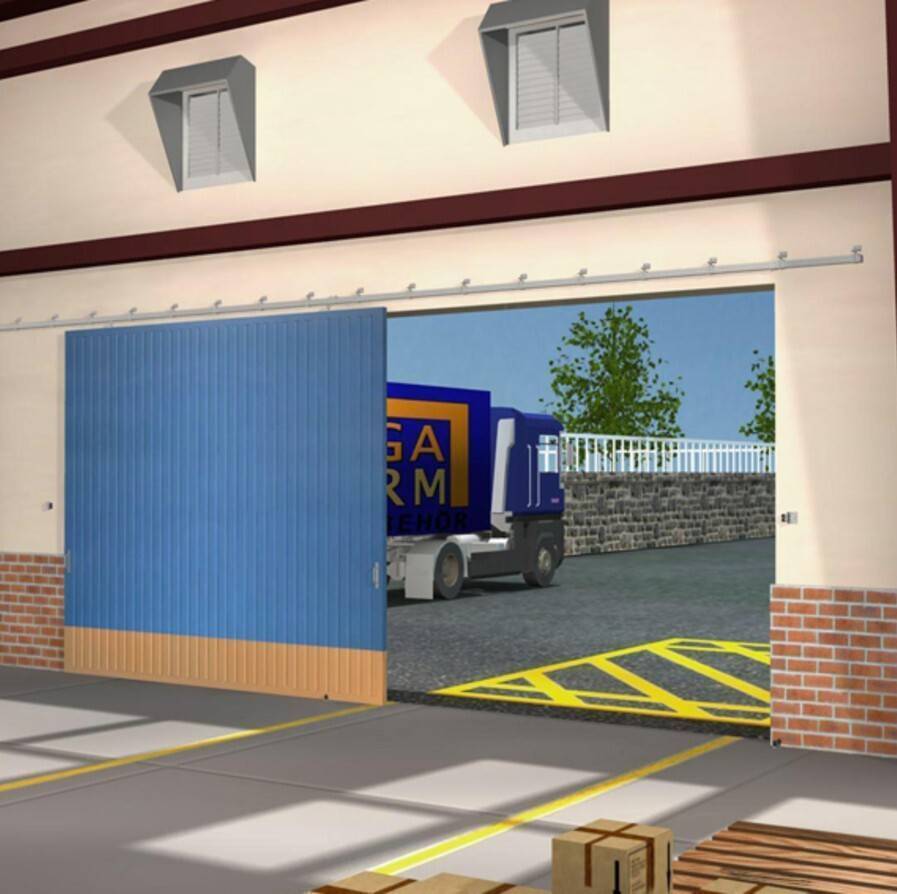

Complete sliding door set for doors up to 80kg. Great solution for heavy use in industrial or agricultural applications. Separate additional elements of the system available in 'related products' below. All sportub components are manufactured to en1527 standard. All tracks are coated with magnesium zinc (without chromium) to preserve all the qualities to all weather conditions. They have up to 800h resistance to salt spray and red rust.

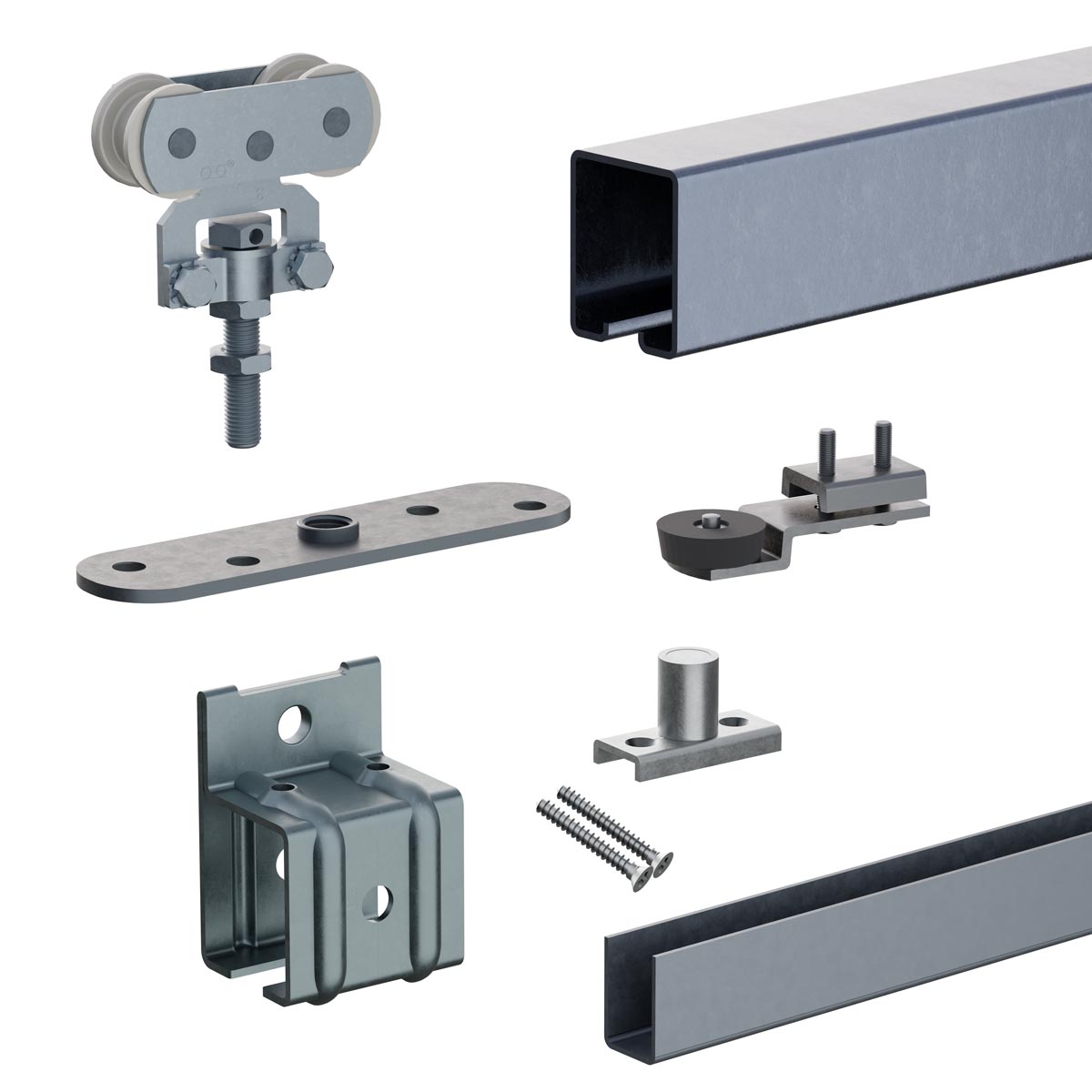

Set for 80kg doors

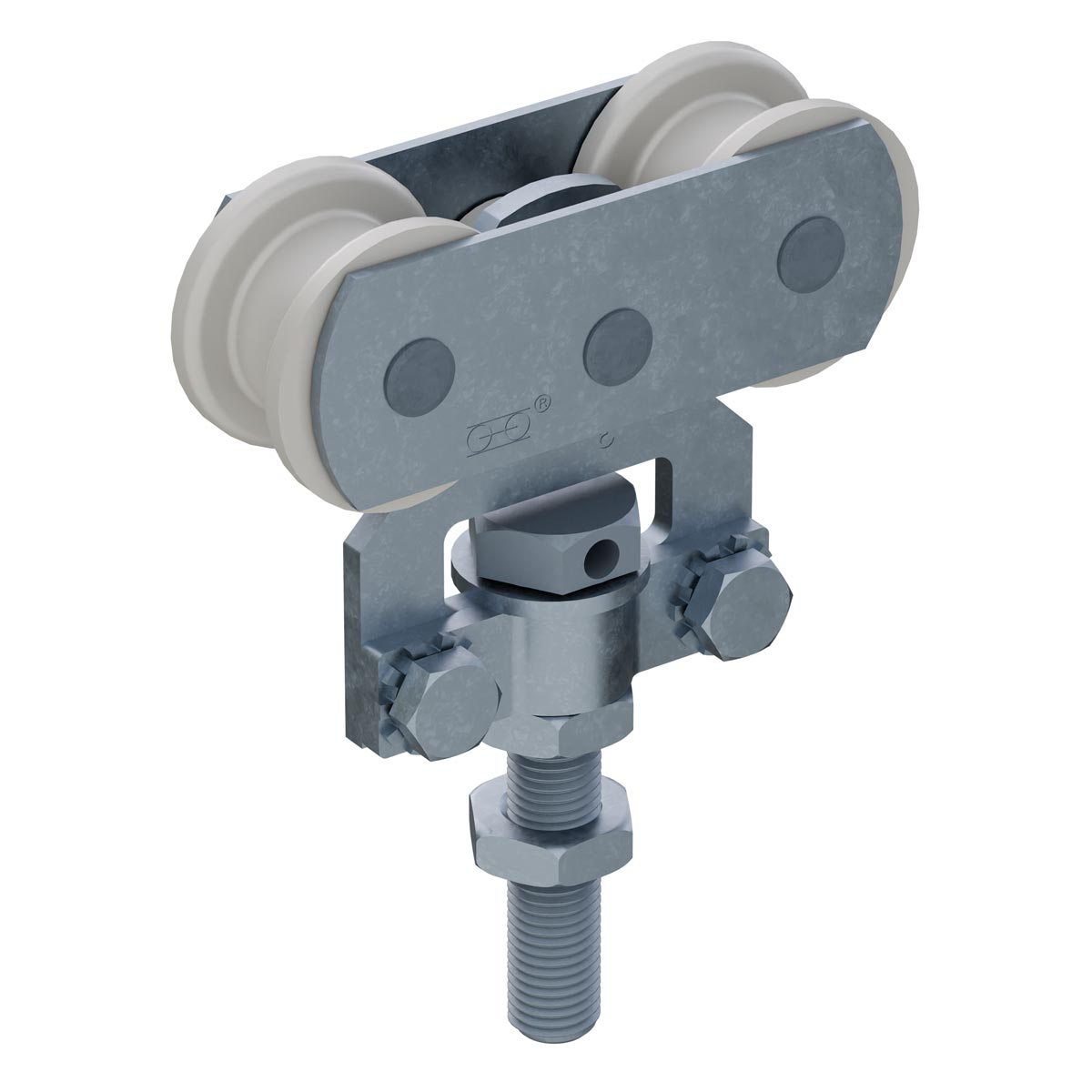

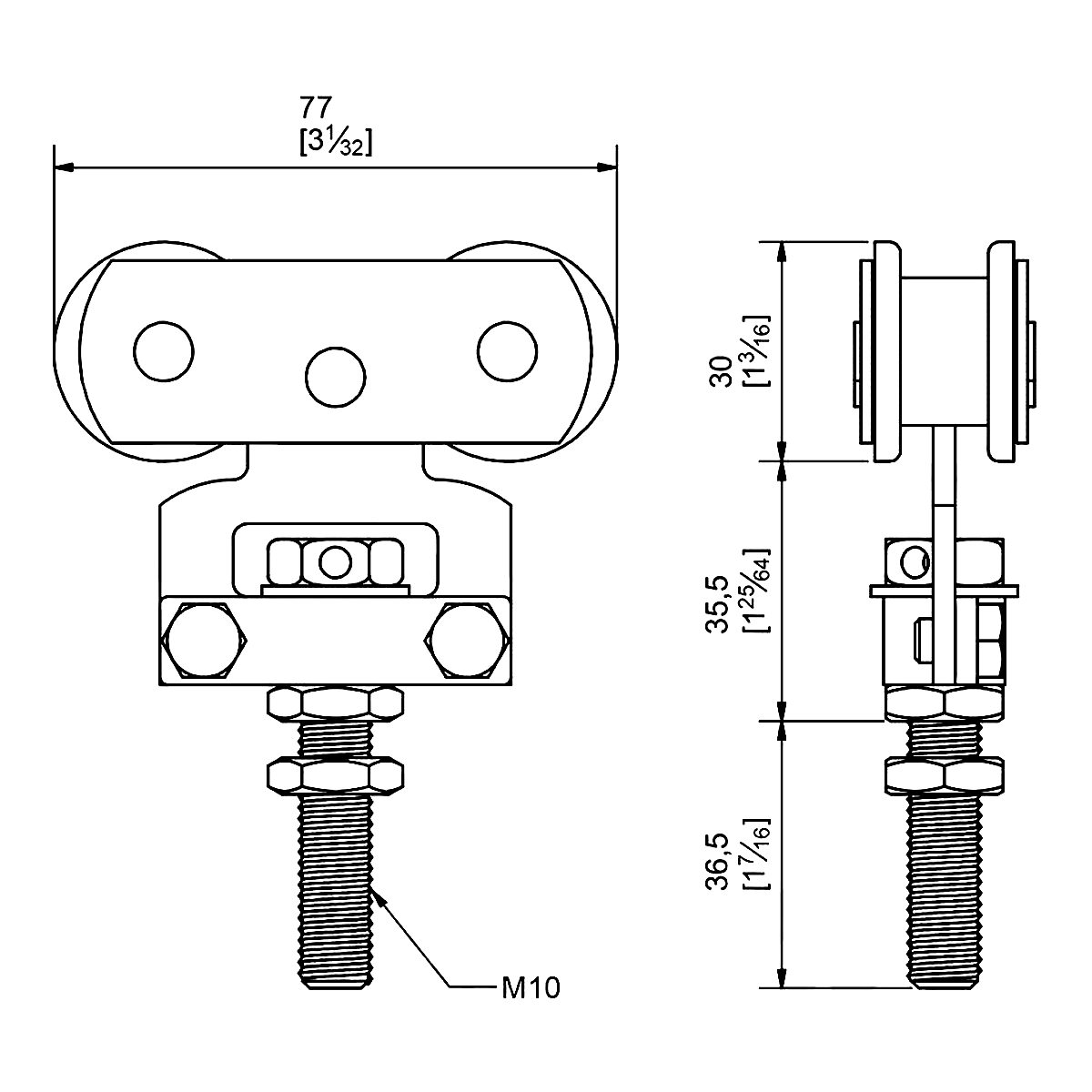

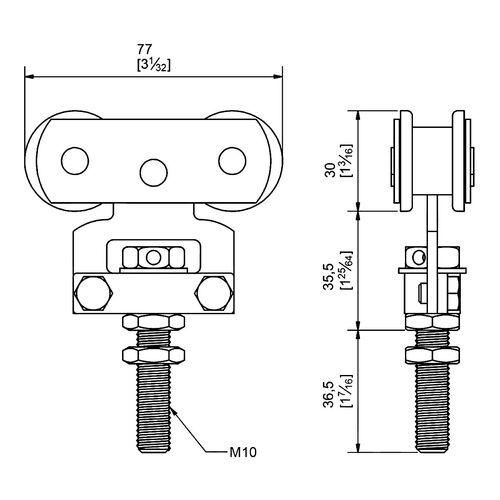

  • 2 x hangers 235D equipped with 2 composite wheels mounted on needle roller bearings

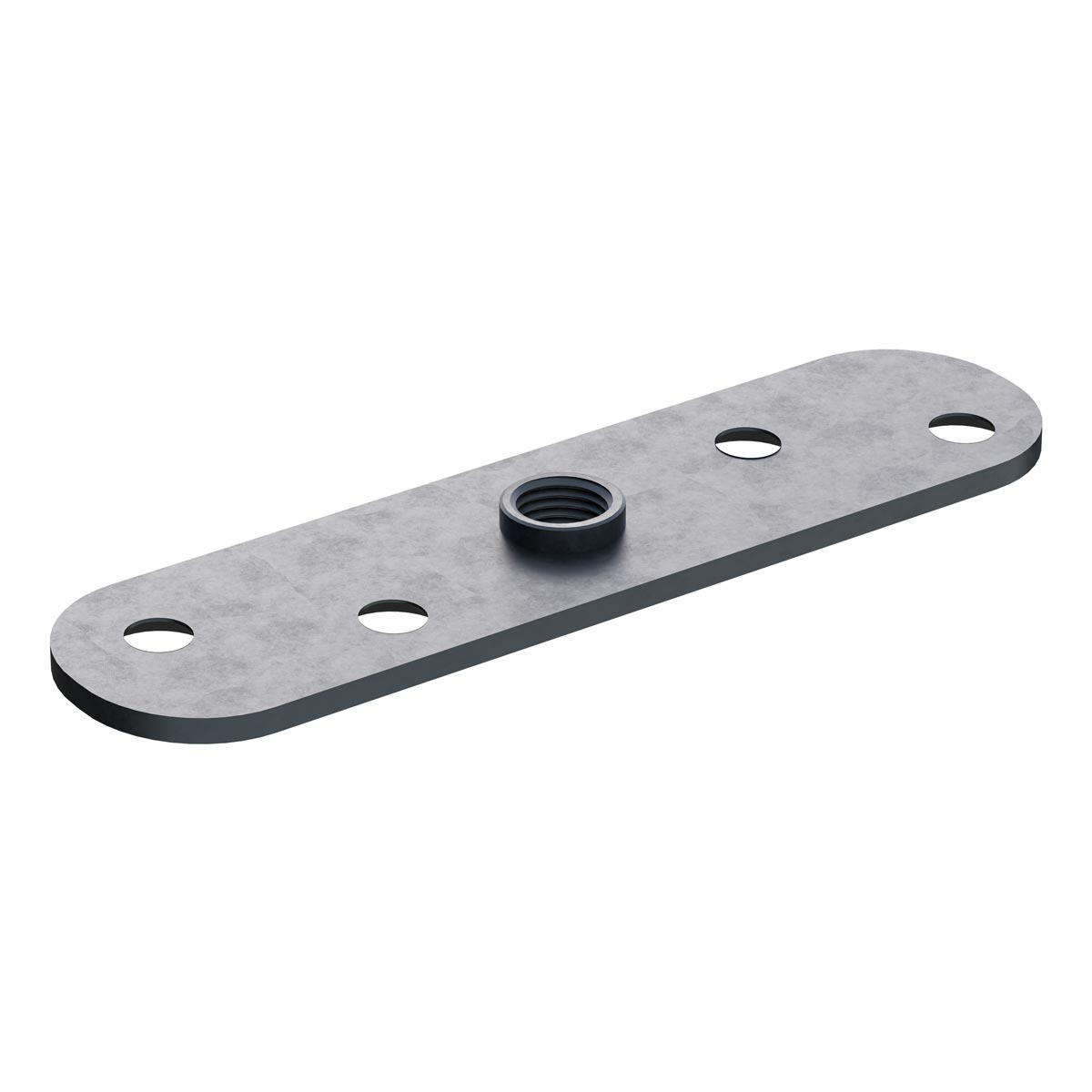

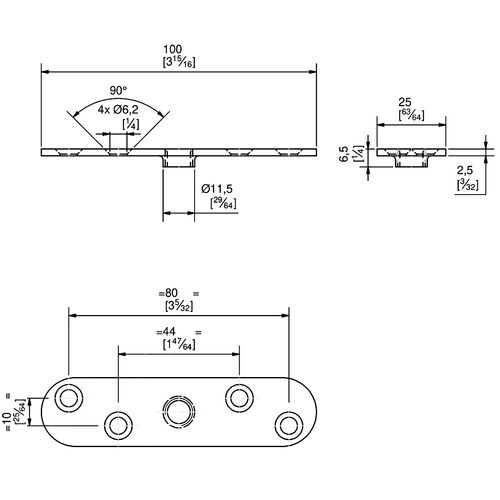

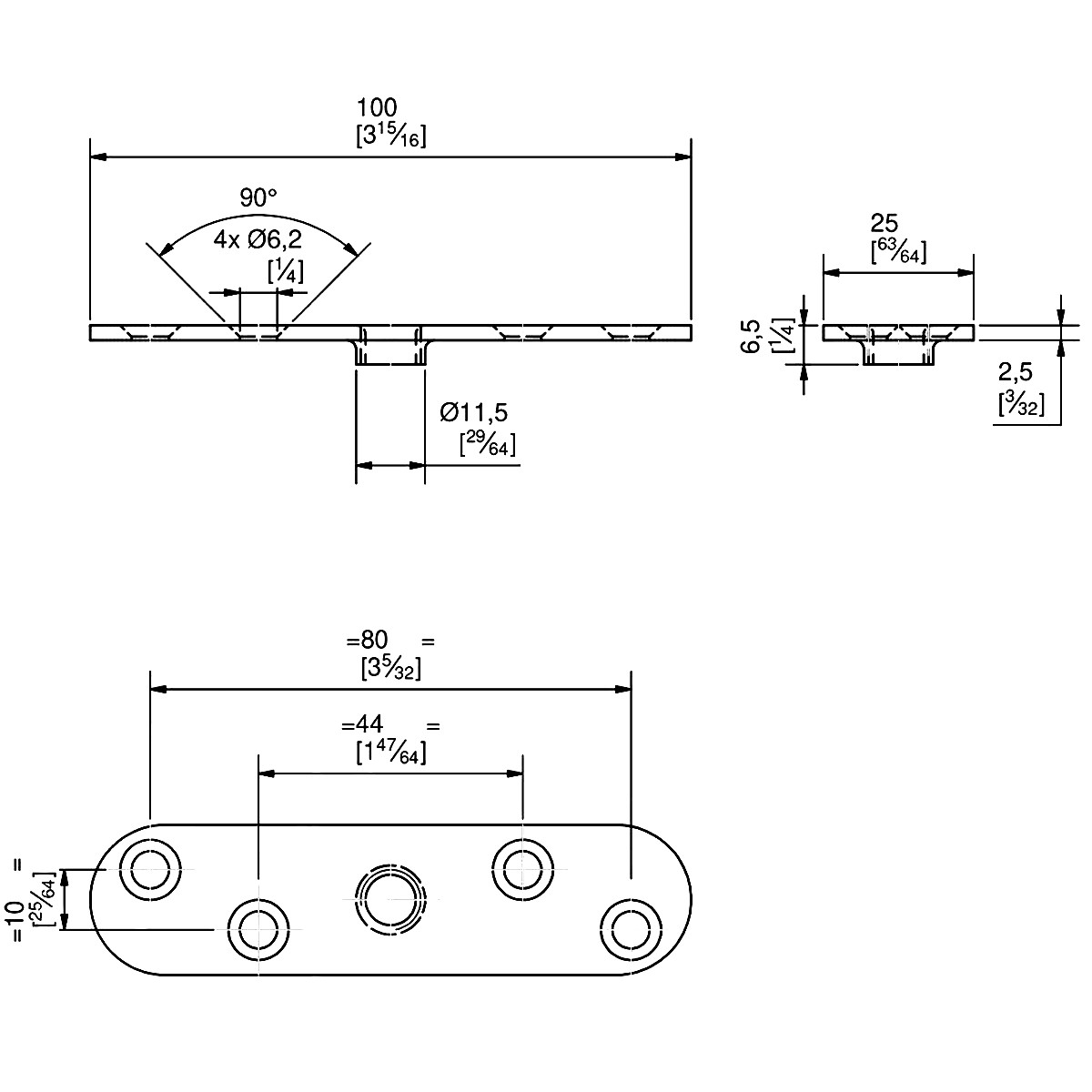

  • 2 x plates 0036, top fixing

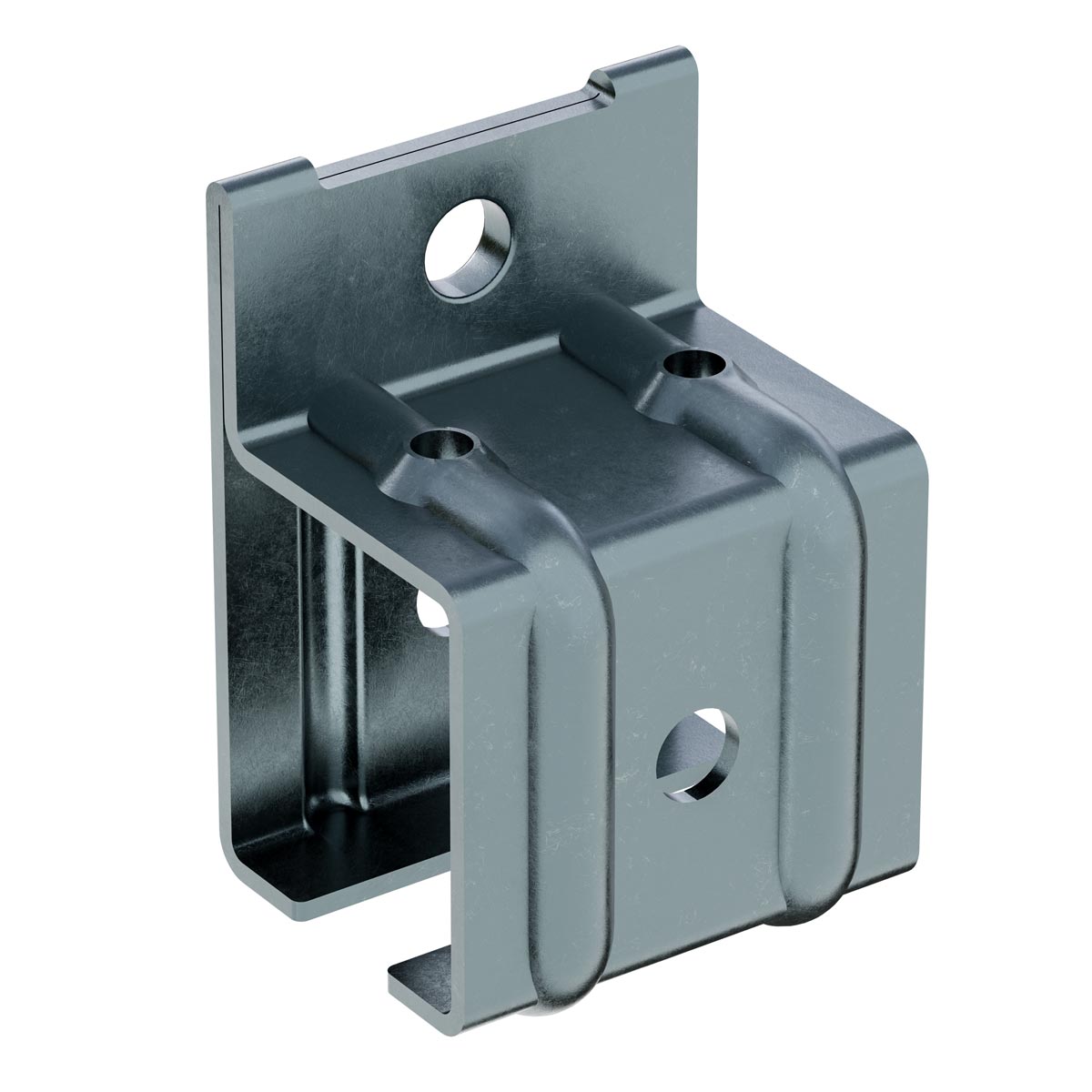

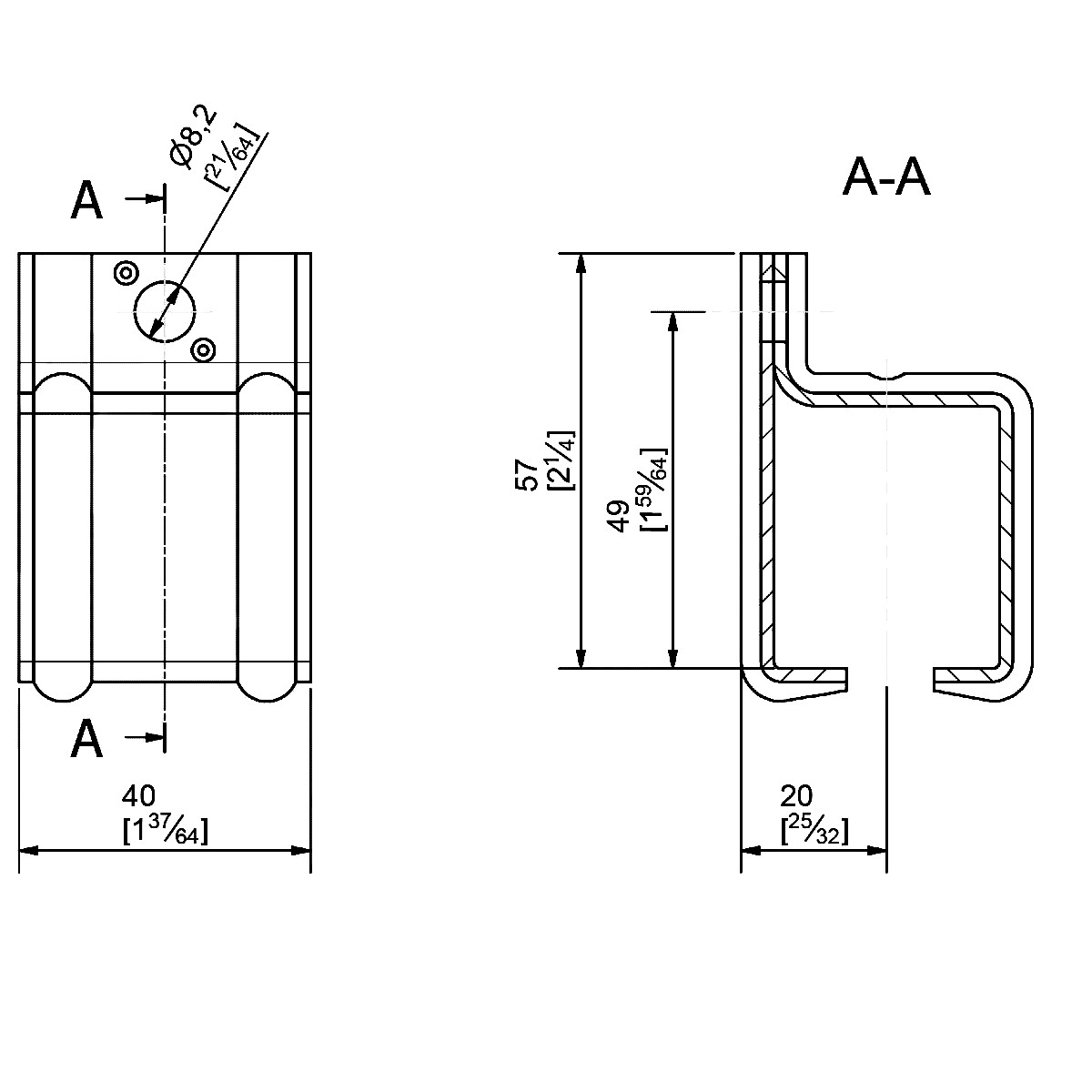

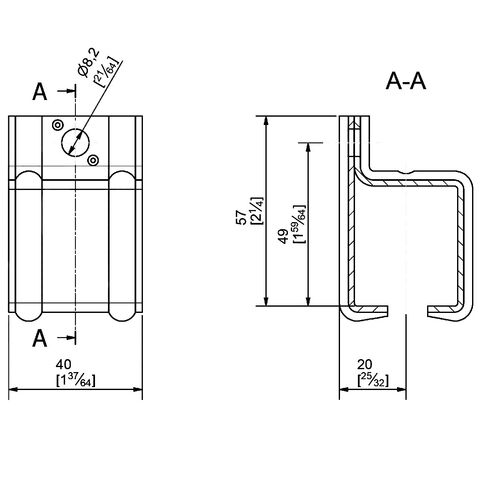

  • 5 x track wall mounting brackets 3631

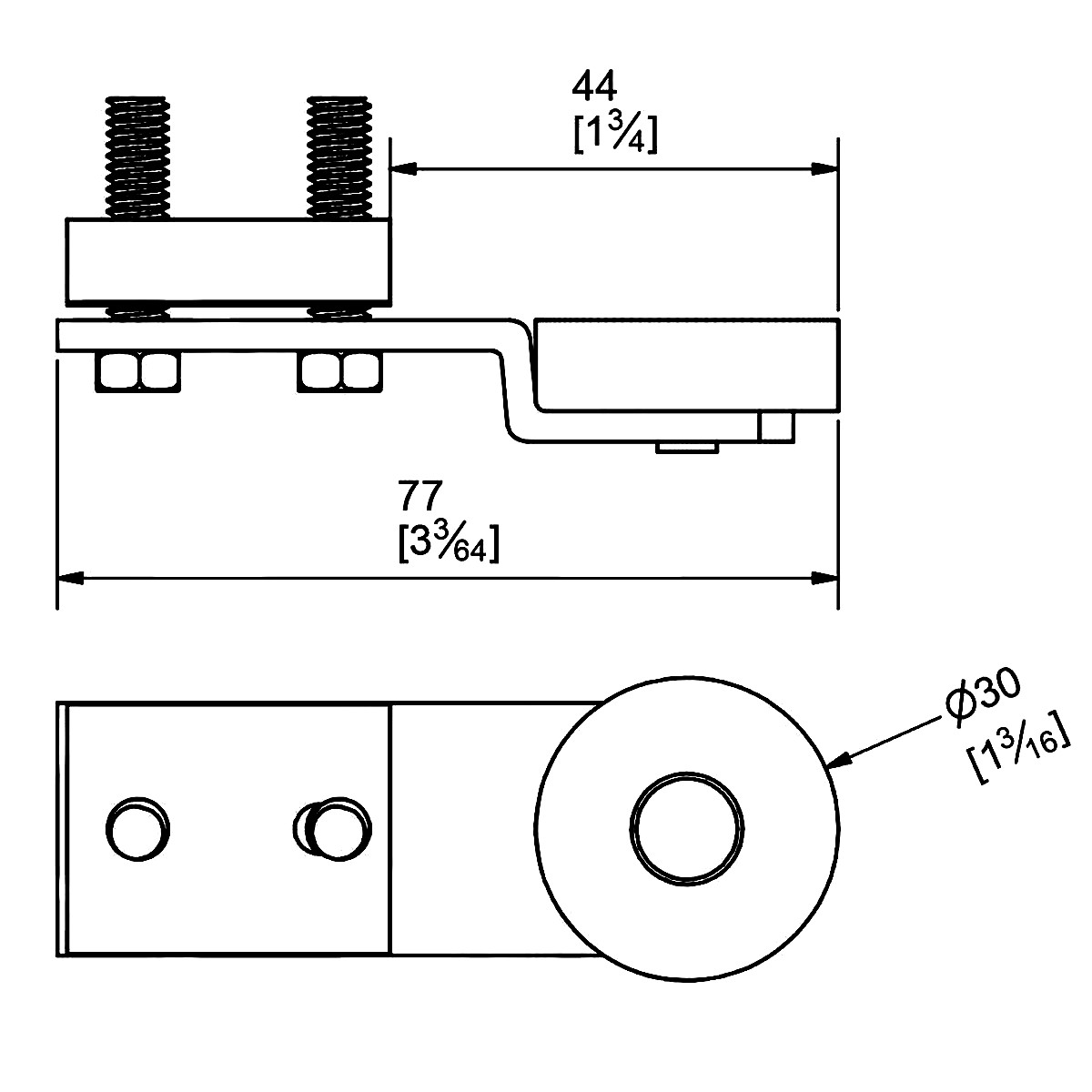

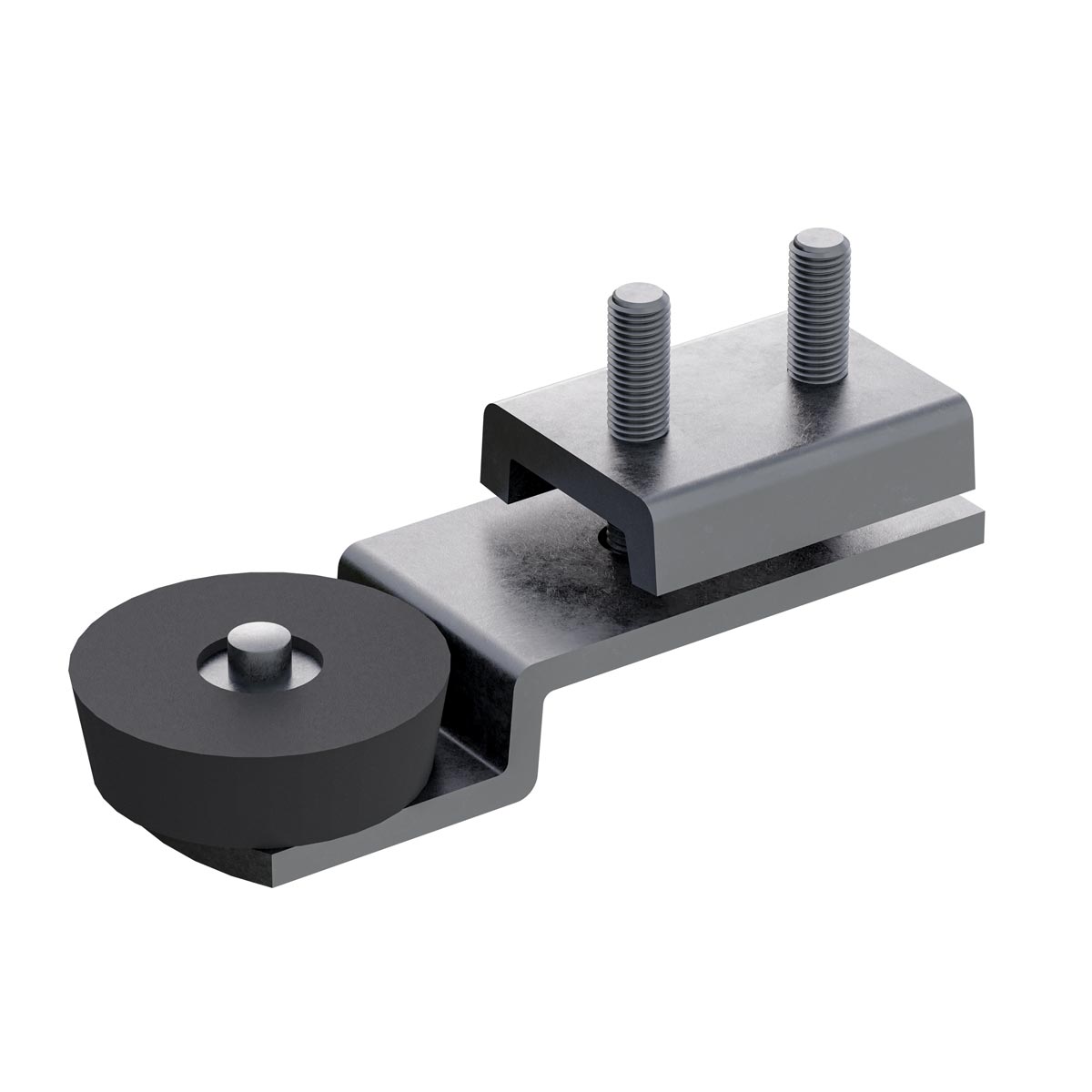

  • 2 x bottom guides U-19

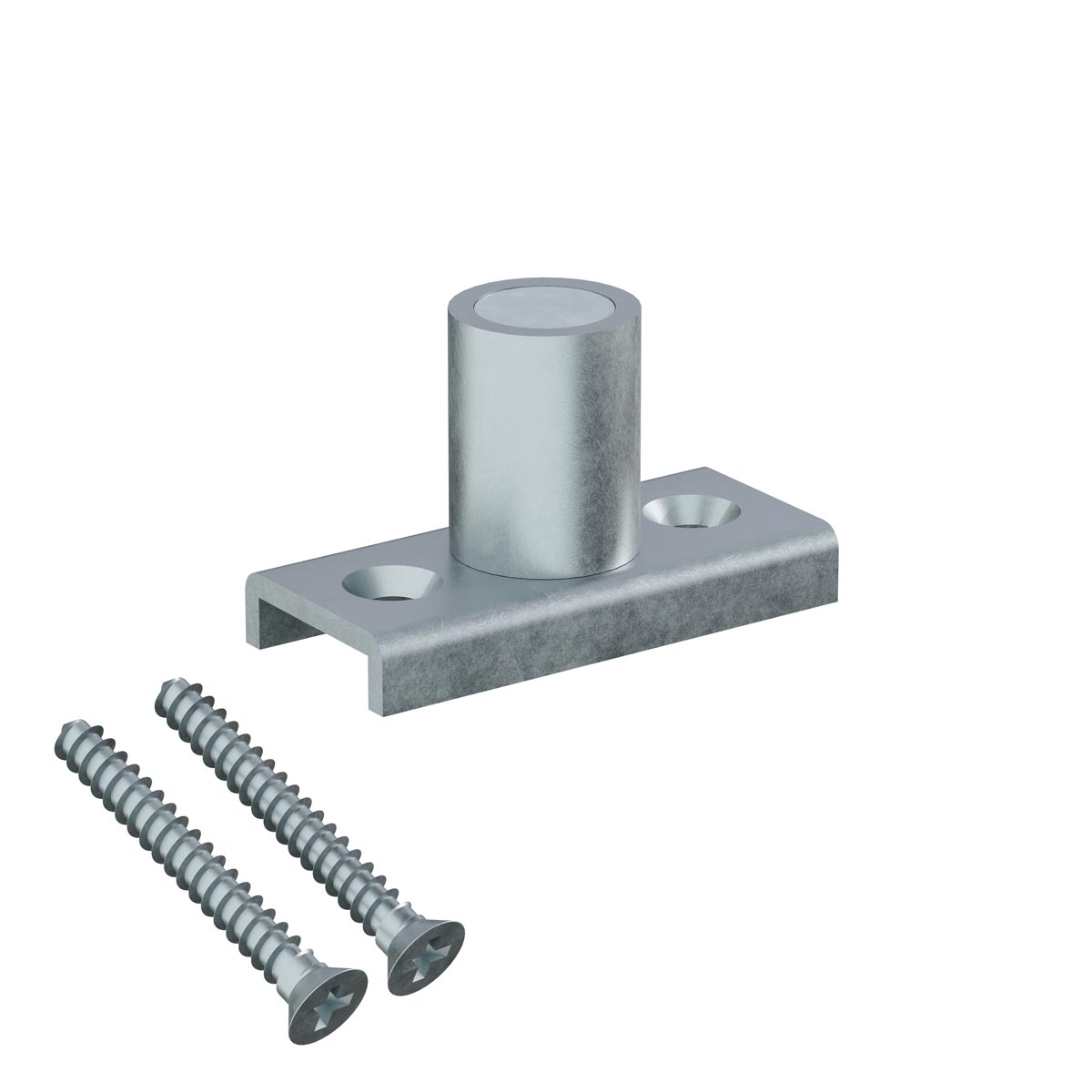

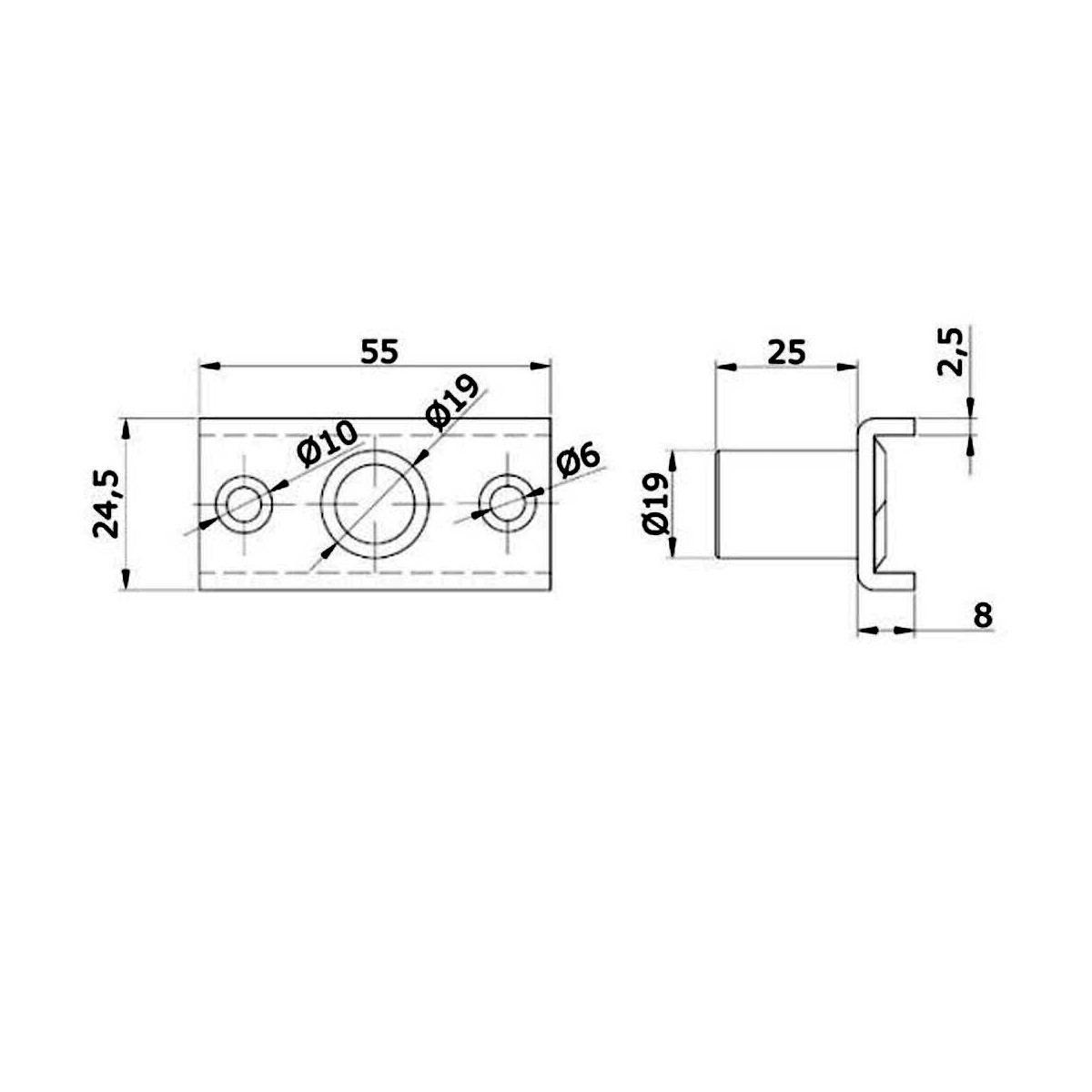

  • 2 x stops 1098

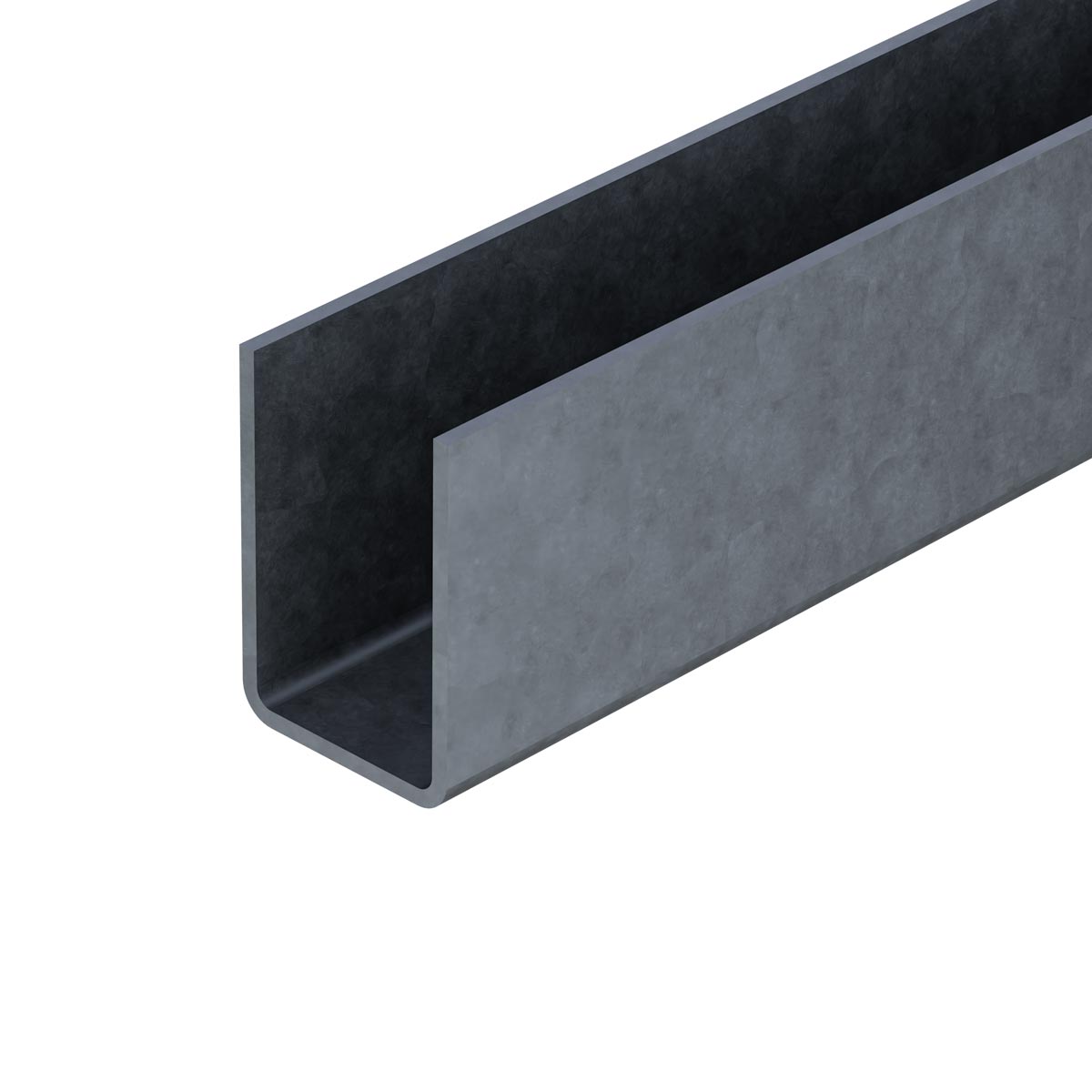

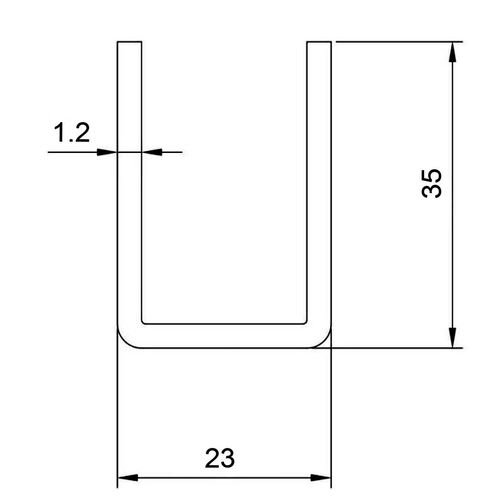

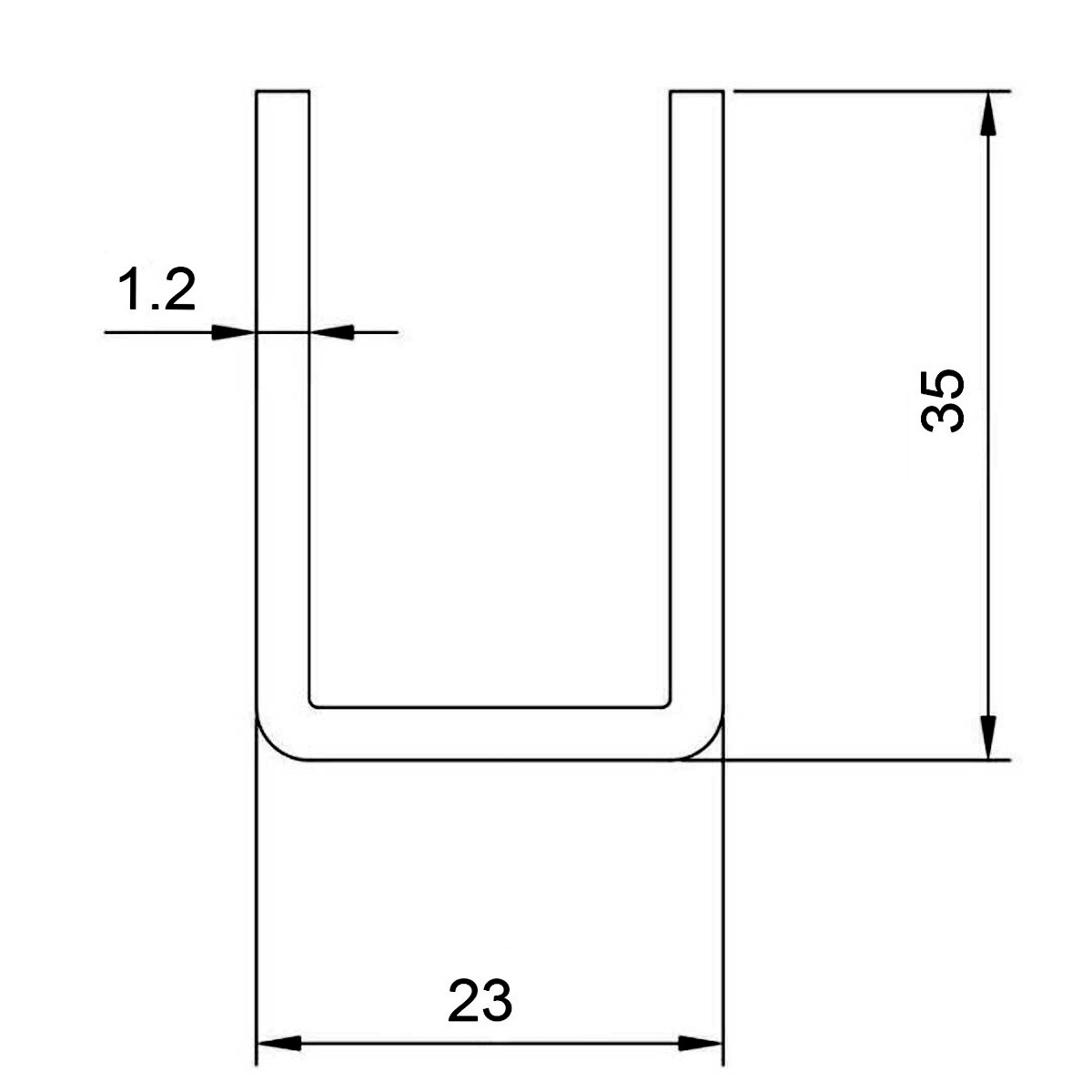

  • 1 x bottom channel U-19 (3000mm)

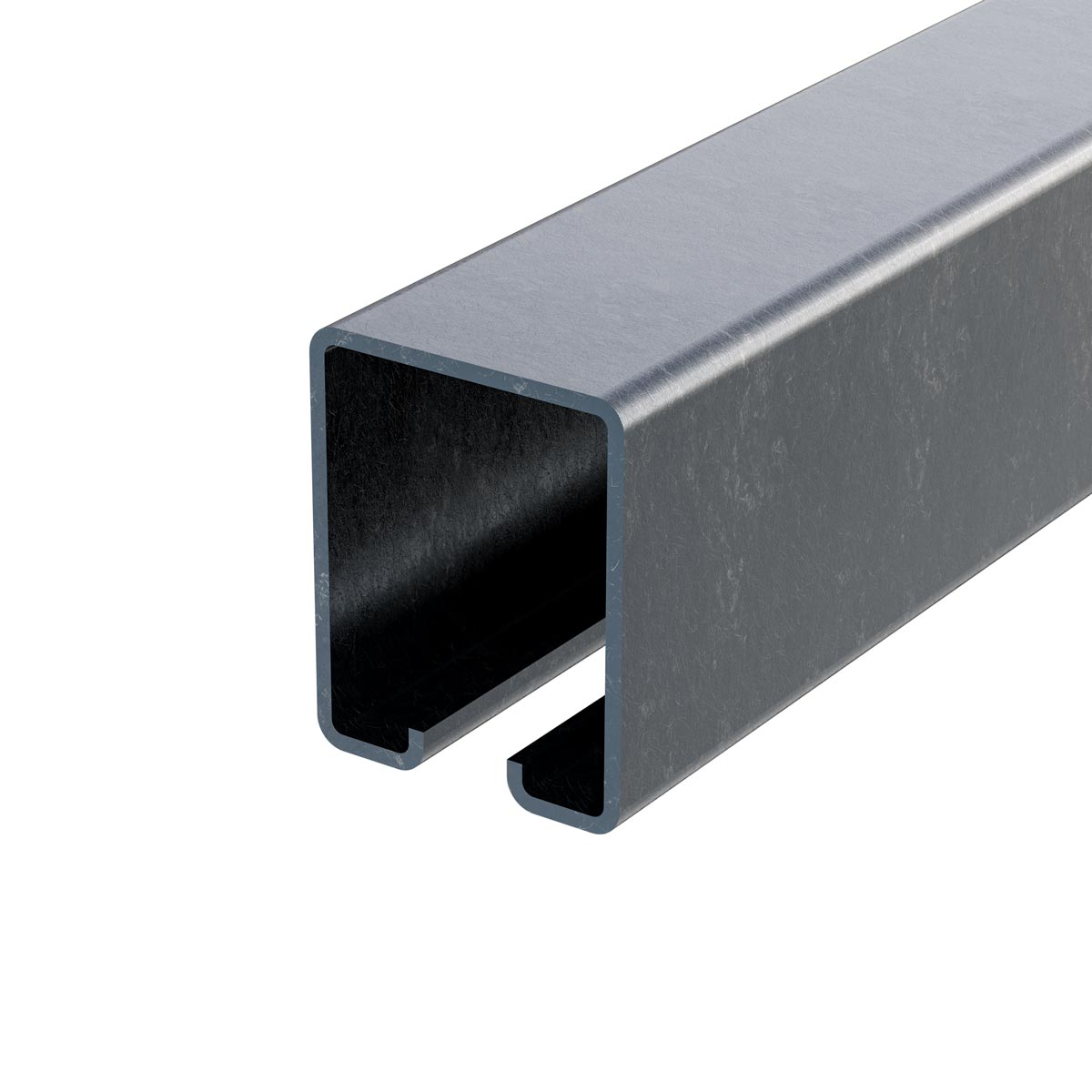

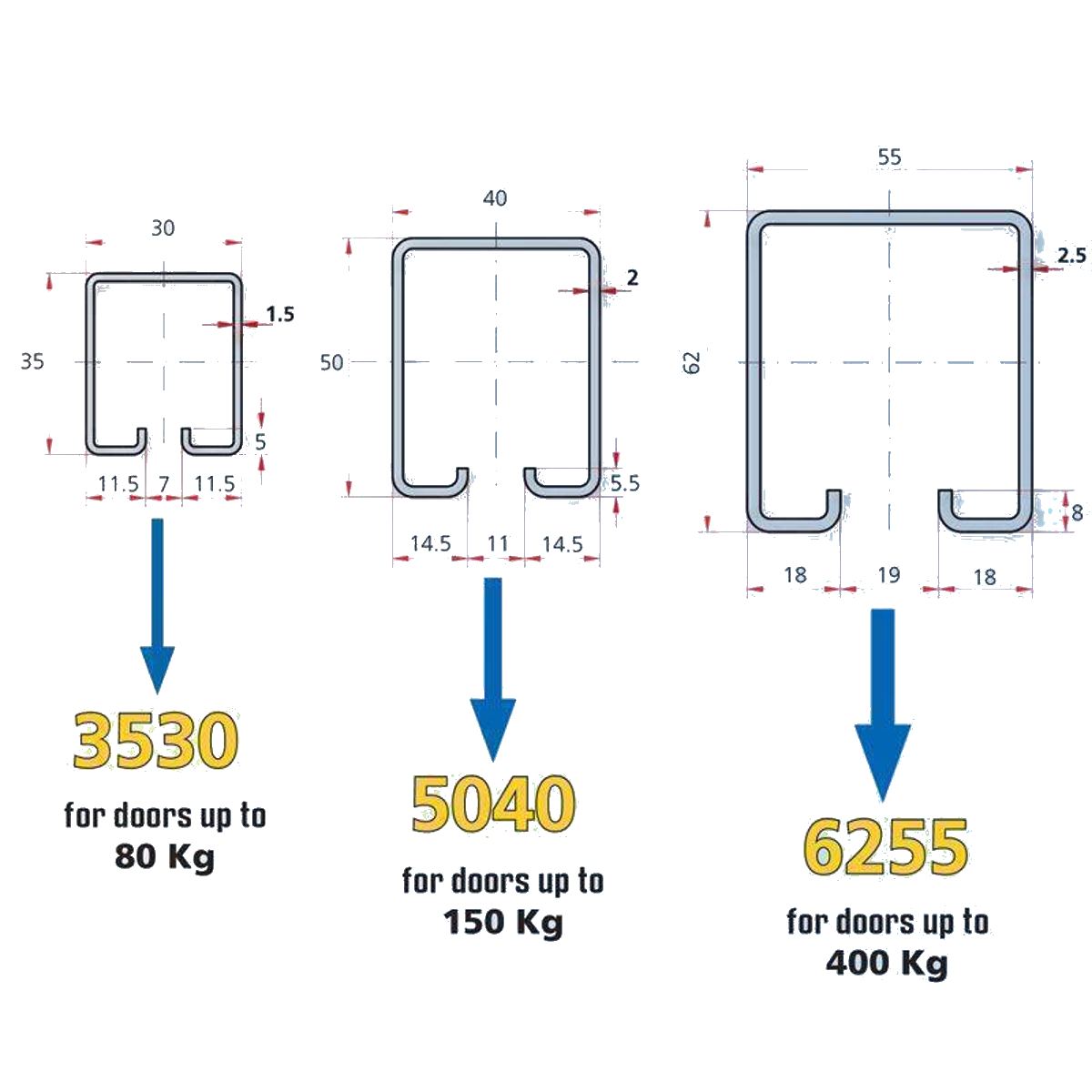

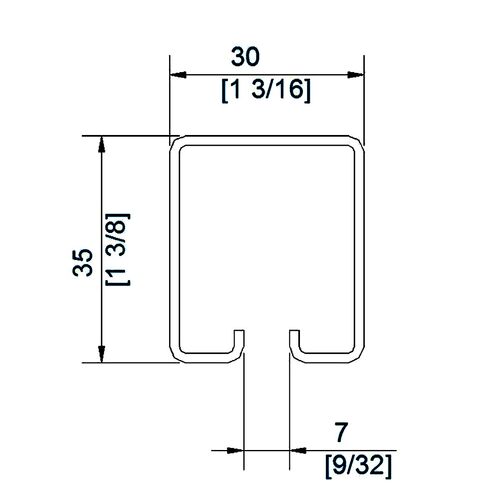

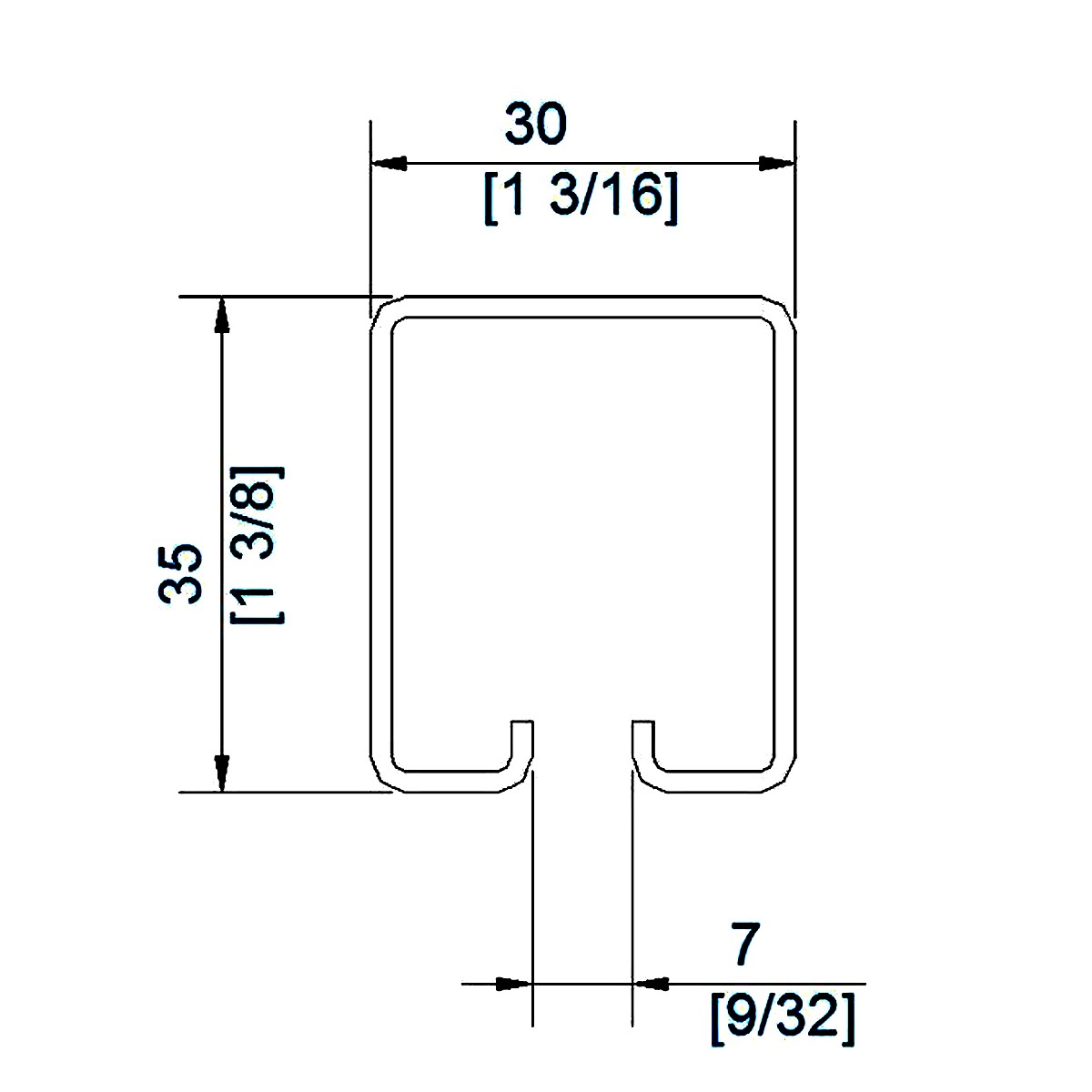

  • 1 x track 3530 (3000mm)

All technical drawings and DWG models are available in the 'technical docs' tab.

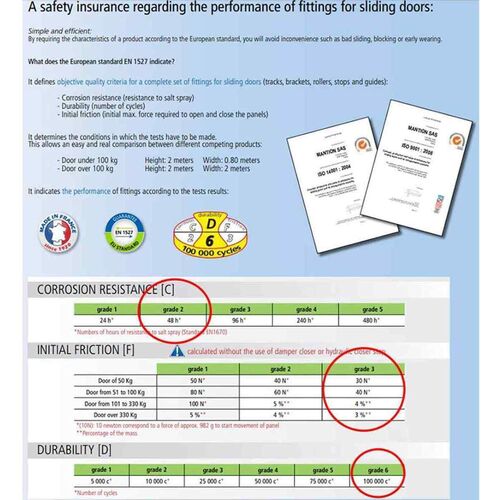

In accordance with the European standard EN1527

Please note doors are not included

Sliding Systems

Dedicated for:
  • Industrial Doors
Included accessories for :
  • 1 door
Maximum Door Weight :
80kg
Product short Name:
Sportub
System Type:
Industrial
